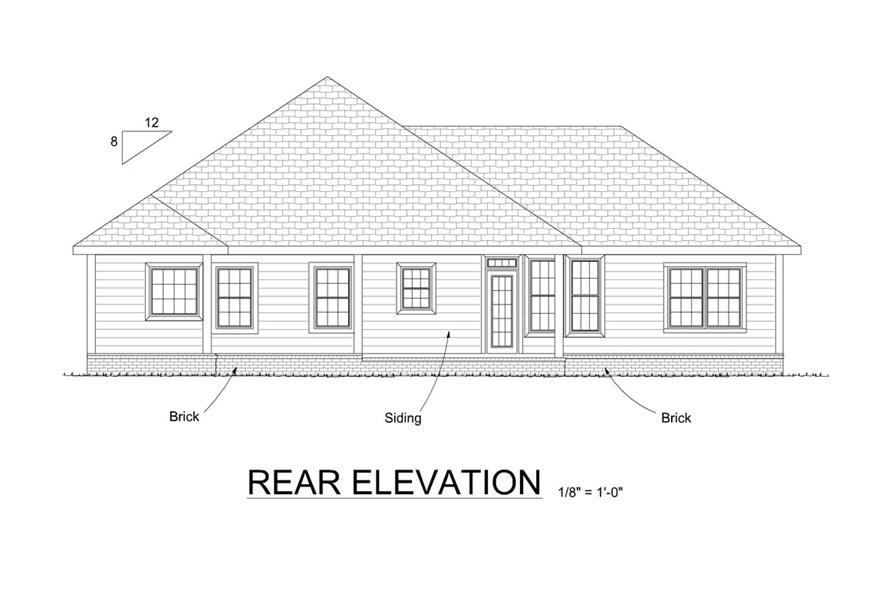

178-1314: Home Plan Rear Elevation
178-1314: Home Exterior Photograph-Rear View
178-1314: Home Exterior Photograph-Aerial View
178-1314: Home Exterior Photograph-Right Side View
178-1314: Home Exterior Photograph-Left Side View
178-1314: Home Exterior Photograph-Left Side View
178-1314: Home Exterior Photograph-Rear View
178-1314: Home Exterior Photograph-Porch
178-1314: Home Other Image-Front View
178-1314: Home Other Image-3D Floor Plan
4-Bedroom, 1682 Sq Ft Ranch Home Plan - 178-1314 - Main Exterior
178-1314: Home Plan Rear Elevation
178-1314: Home Exterior Photograph-Rear View
178-1314: Home Exterior Photograph-Aerial View
178-1314: Home Exterior Photograph-Right Side View
178-1314: Home Exterior Photograph-Left Side View
178-1314: Home Exterior Photograph-Left Side View
178-1314: Home Exterior Photograph-Rear View
178-1314: Home Exterior Photograph-Porch
178-1314: Home Other Image-Front View
178-1314: Home Other Image-3D Floor Plan

About Plan # 178-1314

About Plan # 178-1314

1682 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 55' 8" WIDTH 55' 4" DEPTH 2 GARAGE BAY

This attractive Ranch-style home plan would look great in any setting. Enter the house plan from the front porch, and step into the living room, which is central to the home floor paln and gives you access to all areas of the house plan. The living room has wonderful sloped ceilings that reach a great 12-foot height. The living room seamlessly flows into the kitchen and dining room. The lovely kitchen features an L-shape design as well as a large island with a built-in eating bar. The dining room has a door that leads to the rear porch.

On one side of the living room, you have access to a hallway that leads to two bedrooms, which are split from the master suite. Each bedroom features a 9-foot-tall ceiling and reach-in closet.

On the opposite side of the living room is another hallway that leads to the main-floor laundry room and two-car side entry garage. Also in this hallway is one bedroom, split from the master suite.

Across the hallway, you will find the master suite. Enter the master suite through the spacious master bedroom, which features a 9-foot-tall ceiling and allows you to access the ensuite bathroom and large walk-in closet. The master bathroom features dual sinks and a large soaking tub.

Each plan set includes the following:

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan, including electrical, window and door sizes, floor joist span directions, and ceiling type notes (9’ ceiling, vault, etc)
  • Second-floor plan (if applicable) with the same info as shown on first-floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges & valleys.
  • Foundation plan
  • Full building section

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

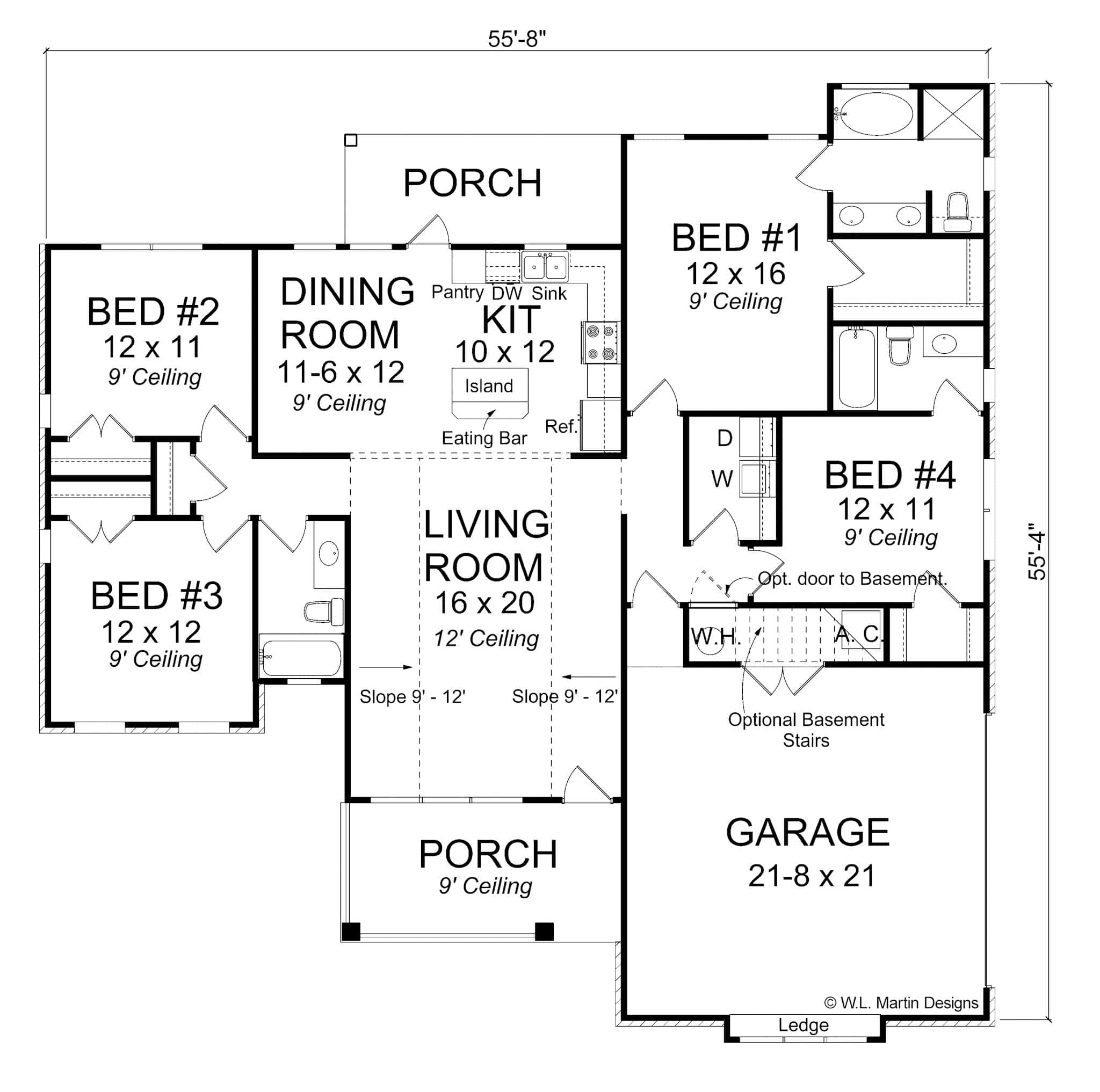

Home Plan: #178-1314 Floor Plan First Story - first story Floor Plan First Story of Ranch Plan #178-1314
Home Plan: #178-1314 Floor Plan First Story - first story Floor Plan First Story of Ranch Plan #178-1314
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 178-1314
Floors:
1
Bedrooms:
4
Full Baths:
3
Garage :
2

Square Footage

Heated Sq Feet:
1682
Main Floor:
1682
Unfinished Sq Ft:
Garage :
510
Porch :
131

Dimensions

Width:
55' 8"
Depth:
55' 4"
Ridge Height:
23' 0"

Architectural Styles

Country
Ranch
Traditional

Exterior Wall Material

Vinyl Siding
Brick
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

8/12

Ceiling Height

9 Foot Ceiling
8 Foot Ceiling
12 Foot Ceiling

Special Feature

Dining Room
Mud Room
Main Level Laundry
Color Photos
Storage
Vaulted Ceilings
Open Floor Plan

Garage Type

Attached Garage
Side Entry

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

Please Note: This plan comes standard with a Construction License that gives the original purchaser the right to build the plan as many times as you like. PLEASE NOTE!! When purchasing a CAD file, the designer will also send the PDF. Duplex and Triplex Plans are Slab & 2x4 ONLY!! If you need to change either, please send in a modification request.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.
