4-Bedroom, 1553 Sq Ft Ranch Plan with Nook/Breakfast Area

Main image for House Plan #117-1040

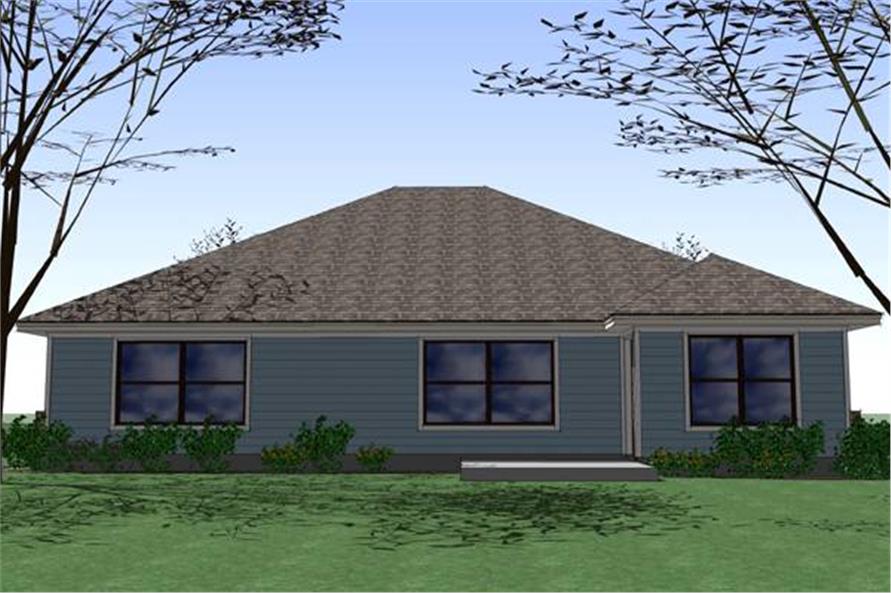

117-1040: Home Plan Rear Elevation

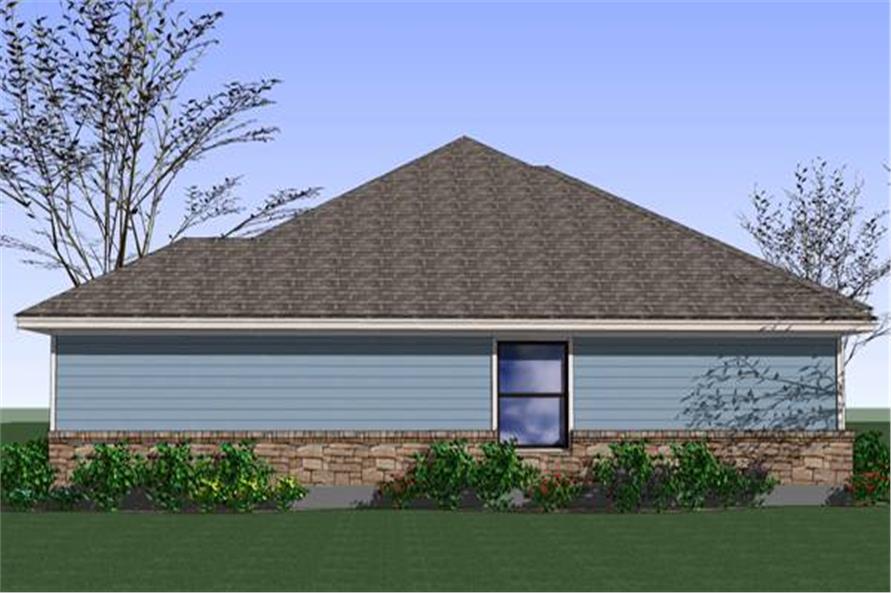

117-1040: Home Plan Left Elevation

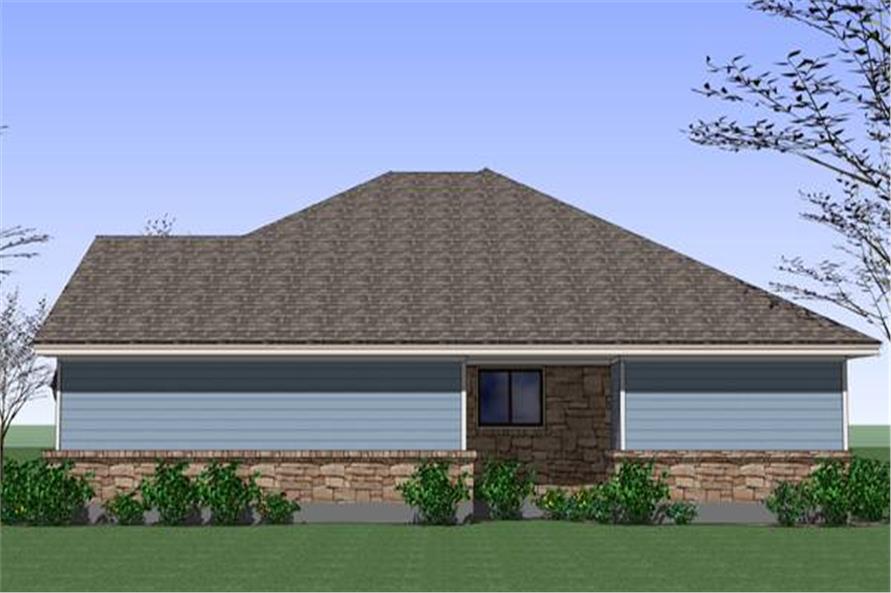

117-1040: Home Plan Right Elevation

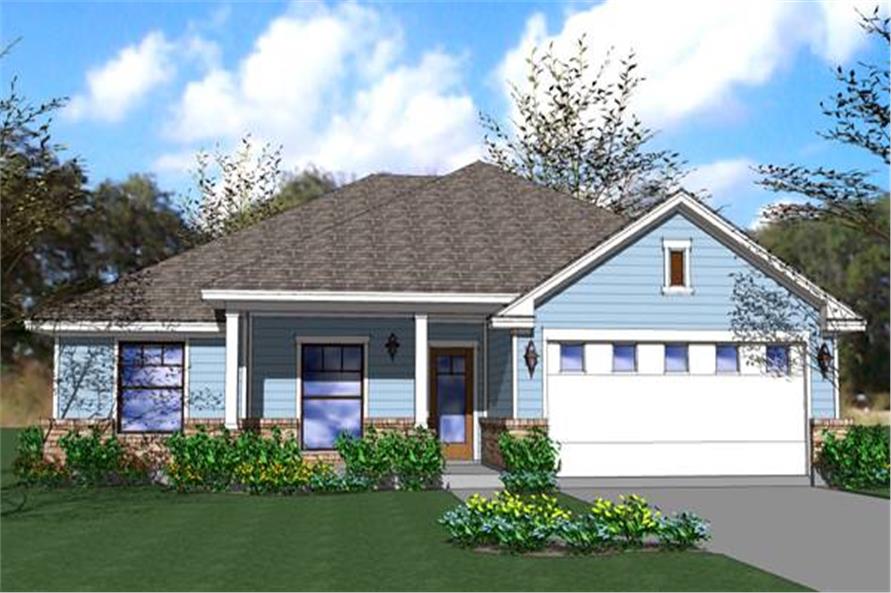

4-Bedroom, 1553 Sq Ft Ranch House Plan - 117-1040 - Front Exterior
117-1040: Home Plan Rear Elevation
117-1040: Home Plan Left Elevation
117-1040: Home Plan Right Elevation

About Plan # 117-1040

About Plan # 117-1040

1553 SQUARE FEET 4 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 48' 5" WIDTH 50' 0" DEPTH 2 GARAGE BAY

This is a great single story house plan with 1553 total square feet. Some of the special features of this home plan include: covered front porch; a large master suite with spacious walk-in closet - plus a master bath featuring seperate soaking tub and shower; generous secondary bedrooms; a lovely family room with fireplace. Truly a charming Ranch home.

Each plan set includes the following:

  • Detailed floor plans
  • Exterior elevations
  • Cabinet elevations
  • Sections/Details
  • Framing plans
  • Foundation plans
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

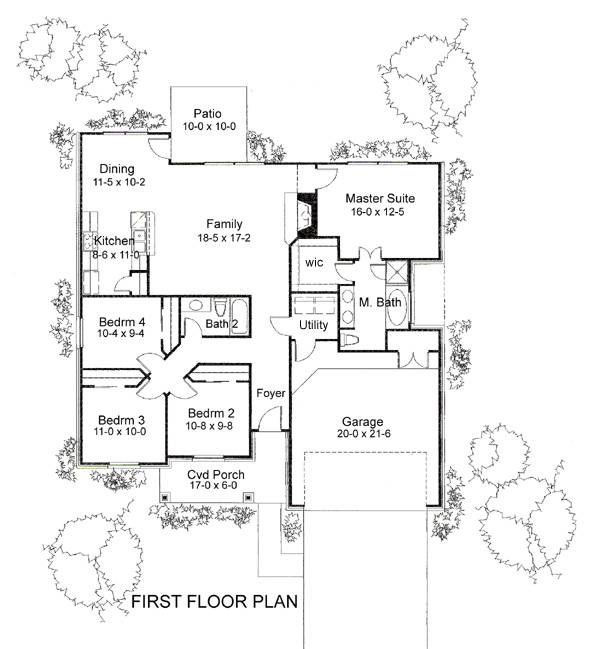

Home Plan: #117-1040 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #117-1040
Home Plan: #117-1040 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #117-1040
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 117-1040
Floors:
1
Bedrooms:
4
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
1553
Main Floor:
1553
Unfinished Sq Ft:
Garage :
435
Porch :
119

Dimensions

Width:
48' 5"
Depth:
50' 0"
Ridge Height:
20' 0"

Architectural Styles

Ranch
Traditional
Texas Style
Cottage

Exterior Wall Material

Vinyl Siding
Rock/Stone
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

7/12

Ceiling Height

8 Foot Ceiling

Special Feature

Fireplace
Family Room
Main Level Laundry
Open Floor Plan

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Kitchen Features

Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Patio

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
