4-Bedroom, 1863 Sq Ft Craftsman Plan with Nook/Breakfast Area

Front elevation of Craftsman home (ThePlanCollection: House Plan #176-1002)
176-1002: Home Exterior Photograph
4-Bedroom, 1863 Sq Ft Craftsman Home Plan - 176-1002 - Main Exterior
176-1002: Home Exterior Photograph

About Plan # 176-1002

About Plan # 176-1002


This Craftsman ranch house plan is a homeowner's delight. Shakes, siding, rock and stone come together better than a Picasso to present a wonderful curb appeal.

The home is designed with the needs of a growing family in mind. It offers 3 large bedrooms, 2 baths, an open style great room, a dining, and study. The great room has a corner fireplace that is inviting and warms the home. The bonus room offers options like a 4th bedroom, media or game room.

 The master suite is split from the other rooms. It offers dual sinks, enclosed toilet room, a jetted tub, separate shower and a sizable walk-in closet. With all these features and many more, this house plan is sure to be perfect for you.

Laundry Room 7' 2 " x 7' 2 " Foyer 6' 6 " x 7' 6 " Covered Porch (Rear) 11' 4 " x 5' 0 " Bathroom #02 8' 6 " x 5' 0 " Main Bathroom 8' 6 " x 5' 0 " Master Bathroom 10' 0 " x 9' 4  " Master Closet #01 10' 0 " x 5' 0 " Veranda 20' 0 " x 5' 6 " Stairs are 3' 6" wide (clear)

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.


Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

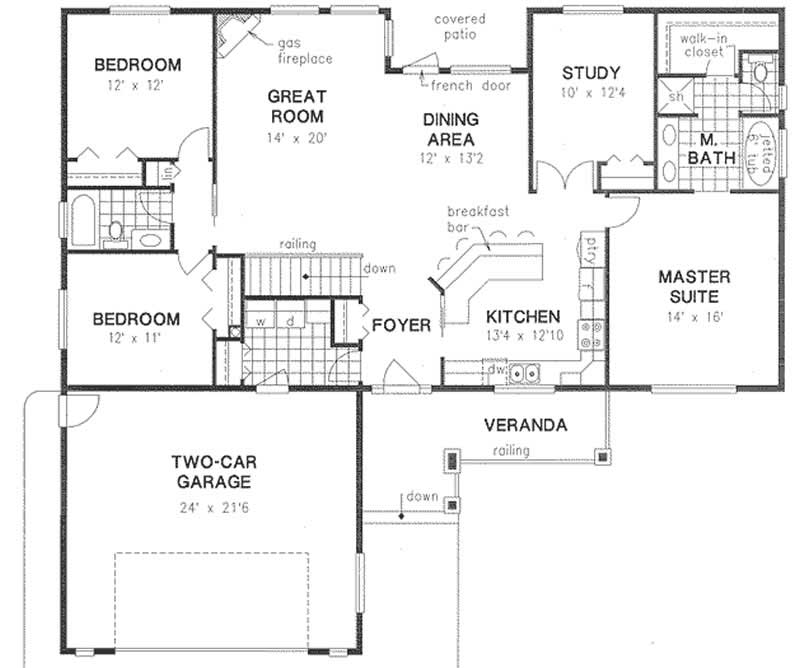

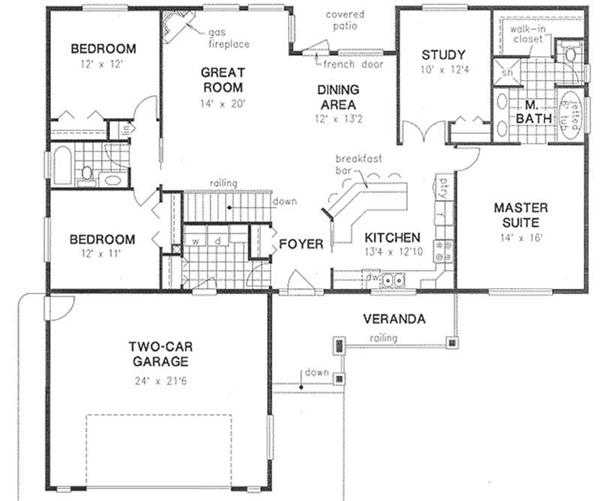

Home Plan: #176-1002 Floor Plan First Story - main elevation Floor Plan First Story of Craftsman Plan #176-1002
