4-Bedroom Ranch Plan with Split Bathroom and Side-Entry Garage, 1,850 Sq Ft

About House Plan #142-1222

1850

Sq Ft

4

Bedrooms

2

Baths

0

Half Baths

2

Cars

1

Stories

60' 2'

Width

61

Depth

Starting at$1445.00What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Free Cost Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

Share Plans

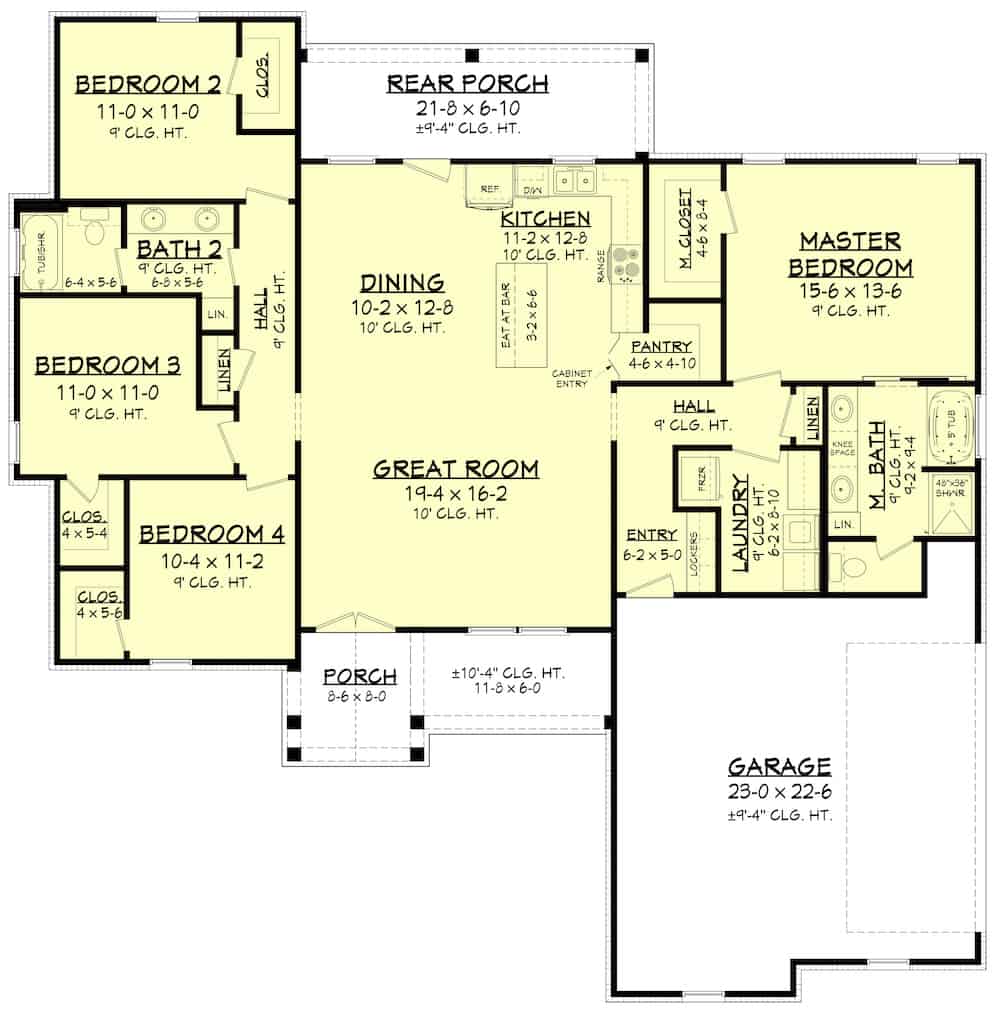

Floor Plan Main Level

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

On some plans, Basement Foundations, Walkout Basement Foundations, & 2x6 Conversions could take up to ONE WEEK to produce. Materials Lists could take up to FOUR WEEKS to produce and they will be for the ORIGINAL plan! Any modifications will NOT be reflected on the Materials List. NOTE FROM DESIGNER: If you purchase a CAD, you will automatically receive the unlimited build license - no need to purchase separately!

House Plan Description

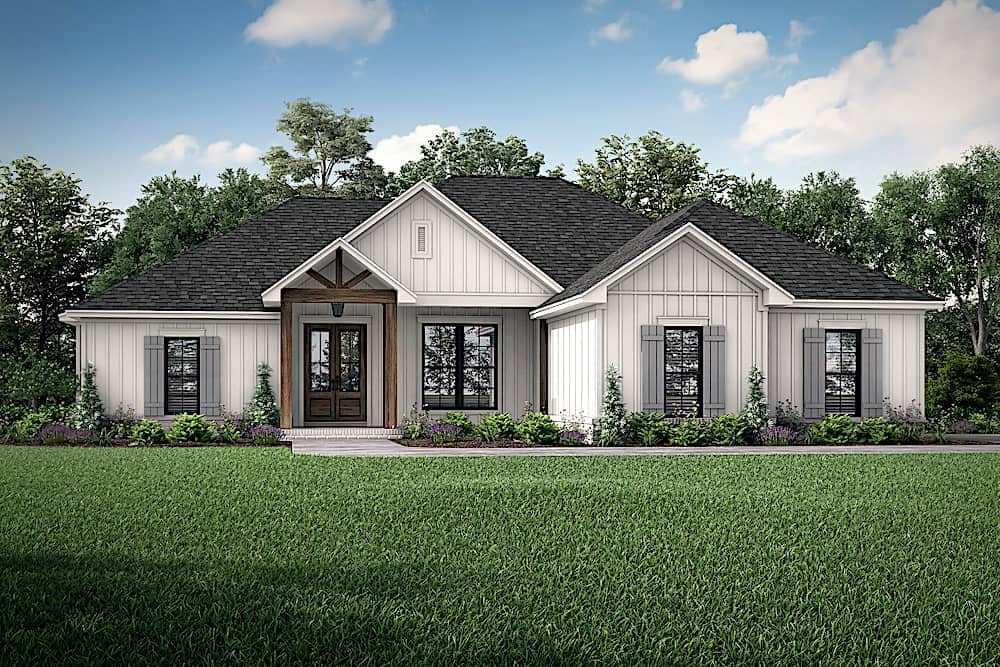

A split-bedroom arrangement defines this 1,850-sq-ft 4-bedroom ranch. The primary bedroom takes up the right rear corner, and three more bedrooms cluster along a hall on the left. White board-and-batten walls sit under a hipped roof broken by two front gables. A small gabled portico, framed in timber and carried on cedar posts, marks the double wooden entry doors.

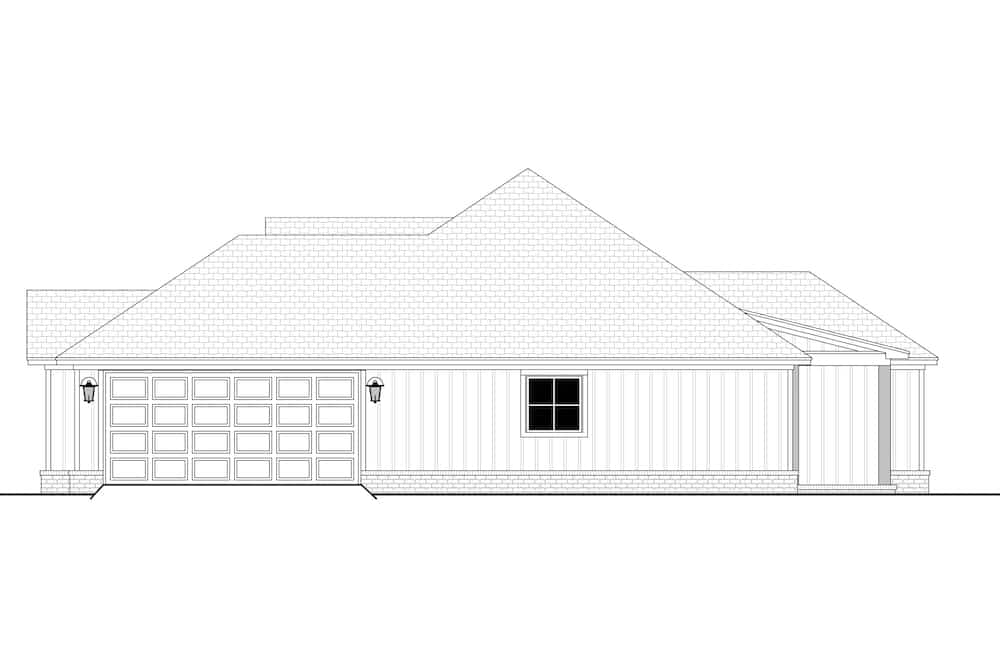

The side-entry garage keeps its doors off the front, a layout suited to a corner lot. Coming in, a short entry with lockers...

Home Details

Summary

Plan #:142-1222

Starting at:$1445.00

Floors:1

Bedrooms:4

Full Baths:2

Half Baths:0

Garage:

Square Footage

Heated Area:1850 Sq. Ft.

First Floor:1850 Sq. Ft.

Unheated Area:

Garage:559 Sq. Ft.

Porch:284 Sq. Ft.

Dimensions

Width:60' 2''

Architectural Styles

Country Ranch Transitional Rustic

Exterior Wall Material

Vinyl SidingWood Siding

Roofing Type

GableHip

Roofing Material

Asphalt Shingles

Roof Pitch

3/124/128/129/12

Ceiling Height

10 Foot Ceiling9 Foot Ceiling

Special Feature

Family RoomMain Level LaundrySplit BathroomOpen Floor Plan L-Shaped

Garage Type

Attached GarageSide Entry

Exterior Wall Framing

2x4

Building Lot Type

Corner Lot

Kitchen Features

Kitchen IslandWalk-in PantryPeninsula/Eating Bar

Porches and Exterior Features

Covered Front PorchCovered Rear Porch

Master Suite Features

Main Floor MasterMaster Bathroom Walk In Closet Split Master Bedroom

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Cover sheet

Foundation plan

Dimensional floor plan

Exterior views

Roof plan

Electrical layout

Wall section(s)

Building section(s)

Cabinet elevations

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

No Framing

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
