3-Bedroom, 1163 Sq Ft Cottage Plan with Master Bathroom
Related House Plans
| 1163 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 29' 0" WIDTH | 47' 8" DEPTH | 0 GARAGE BAY |

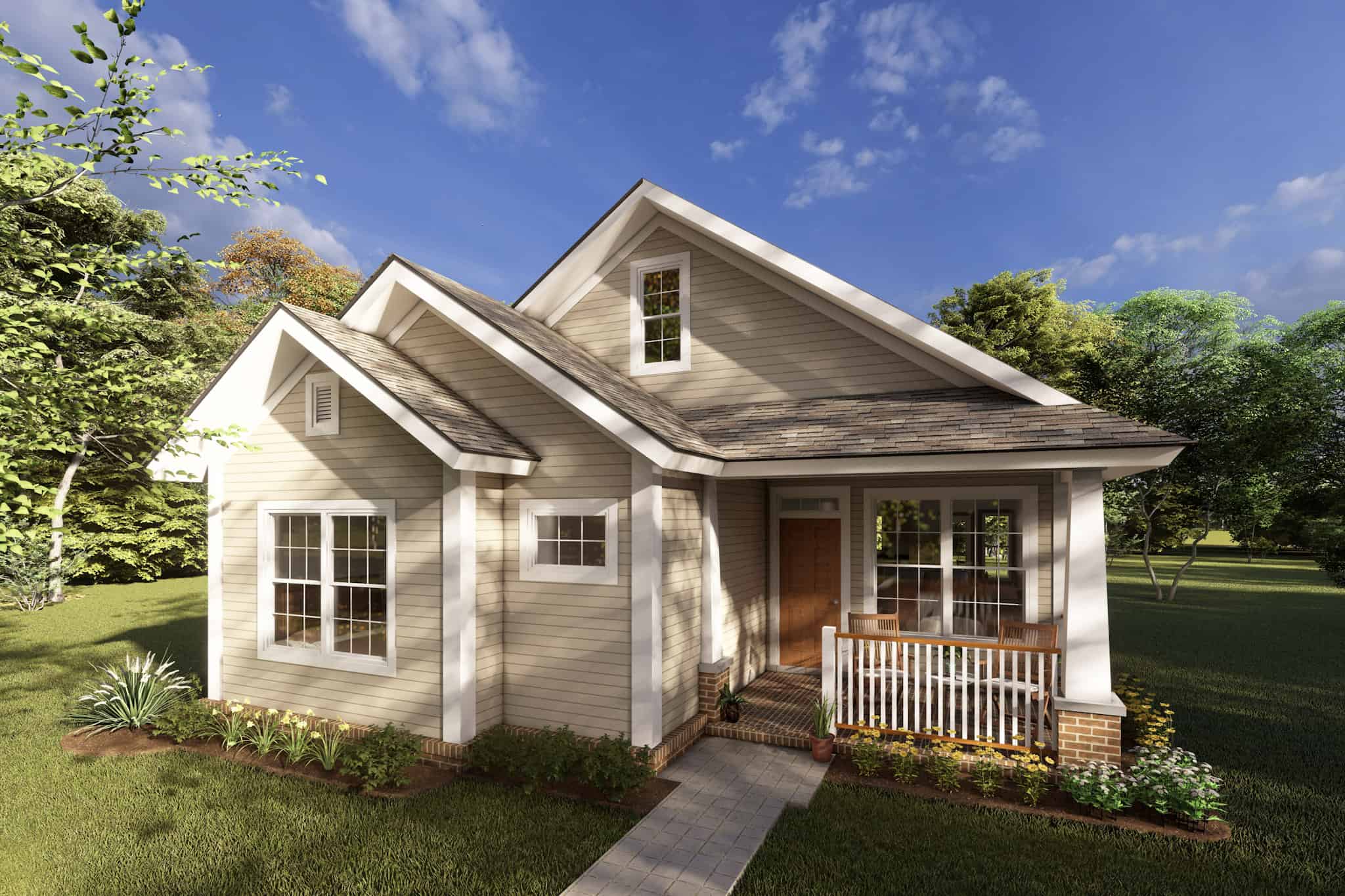

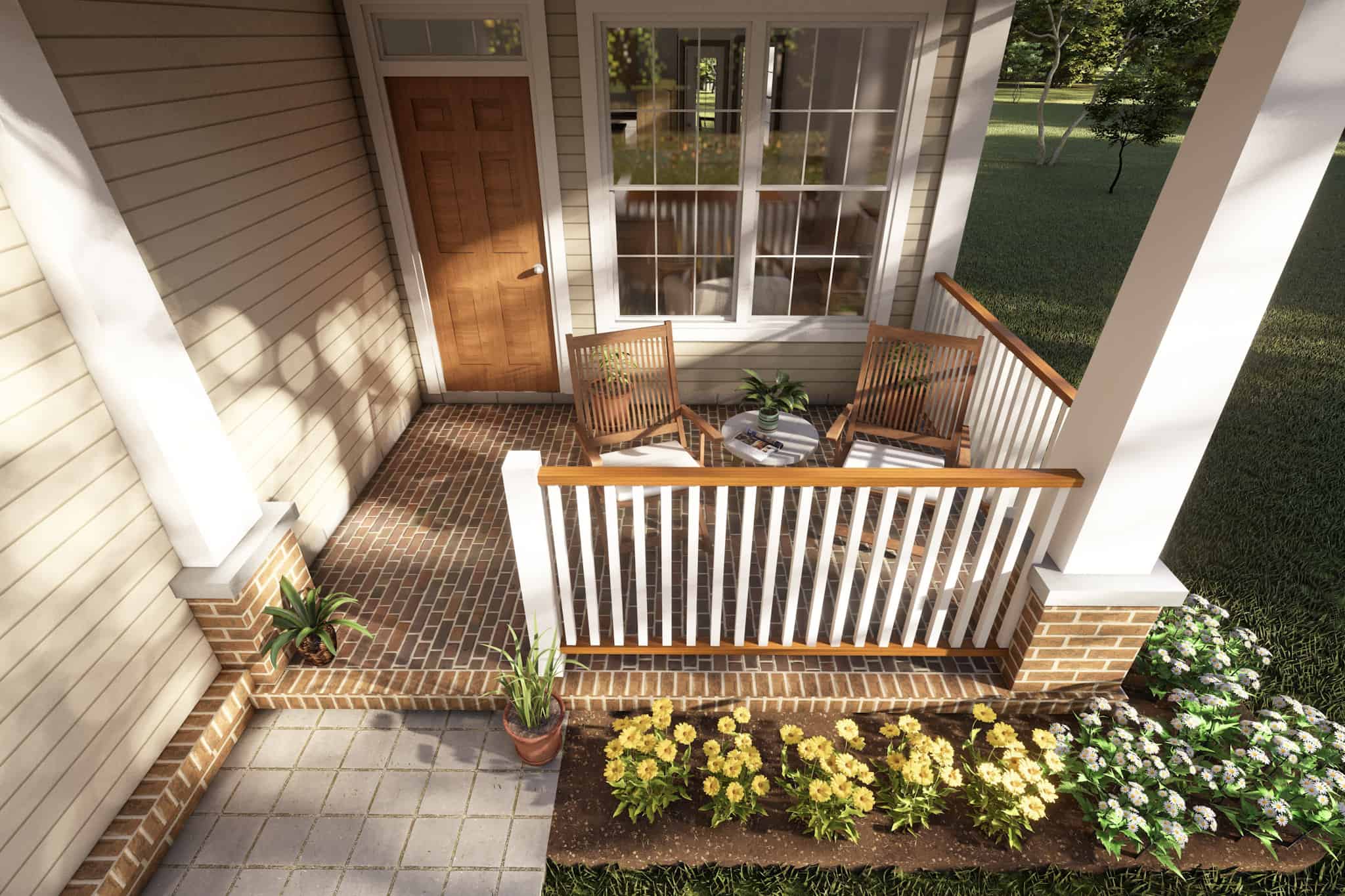

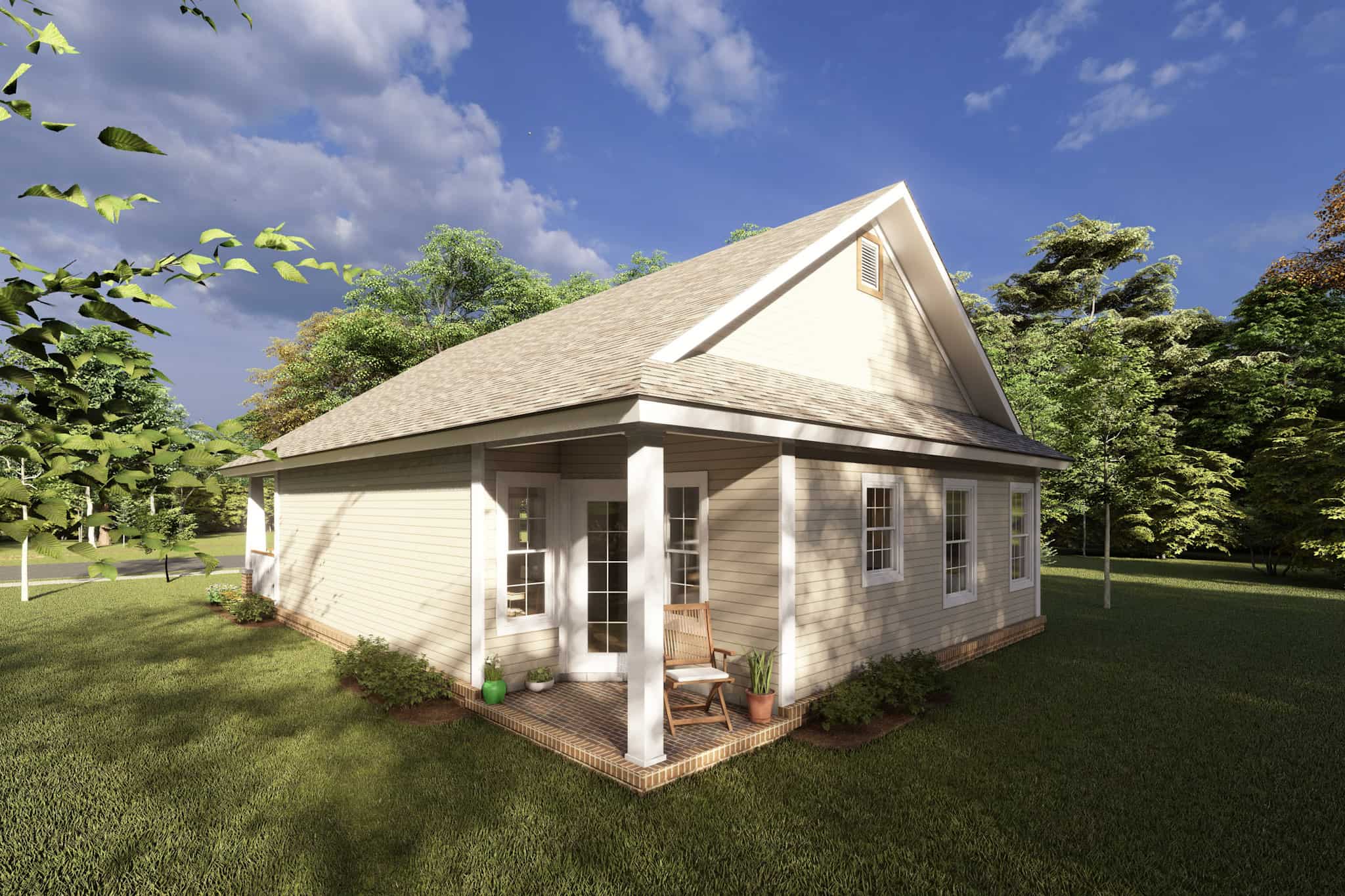

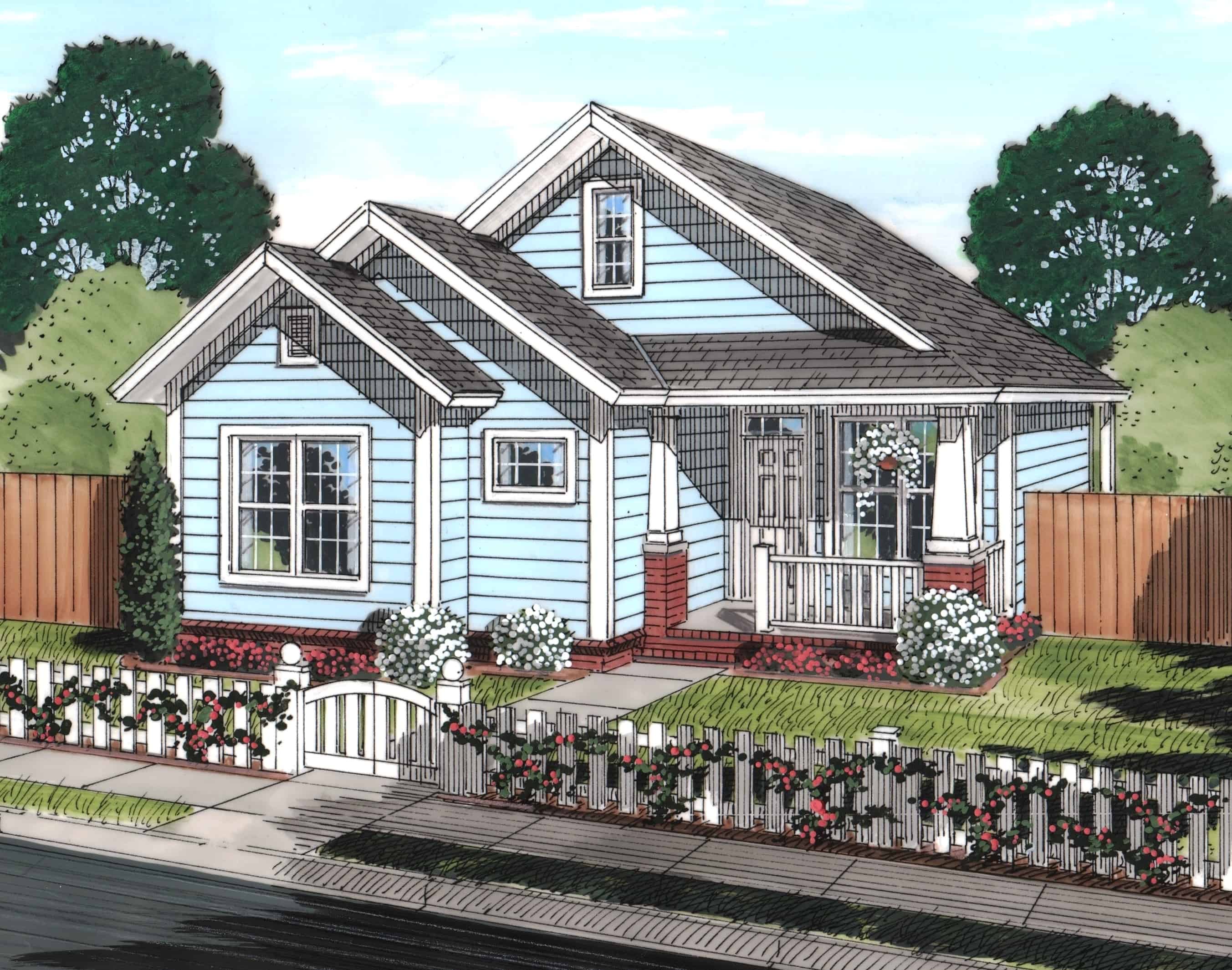

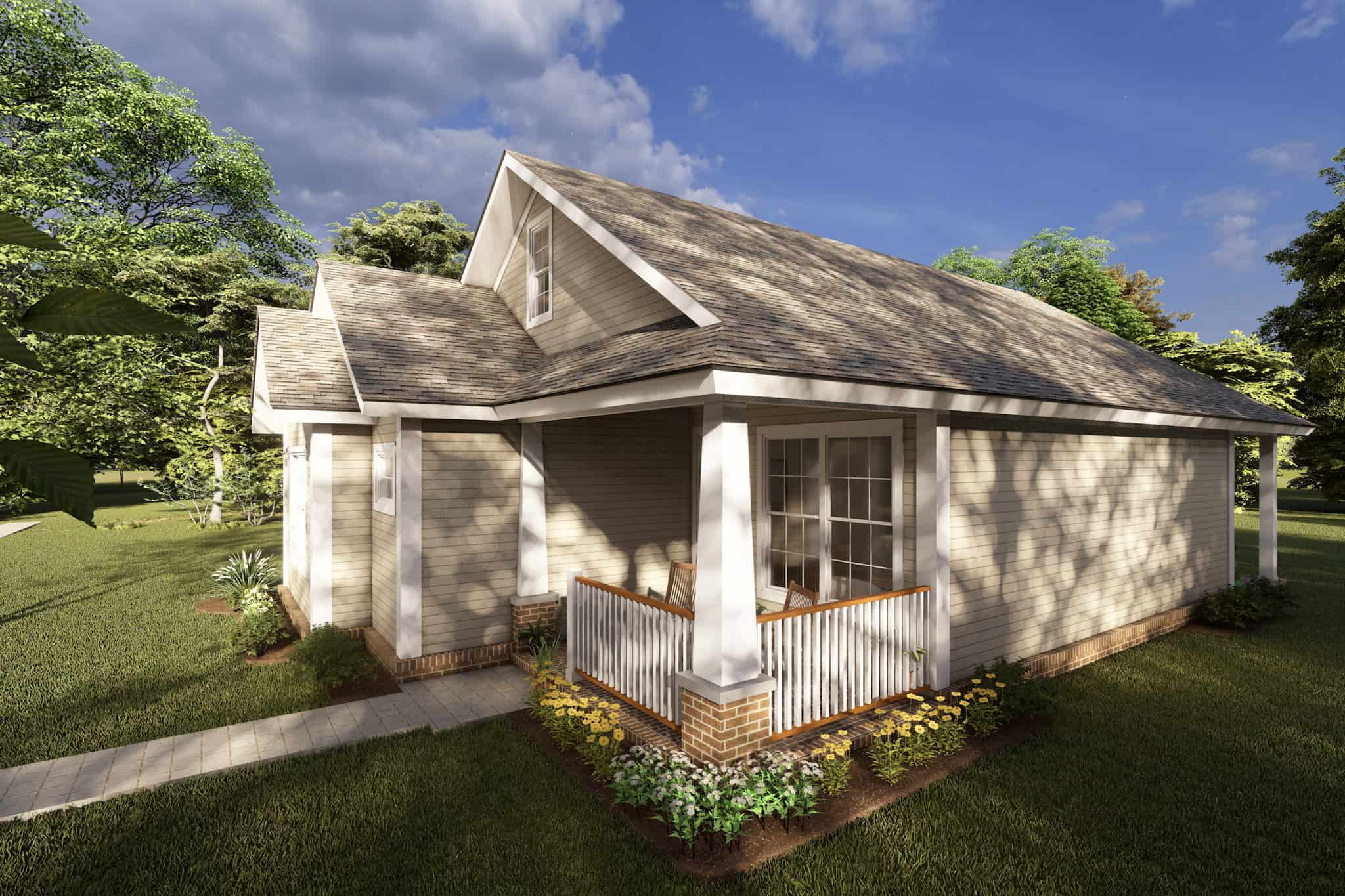

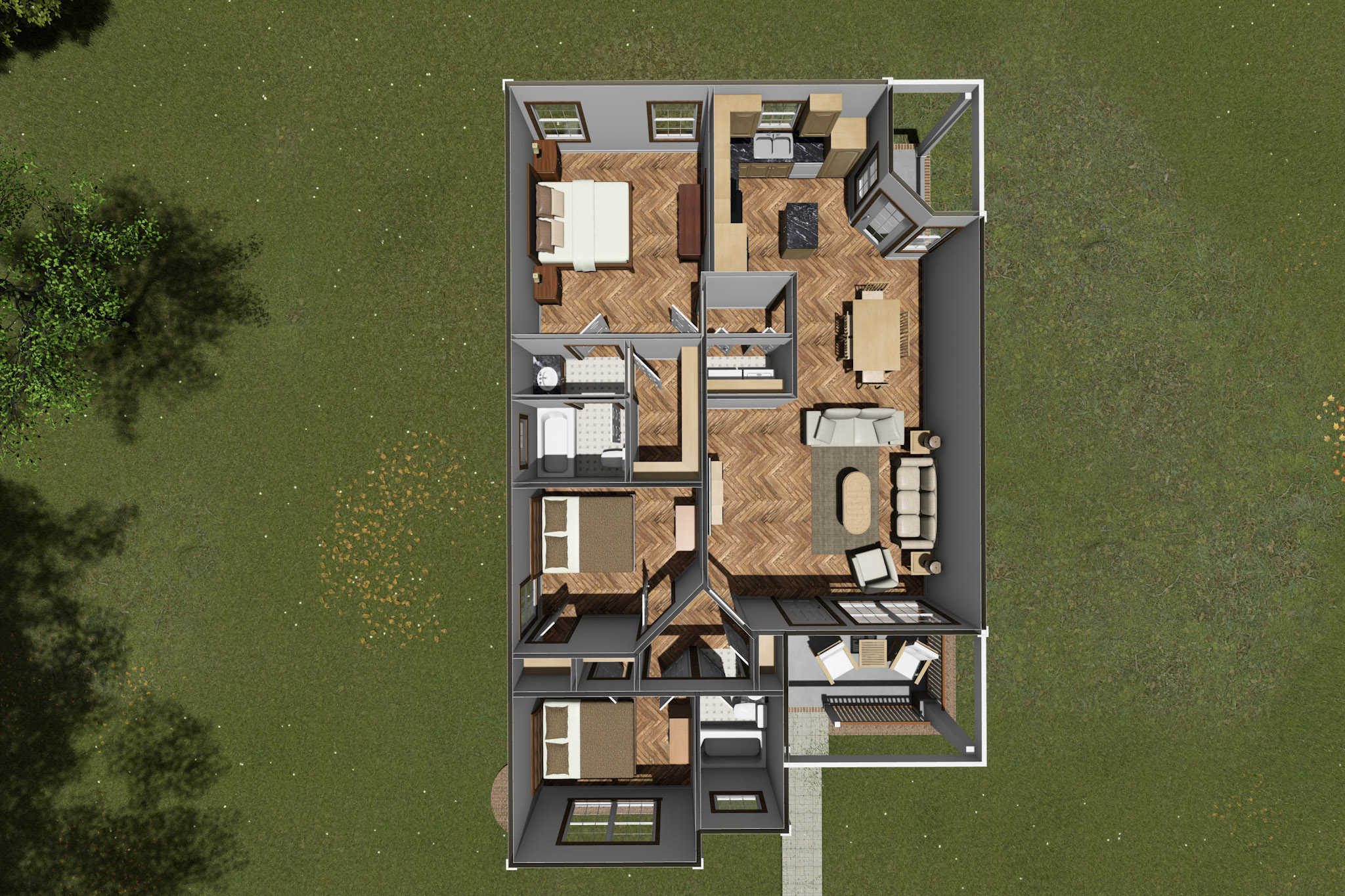

This eye-catching Cottage style home with Craftsman details (House Plan #178-1245) has 1163 square feet of living space. The 1-story floor plan includes 3 bedrooms. The attractive front porch, large front window, and well-crafted front door greet family and friends alike. Inside, the open floor plan creates a much larger sense of space than the actual square footage would suggest. In the living room, a ceiling sloping from 12 feet to 9 feet also creates a sense of spaciousness in the home. The ceilings throughout the rest of the home are also 9 feet. The dining room transitions well to the efficiently-designed kitchen with its island and pantry. A rear porch is perfect for grilling on warm or cool evenings.
Bedroom #2 and #3 share a hall bathroom. At the rear of the home -- for additional privacy -- is the master suite. It includes a large walk-in closet, a split bathroom with the sink separated from the tub/shower and toilet. The linen closet is a nice touch.
Each plan set includes the following:
- Front elevation and construction notes

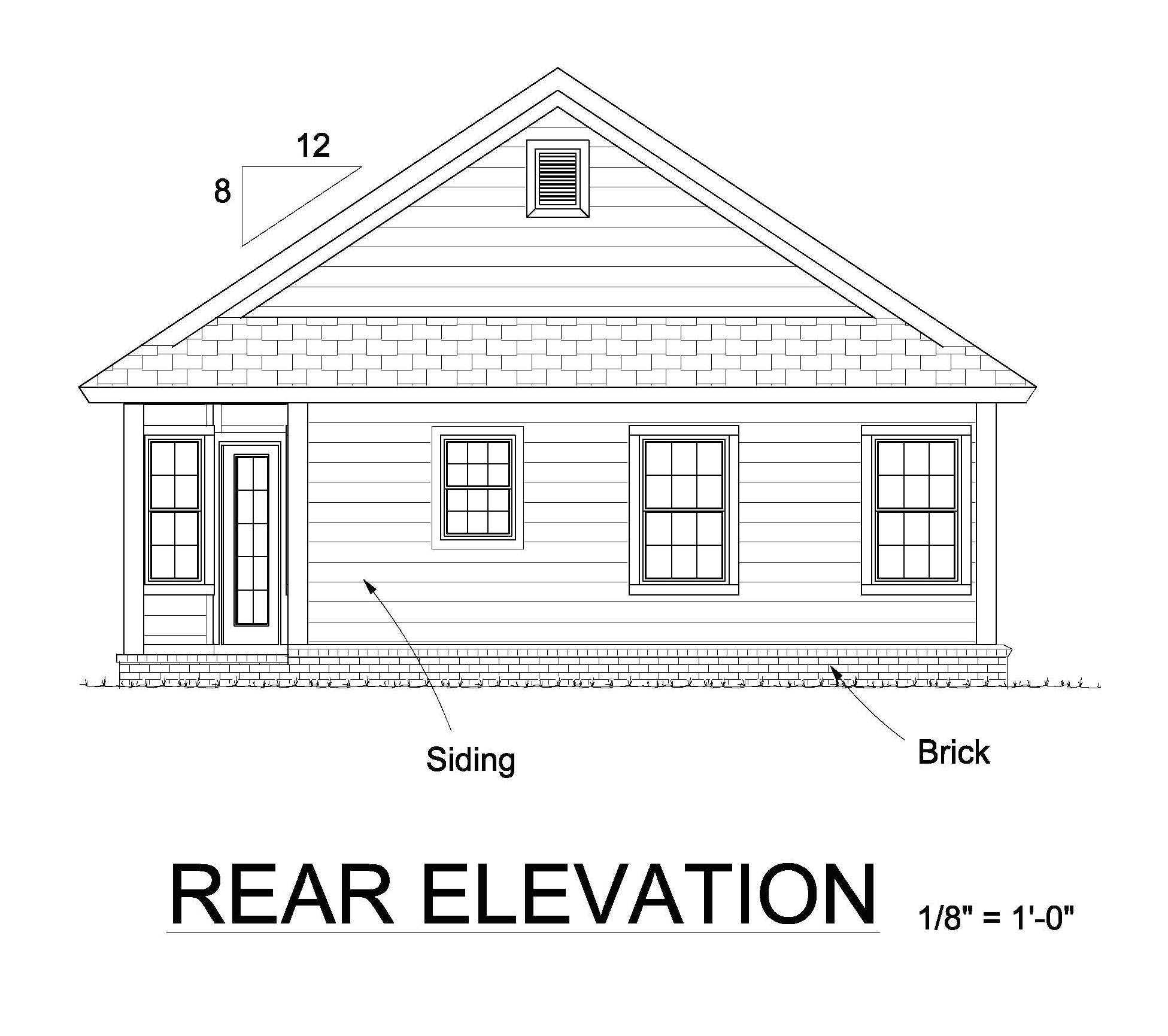

- Rear and side elevations

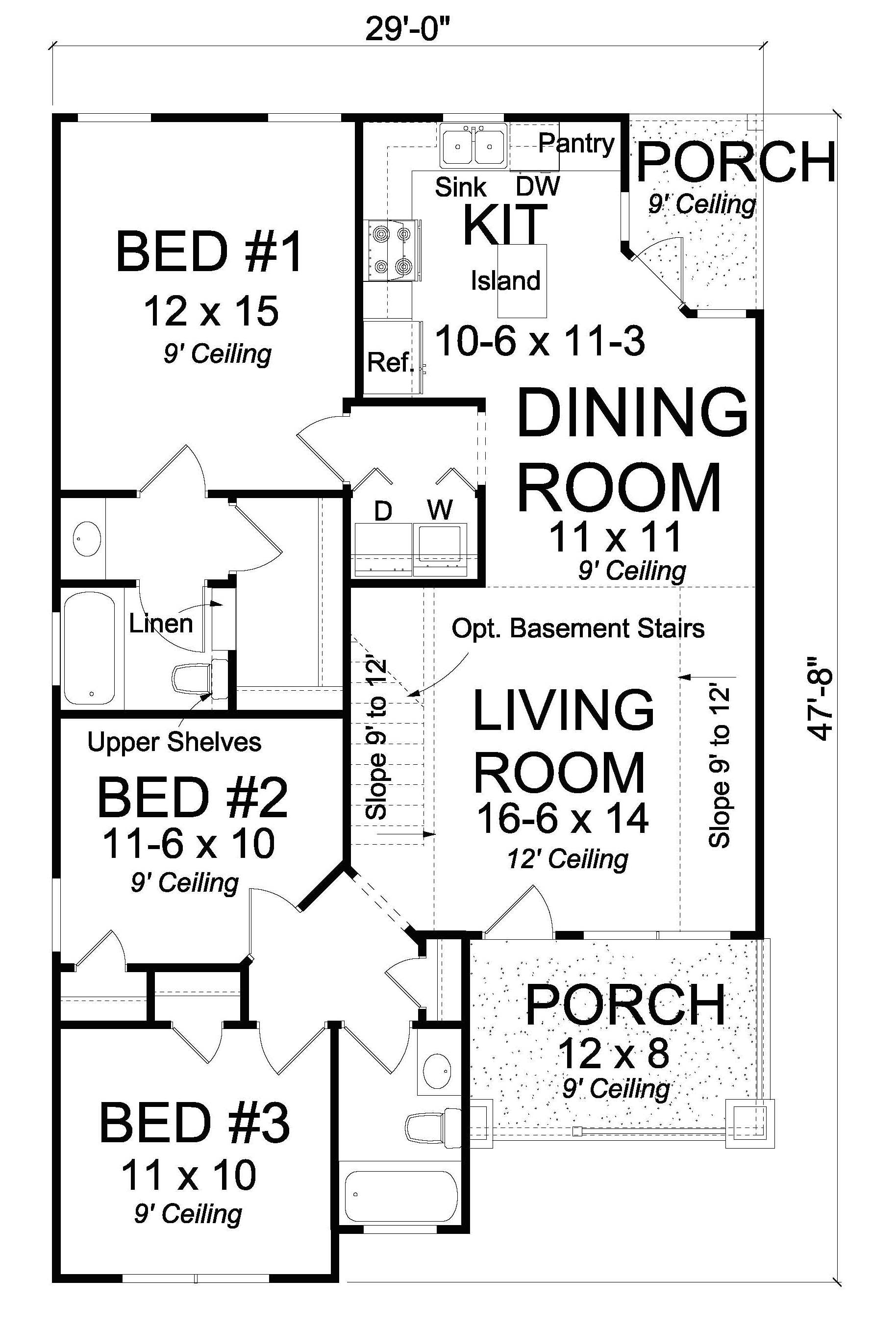

- Floor plan, including electrical, window and door sizes, floor joist span directions, and ceiling type notes (9’ ceiling, vault, etc)
- Second-floor plan (if applicable) with the same info as shown on first-floor plan
- Typical wall section
- Typical foundation details
- Roof plan showing roof pitches, ridges & valleys.
- Foundation plan
- Full building section
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review
FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Roof Pitch
Ceiling Height
Special Feature
Exterior Wall Framing
Building Lot Type
Kitchen Features
Porches and Exterior Features
Master Suite Features
Additional Notes from Designer
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
How much will this plan cost to build?
