Home > Floor Plans by Styles > Bungalow House Plans > Plan Detail for 178-1146

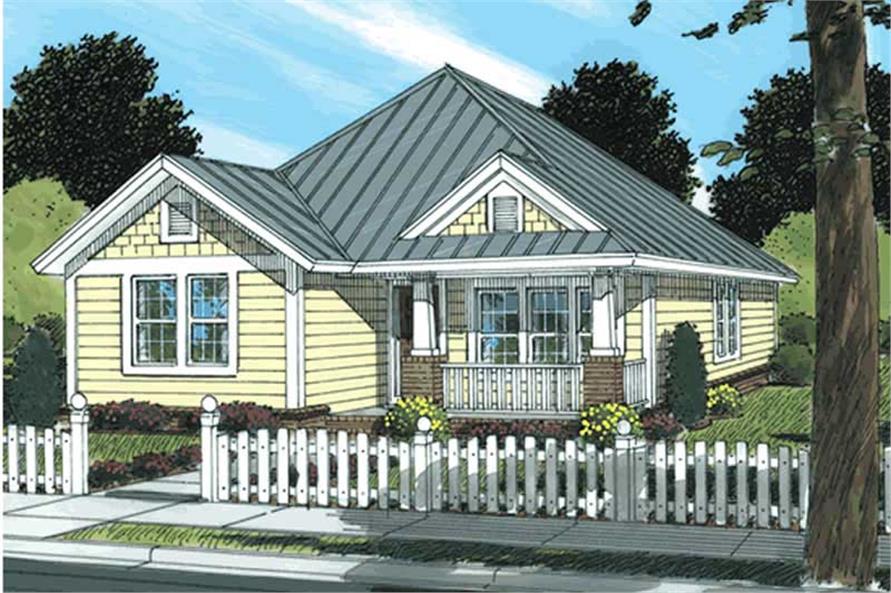

Front elevation of Bungalow home (ThePlanCollection: House Plan #178-1146)

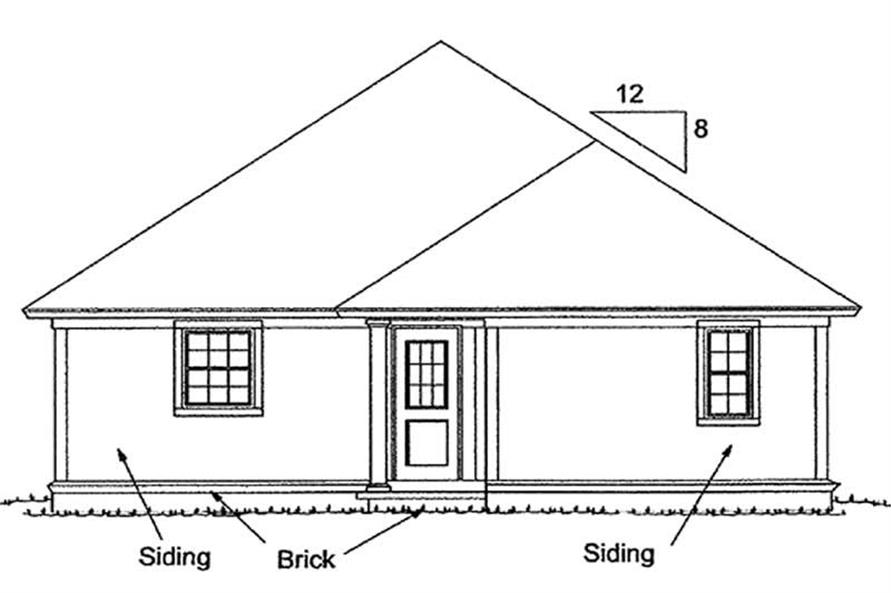

REAR ELEVATION
3-Bedroom, 1271 Sq Ft Bungalow House Plan - 178-1146 - Front Exterior
REAR ELEVATION

About Plan # 178-1146

About Plan # 178-1146

1271 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 32' 0" WIDTH 49' 6" DEPTH 0 GARAGE BAY

This one-story, three-bedroom bungalow house plan is perfect for narrow lots. With a modest amount of living space, this house design still offers many amenities like vaulted ceilings and an open floor plan. The view into the home from the porch is inviting and leads family and friends to the sizable great room that encompasses both the living room and the dining area. The kitchen island has an eating bar that is perfect for quick meals, and there's a pantry just a few steps away. The master includes a split bathroom and walk-in closet. To the rear of the home are a storage area and a rear porch accessible from the laundry room. For a similar house design with a garage see our plan 178-1145.

Looking for a different bungalow house design? How about a Modern Farmhouse style plan with a formal dining room and 3-car garage? The Plan Collection has thousands of home designs. Whether you’re an empty nester looking to build a smaller home with the perfect breakfast nook or you’re a homeowner on the hunt to find the plan that will help you build the family home of your dreams, we can help.

Each plan set includes the following:

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan, including electrical, window and door sizes, floor joist span directions, and ceiling type notes (9’ ceiling, vault, etc)
  • Second-floor plan (if applicable) with the same info as shown on first-floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges & valleys.
  • Foundation plan

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

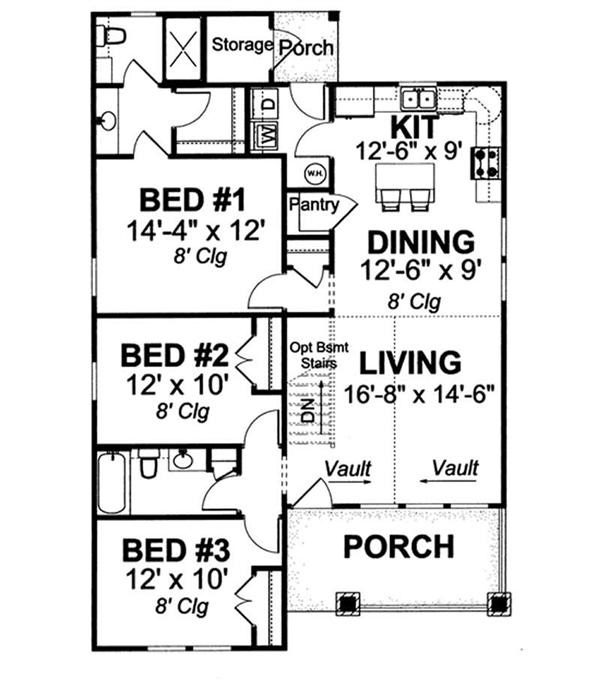

Home Plan: #178-1146 Floor Plan First Story - main level Floor Plan First Story of Bungalow Plan #178-1146
Home Plan: #178-1146 Floor Plan First Story - main level Floor Plan First Story of Bungalow Plan #178-1146
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 178-1146
Floors:
1
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1271
Main Floor:
1271
Unfinished Sq Ft:

Dimensions

Width:
32' 0"
Depth:
49' 6"

Architectural Styles

Country
Ranch
Bungalow
Traditional
Small House Plans

Exterior Wall Material

Vinyl Siding
Brick

Roofing Type

Hip

Roofing Material

Metal

Special Feature

Main Level Laundry

Building Lot Type

Narrow Lot Design

Kitchen Features

Walk-in Pantry

Porches and Exterior Features

Covered Front Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

Please Note: This plan comes standard with a Construction License that gives the original purchaser the right to build the plan as many times as you like.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
