4-Bedroom, 3943 Sq Ft Craftsman Plan with Walk In Closet

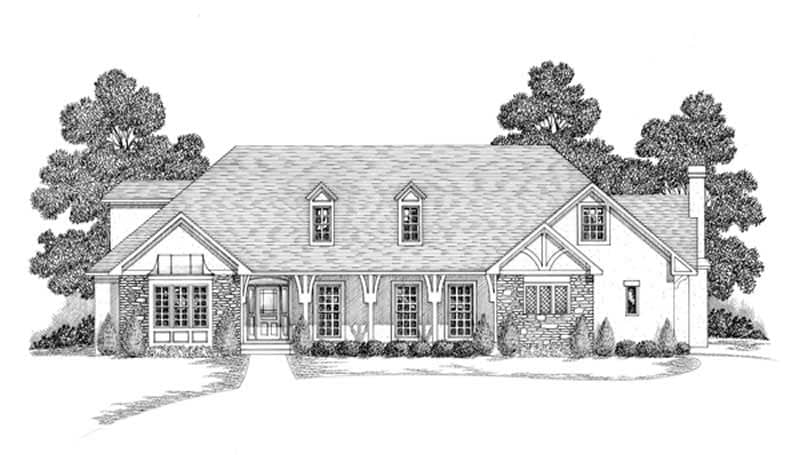

Main image for house plan # 14519
4-Bedroom, 3943 Sq Ft Craftsman Home Plan - 109-1070 - Main Exterior

About Plan # 109-1070

About Plan # 109-1070

This 3,943 sq. ft. design is a two-story traditional with English Tudor details. The exterior consists of stucco and stacked stone with rough-sawn columns. Featuring 4 bedrooms and 3-1/2 baths, this plan includes front and rear stairs for access to the upper level. The 20'x19' family room is high- lighted by a fireplace, built-in desk and wet bar. The family room also features a vaulted ceiling. Measuring 17'x20', the living room features built-in bookcases on either side of the fireplace. The master suite, located on the lower level, is truly an owner's retreat. It features two walk-in closets and a built-in bookcase. The master bath, with vaulted ceiling and skylights, has separate garden tub and shower, separate vanities and a linen closet. Located just off of the master suite is a study measuring 14'x13' which could also serve as a nursery. Completing the lower level is a 16'x13' dining room, large gourmet kitchen and steps leading down to the basement can be eliminated and replaced by a utility closet in areas which do not permit a basement. The upper level features 3 bedrooms and a gallery. Bedroom 2 measures 16'x16' and has a private bath. Bedrooms 3 and 4 each measure 13'x16' and share a private bath. The gallery measures 24'x10' and makes a comfortable sitting area.

Each plan set includes the following:

  • COVER SHEET: Digital exterior rendering of the home to provide an idea of what the house would look like once built.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • MAIN FLOOR PLAN: Showing all dimensions, window and door locations, columns, floor materials, ceiling heights, fireplace size, and specifications. Includes window and door schedule.
  • UPPER FLOOR PLAN (if any): Same details as the main floor plan plus upper floor framing schematic.
  • ROOF FRAMING PLAN: Dimensioned plan with 3-D framing schematic showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FOUNDATION PLAN: Dimensioned plan detailing the layout and construction of the foundation.
  • ELECTRICAL LAYOUT: Specifications and notes, defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. Included on the floor plans.
  • CROSS SECTIONS AND INTERIOR ELEVATION: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • GENERAL CONSTRUCTION DETAILS: Includes IRC code specifications and methodologies.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

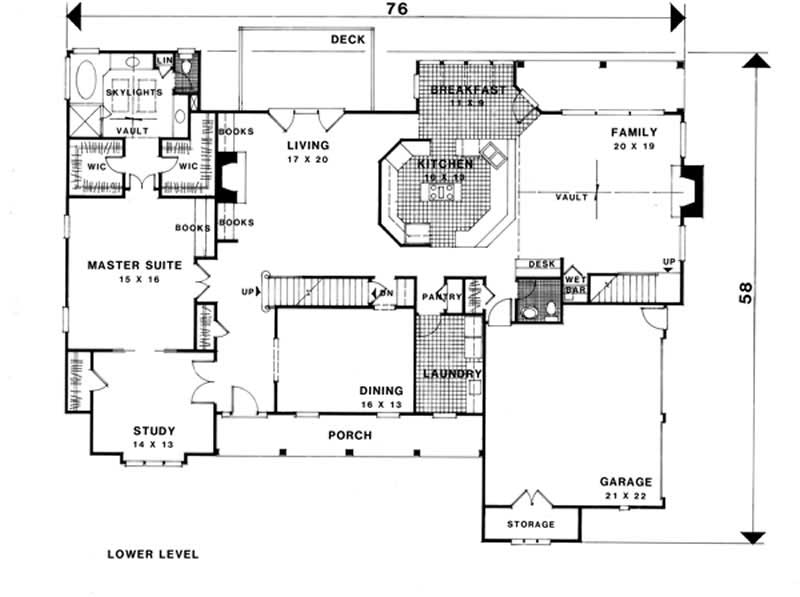

Home Plan: #109-1070 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #109-1070

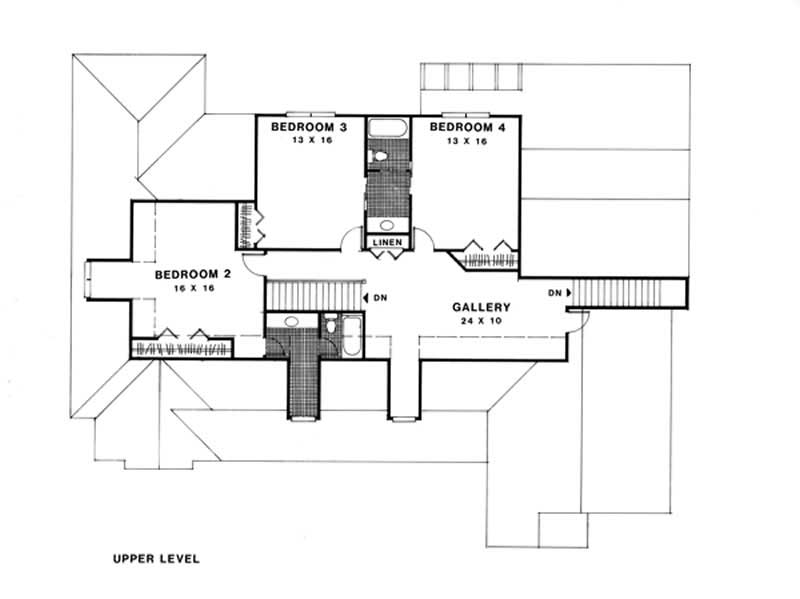

#109-1070 Floor Plan Second Story - second Floor Plan Second Story of Craftsman Plan #109-1070
Home Plan: #109-1070 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #109-1070
#109-1070 Floor Plan Second Story - second Floor Plan Second Story of Craftsman Plan #109-1070
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 109-1070
Full Baths:

Square Footage

Heated Sq Feet:
Main Floor:
Upper Floor:
Unfinished Sq Ft:


76' 0"
58' 0"

Architectural Styles

Arts and Crafts

Exterior Wall Material


Roof Pitch


Ceiling Height

8 Foot Ceiling
9 Foot Ceiling

Special Feature

Dining Room
Family Room

Exterior Wall Framing


Additional Notes from Designer

Optional Foundations are considered modifications so please send us a modification request if you would like a free quote. Thank you!


A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.


All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
