5-Bedroom, 5351 Sq Ft European Manor with Master Porch

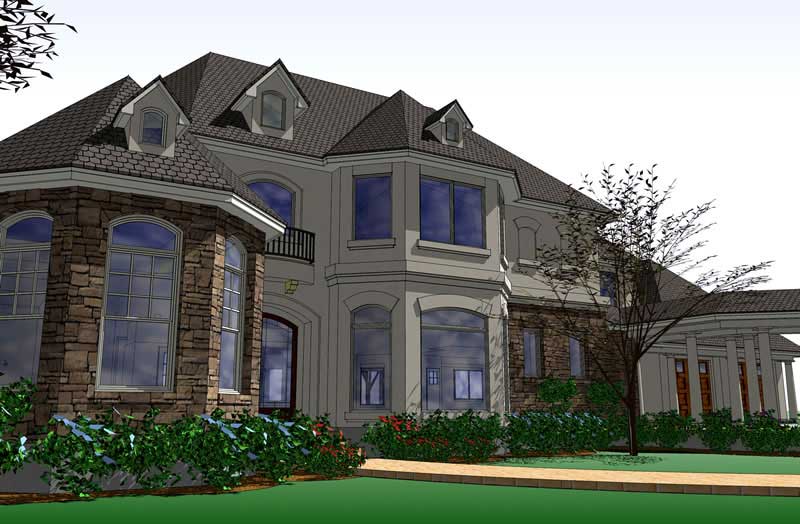

Front elevation of European home (ThePlanCollection: House Plan #117-1064)
5-Bedroom, 5351 Sq Ft Home Plan - 117-1064 - Main Exterior

About Plan # 117-1064

About Plan # 117-1064

5351 SQUARE FEET 5 BEDROOMS 5 FULL BATH 1 HALF BATH
2 FLOOR 132' 0" WIDTH 109' 11" DEPTH 3 GARAGE BAY

This home is a great luxury two-story house plan with 5351 living square feet. Some of the special features of home include: Impressive Grand Hall and Staircase Viewed Upon Entry Detached Garage for Third Car Reached by Comfortable Breezeway Wrap Around Veranda, Perfect for Outdoor Entertainment Private Master Suite Porch, Complete with Outdoor Fireplace Additional Porch, Balcony, Study, Game Room, and Numerous Storage Locations

Each plan set includes the following:

  • FLOOR PLANS: ¼”=1’-0” scale floor plan indicating the location of frame and masonry walls, support members, doors, windows, plumbing fixtures, kitchen appliance locations, cabinet locations, tags to cross-section details, shelving, ceiling conditions, and notes deemed relevant to this plan.
  • EXTERIOR ELEVATIONS: All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate the overall configuration of the home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and the extent to which they are used, and enlargement of any details deemed necessary to explain the construction.
  • BUILDING SECTIONS: ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
  • FOUNDATION PLAN: ¼” = 1’-0” scale foundation plans. The slab foundation comes with both interior and exterior beams. Dimensioned and noted foundation layout, including references to support walls, excavated and unexcavated areas. Basement foundation plans may show additional walls, grade beams, reinforcing steel, and structural columns. Structural information for all foundation types should be obtained by a locally licensed engineer for your specific site location.
  • FRAMING PLANS: ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted. Includes floor, ceiling, and roof framing schematics.
  • CABINET ELEVATIONS: 3/8” = 1’-0” scale elevations indicating the configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, and appliances.
  • ELECTRICAL PLAN: ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched. Plans do not include circuiting or wire sizing. Plans will also include specialty items such as hose bibbs, gas connections, location of A/C equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

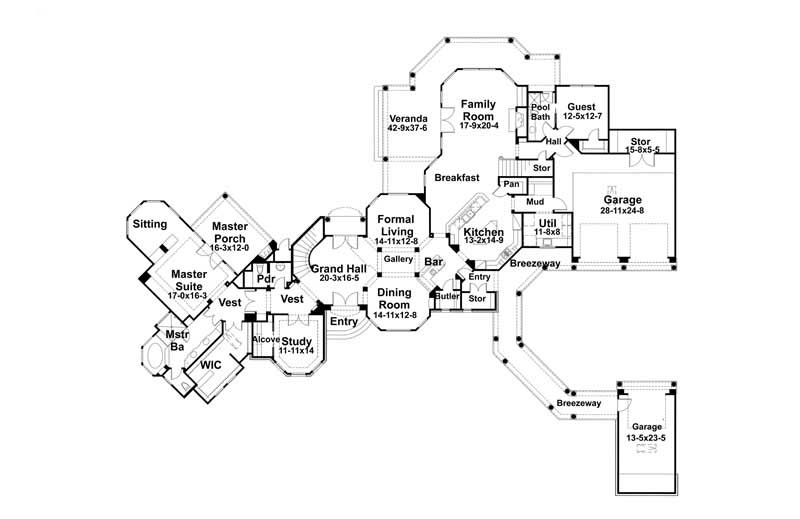

Home Plan: #117-1064 Floor Plan First Story - main Floor Plan First Story of Plan #117-1064

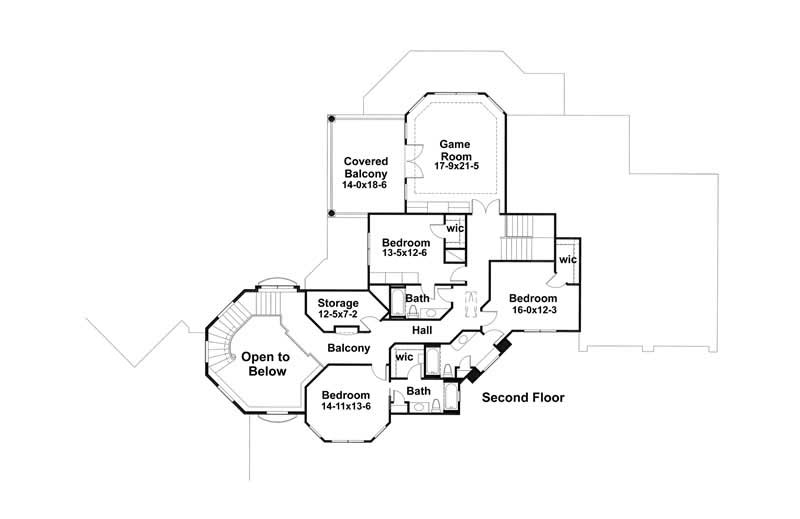

#117-1064 Floor Plan Second Story - second Floor Plan Second Story of Plan #117-1064
Home Plan: #117-1064 Floor Plan First Story - main Floor Plan First Story of Plan #117-1064
#117-1064 Floor Plan Second Story - second Floor Plan Second Story of Plan #117-1064
