4-Bedroom, 3634 Sq Ft Georgian Plan with Covered Front Porch

Front elevation of Georgian home (ThePlanCollection: House Plan #109-1069)

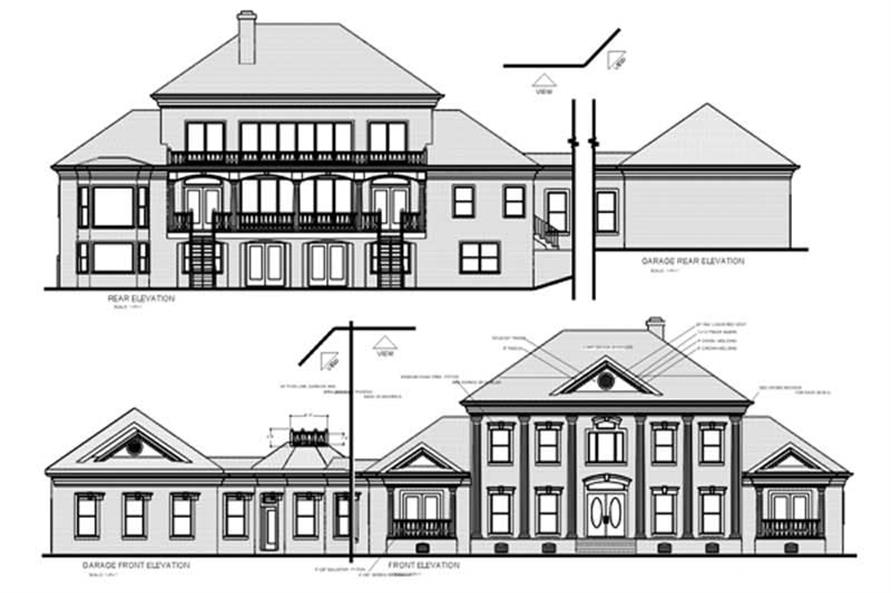

REAR ELEVATION
4-Bedroom, 3634 Sq Ft Georgian House Plan - 109-1069 - Front Exterior
REAR ELEVATION

About Plan # 109-1069

About Plan # 109-1069

3634 SQUARE FEET 4 BEDROOMS 4 FULL BATH 0 HALF BATH
2 FLOOR 140' 7" WIDTH 58' 6" DEPTH 3 GARAGE BAY

Double beveled glass doors lead from the two-story front porch to the open foyer with two art niches. To the left is an elegant dining room with a tray ceiling surrounded by columns. To the right, two French doors lead to a study with built-in cabinets. To the back of the home are the breakfast, family, and living rooms, each with a 19' high ceiling. A see-through fireplace is shared by the family and living rooms. The living room is surrounded by columns topped by a plant shelf. The family room includes a built-in cabinet for an entertainment center. Two sets of French doors lead to the covered porch which leads to the pool area by its two sets of stairs. Both the luxurious master and the Mother-in-law suites feature access to a private porch. A breezeway/sunroom leads to the 3-car garage. Upstairs are two large secondary bedrooms which share a bath.

Each plan set includes the following:

  • COVER SHEET: Digital exterior rendering of the home to provide an idea of what the house would look like once built.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • MAIN FLOOR PLAN: Showing all dimensions, window and door locations, columns, floor materials, ceiling heights, fireplace size, and specifications. Includes window and door schedule.
  • UPPER FLOOR PLAN (if any): Same details as the main floor plan plus upper floor framing schematic.
  • ROOF FRAMING PLAN: Dimensioned plan with 3-D framing schematic showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FOUNDATION PLAN: Dimensioned plan detailing the layout and construction of the foundation.
  • ELECTRICAL LAYOUT: Specifications and notes, defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. Included on the floor plans.
  • CROSS SECTIONS AND INTERIOR ELEVATION: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • GENERAL CONSTRUCTION DETAILS: Includes IRC code specifications and methodologies.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

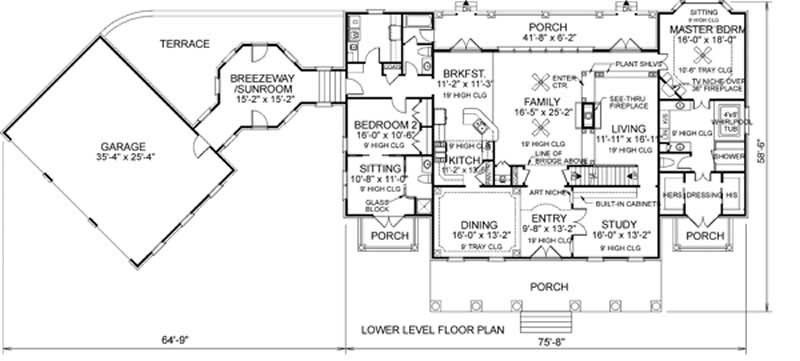

Home Plan: #109-1069 Floor Plan First Story - main Floor Plan First Story of Georgian Plan #109-1069

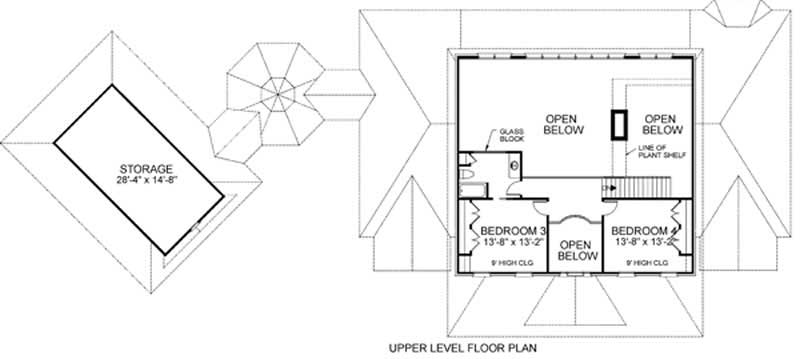

#109-1069 Floor Plan Second Story - second Floor Plan Second Story of Georgian Plan #109-1069
