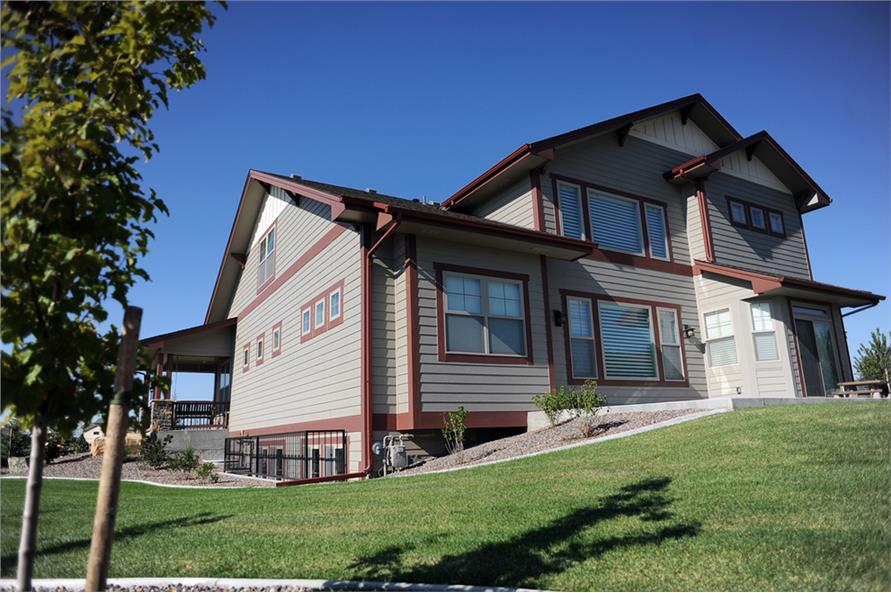

194-1006: Home Exterior Photograph-Rear View

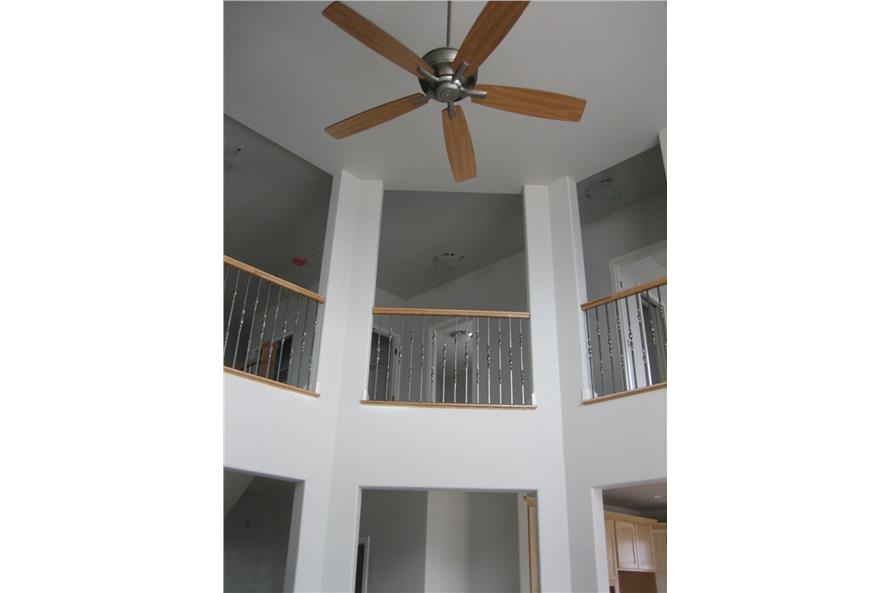

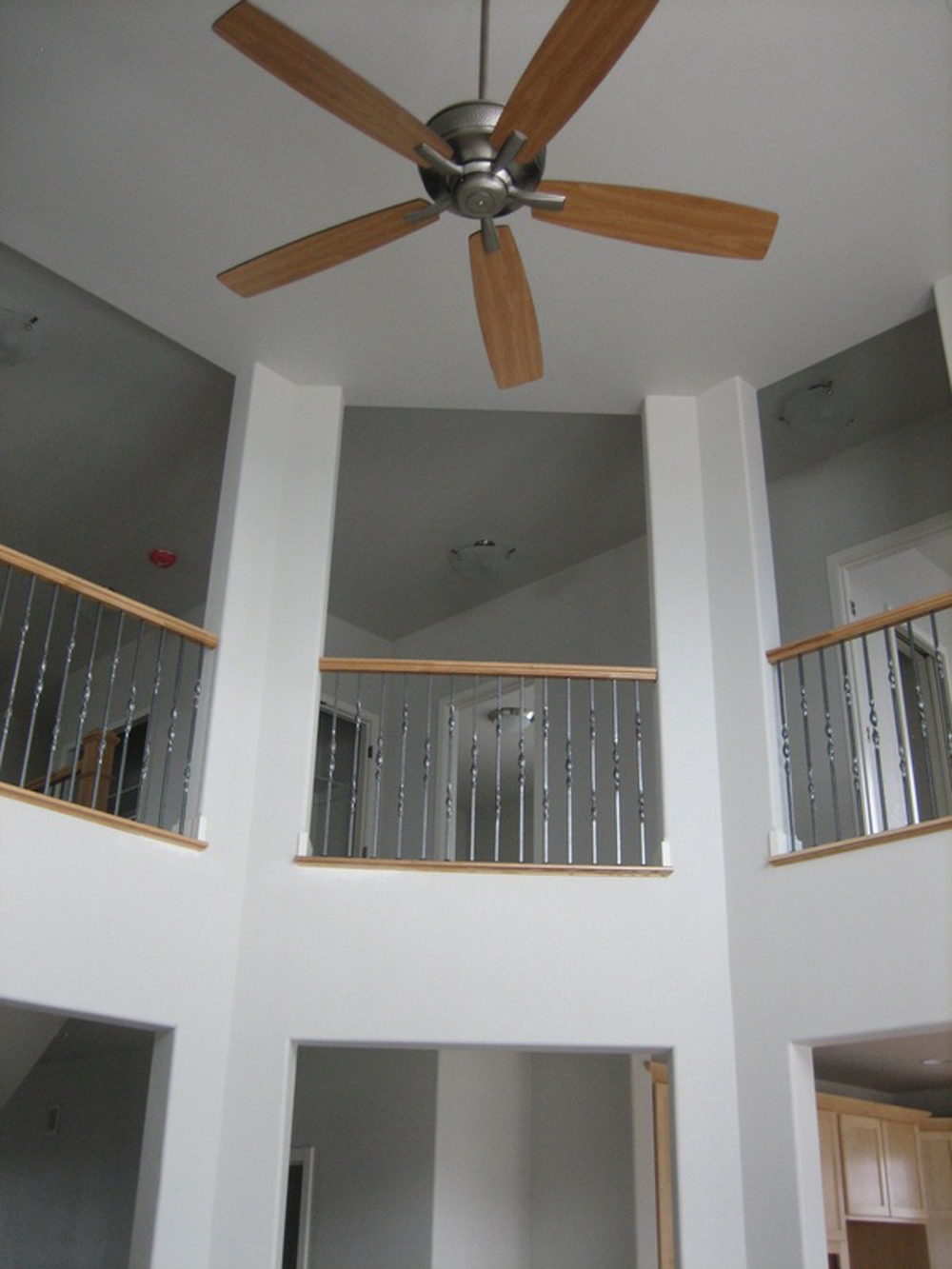

194-1006: Home Interior Photograph-Great Room

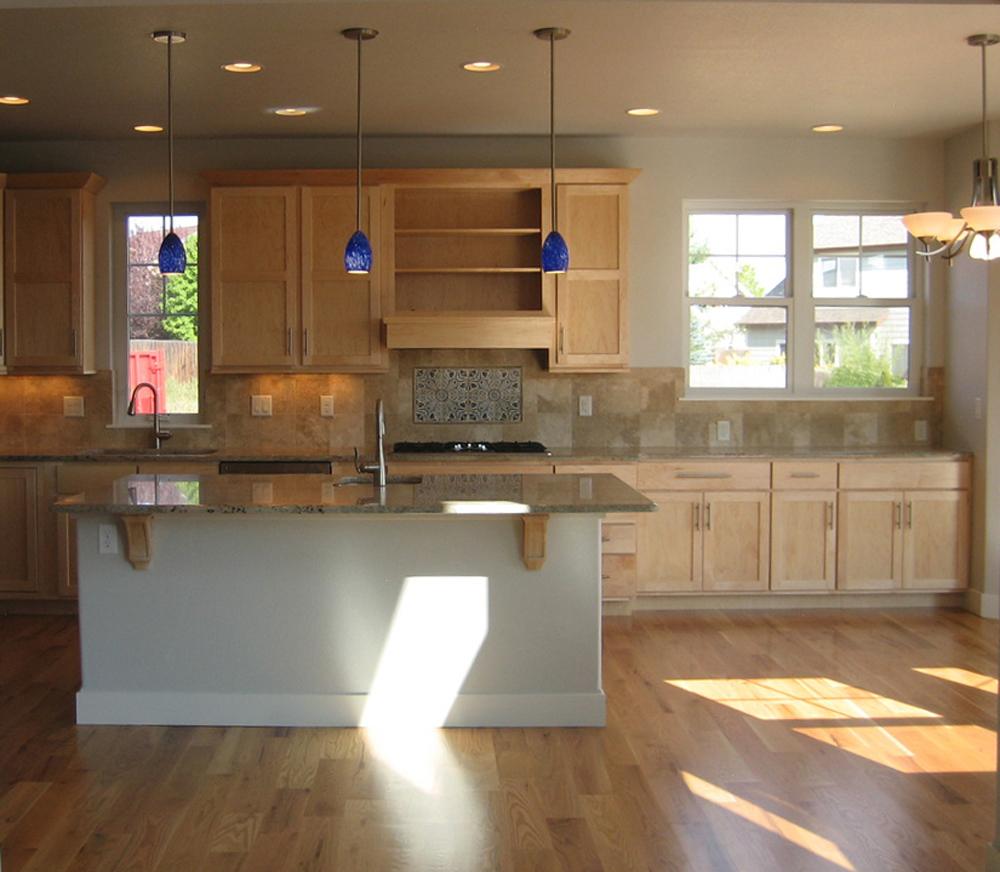

194-1006: Home Interior Photograph-Kitchen

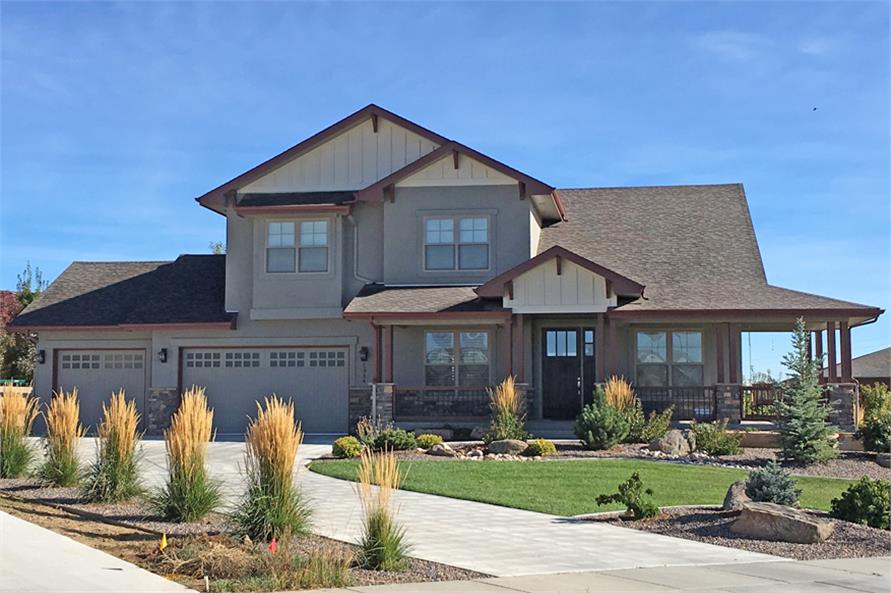

5-Bedroom, 3377 Sq Ft Luxury Home Plan - 194-1006 - Main Exterior
194-1006: Home Exterior Photograph-Rear View
194-1006: Home Interior Photograph-Great Room
194-1006: Home Interior Photograph-Kitchen

About Plan # 194-1006

About Plan # 194-1006

3377 SQUARE FEET 5 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 73' 0" WIDTH 62' 0" DEPTH 3 GARAGE BAY

This lovely Luxury style home with Craftsman influences (House Plan #194-1006) has 3377 square feet of living space. The 2 story floor plan includes 5 bedrooms.

Each plan set includes the following:

  • Cover Sheet - project statistics, including square footage, 3D images (typically), general notes, and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts, joist direction, and often electrical outlets, switches, and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations, and other general notes.
  • Upper-Level Plan (if needed) - same information as Main Level.
  • Main Level Electrical Plan - electrical outlets, switches, and light locations shown.
  • Upper-Level Electrical Plan (if needed) - electrical outlets, switches, and light locations shown. (sometimes just the lighting is shown)
  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions, and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

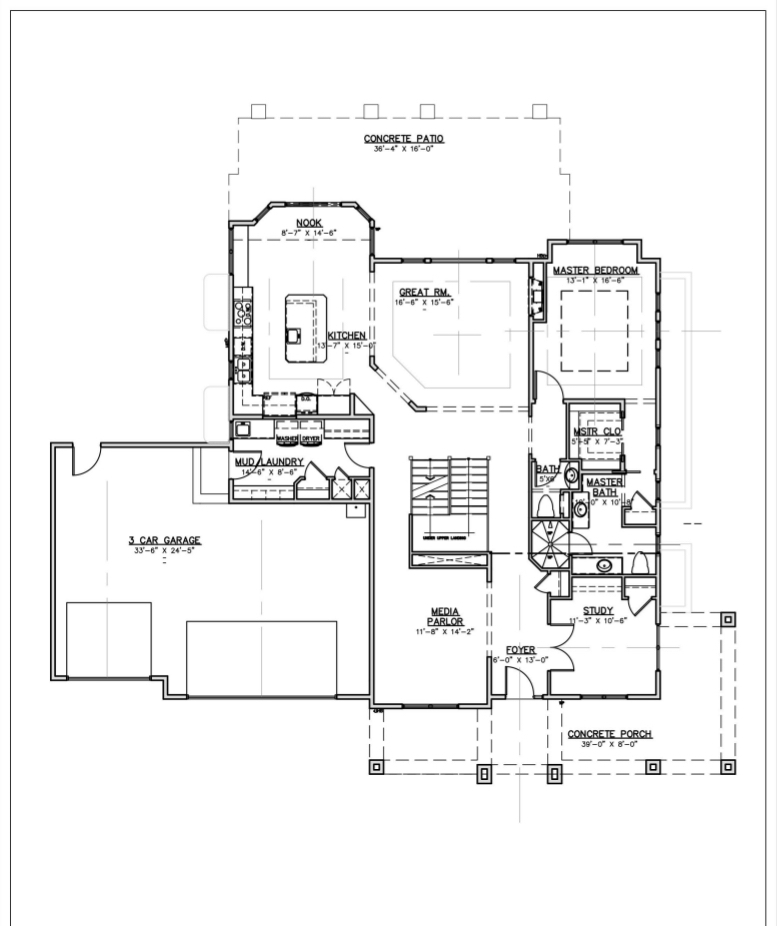

Home Plan: #194-1006 Floor Plan First Story - main level Floor Plan First Story of Luxury Plan #194-1006

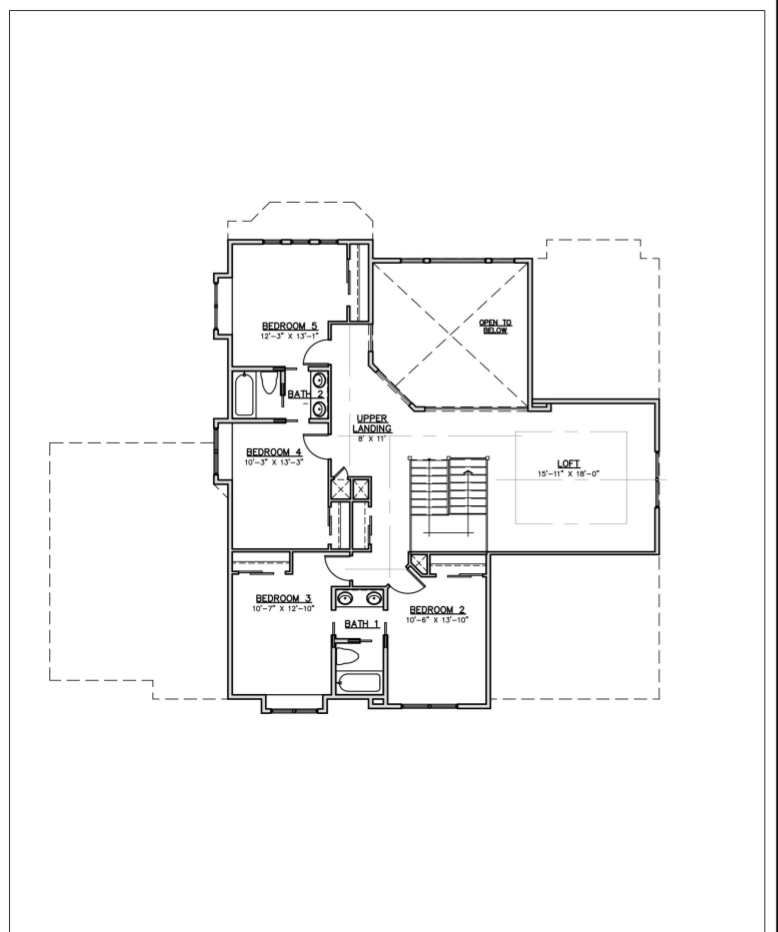

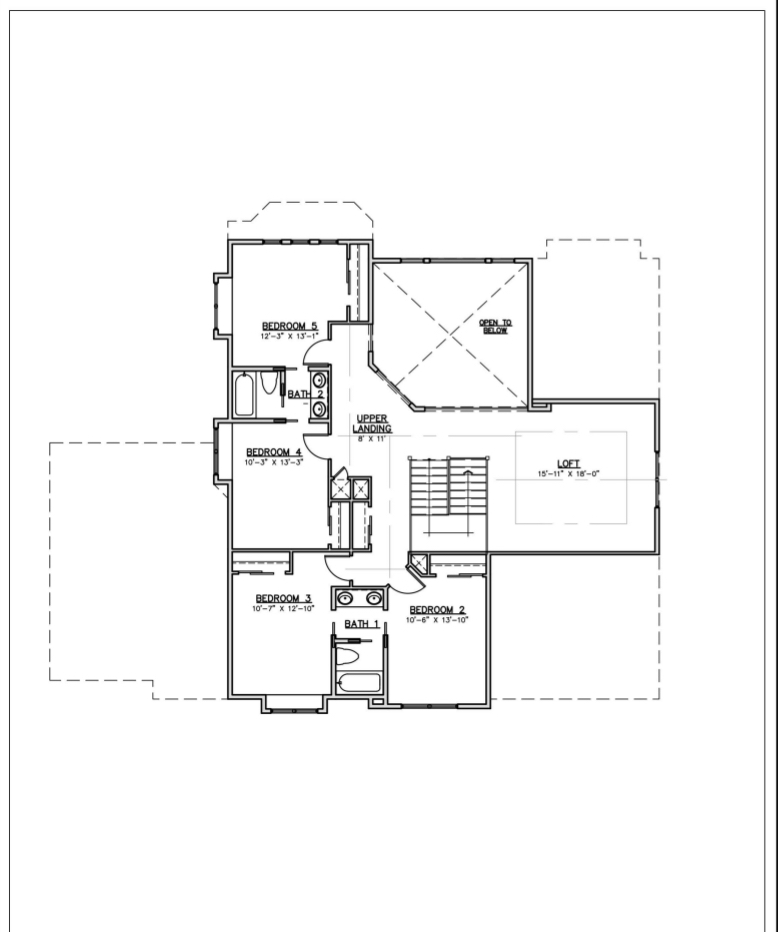

#194-1006 Floor Plan Second Story - upper level Floor Plan Second Story of Luxury Plan #194-1006

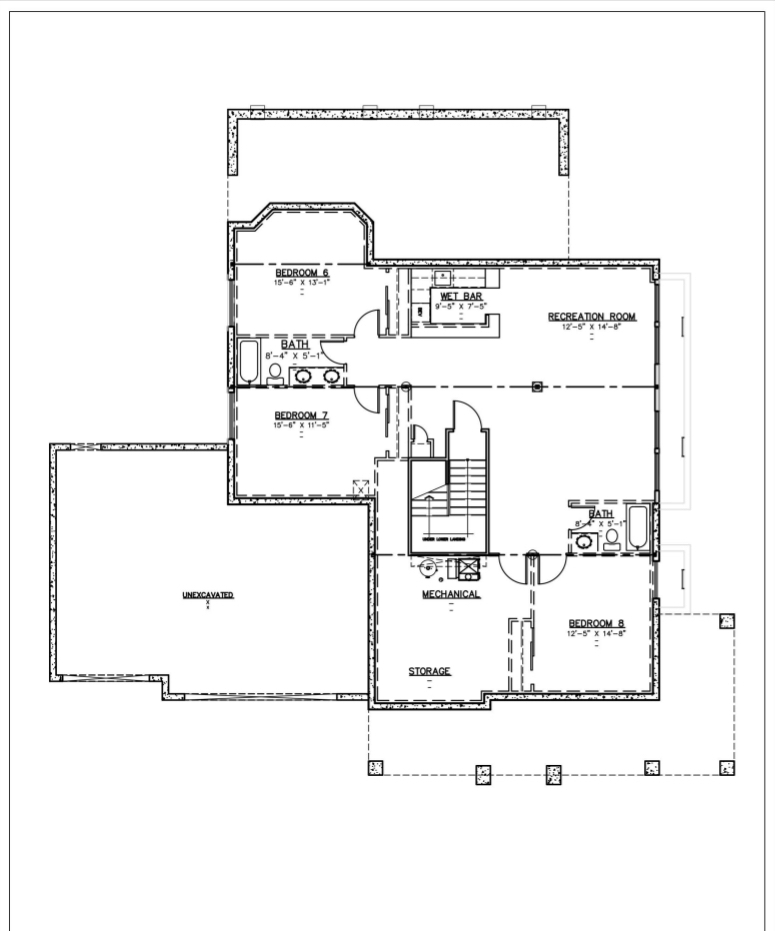

#194-1006 Floor Plan Basement - basement Floor Plan Basement of Luxury Plan #194-1006
