1-Bedroom, 1897 Sq Ft Transitional Rustic Plan with Fireplace

Transitional Rustic home (ThePlanCollection: Plan #194-1041)
194-1041: Home Plan Rendering-Side View
194-1041: Home Plan Rendering-Rear View
194-1041: Home Plan Rendering-Rear View
194-1041: Home Plan Rendering-Side View
1-Bedroom, 1897 Sq Ft Transitional Rustic Home - Plan #194-1041 - Main Exterior
194-1041: Home Plan Rendering-Side View
194-1041: Home Plan Rendering-Rear View
194-1041: Home Plan Rendering-Rear View
194-1041: Home Plan Rendering-Side View

About Plan # 194-1041

About Plan # 194-1041

1897 SQUARE FEET 1 BEDROOMS 1 FULL BATH 2 HALF BATH
1 FLOOR 64' 0" WIDTH 59' 6" DEPTH 1 GARAGE BAY

This Transitional Rustic style with a front load garage is a dynamic house design for an average-size lot. The covered back porch extends the size of the living areas and can be used during special occasions. The eye-catching 1-story, 1-bedroom floor plan has 1897 square feet of living space and includes 2 additional bedrooms should you choose to finish the optional finished lower level according to the floor plan (for 1568 additional finished square feet and 403 unfinished square feet of storage).

Each plan set includes the following:

  • Cover Sheet - project statistics, including square footage, 3D images (typically), general notes, and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts, joist direction, and often electrical outlets, switches, and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations, and other general notes.
  • Upper-Level Plan (if needed) - same information as Main Level.
  • Main Level Electrical Plan - electrical outlets, switches, and light locations shown.
  • Upper-Level Electrical Plan (if needed) - electrical outlets, switches, and light locations shown. (sometimes just the lighting is shown)
  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions, and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

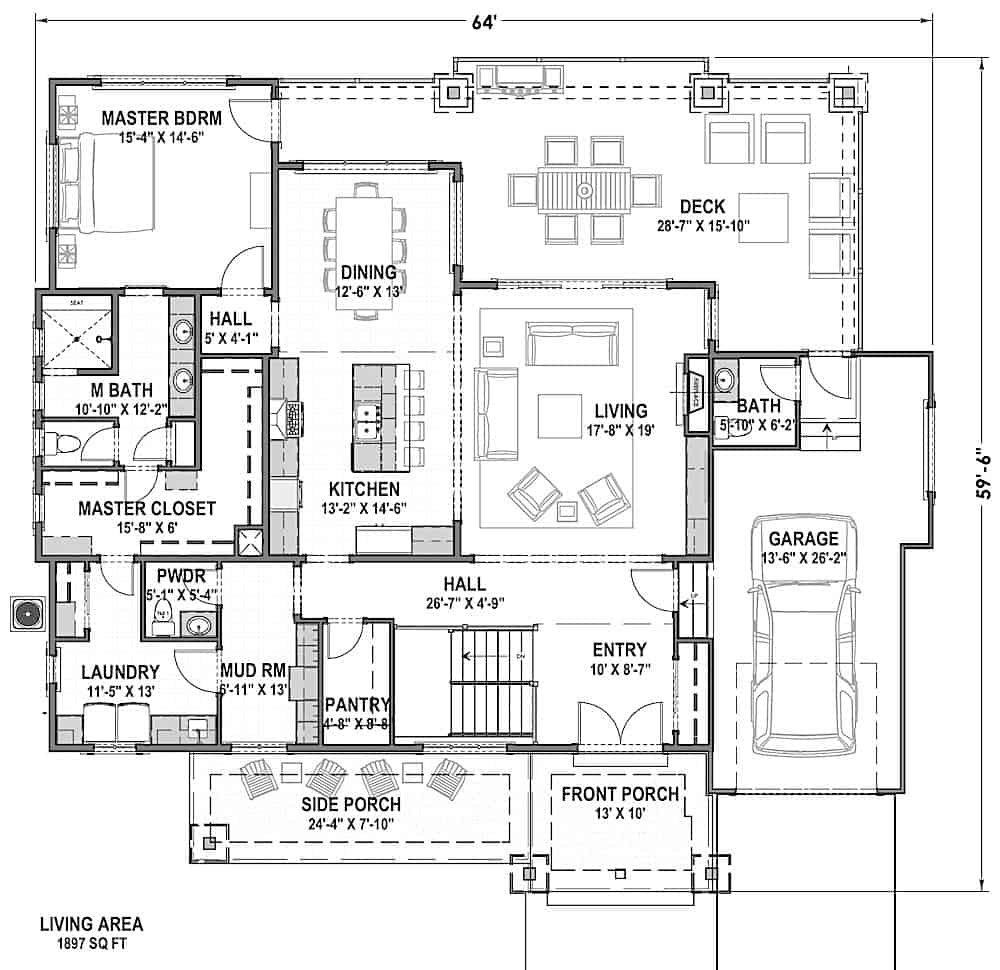

Home Plan: #194-1041 Floor Plan First Story - main level Floor Plan Main Level of Craftsman Plan #194-1041

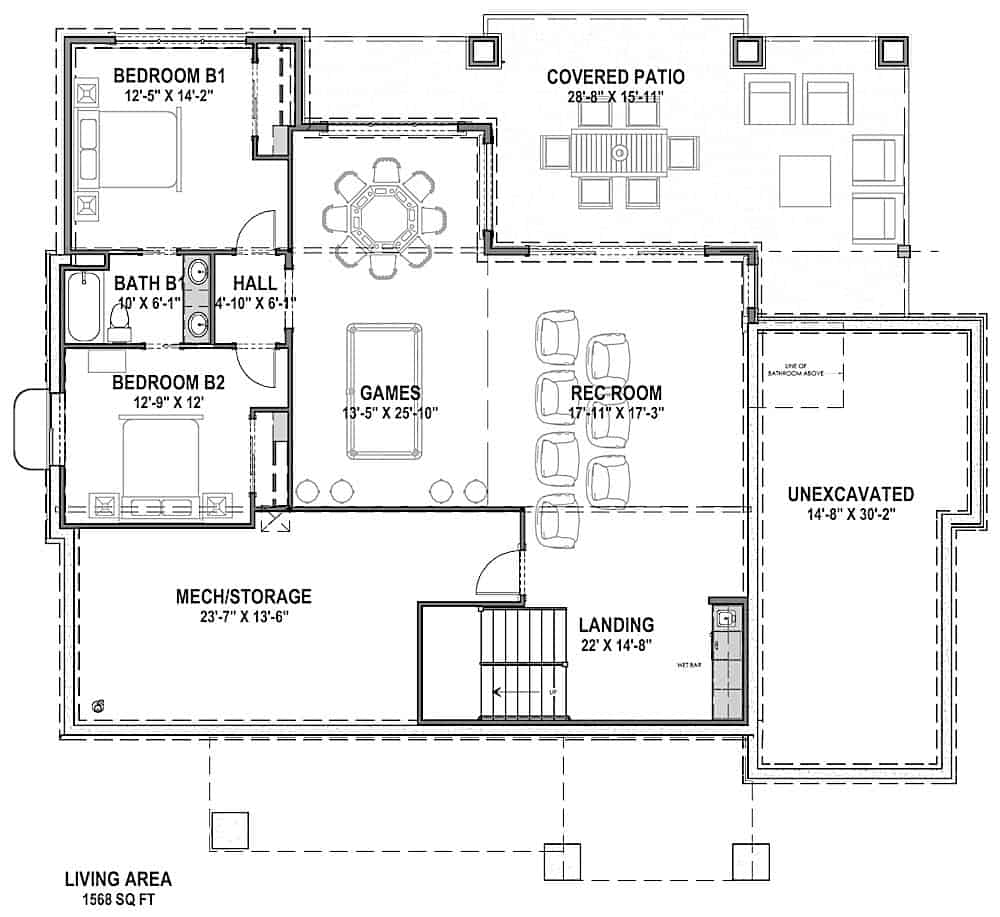

#194-1041 Floor Plan Basement - basement Floor Plan Basement of Craftsman Plan #194-1041
