Contemporary Ranch Duplex with 2 Bedrooms, 2,5 Baths Per Unit

Main Image
Thumbnail Image

Images/Plans copyrighted by designer. Photos may reflect homeowner modifications.

About House Plan #194-1057

Sq Ft
3692
Sq Ft
Bedrooms
4
Bedrooms
Bathroom
4
Baths
Half Baths
2
Half Baths
Bedrooms
4
Cars
Bedrooms
1
Stories
Bedrooms
100' 2'
Width
Bedrooms
65
Depth
From$1550What's included
STEP 1Bedrooms
STEP 2Bedrooms
STEP 3Bedrooms

Subtotal:$0
Plan Collection

How much will it cost to build?

Estimate your costs based on your location and materials.

Start with Instant Estimator

Floor Plans

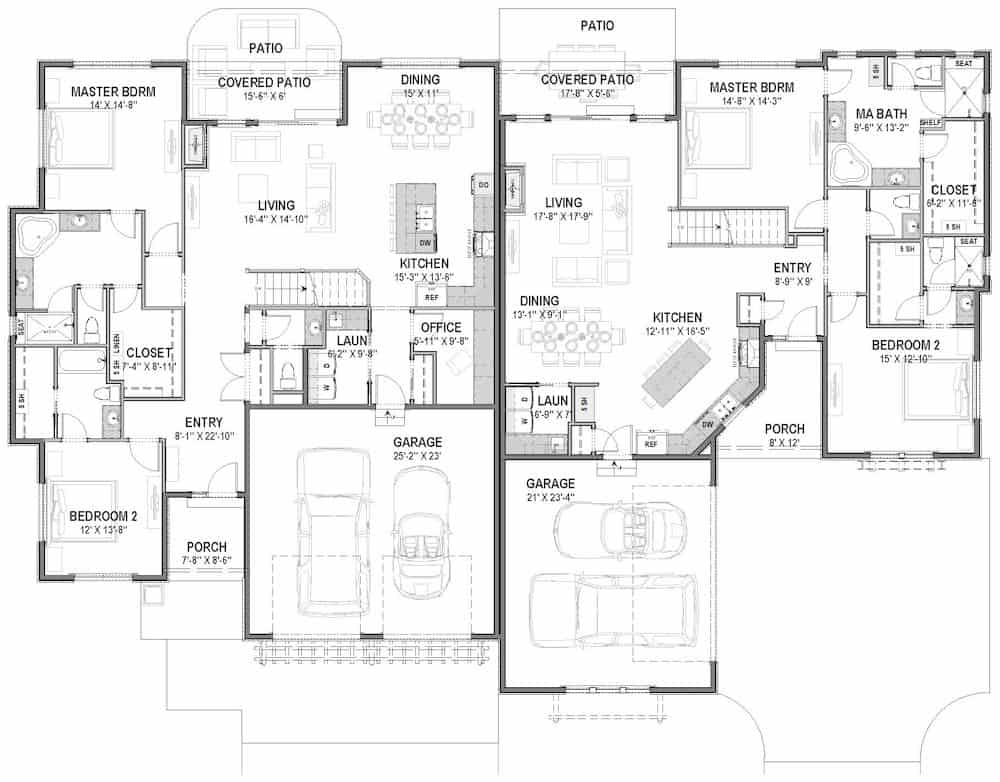

Floor Plan Main Level
Floor Plan Main Level
Floor Plan Main Level
Plan Collection

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

PLEASE NOTE! If you order an optional foundation and a materials list, the materials list will NOT include the optional foundation, only the standard foundation. The designer can provide an updated materials list for a fee, so please ask for a quote!

House Plan Description

This awesome duplex is designed to look like one huge villa and is an amazing house both inside and out. The left unit has a heated-cooled area of 1904 square feet; the right unit has a heated-cooled area of 1788 square feet; and the entire structure has maximized every available square foot of the floor plan so there is no wasted space in this amazing house design. The left garage measures 600 square feet, and the left porch is 70 square feet; the right garage is 535 square feet and the right porch is 96 square feet. There are 2...

Home Details

Summary
Plan #:194-1057
Floors:1
Bedrooms:4
Full Baths:4
Half Baths:2
Garage:
Square Footage
Heated Area::3692 Sq. Ft.
Main Floor:3692 Sq. Ft.
Dimensions
Width:100' 2''
Depth:65' 6''
Architectural Styles
Exterior Wall Material
Vinyl SidingStuccoRock/StoneWood Siding
Roofing Type
HipGable/Dormer
Roofing Material
Asphalt ShinglesMetal
Roof Pitch
6/12
Ceiling Height
10 Foot Ceiling9 Foot Ceiling
Special Feature
FireplaceHome OfficeFamily RoomMain Level LaundrySplit BathroomOpen Floor Plan
Garage Type
Attached GarageCourtyard EntryFront Entry
Fireplaces
One Fireplace
Exterior Wall Framing
2x6
Kitchen Features
Kitchen IslandWalk-in PantryPeninsula/Eating Bar
Porches and Exterior Features
Covered Front PorchCovered Rear Patio
Master Suite Features
Main Floor MasterMaster BathroomWalk In Closet

What’s Included

Most plan sets include the following:

icon text-secondary-400 includedCover Sheet - project statistics, including square footage, 3D images (typically), general notes, and drawings sheet index.

icon text-secondary-400 includedFoundation/basement plan - showing room/wall layout, beams, posts, joist direction, and often electrical outlets, switches, and light locations.

icon text-secondary-400 includedMain Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations, and other general notes.

icon text-secondary-400 includedUpper-Level Plan (if needed) - same information as Main Level.

icon text-secondary-400 includedMain Level Electrical Plan - electrical outlets, switches, and light locations shown.

icon text-secondary-400 includedUpper-Level Electrical Plan (if needed) - electrical outlets, switches, and light locations shown. (sometimes just the lighting is shown)

icon text-secondary-400 includedExterior Elevations - Elevations of the Front and Right side with notes, dimensions, and material designations.

icon text-secondary-400 includedSections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.

What’s Not Included

These items are  NOT included:

icon text-secondary-400 includedArchitectural or Engineering Stamp - handled locally if required.

icon text-secondary-400 includedSite Plan - handled locally when required.

icon text-secondary-400 includedMechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

icon text-secondary-400 includedPlumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

icon text-secondary-400 includedEnergy calculations - handled locally when required.
