Front elevation of Duplex/Multi-Unit home (ThePlanCollection: House Plan #101-1820)
2-Bedroom, 3126 Sq Ft Per Unit Duplex - 101-1820 - Front Exterior

About Plan # 101-1820

About Plan # 101-1820

3126 SQUARE FEET 4 BEDROOMS 4 FULL BATH 0 HALF BATH
1 FLOOR 93' 0" WIDTH 58' 0" DEPTH 5 GARAGE BAY

Specs and main floor plan are per unit. Total square footage, width, depth are both units together. A careful combination of stone and shingle siding gives this duplex a country flair that will please today's buyer. With two identical units, this duplex has been designed to maximize living space for family living. The kitchen features a breakfast bar that accesses the great room and adjacent dining area, and a pocket door that leads to the laundry just off the garage. And, you can enjoy your morning coffee in the sunroom with its cathedral ceiling just off the dining area. The master suite pleases with its step ceiling detail and walk-in closet while the second bedroom with direct access to the full bath, completes the plan. Additional amenities include a tray ceiling in the dining area, a cathedral ceiling in the great room, an art niche and a window seat in the second bedroom.

Each plan set includes the following:

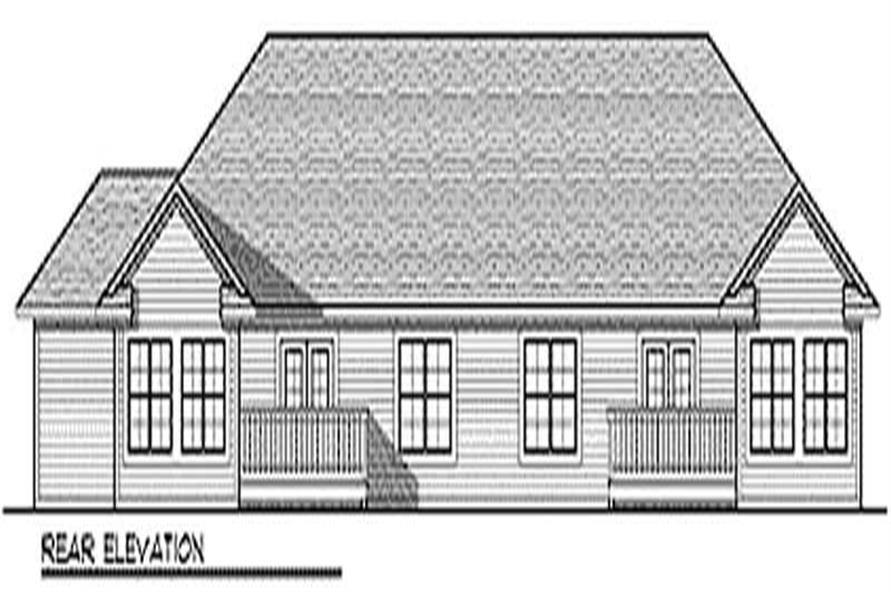

  • Front, Back & Side Elevations
  • Floor Plans
  • Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
  • Roof Plan (Birdseye view)
  • Foundation Layout
  • Wall & Stair Sections
  • Cross Section
  • Kitchen Layout
  • General Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

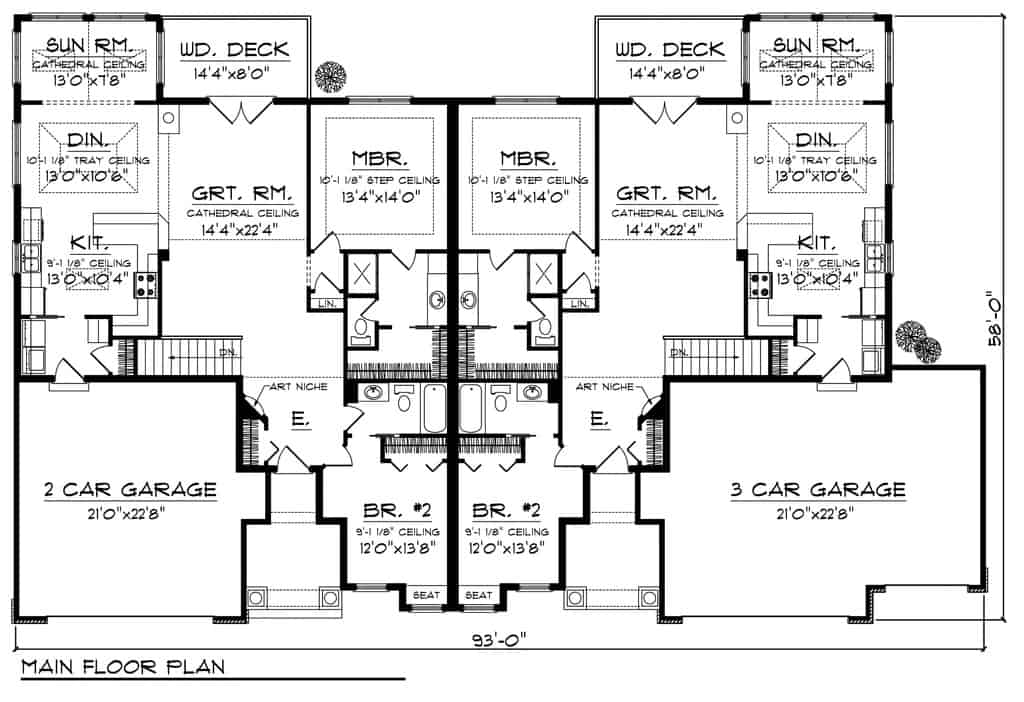

Home Plan: #101-1820 Floor Plan First Story - main level Main Level of Duplex/Multi-Unit Plan #101-1820
Home Plan: #101-1820 Floor Plan First Story - main level Main Level of Duplex/Multi-Unit Plan #101-1820
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 101-1820
Floors:
1
Bedrooms:
4
Full Baths:
4
Garage :
5

Square Footage

Heated Sq Feet:
3126
Main Floor:
3126
Unfinished Sq Ft:

Dimensions

Width:
93' 0"
Depth:
58' 0"
Ridge Height:
12' 1"

Architectural Styles

Country
Ranch
Duplex/Multi-Unit
Traditional
Rustic

Exterior Wall Material

Aluminum Siding
Vinyl Siding
Rock/Stone
Wood Siding
Shakes

Roof Pitch

8/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Main Level Laundry
Vaulted Ceilings
Open Floor Plan

Garage Type

Attached Garage
Front Entry

Kitchen Features

Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Sundeck
Screened Porch/Sunroom

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

Per Unit Figures: 1563 living sq ft; 2 bedrooms; 2 baths; 2 garage bays.

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
