Ranch-style Multi-Unit house design (ThePlanCollection: Plan #108-2028)

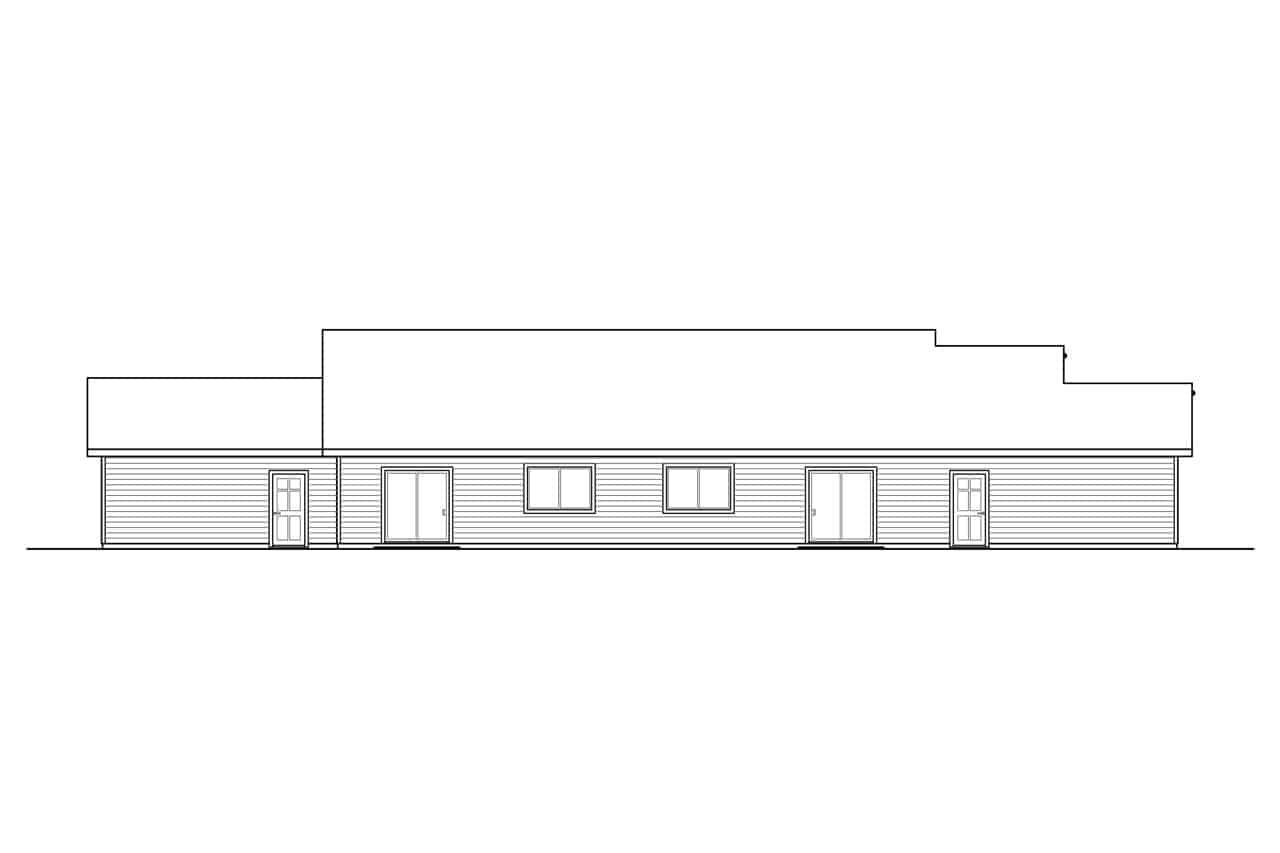

108-2028: Home Plan Rear Elevation

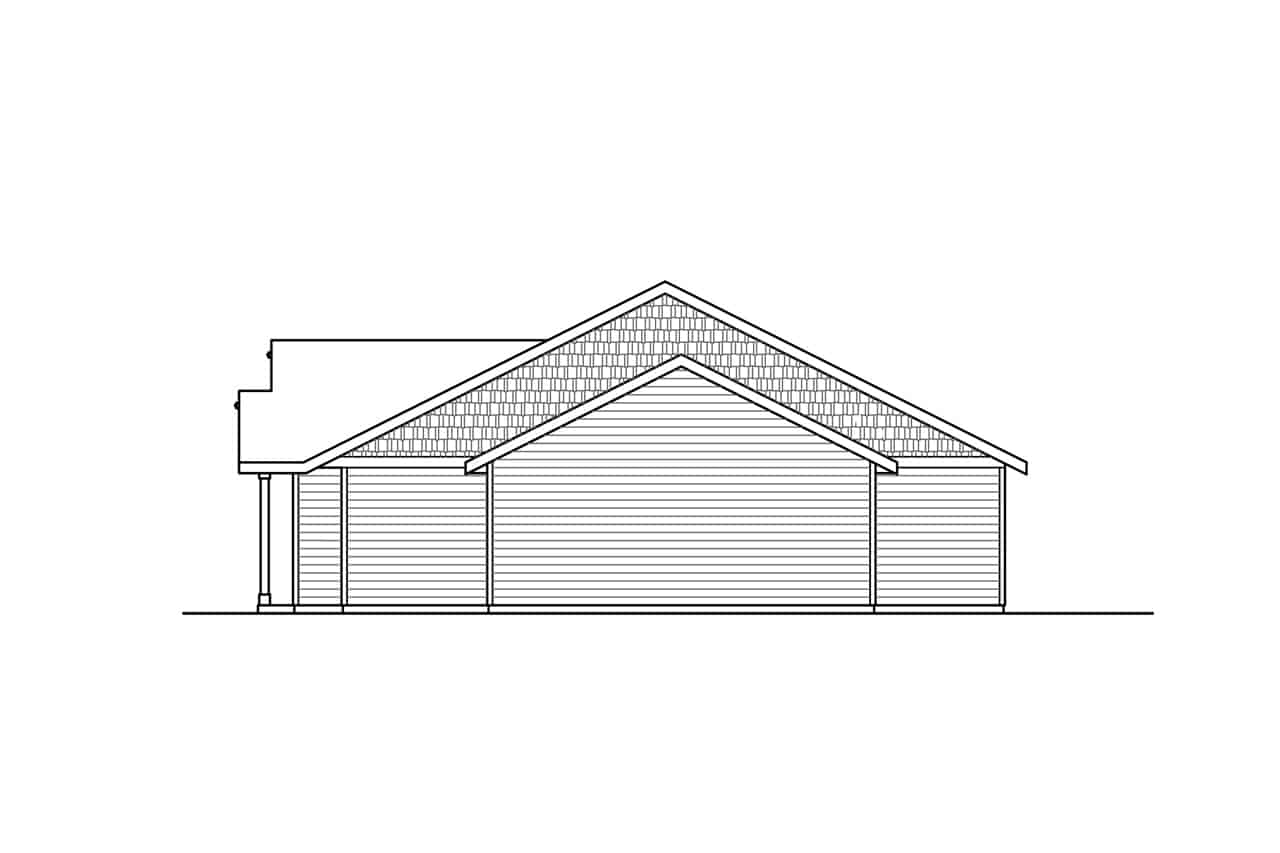

108-2028: Home Plan Left Elevation

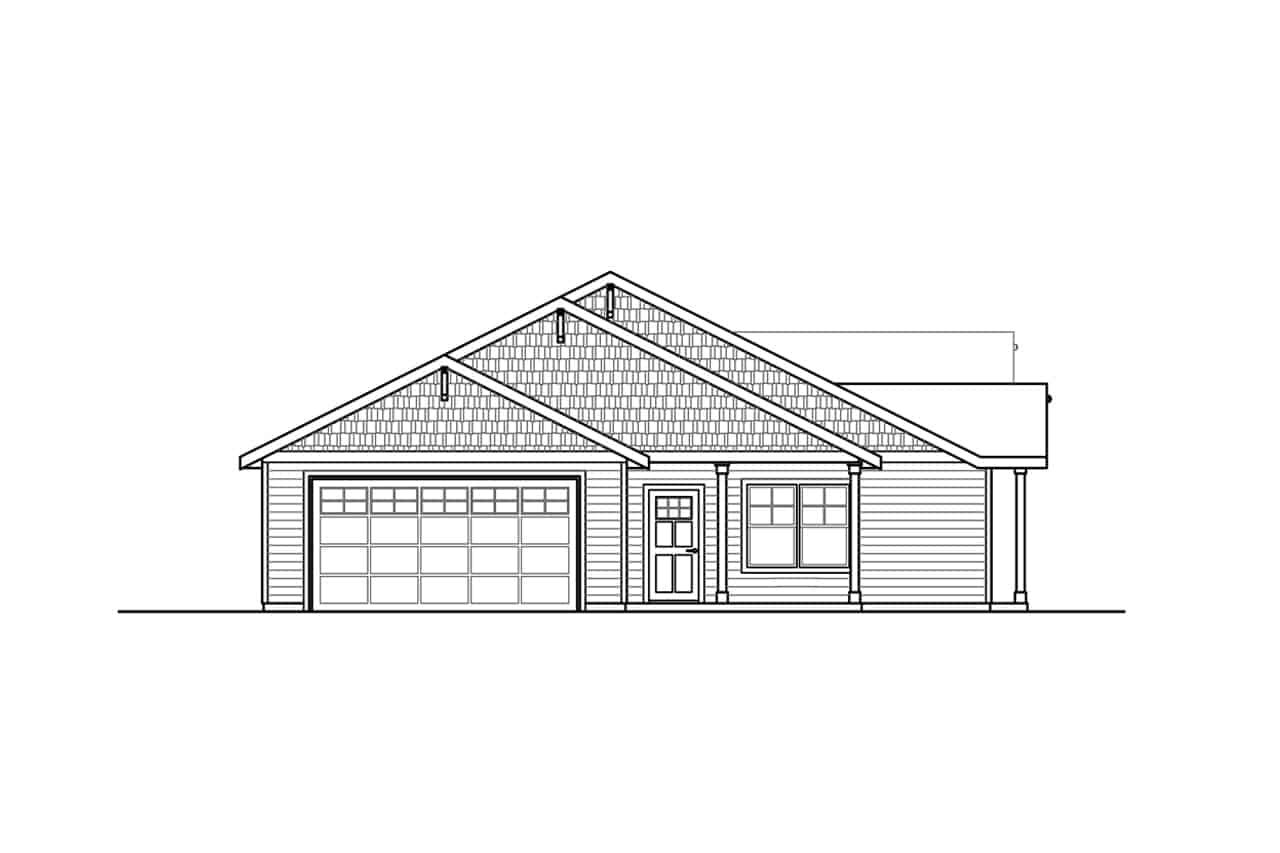

108-2028: Home Plan Right Elevation
4-Bedroom, 2378 Sq Ft Multi-Unit House - Plan #108-2028 - Front Exterior
108-2028: Home Plan Rear Elevation
108-2028: Home Plan Left Elevation
108-2028: Home Plan Right Elevation

About Plan # 108-2028

About Plan # 108-2028

2378 SQUARE FEET 4 BEDROOMS 4 FULL BATH 0 HALF BATH
1 FLOOR 100' 8" WIDTH 46' 0" DEPTH 4 GARAGE BAY

The multiple forward-facing gables, large windows in front, and cozy covered front porch for each unit give this Multi-Family home with Ranch styling an interesting character. The remarkable 1-story home's floor plan has 2378 square feet of fully conditioned living space in two units:

Unit A has 1217 living square feet with 2 bedrooms and 2 bathrooms plus a 525-square-foot 2-car garage

Unit B has 1161 living square feet with 2 bedrooms and 2 bathrooms plus a 528-square-foot 2-car garage.

The two-family home includes these features in each unit:

  • Vaulted ceiling in the living area (entry, Great Room, kitchen, dining)
  • Primary bedroom suite with walk-in closet
  • Private patio for the primary bedroom suite
  • Peninsula breakfast bar in the kitchen
  • Private 2-car garage space

Each plan set includes the following:

  • Artist’s rendering of the home,

  • Front/Rear/Left and Right Elevations,

  • Main floor plan, Second or Basement floor plans (if applicable),

  • Foundation plan and detail,

  • Floor framing plan,

  • Roof framing plan, supporting details and

  • Electric layout.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

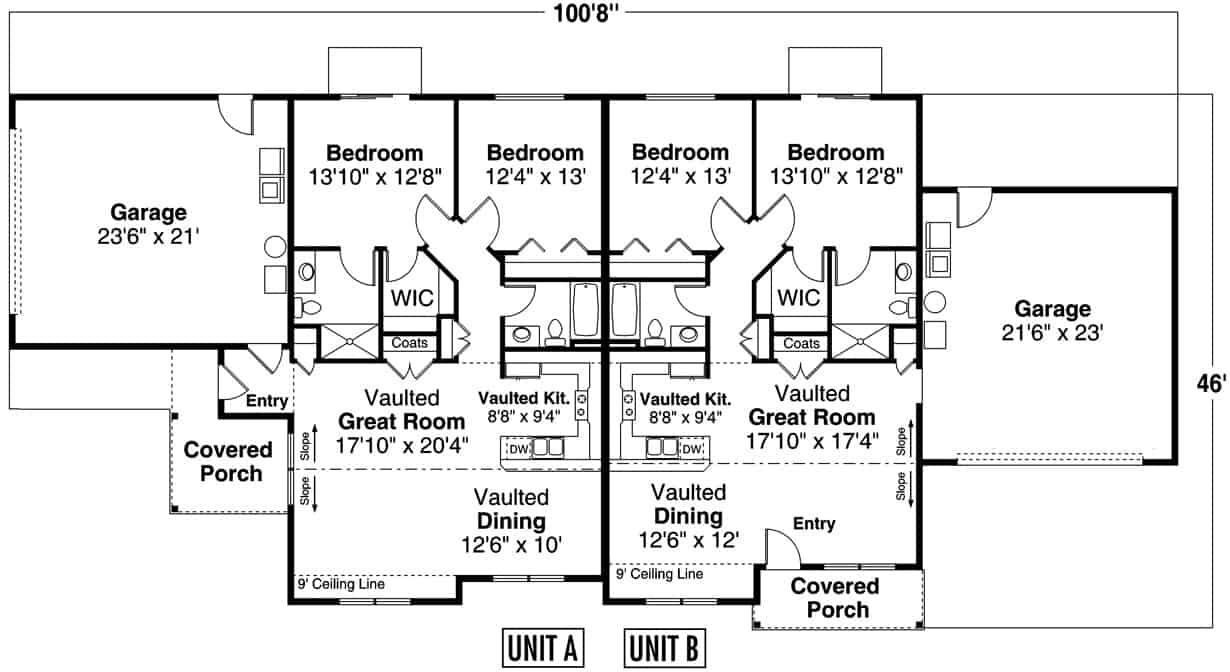

Home Plan: #108-2028 Floor Plan First Story - main level Main Level of Multi-Unit Plan #108-2028
