4-Bedroom, 3020 Sq Ft Country Plan with Main Floor Master

Main image for house plan # 17024
4-Bedroom, 3020 Sq Ft Country House Plan - 101-1028 - Front Exterior

About Plan # 101-1028

About Plan # 101-1028

3020 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 80' 0" WIDTH 53' 4" DEPTH 3 GARAGE BAY
Graceful columns, a balcony and arched windows are just some of the details that give this home its Southern charm. Inside you’ll find a very traditional floor plan with a den to your left, and a formal dining room to your right as you enter. To the back of the main level, you’ll love the wall of windows giving you an impressive view of the back yard as you enter the great room. The adjacent kitchen features a breakfast bar that overlooks the great room and nook to create a comfortable living area. Upstairs you’ll find the master suite complete with corner Jacuzzi tub, spacious walk-in closet, and a sitting area that opens to the balcony on the front of the home. Three additional bedrooms and a full bath complete the upstairs. Finally, a three-stall garage flanked with graceful columns provides ample storage space.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION LAYOUT: Dimensioned plan detailing the layout and construction of the foundation.
  • ROOF PLAN: A birdseye view showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. It does not include wiring schematics.

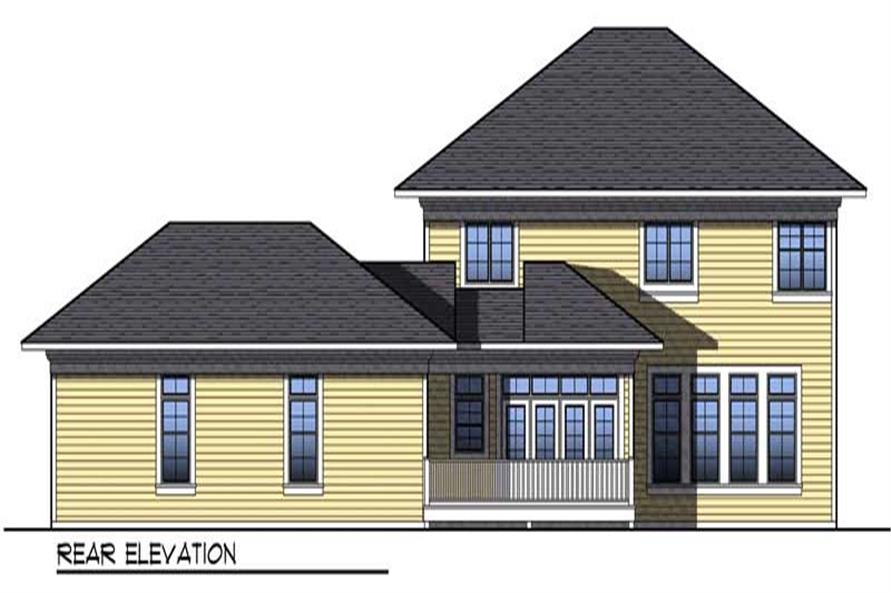

  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. These can include wall and stair sections. Kitchen layout and cabinet elevations included.
  • RENDERING: Sketch of what the finished home may look like. Also includes general notes.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

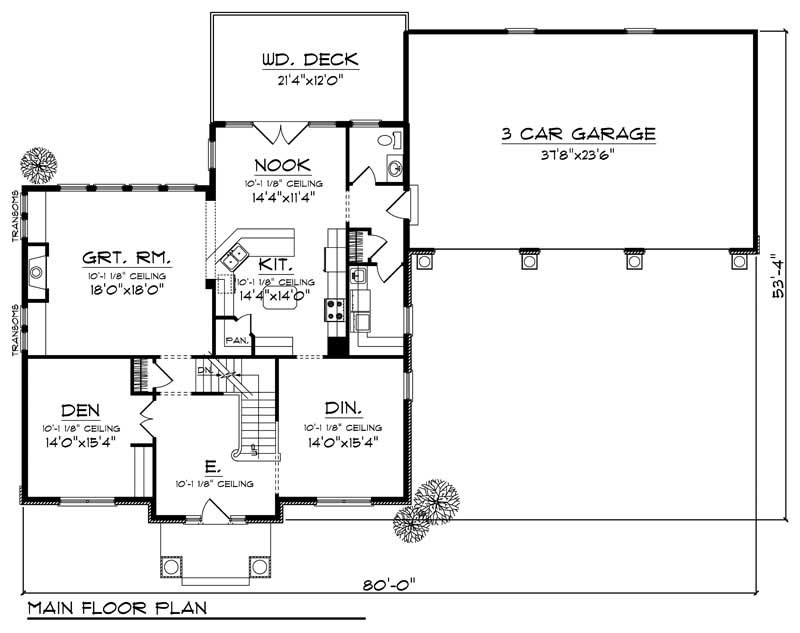

Home Plan: #101-1028 Floor Plan First Story - main Floor Plan First Story of Country Plan #101-1028

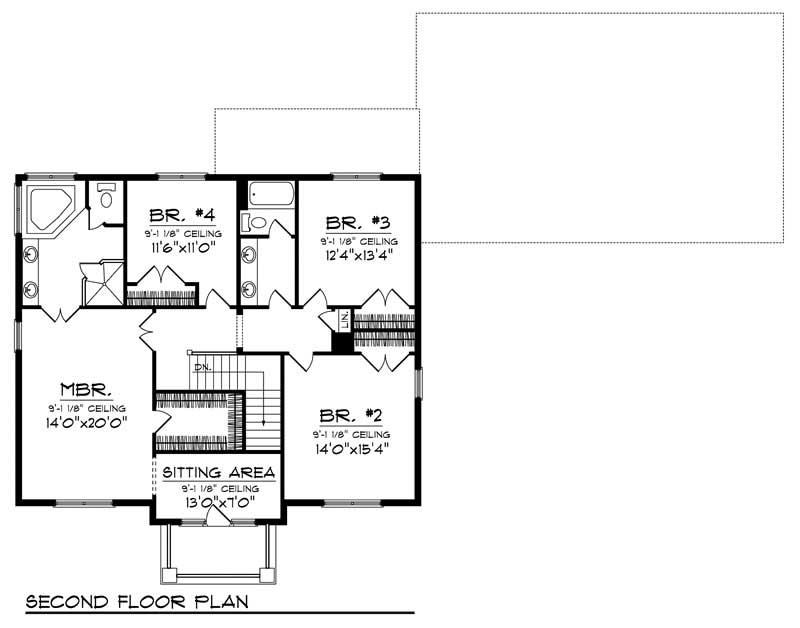

#101-1028 Floor Plan Second Story - second Floor Plan Second Story of Country Plan #101-1028
Home Plan: #101-1028 Floor Plan First Story - main Floor Plan First Story of Country Plan #101-1028
#101-1028 Floor Plan Second Story - second Floor Plan Second Story of Country Plan #101-1028
