4-Bedroom Cape Cod Plan with First Floor Master

Front elevation of Cape Cod home (ThePlanCollection: House Plan #169-1035)

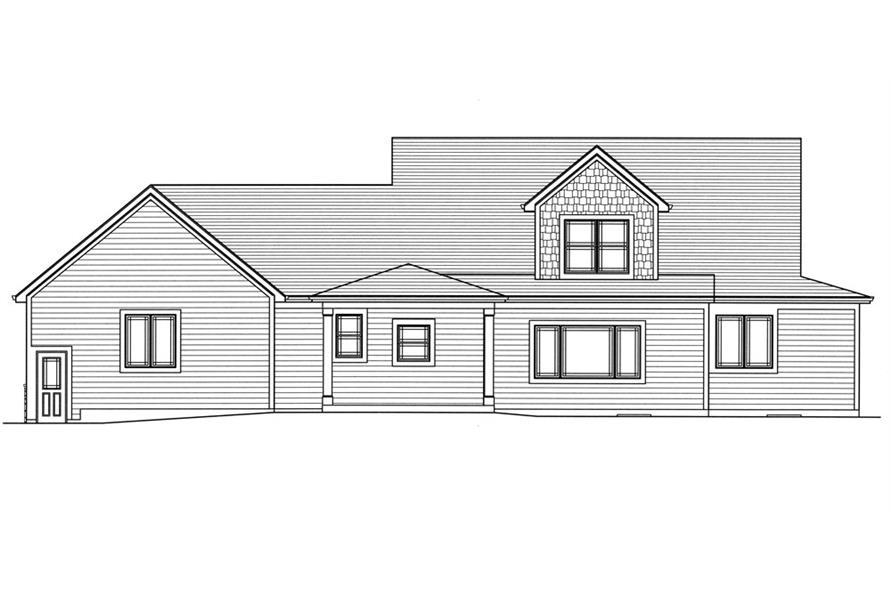

169-1035: Home Plan Rear Elevation
4-Bedroom, 2482 Sq Ft Cape Cod House Plan - 169-1035 - Front Exterior

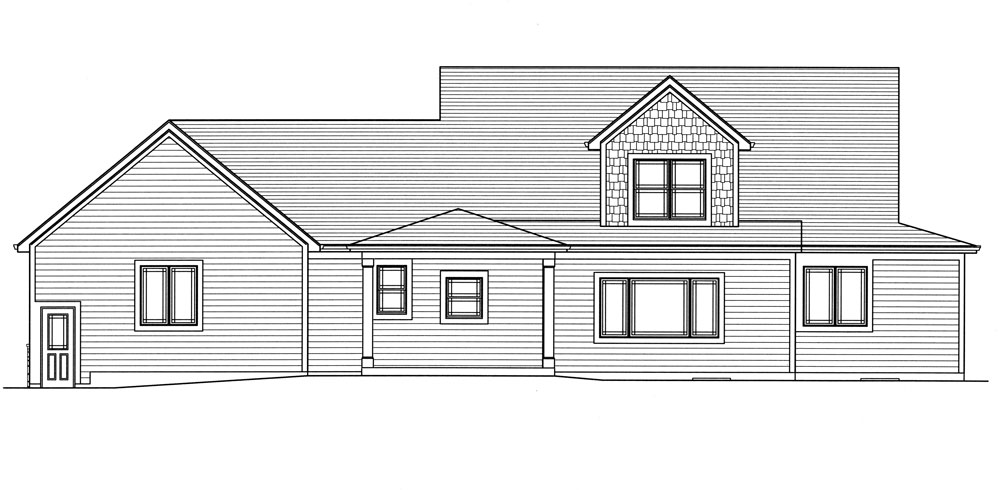

169-1035: Home Plan Rear Elevation

About Plan # 169-1035

About Plan # 169-1035

2482 SQUARE FEET 4 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 77' 6" WIDTH 59' 4" DEPTH 3 GARAGE BAY

This attractive Cape Cod-style home with Craftsman influences has 1776 square feet of living space. The 2-story floor plan includes 4 bedrooms. Special features include:

  • Foyer with double height ceiling.
  • Open concept kitchen including island with eating bar and walk-in pantry.
  • Master suite with sitting area and spacious maser bath.
  • 3-car garage so plenty of space for parking and storage.
  • Three bedrooms on the second floor — all with walk-in closets.

Each plan set includes the following:

  • General notes and specifications
  • Front, rear and side elevations (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction method
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

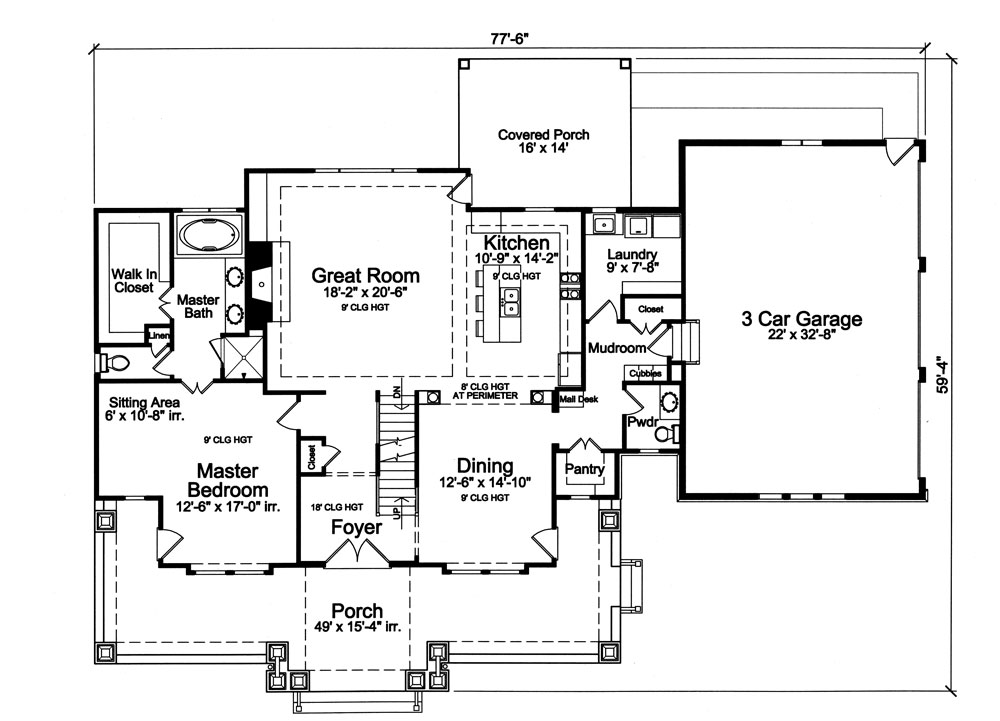

Home Plan: #169-1035 Floor Plan First Story - main level Floor Plan First Story of Cape Cod Plan #169-1035

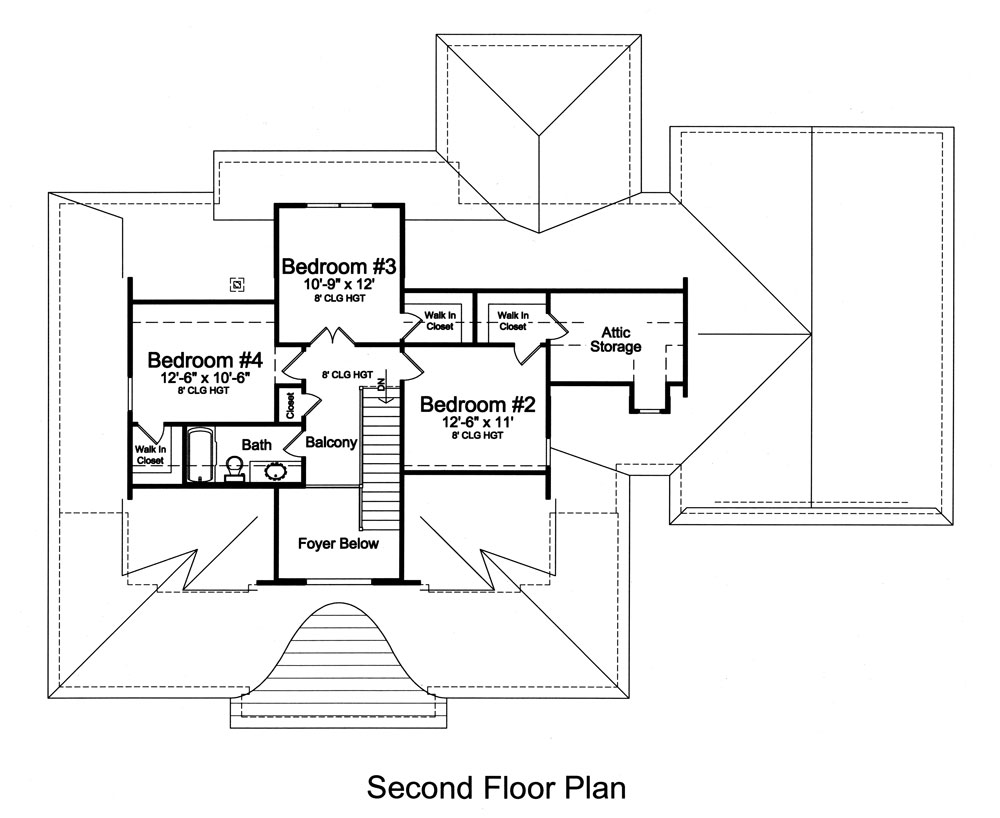

#169-1035 Floor Plan Second Story - upper level Floor Plan Second Story of Cape Cod Plan #169-1035

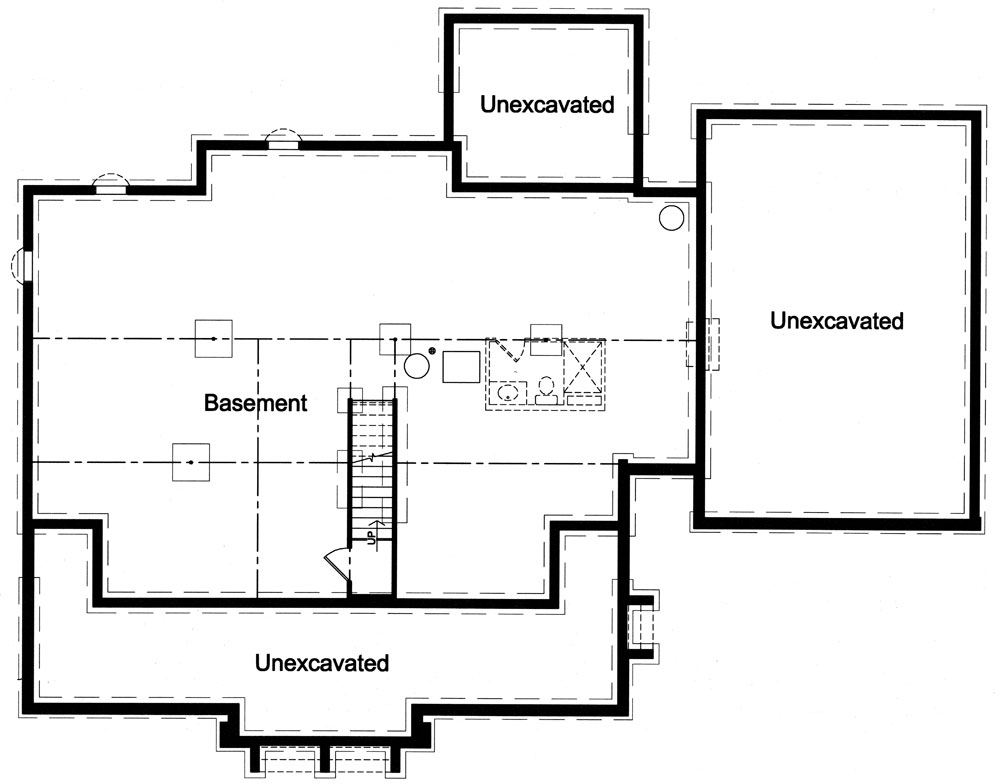

#169-1035 Floor Plan Basement - basement Floor Plan Basement of Cape Cod Plan #169-1035
