3-Bedroom, 1791 Sq Ft Craftsman Plan with Covered Rear Porch

Front elevation of Craftsman home (ThePlanCollection: House Plan #169-1055)

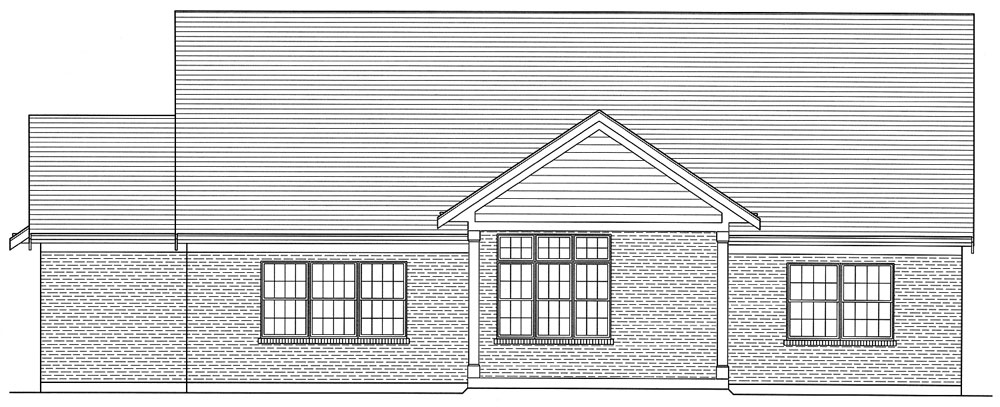

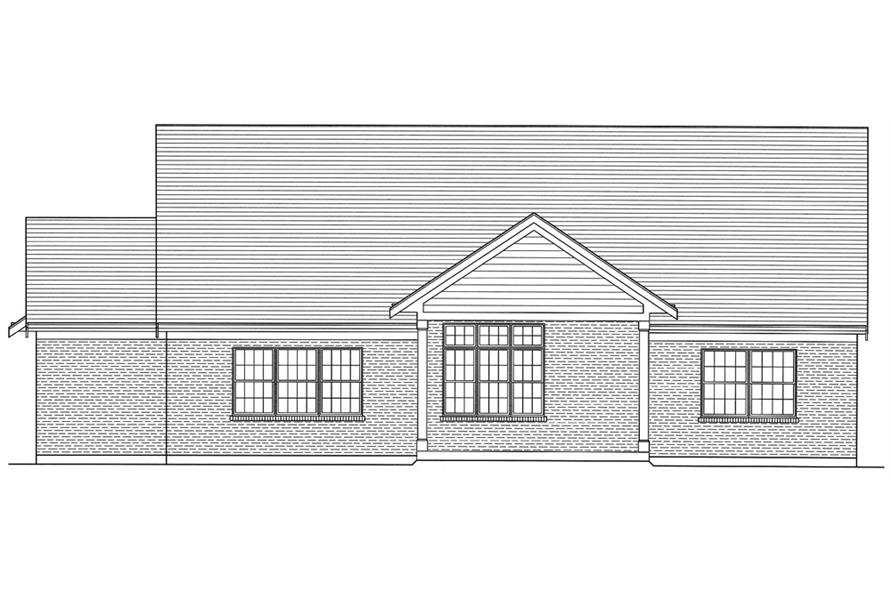

169-1055: Home Plan Rear Elevation

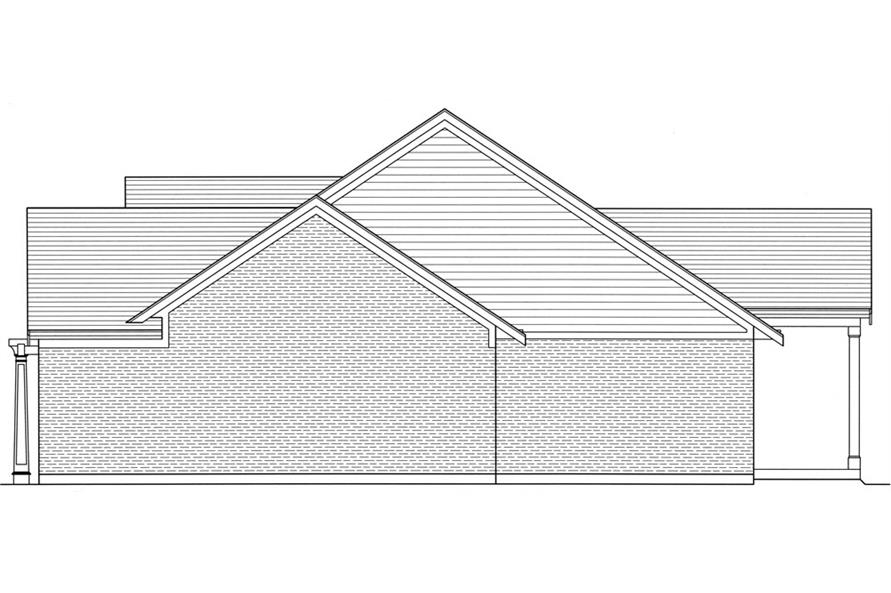

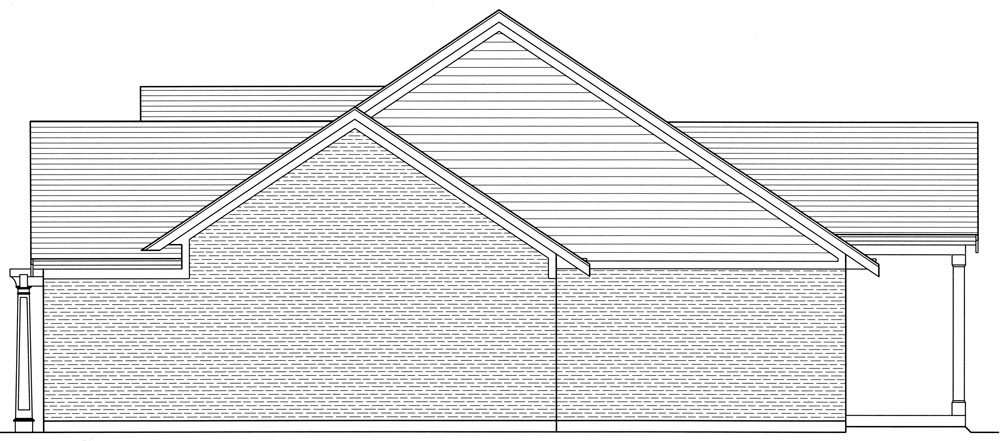

169-1055: Home Plan Left Elevation

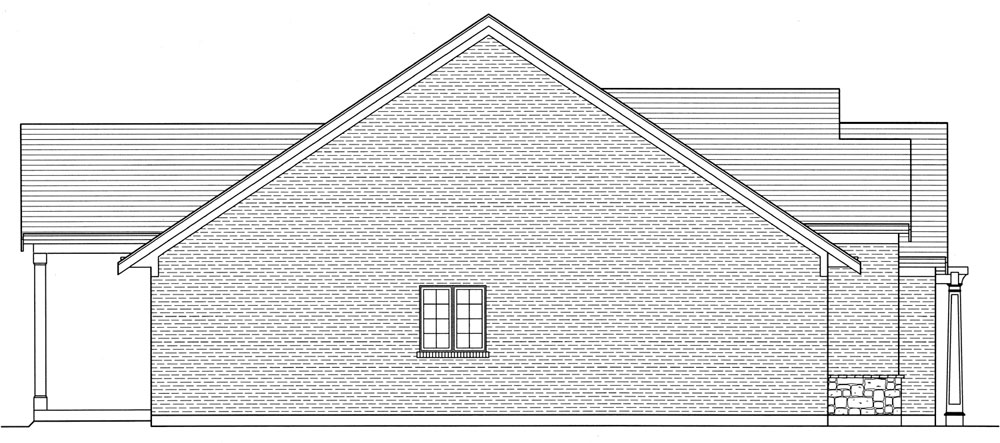

169-1055: Home Plan Right Elevation

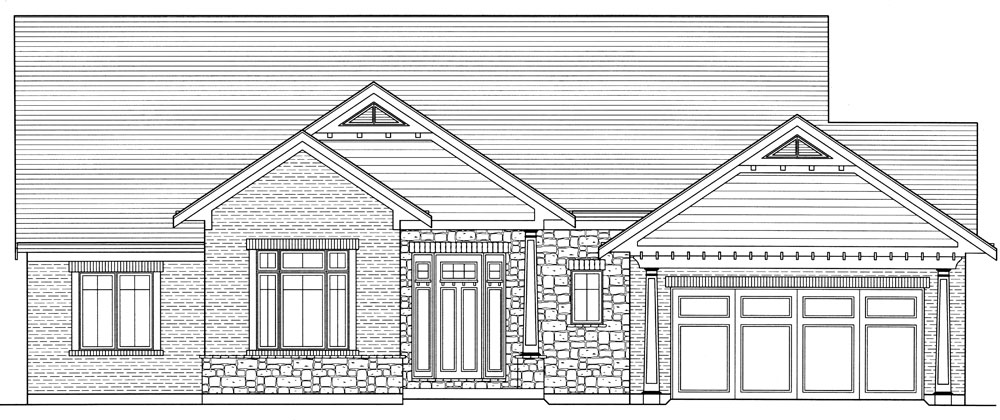

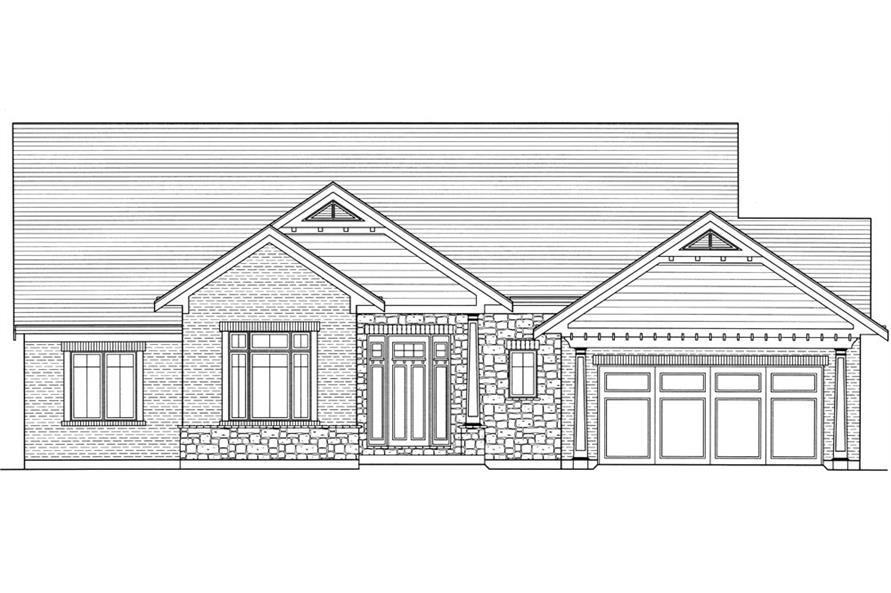

169-1055: Home Plan Front Elevation
3-Bedroom, 1791 Sq Ft Craftsman Home Plan - 169-1055 - Main Exterior
169-1055: Home Plan Rear Elevation
169-1055: Home Plan Left Elevation
169-1055: Home Plan Right Elevation
169-1055: Home Plan Front Elevation

About Plan # 169-1055

About Plan # 169-1055

1791 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 60' 0" WIDTH 55' 1" DEPTH 1 GARAGE BAY

This ranch home offers the best of single-story living in an under 2000 living-square-foot footprint. The exterior evokes tradition with its mix of Craftsman and country styles while using warm tones, stone, and brick to embrace a present-day appearance. From the covered front porch, enter into the foyer with its 10-foot ceiling and large entryway to the Great Room. The fireplace, up to an 11-foot ceiling, and large windows out to the covered rear porch make the Great Room both inviting and spacious. The Great Room is open to the dining area and kitchen. The gourmet kitchen includes an island with an eating bar and a large walk-in pantry. Steps away from the kitchen are the laundry room and the 2-car garage, which makes bringing home groceries a breeze.

Bedroom #2 and #3 share a hall bathroom. The master suite includes a master bedroom with views to the rear of the home and an up-to-9-foot ceiling. The master bathroom includes his-and-her sinks, a large tub, a generous shower, and a walk-in closet.

Each plan set includes the following:

  • GENERAL NOTES & SPECIFICATIONS
  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

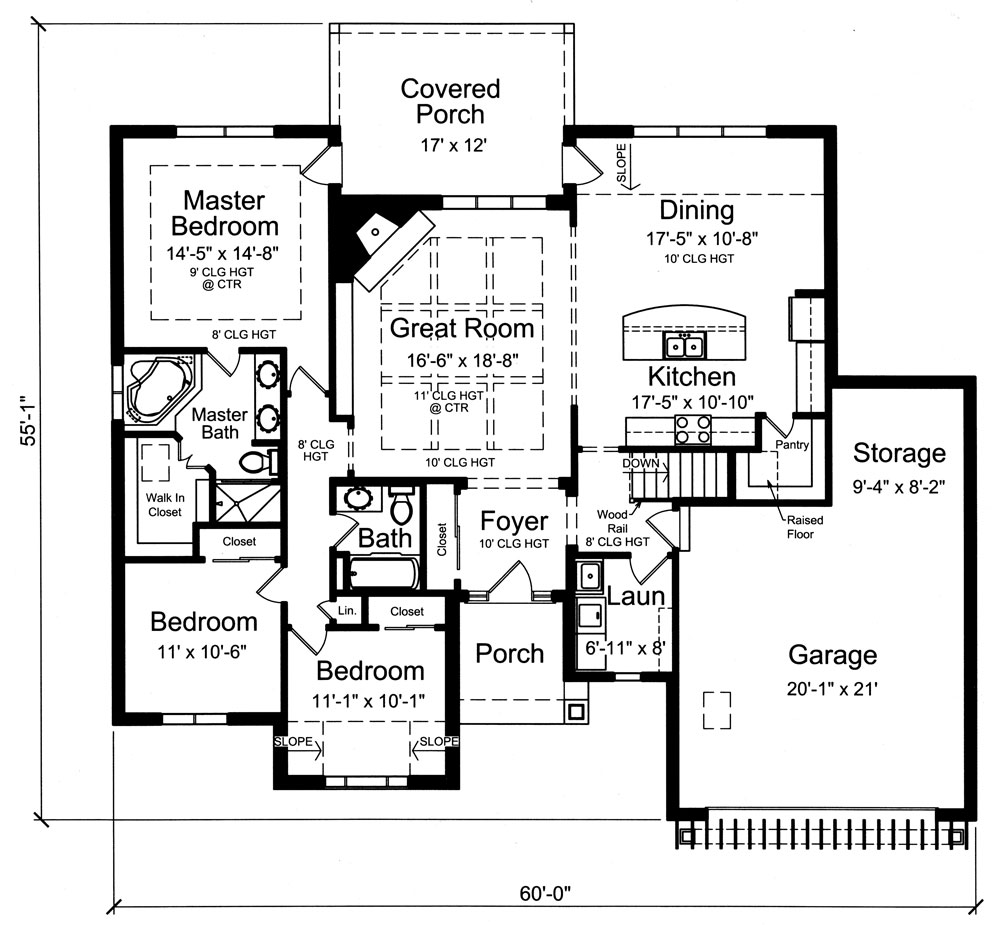

Home Plan: #169-1055 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #169-1055

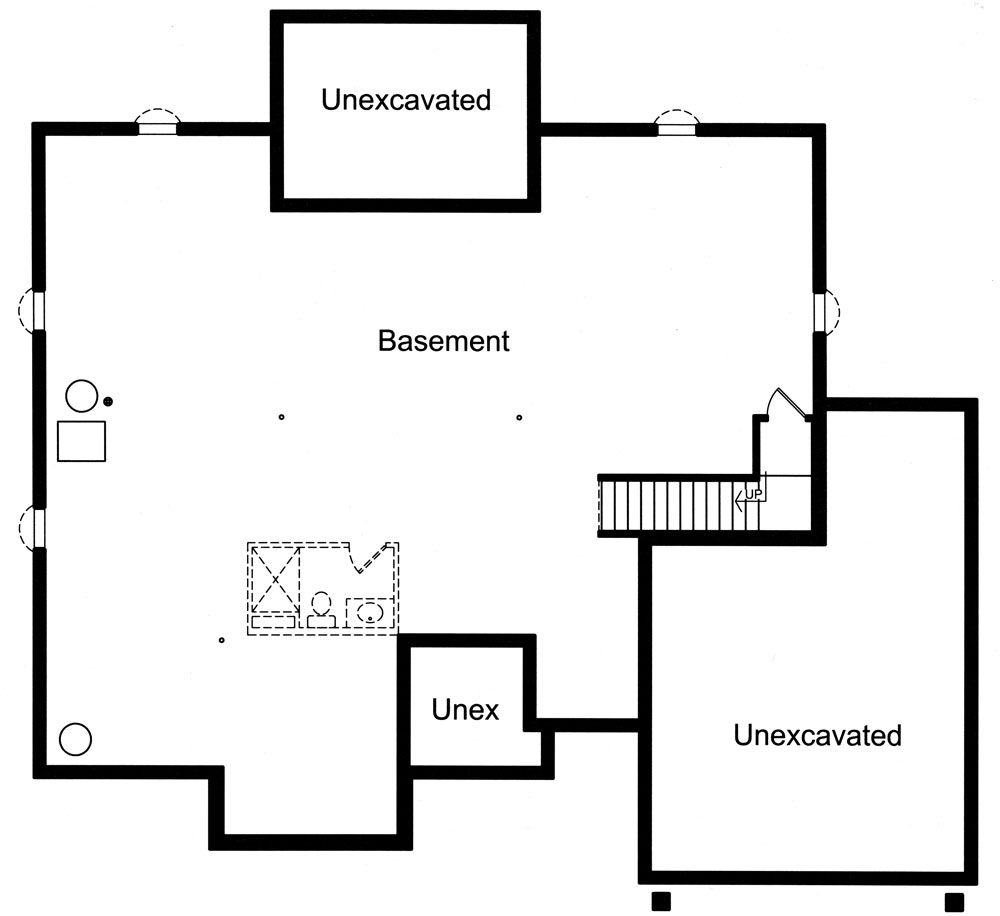

#169-1055 Floor Plan Basement - basement option layout Floor Plan Basement of Craftsman Plan #169-1055
Home Plan: #169-1055 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #169-1055
#169-1055 Floor Plan Basement - basement option layout Floor Plan Basement of Craftsman Plan #169-1055
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 169-1055
Floors:
1
Bedrooms:
3
Full Baths:
2
Garage :
1

Square Footage

Heated Sq Feet:
1791
Main Floor:
1791
Garage:
496
Unfinished Sq Ft:
Lower Floor:
1791

Dimensions

Width:
60' 0"
Depth:
55' 1"
Ridge Height:
25' 0"

Architectural Styles

Country
Craftsman
Ranch
Texas Style
Transitional

Exterior Wall Material

Brick
Log
Wood Siding

Roofing Type

Gable
Hip

Roofing Material

Asphalt Shingles

Roof Pitch

8/12

Ceiling Height

8 Foot Ceiling

Special Feature

Dining Room
Fireplace
Main Level Laundry
Open Floor Plan
Storage

Garage Type

Attached Garage

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Kitchen Features

Kitchen Island
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE: 5 sets and 8 sets include a PDF as well.

PRICING OPTIONS

A NON-modifiable, print-only PDF that is emailed. Includes a complete set of working drawings delivered in a digital format. Print as many sets as you need. No shipping costs. Comes with a license to build one home.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

Eight printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 8 sets ship. Comes with a license to build one home.

For use by design professionals. This file may be available. Please call or email us first so we can confirm for you. This set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
