4-Bedroom, 3455 Sq Ft Luxury Plan with Mud Room

Luxury house design (ThePlanCollection: Plan #169-1189)

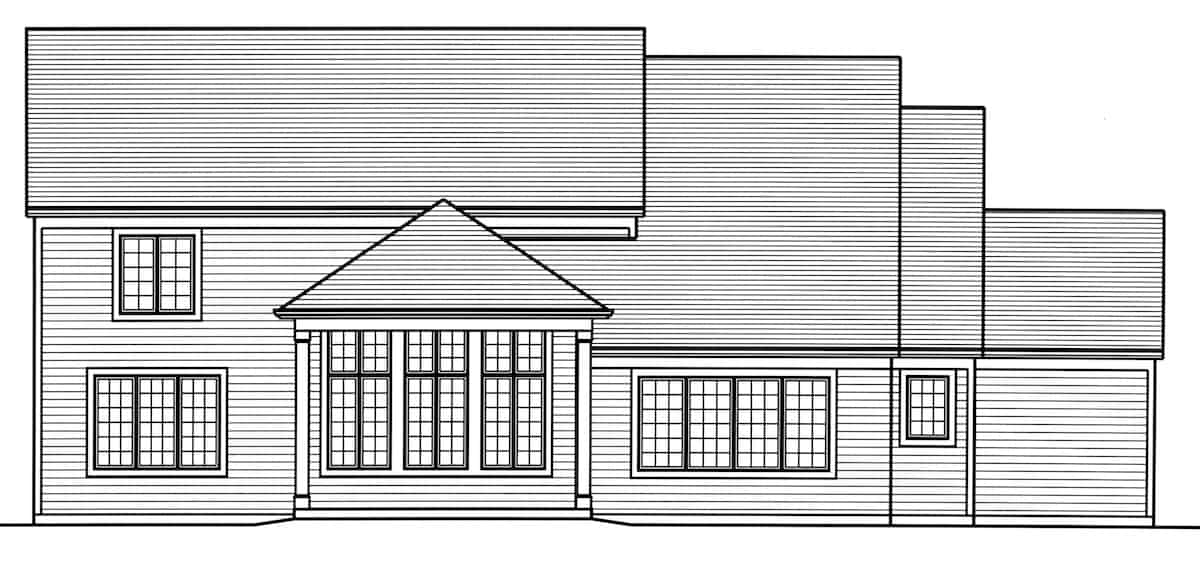

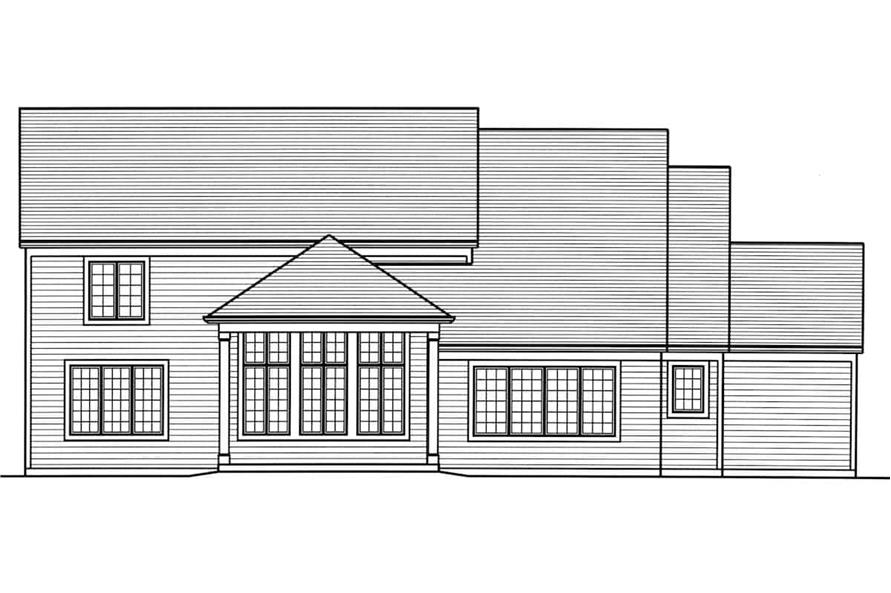

169-1189: Home Plan Rear Elevation

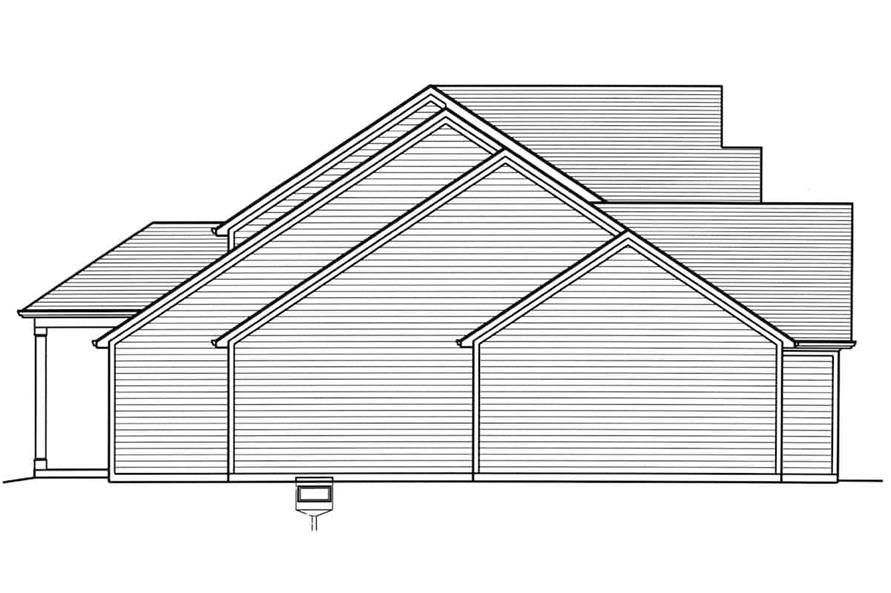

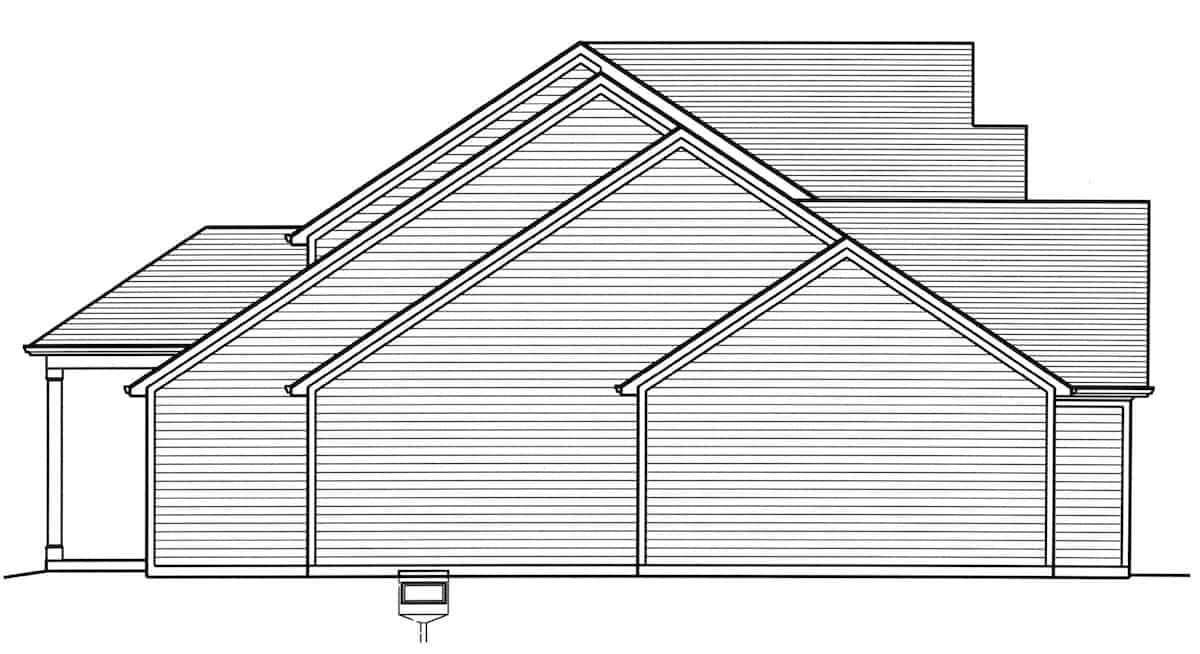

169-1189: Home Plan Left Elevation

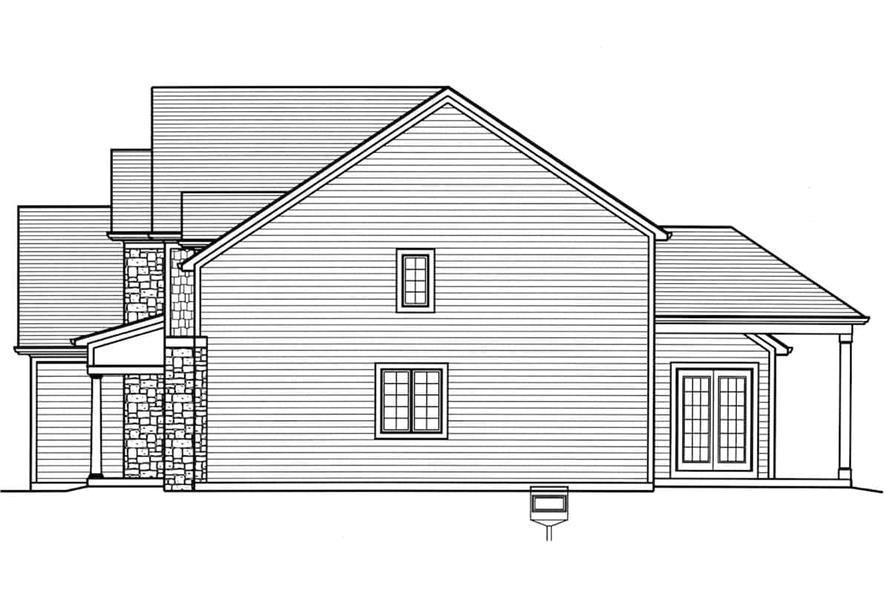

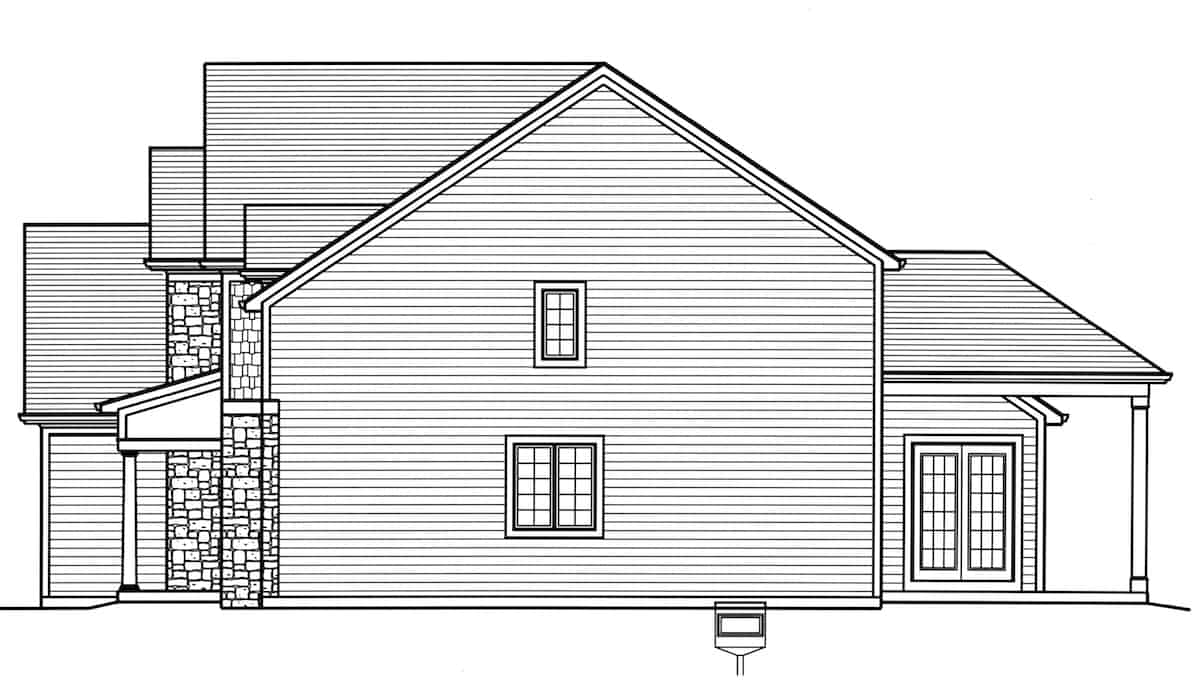

169-1189: Home Plan Right Elevation
4-Bedroom, 3455 Sq Ft Luxury House - Plan #169-1189 - Front Exterior
169-1189: Home Plan Rear Elevation
169-1189: Home Plan Left Elevation
169-1189: Home Plan Right Elevation

About Plan # 169-1189

About Plan # 169-1189

3455 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 71' 6" WIDTH 64' 3" DEPTH 3 GARAGE BAY

Welcome to this Luxury Transitional style home with traditional Colonial design touches and a grand portico entrance. Lots of living space makes this house the perfect place for relaxing and entertaining. Its 2-story floor plan covers a total heated and cooled area of 3455 square feet with features like

• A walk-in kitchen pantry and butler's pantry
• A laundry room with sink
• A fireplace in the Great Room
• A flex room
• A mudroom with a bench

Each plan set includes the following:

  • General notes and specifications
  • Front, rear and side elevations (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction method
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

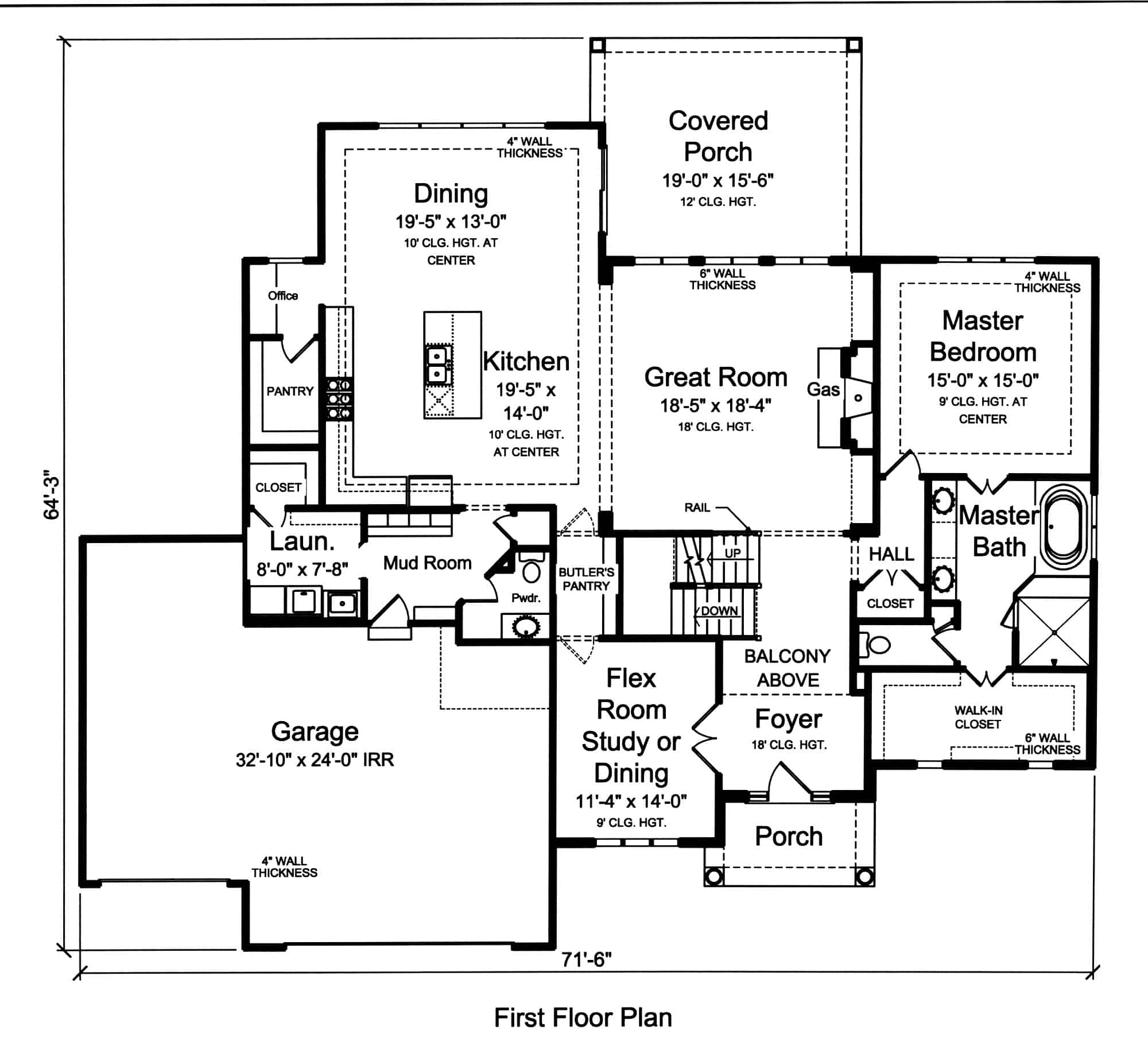

Home Plan: #169-1189 Floor Plan First Story - main level Main Level of Luxury Plan #169-1189

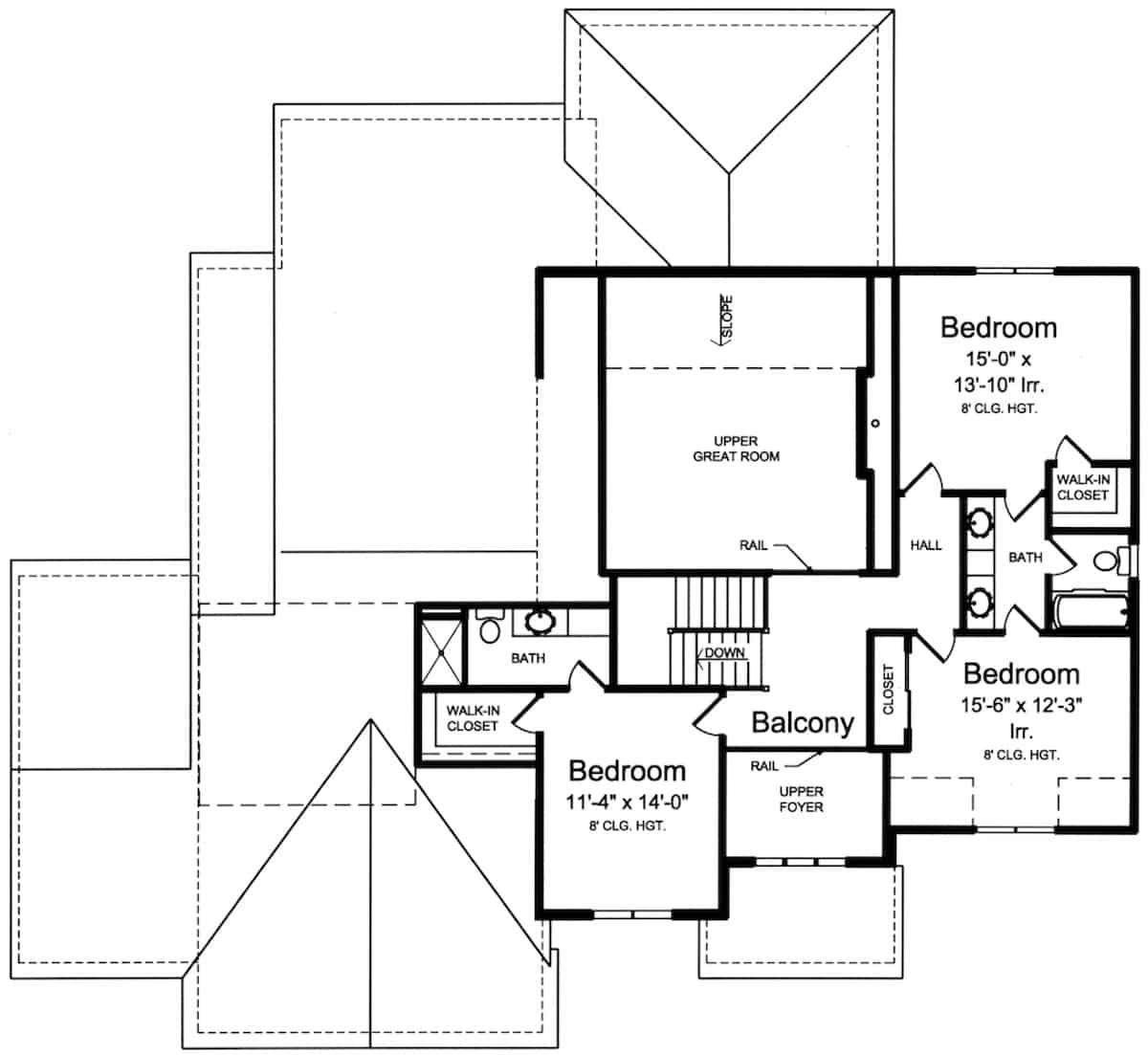

#169-1189 Floor Plan Second Story - upper level Upper Level of European Plan #169-1189

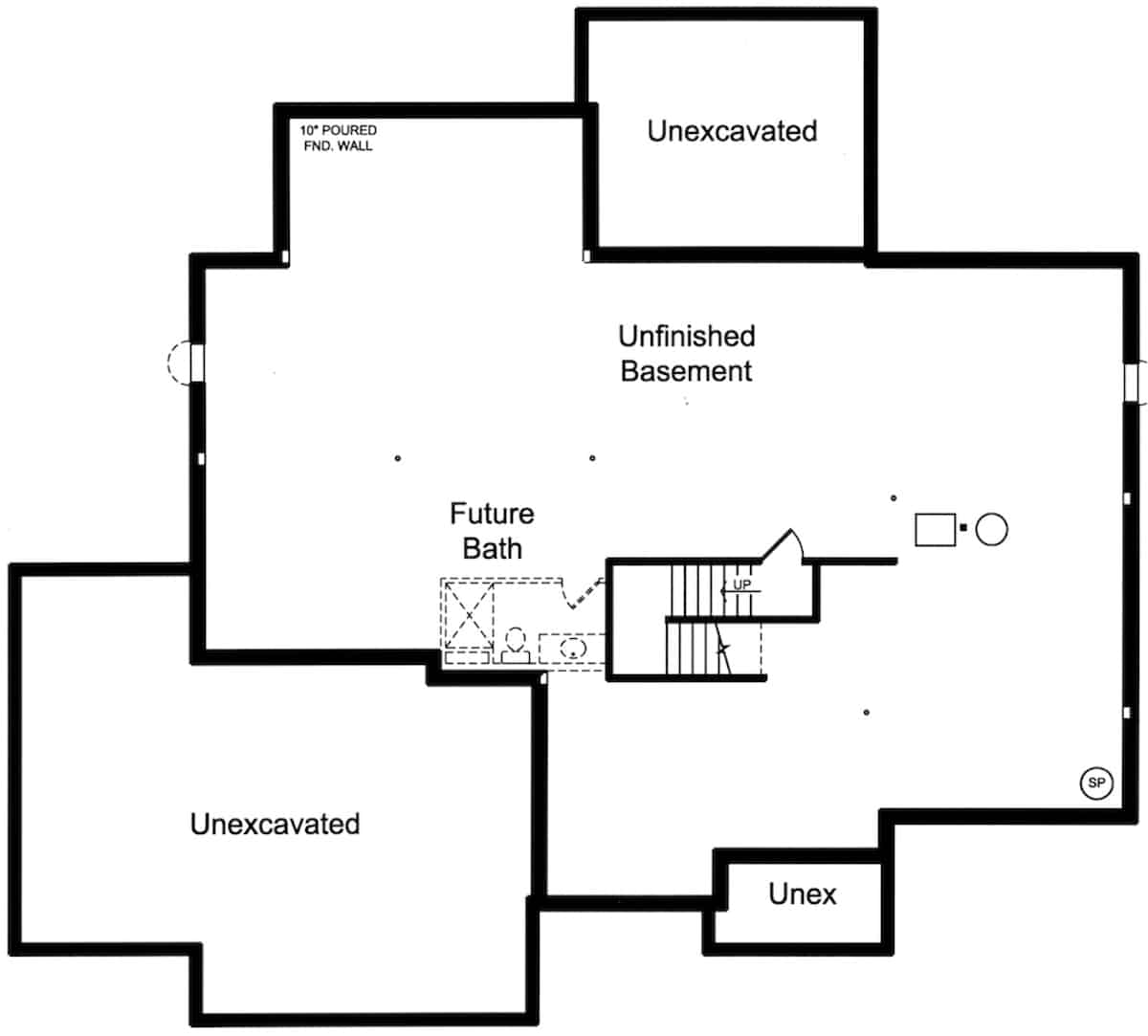

#169-1189 Floor Plan Basement - basement Basement of European Plan #169-1189
