4–6-Bedroom, 3296 Sq Ft Farmhouse Plan with High Ceilings

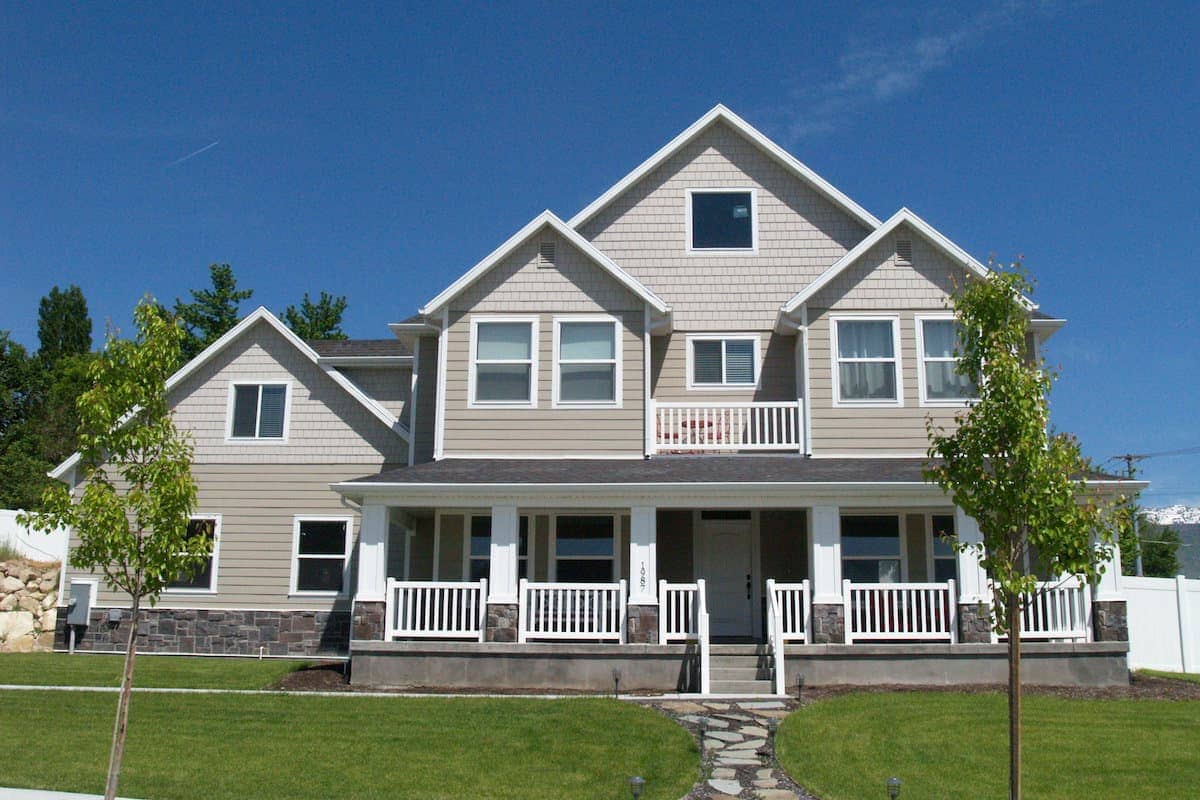

Farmhouse style home (ThePlanCollection: Plan #187-1001)

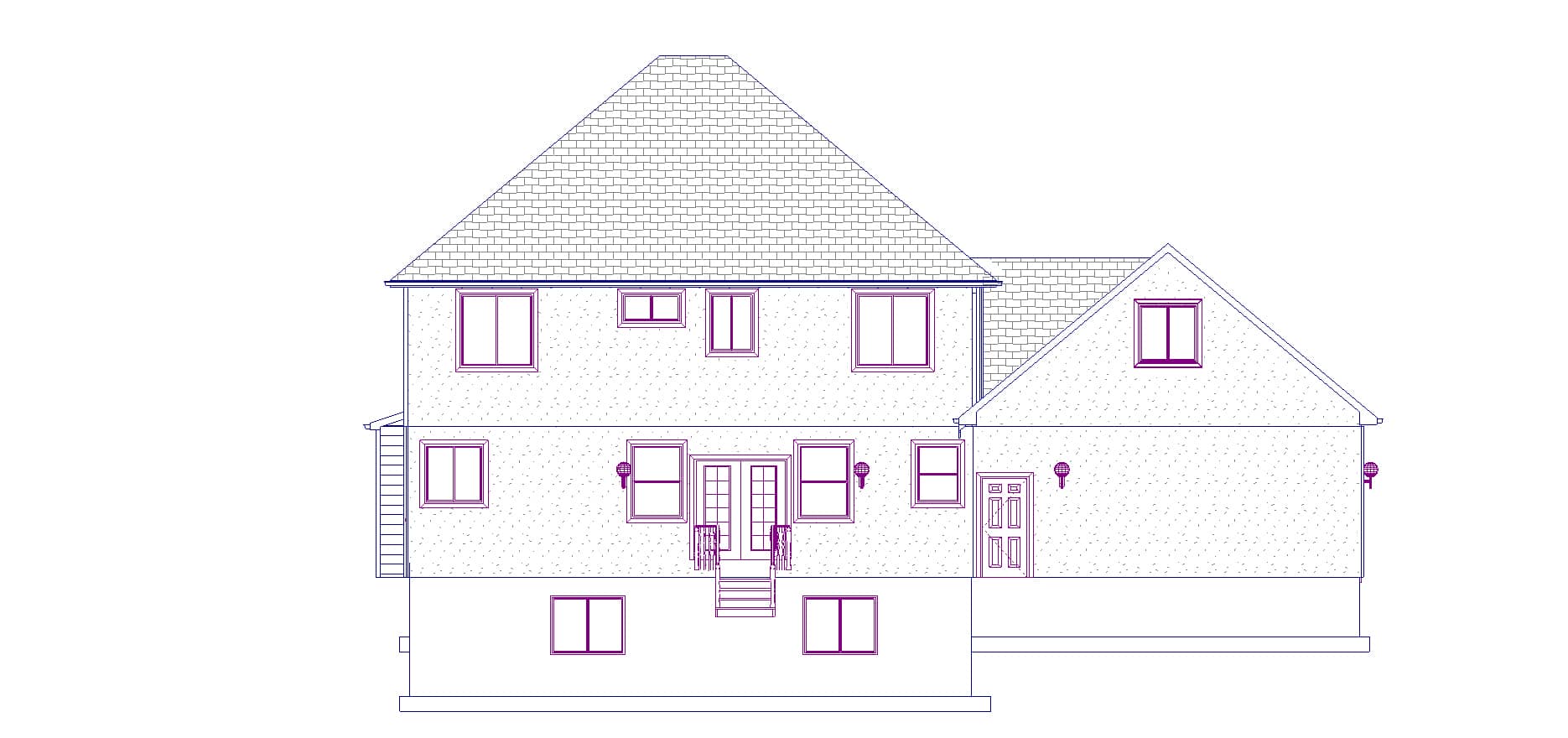

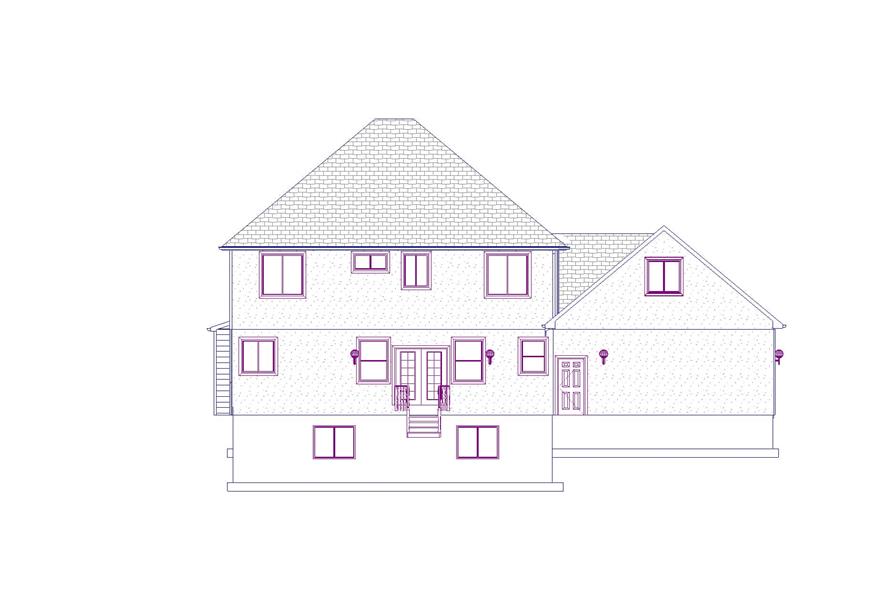

187-1001: Home Plan Rear Elevation

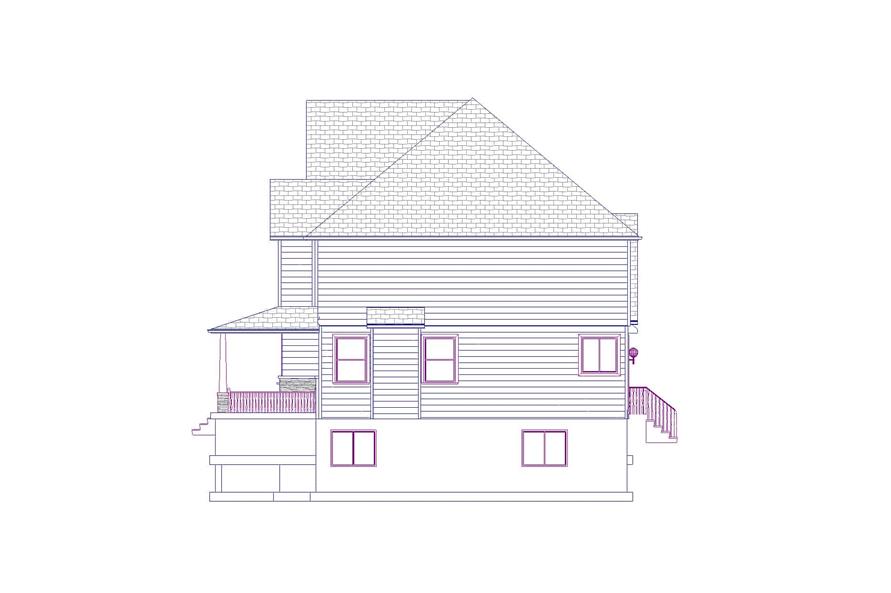

187-1001: Home Plan Left Elevation

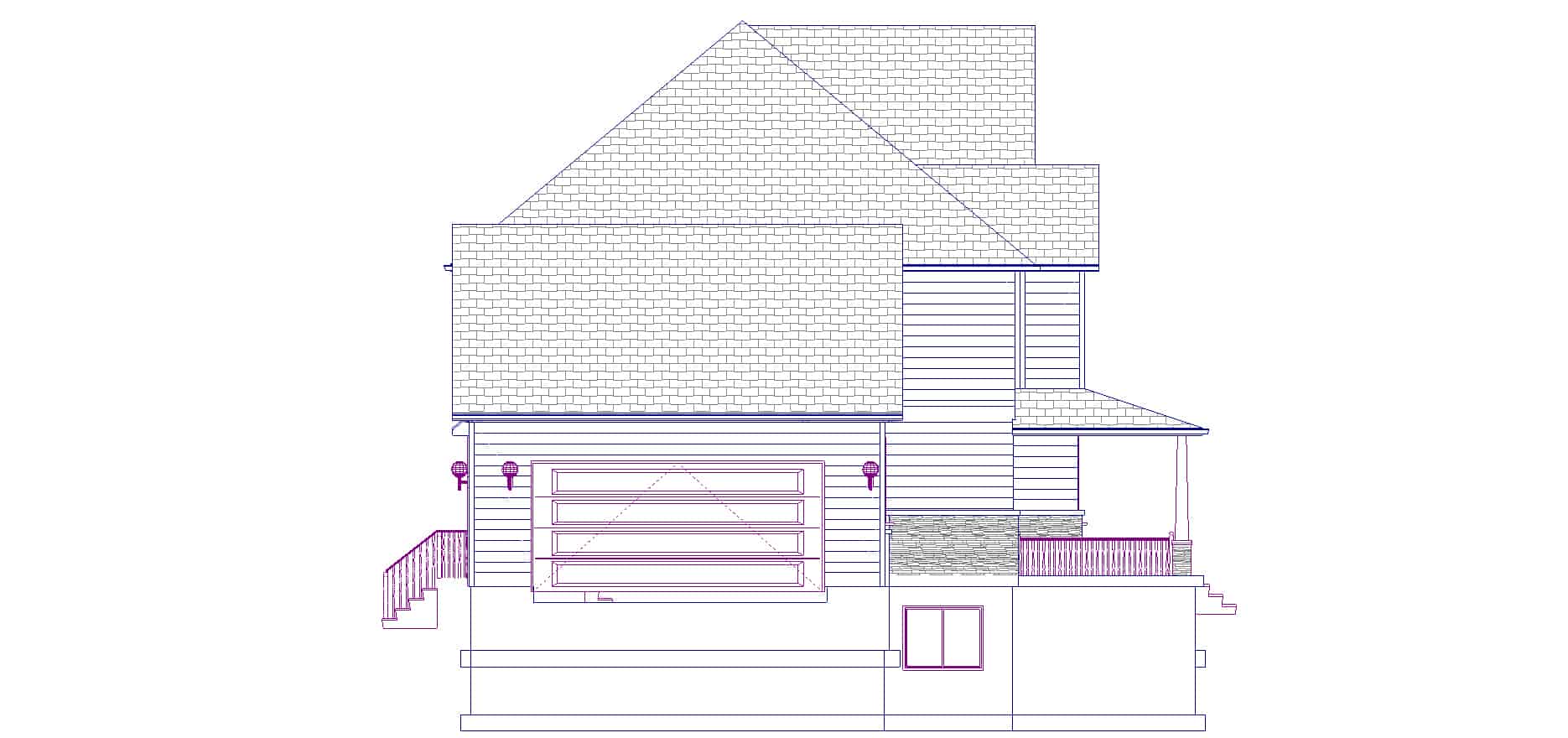

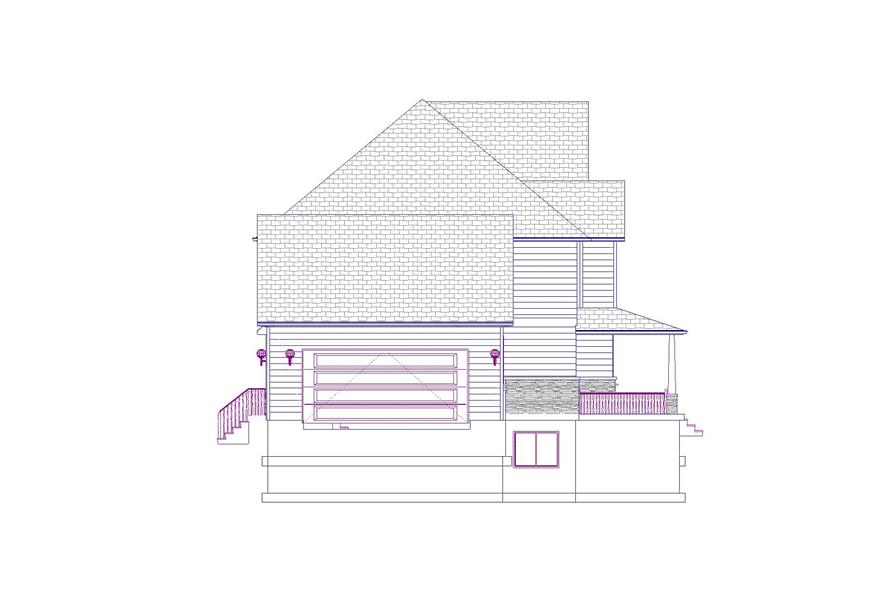

187-1001: Home Plan Right Elevation

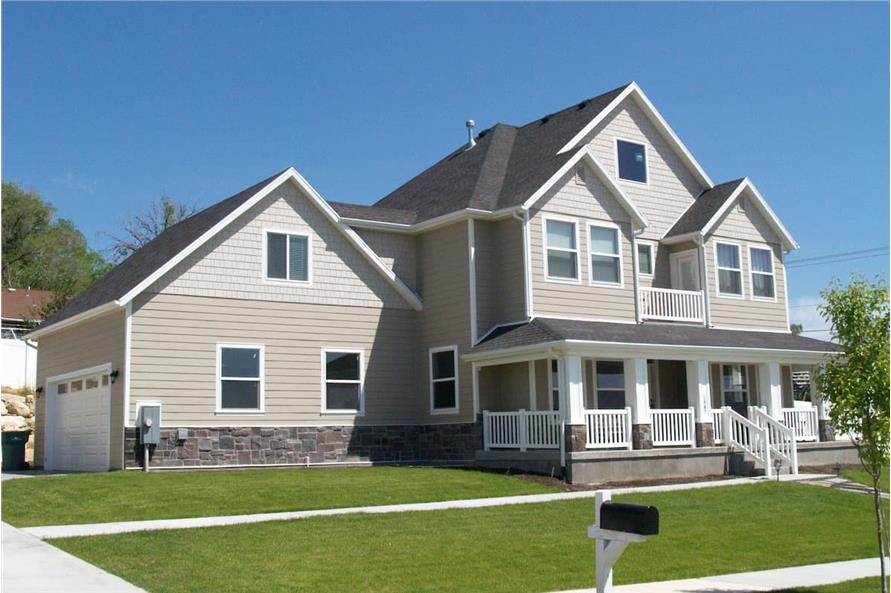

187-1001: Home Exterior Photograph-Left Side View

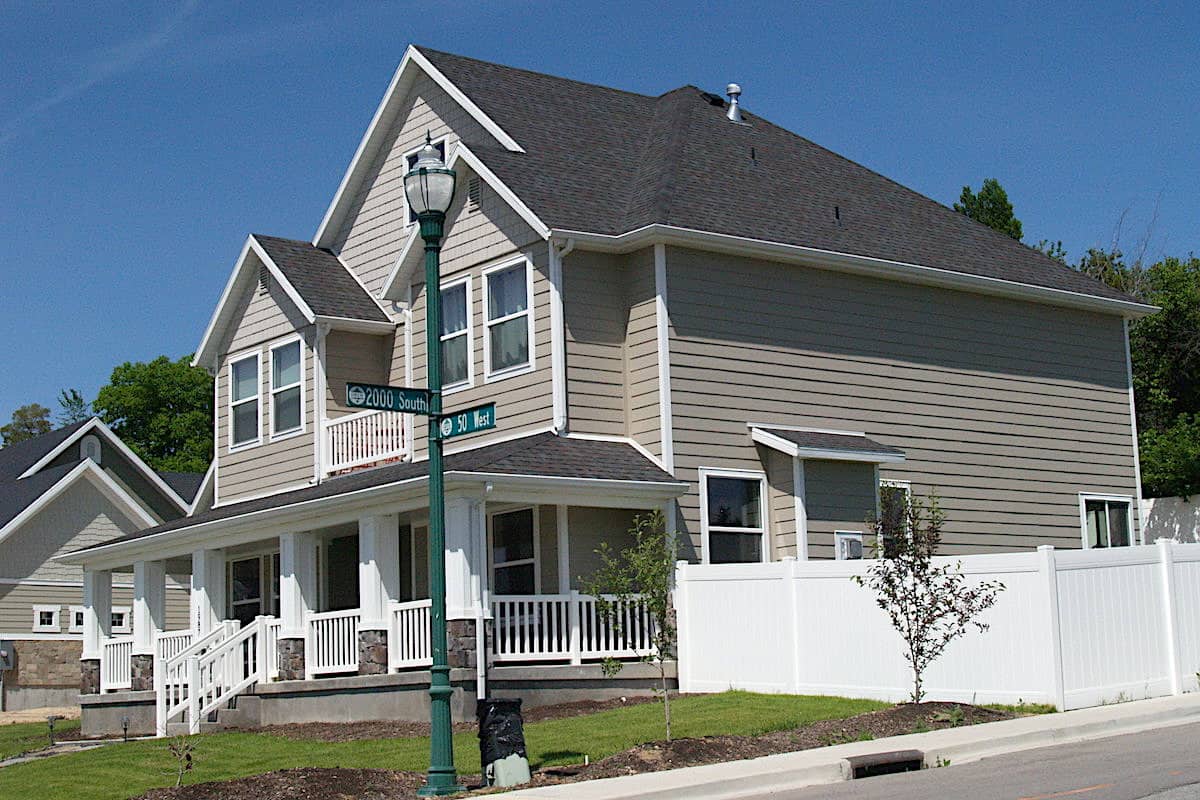

187-1001: Home Exterior Photograph-Right Side View
4–6-Bedroom, 3296 Sq Ft Craftsman Home - Plan #187-1001 - Main Exterior
187-1001: Home Plan Rear Elevation
187-1001: Home Plan Left Elevation
187-1001: Home Plan Right Elevation
187-1001: Home Exterior Photograph-Left Side View
187-1001: Home Exterior Photograph-Right Side View

About Plan # 187-1001

About Plan # 187-1001

3296 SQUARE FEET 4 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 64' 0" WIDTH 45' 0" DEPTH 2 GARAGE BAY

This is a great move-up for growing families home. This 2-story farmhouse-style home has 4 to 6 bedrooms and 2.5 to 3.5 baths with ceiling heights of 9 and 8 feet. Above grade, there are 3296 square feet plus additional square footage with the optional finished basement, which gives a total of 4705 living square feet.

The long, wide covered front porch is inviting -- and a perfect place to relax and enjoy the day. From the porch, step inside to the entry hall which is flanked on one side with double doors to the study. On the other side is the great room with its spacious and open floor plan design. The fireplace is the focal point of the room. Steps away, you will find a large kitchen which is ideal for a growing family. The kitchen island can easily seat four while the dining area offers plenty of space. A powder room and a mudroom with storage and a closet leading to the 2-car garage complete the main level.

Upstairs, you will find four bedrooms. Three of the bedrooms share a bathroom. The master suite has a large walk-in closet and a master bath with his and her vanities. The bonus room, which adds an additional 450 living square feet over the garage and can be a play area, office, and/or bedroom, completes the second floor.

The basement can be finished at your option. The finished basement totals 1409 living square feet and includes a large family room, bedroom #5, bedroom #6, a full bathroom, and storage closet if completed following the floor plan.

Also of note: The trussed roof and 2x6 walls offer solid framing. We are sure you'll find a lot to like about this design. A 3D printing option is also available with this plan to print your own physical model of the home.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FLOOR FRAMING PLANS
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

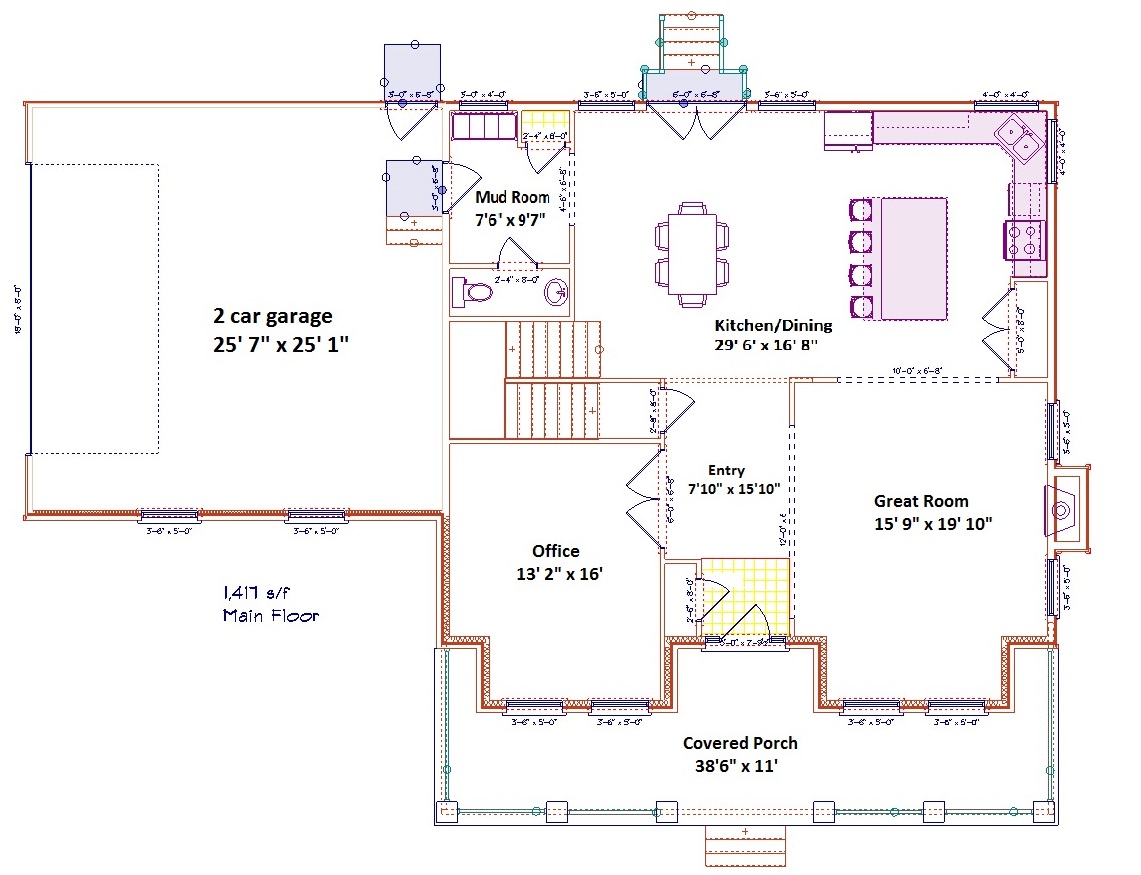

Home Plan: #187-1001 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #187-1001

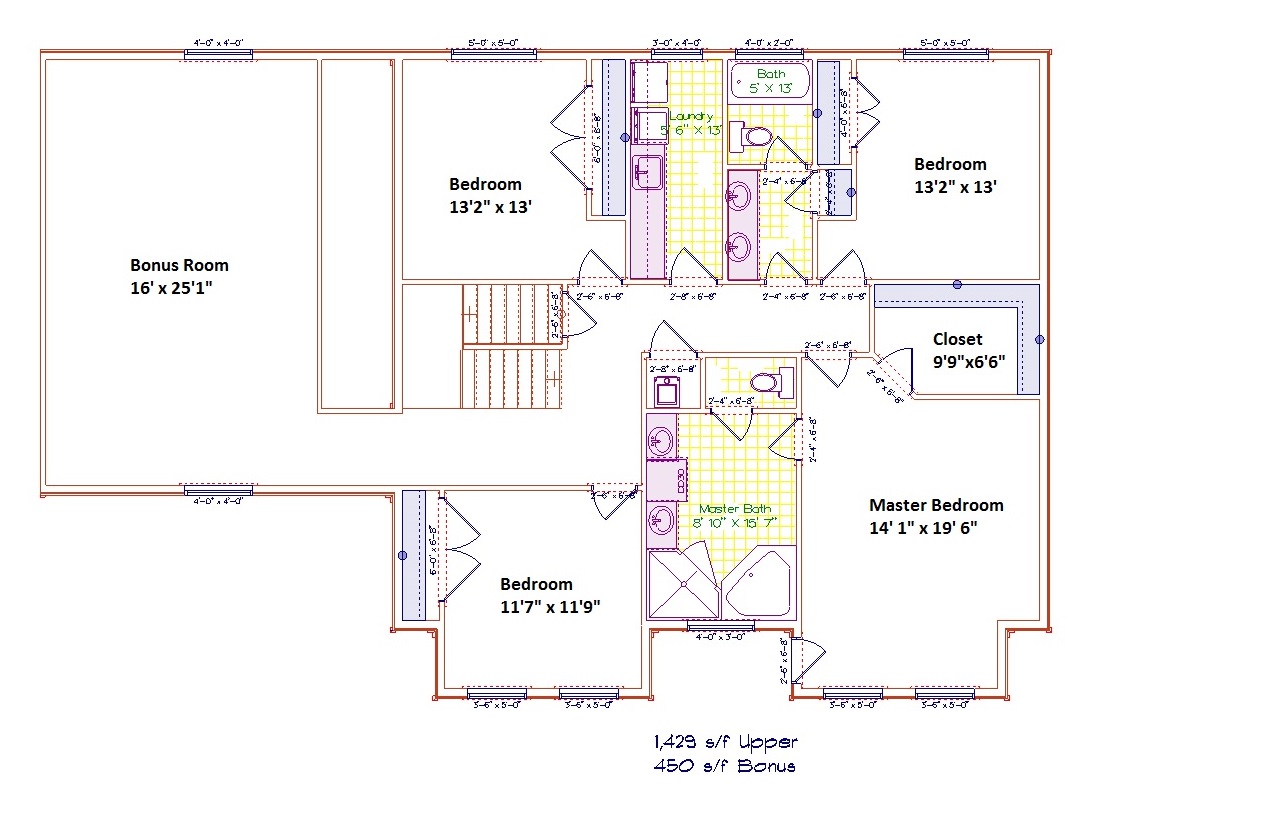

#187-1001 Floor Plan Second Story - upper level Floor Plan Second Story of Craftsman Plan #187-1001

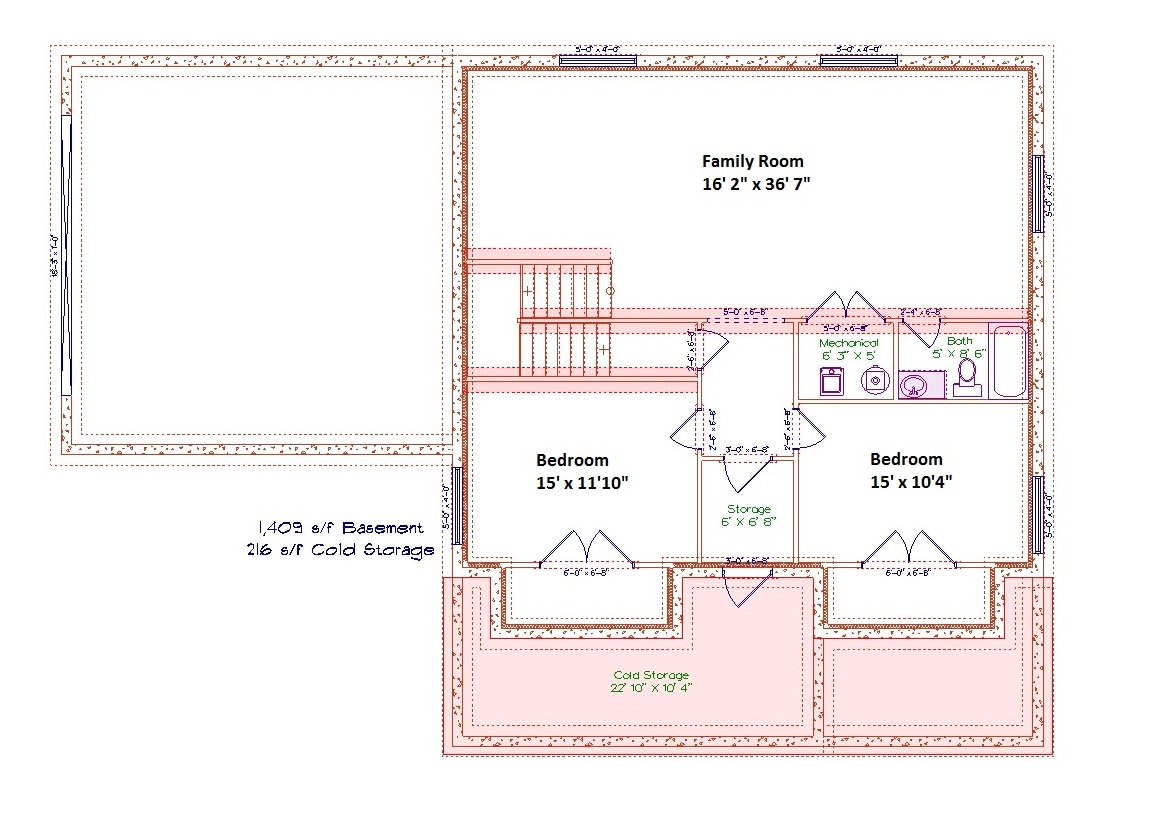

#187-1001 Floor Plan Basement - basement Floor Plan Basement of Craftsman Plan #187-1001
Home Plan: #187-1001 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #187-1001
#187-1001 Floor Plan Second Story - upper level Floor Plan Second Story of Craftsman Plan #187-1001
#187-1001 Floor Plan Basement - basement Floor Plan Basement of Craftsman Plan #187-1001
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 187-1001
Floors:
2
Bedrooms:
4
Full Baths:
2
Half Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
3296
Main Floor:
1417
Upper Floor:
1429
Bonus:
450
Unfinished Sq Ft:
Lower Floor:
1409

Dimensions

Width:
64' 0"
Depth:
45' 0"
Ridge Height:
35' 2"

Architectural Styles

Country
Farmhouse
Southern
Traditional

Exterior Wall Material

Vinyl Siding
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Ceiling Height

8 Foot Ceiling
9 Foot Ceiling

Special Feature

Bonus Room
Color Photos
Family Room
Fireplace
Home Office
L-Shaped
Main Level Laundry
Mud Room
Open Floor Plan
Second Level Laundry
Split Bathroom

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Building Lot Type

Corner Lot
Flat Site

Kitchen Features

Eat-In Kitchen
Kitchen Island

Porches and Exterior Features

Covered Front Porch

Master Suite Features

Master Bathroom
Second Floor Master
Walk In Closet

Additional Notes from Designer

PLEASE NOTE! On some plans, alternate foundations could take up to ONE WEEK to produce. NOTE FROM DESIGNER: If you purchase a CAD, you will automatically receive the unlimited build license!

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
