About Plan # 189-1013

About Plan # 189-1013

3263 SQUARE FEET 5 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 55' 5" WIDTH 62' 9" DEPTH 2 GARAGE BAY

This stately Colonial style home design has over 3260 square feet of living space. This 2 story floor plan includes 5 bedrooms and 3 1/2 bathrooms.

Each plan set includes the following:

  • Foundation Detail
  • Floor plans
  • Exterior Elevations
  • Cross-section elevations
  • Interior elevations
  • Arial view
  • Color rendering of the front elevation
  • Roof plan
  • Roof Framing
  • Ceiling Framing
  • Floor Framing
  • Electrical Layout
  • Notes and Details

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

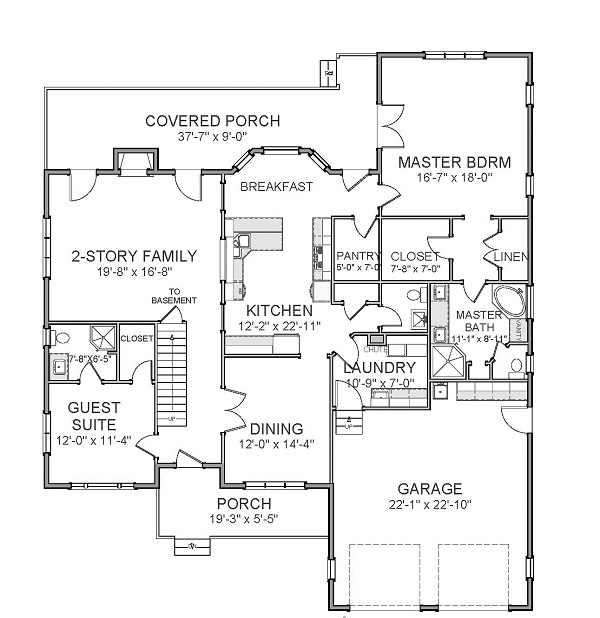

Home Plan: #189-1013 Floor Plan First Story - main level Floor Plan First Story of Colonial Plan #189-1013

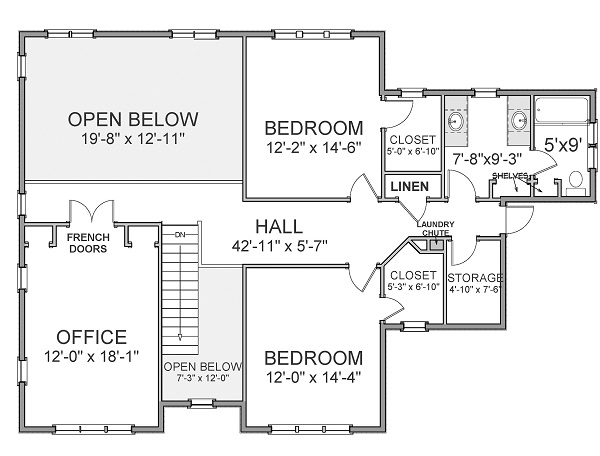

#189-1013 Floor Plan Second Story - upper level Floor Plan Second Story of Colonial Plan #189-1013

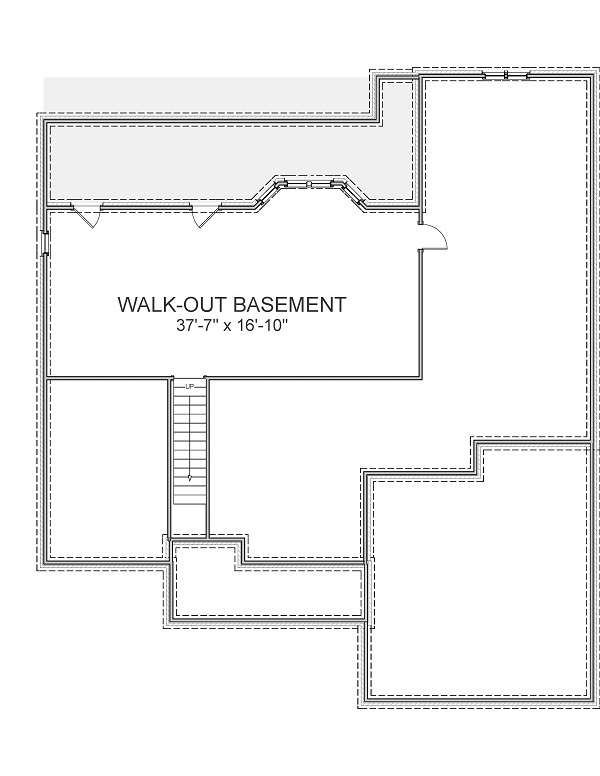

#189-1013 Floor Plan Basement - basement Floor Plan Basement of Colonial Plan #189-1013
Home Plan: #189-1013 Floor Plan First Story - main level Floor Plan First Story of Colonial Plan #189-1013
#189-1013 Floor Plan Second Story - upper level Floor Plan Second Story of Colonial Plan #189-1013
#189-1013 Floor Plan Basement - basement Floor Plan Basement of Colonial Plan #189-1013
