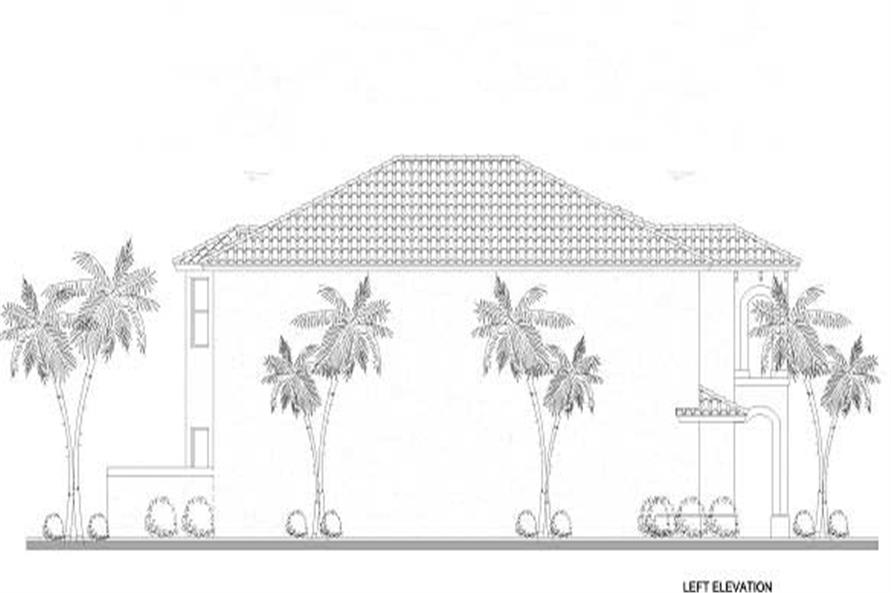

Home Plan Left Elevation

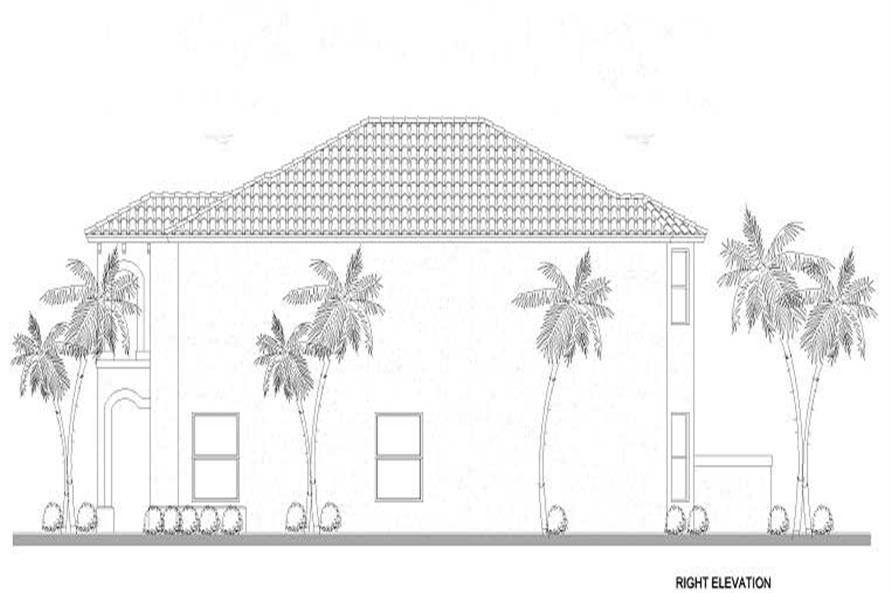

Home Plan Right Elevation

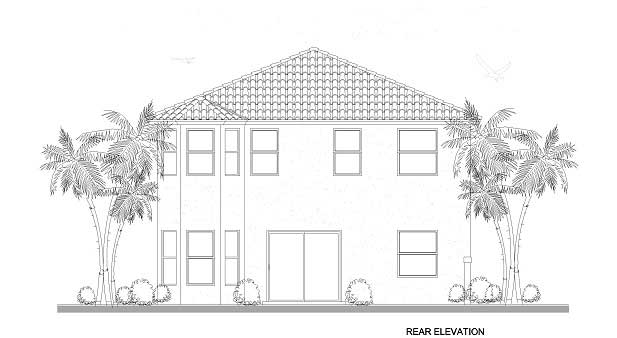

Home Plan Rear Elevation
5-Bedroom, 2647 Sq Ft Mediterranean House Plan - 107-1169 - Front Exterior
Home Plan Left Elevation
Home Plan Right Elevation
Home Plan Rear Elevation

About Plan # 107-1169

About Plan # 107-1169

2647 SQUARE FEET 5 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 35' 0" WIDTH 56' 11" DEPTH 2 GARAGE BAY
Home Plan #107-1169 is a two story Mediterranean style home with 5 bedrooms, 3 baths, and a 2 car garage. This house plan has a beautiful interior as well as exterior and is great for all types of families.

Each plan set includes the following:

  • Floor plan
  • Kitchen & Bath layout
  • Exterior elevations
  • Sections
  • Structural plans
  • Foundation plan
  • Roof plan
  • Mechanical layout
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

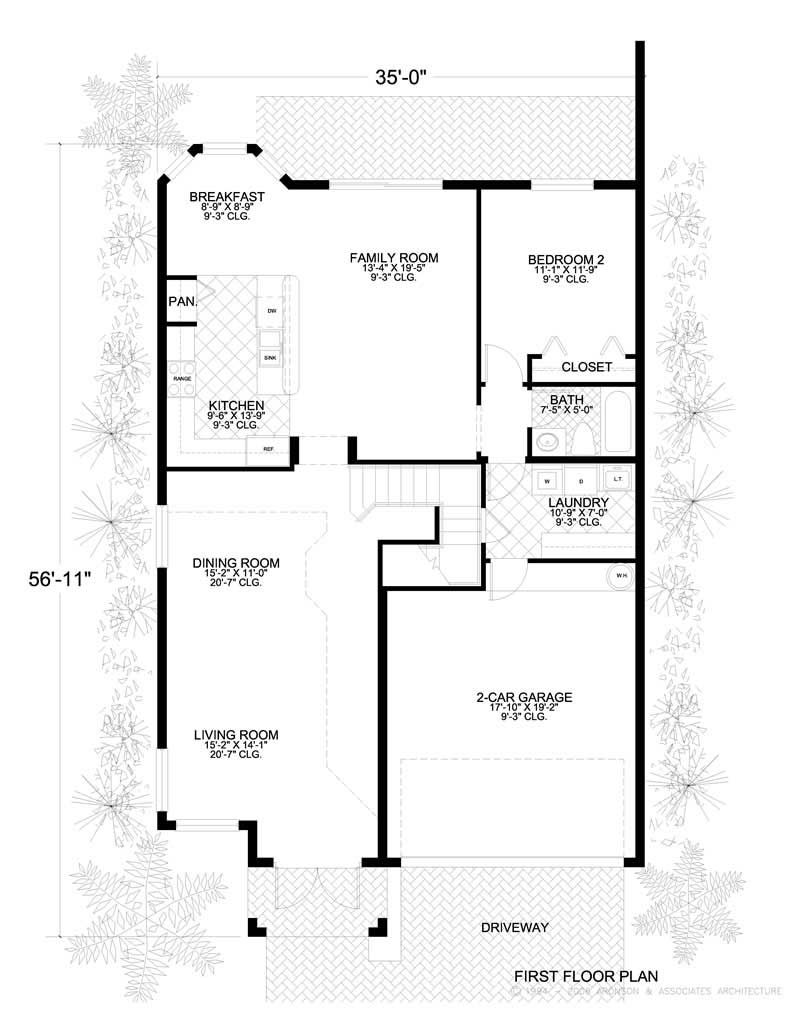

Home Plan: #107-1169 Floor Plan First Story - first Floor Plan First Story of Mediterranean Plan #107-1169

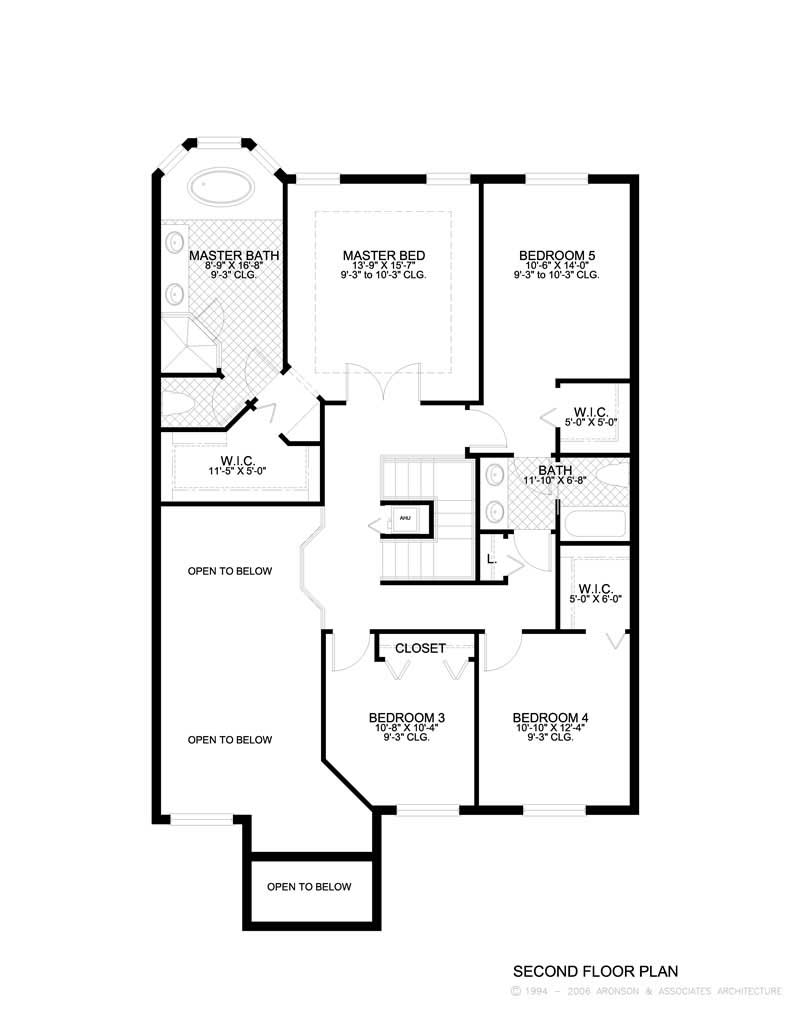

#107-1169 Floor Plan Second Story - second Floor Plan Second Story of Mediterranean Plan #107-1169

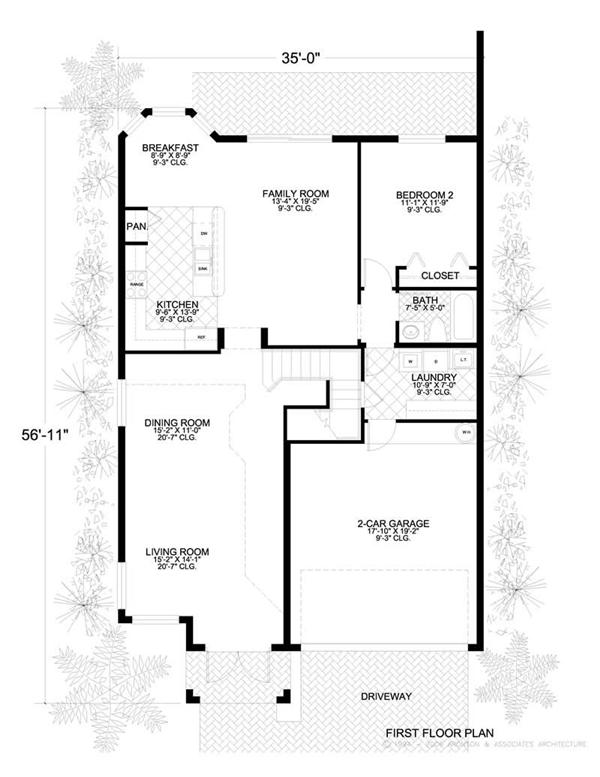

Home Plan: #107-1169 Floor Plan First Story - first Floor Plan First Story of Mediterranean Plan #107-1169
#107-1169 Floor Plan Second Story - second Floor Plan Second Story of Mediterranean Plan #107-1169
