Mediterranean Home with 4 Bdrms, 3568 Sq Ft

Images/Plans copyrighted by designer. Photos may reflect homeowner modifications.

About House Plan #107-1145

3568

Sq Ft

4

Bedrooms

3

Baths

0

Half Baths

3

Cars

1

Stories

102' 3'

Width

104

Depth

From$1400What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Start with Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

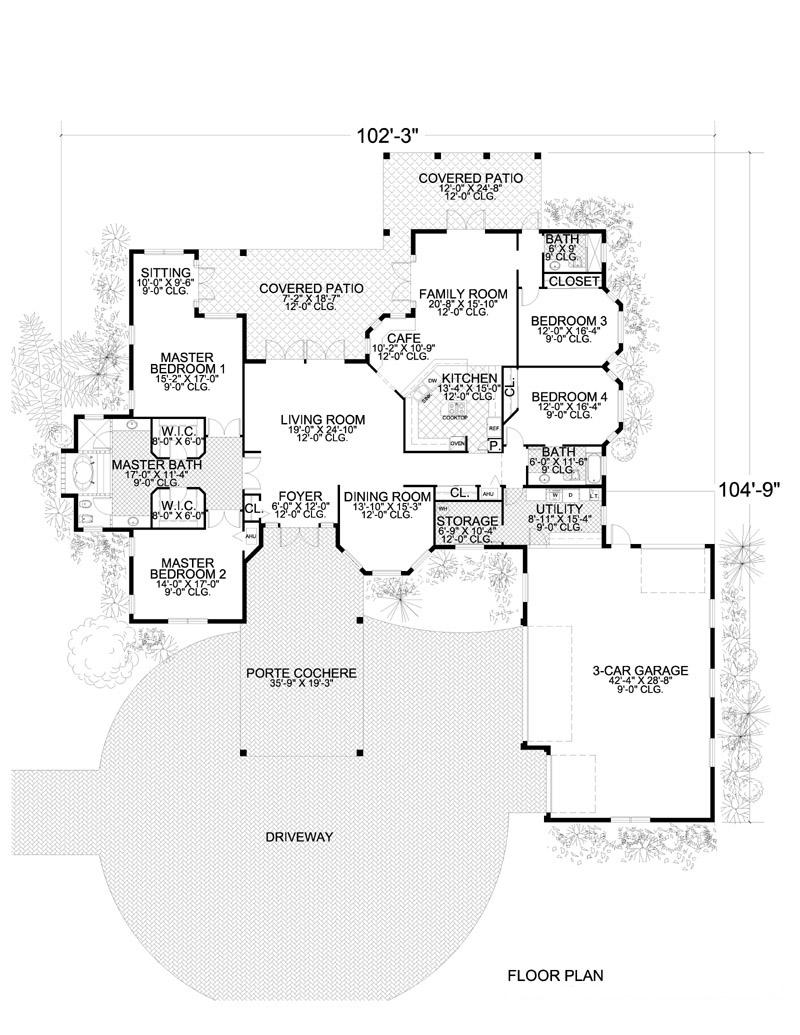

Floor Plan Main Level

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

PLEASE NOTE! If you order an optional foundation and a materials list, the materials list will NOT include the optional foundation, only the standard foundation. The designer can provide an updated materials list for a fee, so please ask for a quote!

House Plan Description

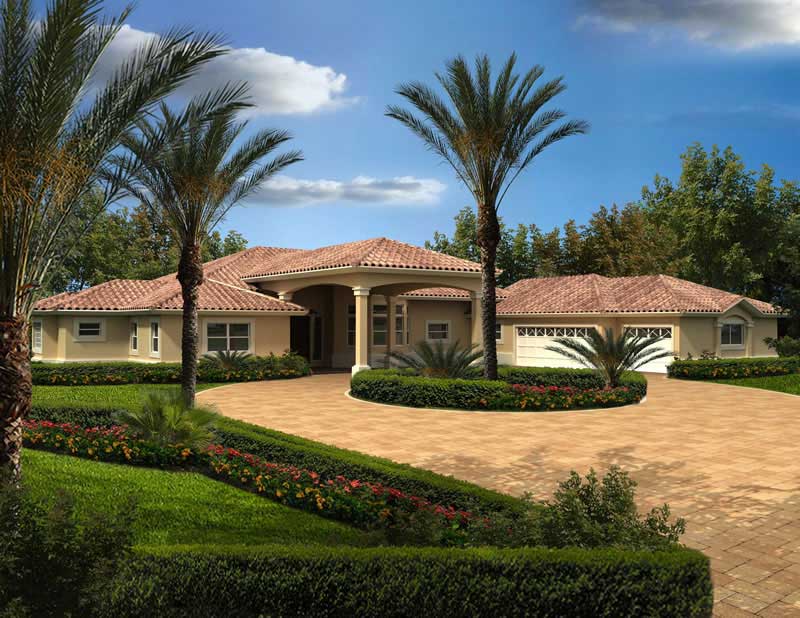

This is a great single-story Mediterranean-style house plan with 3568 total living square feet. This house plan has 3 baths, 4 bedrooms, and a courtyard-entry style 3-car garage. Check out the two primary suites' layout. This home has a covered patio/lanai and a porte cochere.

Home Details

Summary

Plan #:107-1145

Floors:1

Bedrooms:4

Full Baths:3

Half Baths:0

Garage:

Square Footage

Heated Area::3568 Sq. Ft.

Main Floor:3568 Sq. Ft.

Dimensions

Width:102' 3''

Depth:104' 9''

Architectural Styles

Ranch Mediterranean Southwest Concrete Block/ ICF Design

Roof Pitch

Other

Special Feature

Dining RoomFamily RoomStorage

Garage Type

Attached GarageCourtyard EntrySide Entry

Exterior Wall Framing

Concrete

Kitchen Features

Nook/Breakfast AreaPeninsula/Eating Bar

Porches and Exterior Features

Covered Front PorchCovered LanaiCovered Rear Patio

Master Suite Features

Two or More Master SuitesMaster BathroomWalk In ClosetSitting Area

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Floor plan

Kitchen & Bath layout

Exterior elevations

Sections

Structural plans

Foundation plan

Roof plan

Mechanical layout

Electrical layout

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
