3-Bedroom, 2234 Sq Ft Ranch Plan with Walk In Closet

Front elevation of Ranch home (ThePlanCollection: House Plan #117-1112)
117-1112: Home Plan Rendering
117-1112: Home Plan Rendering
117-1112: Home Plan Rendering
117-1112: Home Plan Rendering
117-1112: Home Plan Rendering
117-1112: Home Plan Rendering
117-1112: Home Plan Rendering
117-1112: Home Plan Rendering
3-Bedroom, 2234 Sq Ft Ranch House Plan - 117-1112 - Front Exterior
117-1112: Home Plan Rendering
117-1112: Home Plan Rendering
117-1112: Home Plan Rendering
117-1112: Home Plan Rendering
117-1112: Home Plan Rendering
117-1112: Home Plan Rendering
117-1112: Home Plan Rendering
117-1112: Home Plan Rendering

About Plan # 117-1112

About Plan # 117-1112

2234 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 60' 6" WIDTH 75' 10" DEPTH 2 GARAGE BAY
TPC - Home Plan #117-1112

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

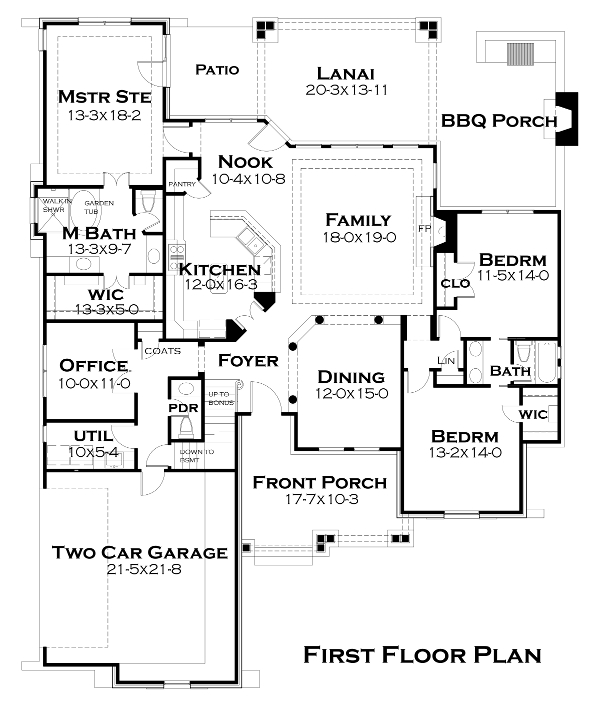

Home Plan: #117-1112 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #117-1112

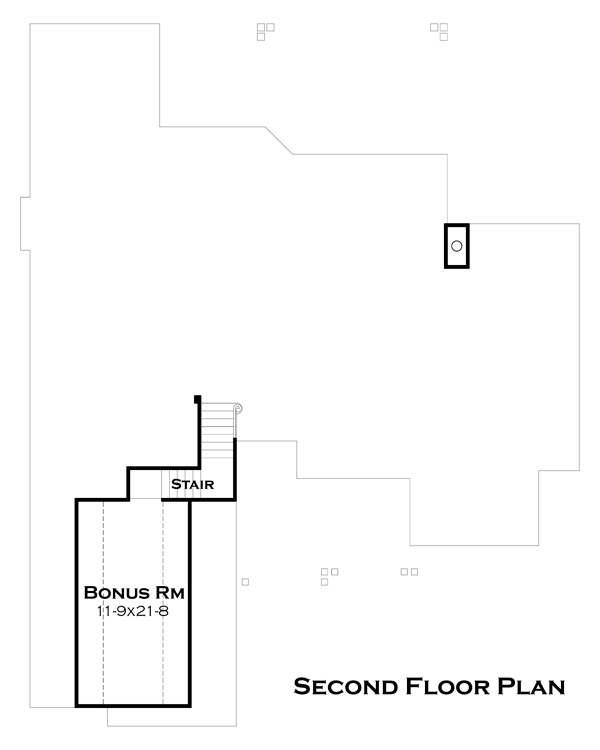

#117-1112 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of Ranch Plan #117-1112
Home Plan: #117-1112 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #117-1112
#117-1112 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of Ranch Plan #117-1112
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 117-1112
Floors:
2
Bedrooms:
3
Full Baths:
2
Half Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
2234
Main Floor:
2234
Unfinished Sq Ft:
Bonus Room:
276
Garage :
512
Porch :
229

Dimensions

Width:
60' 6"
Depth:
75' 10"
Ridge Height:
21' 10"

Architectural Styles

Cottage
Country
Craftsman
Farmhouse
Ranch
Texas Style

Exterior Wall Material

Rock/Stone
Wood Siding

Roofing Type

Gable

Roofing Material

Metal

Roof Pitch

12/12
2/12
8/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Bonus Room
Guest Room
Home Office
Main Level Laundry
Open Floor Plan
Split Bathroom
Storage

Garage Type

Attached Garage
Side Entry

Fireplaces

Two Fireplaces

Exterior Wall Framing

2x4

Kitchen Features

Eat-In Kitchen
Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Covered Lanai
Covered Rear Patio

Master Suite Features

Main Floor Master
Master Bathroom
Split Master Bedroom
Walk In Closet

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.
