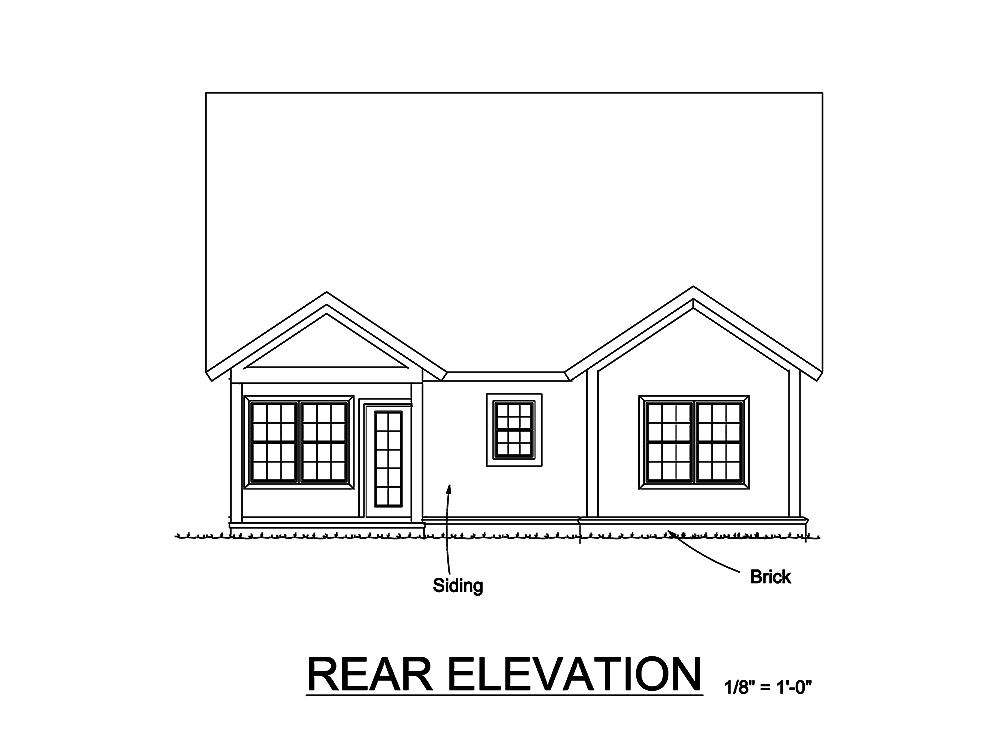

178-1328: Home Plan Rear Elevation
3-Bedroom, 1986 Sq Ft Craftsman House Plan - 178-1328 - Front Exterior
178-1328: Home Plan Rear Elevation

About Plan # 178-1328

About Plan # 178-1328

1986 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
1.5 FLOOR 34' 0" WIDTH 54' 0" DEPTH 0 GARAGE BAY

This lovely Craftsman style home with Cottage influences (House Plan #178-1328) has 1986 square feet of living space. The 4 story floor plan includes 3 bedrooms.

Each plan set includes the following:

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan, including electrical, window and door sizes, floor joist span directions, and ceiling type notes (9’ ceiling, vault, etc)
  • Second-floor plan (if applicable) with the same info as shown on first-floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges & valleys.
  • Foundation plan
  • Full building section

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

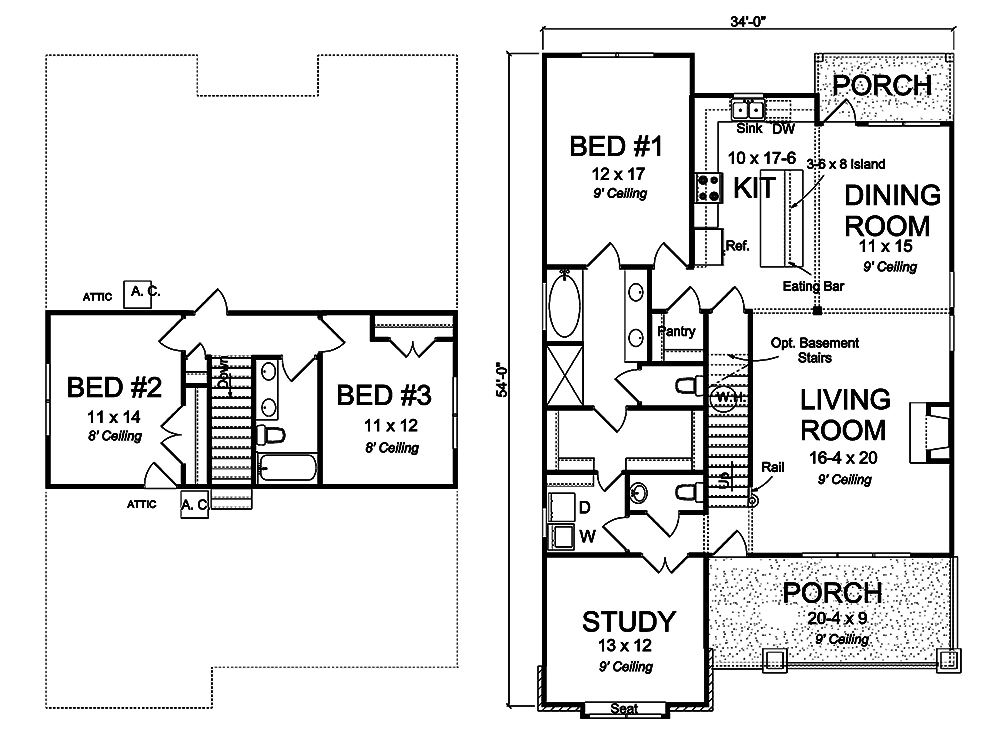

Home Plan: #178-1328 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #178-1328
Home Plan: #178-1328 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #178-1328
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 178-1328
Floors:
1.5
Bedrooms:
3
Full Baths:
2
Half Baths:
1

Square Footage

Heated Sq Feet:
1986
Main Floor:
1487
Upper Floor:
499
Unfinished Sq Ft:
Porch :
247

Dimensions

Width:
34' 0"
Depth:
54' 0"
Ridge Height:
26' 0"

Architectural Styles

Traditional
Craftsman
Cottage

Exterior Wall Material

Vinyl Siding
Brick
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

8/12
10/12

Ceiling Height

9 Foot Ceiling
8 Foot Ceiling

Special Feature

Fireplace
Dining Room
Main Level Laundry
Open Floor Plan

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Narrow Lot Design

Kitchen Features

Kitchen Island
Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

Please Note: This plan comes standard with a Construction License that gives the original purchaser the right to build the plan as many times as you like. PLEASE NOTE!! When purchasing a CAD file, the designer will also send the PDF. Duplex and Triplex Plans are Slab & 2x4 ONLY!! If you need to change either, please send in a modification request.
