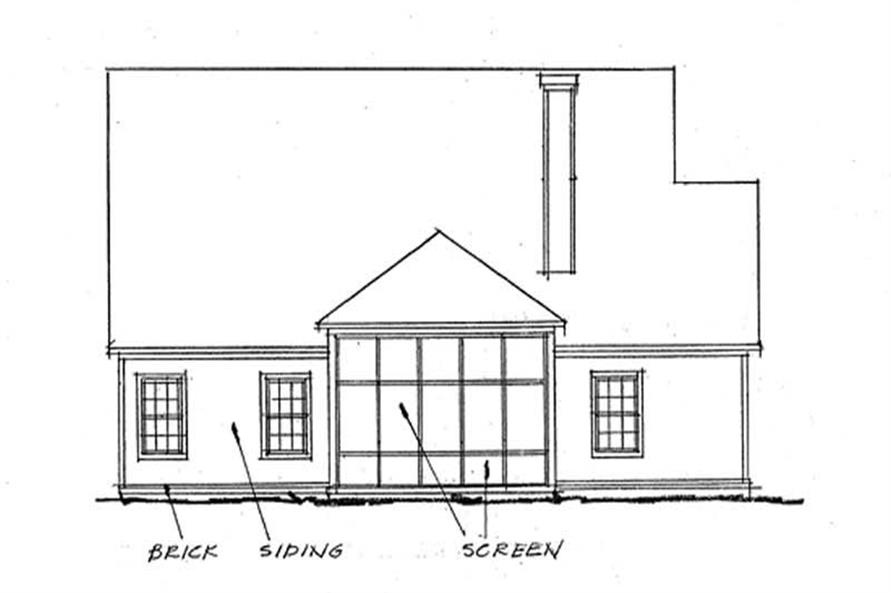

REAR ELEVATION
3-Bedroom, 1692 Sq Ft Cape Cod House Plan - 178-1199 - Front Exterior
REAR ELEVATION

About Plan # 178-1199

About Plan # 178-1199

1692 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 46' 0" WIDTH 69' 0" DEPTH 2 GARAGE BAY

This is a great cottage ranch plan.

Each plan set includes the following:

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan, including electrical, window and door sizes, floor joist span directions, and ceiling type notes (9’ ceiling, vault, etc)
  • Second-floor plan (if applicable) with the same info as shown on first-floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges & valleys.
  • Foundation plan
  • Full building section

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

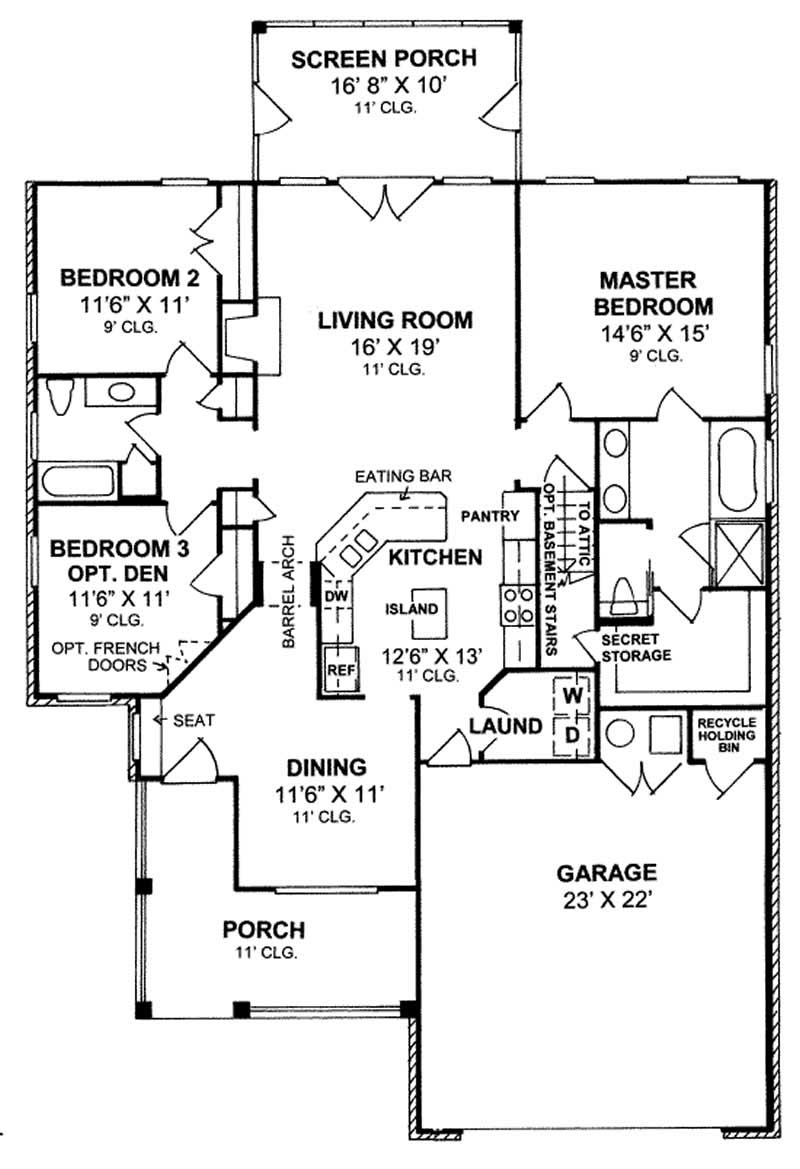

Home Plan: #178-1199 Floor Plan First Story - first Floor Plan First Story of Cape Cod Plan #178-1199
Home Plan: #178-1199 Floor Plan First Story - first Floor Plan First Story of Cape Cod Plan #178-1199
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 178-1199
Floors:
1
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1692
Main Floor:
1692
Unfinished Sq Ft:

Dimensions

Width:
46' 0"
Depth:
69' 0"

Architectural Styles

Country
Ranch
Traditional
Cape Cod

Exterior Wall Material

Vinyl Siding
Brick

Roof Pitch

8/12
10/12

Special Feature

Mother in law apartment

Garage Type

Attached Garage

Porches and Exterior Features

Covered Front Porch

Additional Notes from Designer

Please Note: This plan comes standard with a Construction License that gives the original purchaser the right to build the plan as many times as you like. PLEASE NOTE!! When purchasing a CAD file, the designer will also send the PDF. Duplex and Triplex Plans are Slab & 2x4 ONLY!! If you need to change either, please send in a modification request.
