3-Bedroom Ranch House Plan with Split Bedrooms and Rear Porch - 1,680 Sq Ft
Images/Plans copyrighted by designer. Photos may reflect homeowner modifications.
About House Plan #178-1582
How much will it cost to build?
Estimate your costs based on your location and materials.
Can I modify this plan?
Yes! This plan can be customized—contact us for a free quote.
Floor Plans
Share Plans
Can I modify this plan?
Yes! This plan can be customized—contact us for a free quote.
Additional Notes from Designer
Please Note: This plan comes standard with a Construction License that gives the original purchaser the right to build the plan as many times as you like. This designer does not provide concrete block or cinder block. PLEASE NOTE!! When purchasing a CAD file, the designer will also send the PDF. Duplex and Triplex Plans are Slab & 2x4 ONLY!! If you need to change either, please send in a modification request. This multi-family plan has two identical units. Each unit has 1,567 living square feet, 3 bedrooms, 2.5 baths, and 1 garage space.
House Plan Description

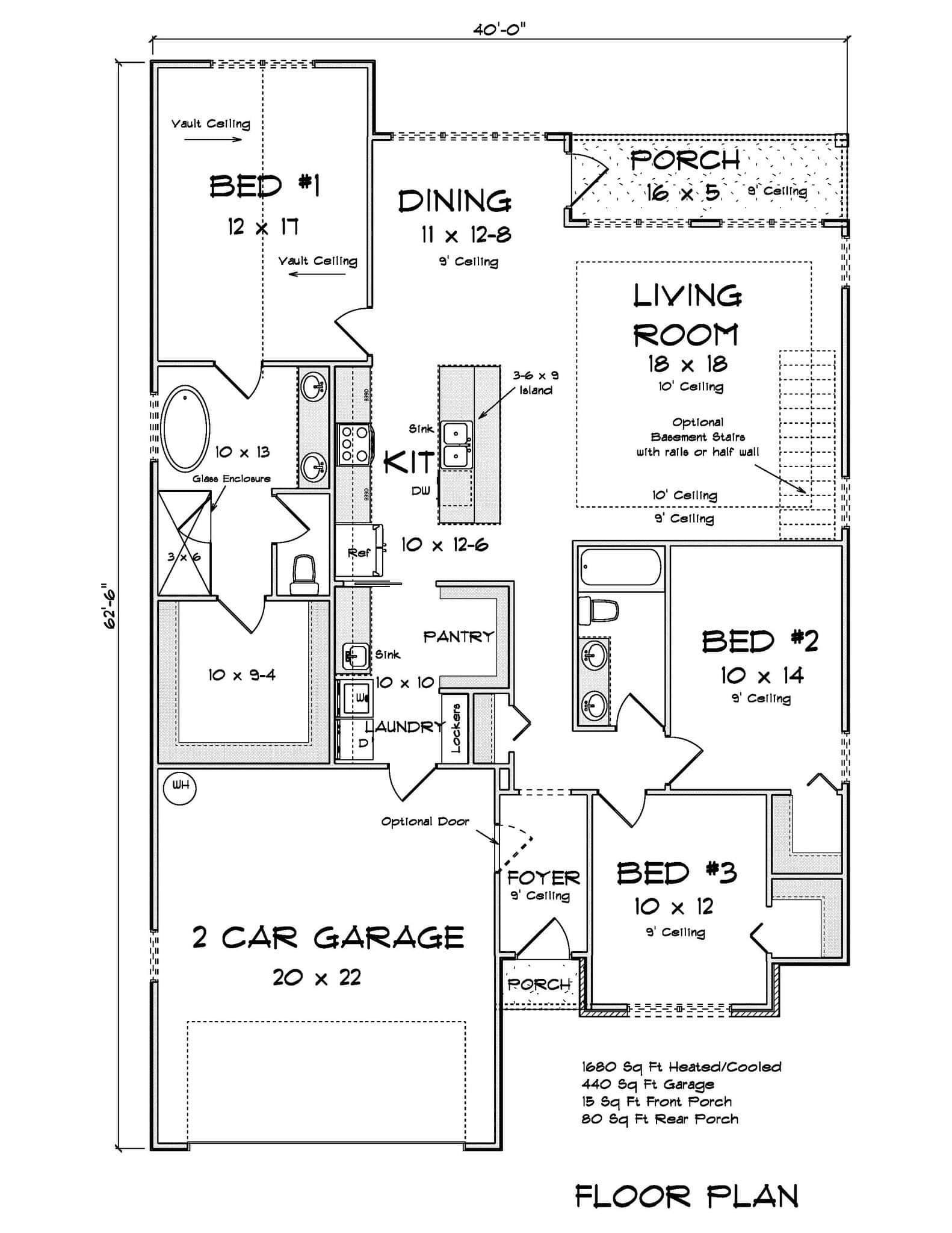

Open sightlines run through the kitchen, dining area, and living room of this 1,680 sq ft, 3-bedroom Ranch, from the entry toward the covered rear porch.
The primary suite is at the back left, a classic split bedroom layout with a soaking tub, a separate shower, and a walk-in closet. The other two bedrooms are on the right side near the foyer and share a bath. The primary suite is on the opposite side of the house from them.
From the street, gray lap siding with white...
Home Details
How much will it cost to build?
Estimate your costs based on your location and materials.
What’s Included
Front elevation and construction notes Rear and side elevations Floor plan, including electrical, window and door sizes, floor joist span directions, and ceiling type notes (9’ ceiling, vault, etc) Second-floor plan (if applicable) with the same info as shown on first-floor plan Typical wall section Typical foundation details Roof plan showing roof pitches, ridges & valleys.Foundation planFull building section What’s Not Included
Architectural or Engineering Stamp - handled locally if required.Site Plan - handled locally when required.Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.Energy calculations - handled locally when required.Additional Information
