About Plan # 117-1047

About Plan # 117-1047

1512 SQUARE FEET 4 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 66' 2" WIDTH 42' 9" DEPTH 2 GARAGE BAY

This beautiful single-story traditional home offers so much in only 1512 living square feet. Some of this home’s special features include a covered porch, a large master suite with a spacious walk-in closet, a master bath featuring a separate soaking tub and shower, generous secondary bedrooms, and a great family room with a fireplace. This is a truely remarkable one-story home.

Each plan set includes the following:

  • Detailed floor plans
  • Exterior elevations
  • Cabinet elevations
  • Sections/Details
  • Framing plans
  • Foundation plans
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

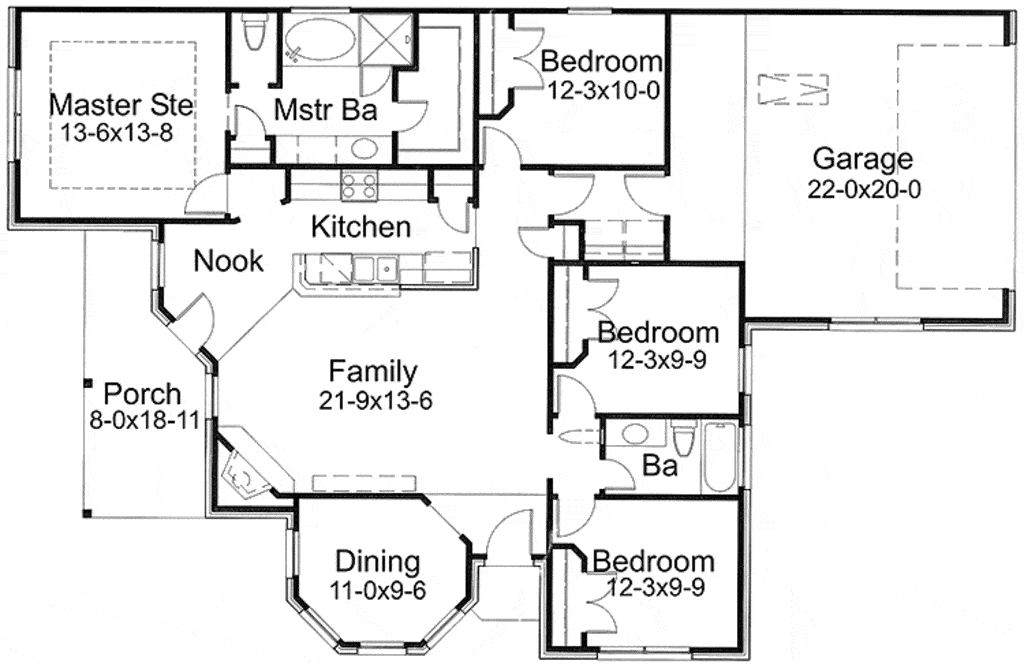

Home Plan: #117-1047 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #117-1047
