3-Bedroom, 2505 Sq Ft Country Plan with Nook/Breakfast Area

Main image for house plan # 7856

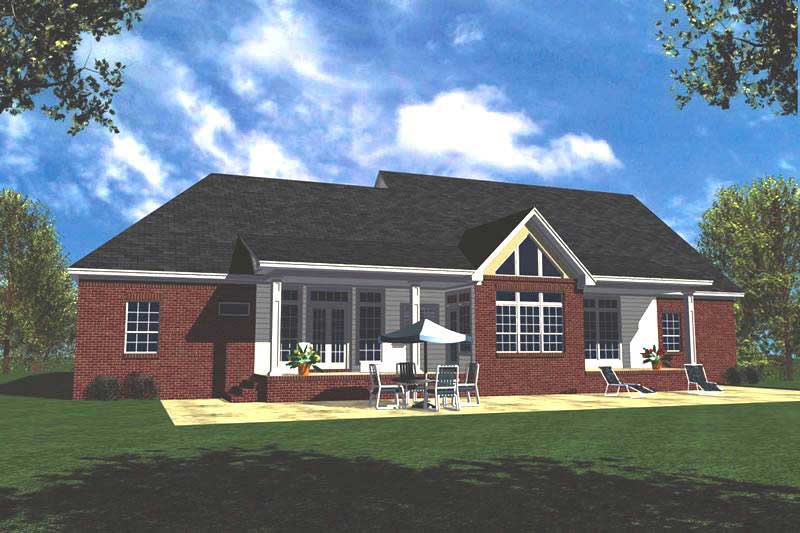

Rear Elevation

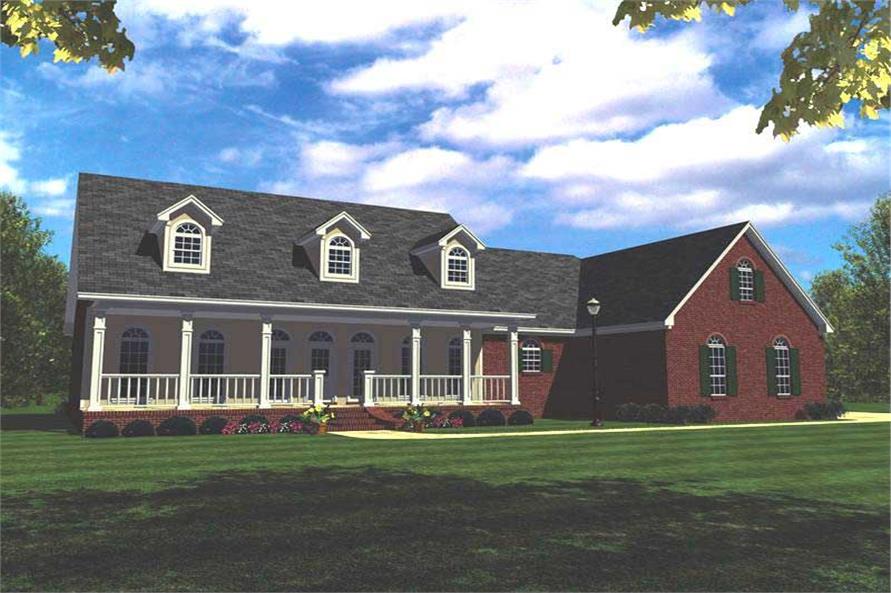

3-Bedroom, 2505 Sq Ft Country Home Plan - 141-1122 - Main Exterior
Rear Elevation

About Plan # 141-1122

About Plan # 141-1122

2505 SQUARE FEET 3 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 79' 0" WIDTH 54' 0" DEPTH 2 GARAGE BAY

The larger version of the house North Americans really love. It has a his and her bath and gigantic closets for all the good stuff we just cannot throw away. Sunroom. Jet tub for her. Walk-in shower for him. Formal dining and breakfast. Wonderful master suite with office/nursery/hobby room/shop/whatever room off the master suite. Raised bar. Beautiful views out the back to keep an eye on the loved ones. Vaulted great room with fireplace and gas logs. A great house to come home to.

Each plan set includes the following elements, but the presentation of these elements may vary depending on the size and complexity of the home and the style of the individual design:

  • COVER SHEET: Artist’s architectural rendering of the residence provides an idea of what the house would look like once built.
  • FLOOR PLAN(S): In general, each set includes floor plans at 1/4″ scale with a door and window schedule. Floor plans are typically drawn with 4″ exterior walls. However, details/sections for both 2″x4″ and 2″x6″ wall framing may also be included as part of the plans or purchased separately.
  • FOUNDATION PLAN & DETAILS: Dimensioned plan detailing the and construction of the foundation. Foundation types offered typically include:
    Slab: A type of foundation consisting of a structural concrete slab poured directly on the grade. No accessible space exists in slab construction. Slab foundations are popular in areas (i.e. the Southern United States) where there is a relatively high water table (i.e. the “water table” refers to the depth in the soil at which you find water). Traditionally, the slab foundation is the least expensive foundation type when building on a relatively flat lot.
    Crawlspace: A type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the homeowner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
    Basement: A type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
  • ELECTRICAL PLAN: In general, each plan set includes an electrical plan with an electrical symbols legend which will show the locations of lights, receptacles, switches, etc.
  • ROOF DRAINAGE PLAN: In general, each plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • INTERIOR ELEVATIONS: Where applicable, each plan set includes relevant interior elevations, including cabinets, cabinet details, columns, and walls with unique conditions.
  • SECTIONS AND DETAILS: Explain certain special conditions more appropriately as needed.
  • SPECIFICATION FORM: In general, each plan set includes a blank short-form FHA/VA specifications document for your reference.
  • LICENSE TO BUILD: Each set of construction plans includes one license to build unless a multi-use license is otherwise purchased.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

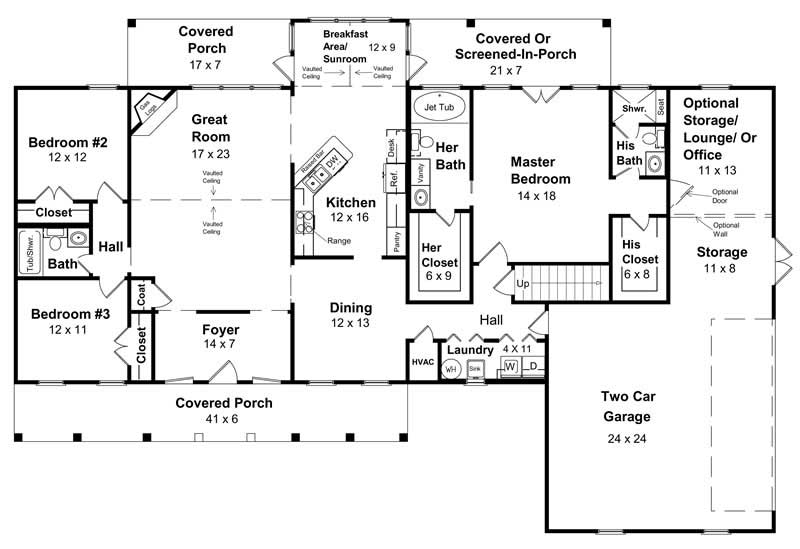

Home Plan: #141-1122 Floor Plan First Story Floor Plan First Story of Country Plan #141-1122

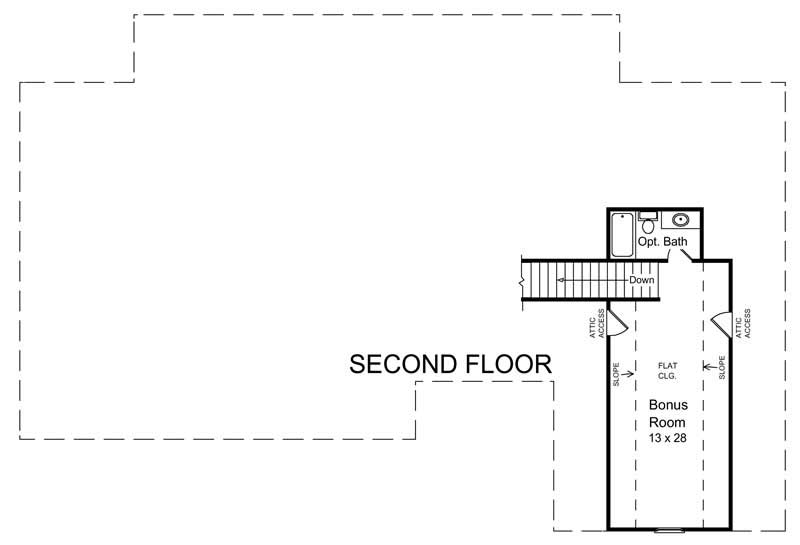

#141-1122 Floor Plan Second Story - second Floor Plan Second Story of Country Plan #141-1122
Home Plan: #141-1122 Floor Plan First Story Floor Plan First Story of Country Plan #141-1122
#141-1122 Floor Plan Second Story - second Floor Plan Second Story of Country Plan #141-1122
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 141-1122
Floors:
1
Bedrooms:
3
Full Baths:
3

Square Footage

Heated Sq Feet:
2505
Main Floor:
2505
Unfinished Sq Ft:

Dimensions

Width:
79' 0"
Depth:
54' 0"
Ridge Height:
23' 0"

Architectural Styles

Country
European
Traditional

Exterior Wall Material

Brick
Stucco

Roofing Type

Gable

Roof Pitch

10/12

Ceiling Height

9 Foot Ceiling

Special Feature

Energy Efficient
Fireplace

Garage Type

Attached Garage

Exterior Wall Framing

2x4

Additional Notes from Designer

Please Note! This designer does NOT ship paper copies to Canada. Please order your plans in electronic format (PDF or CAD)!

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
