3–4-Bedroom, 2459 Sq Ft Craftsman Plan with Split Master Bedroom

Craftsman home (ThePlanCollection: Plan #117-1135)

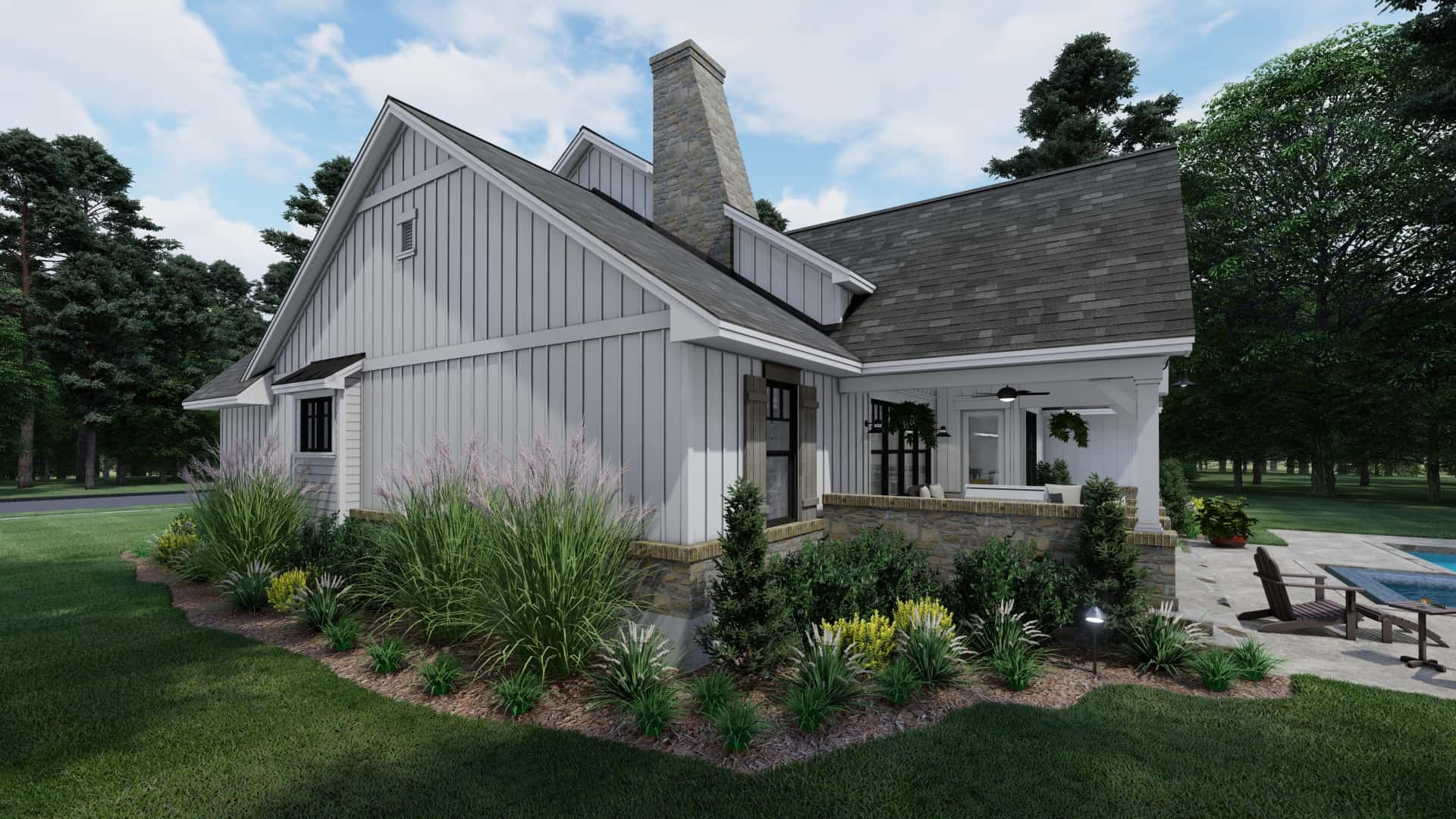

117-1135: Home Plan Rendering-Side View

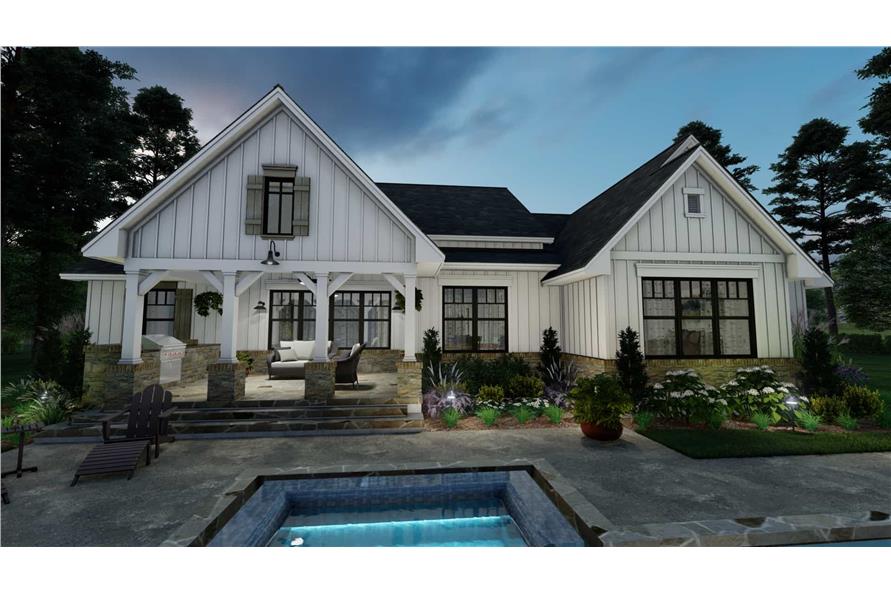

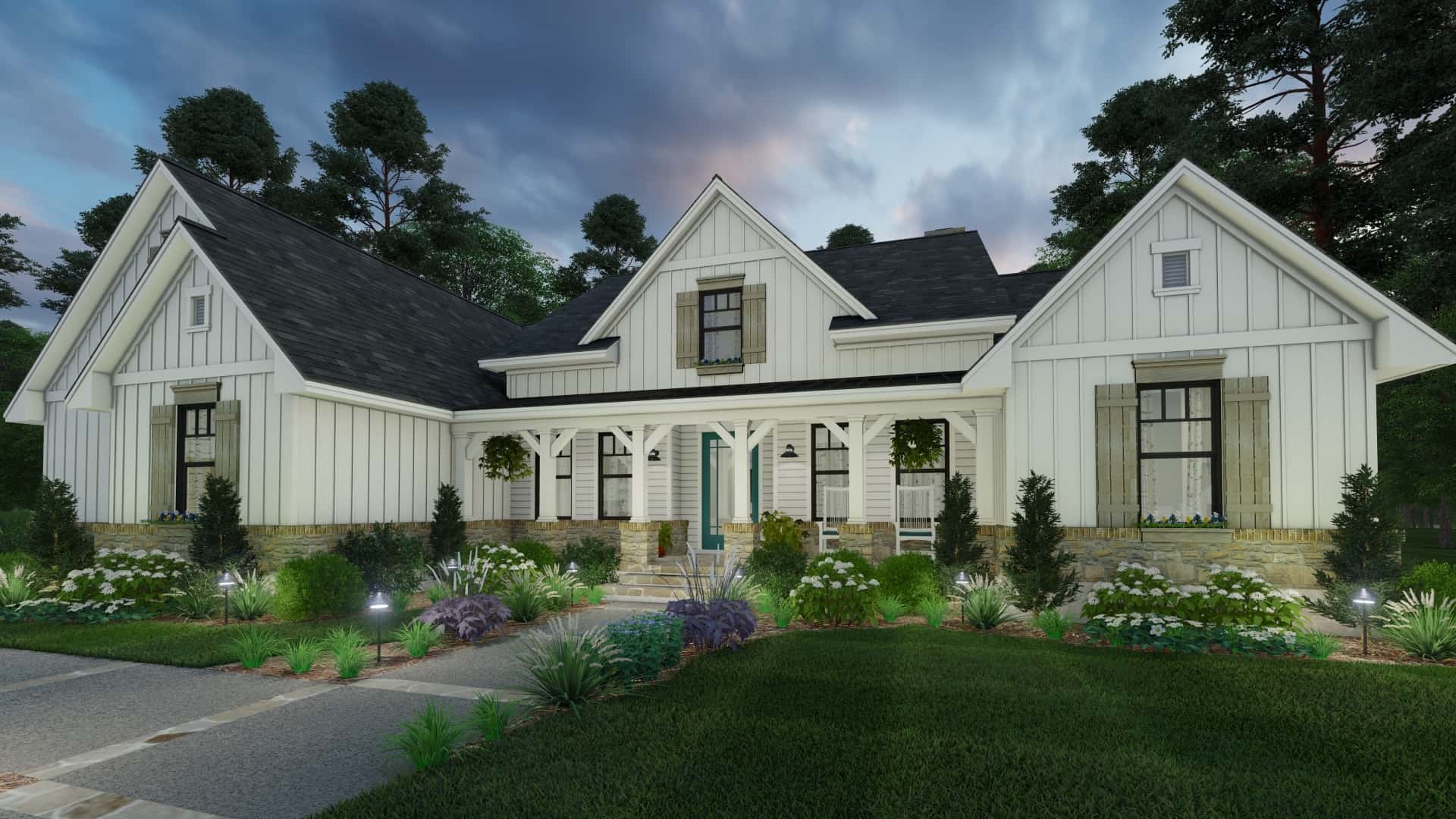

117-1135: Home Plan Rendering-Home at Night

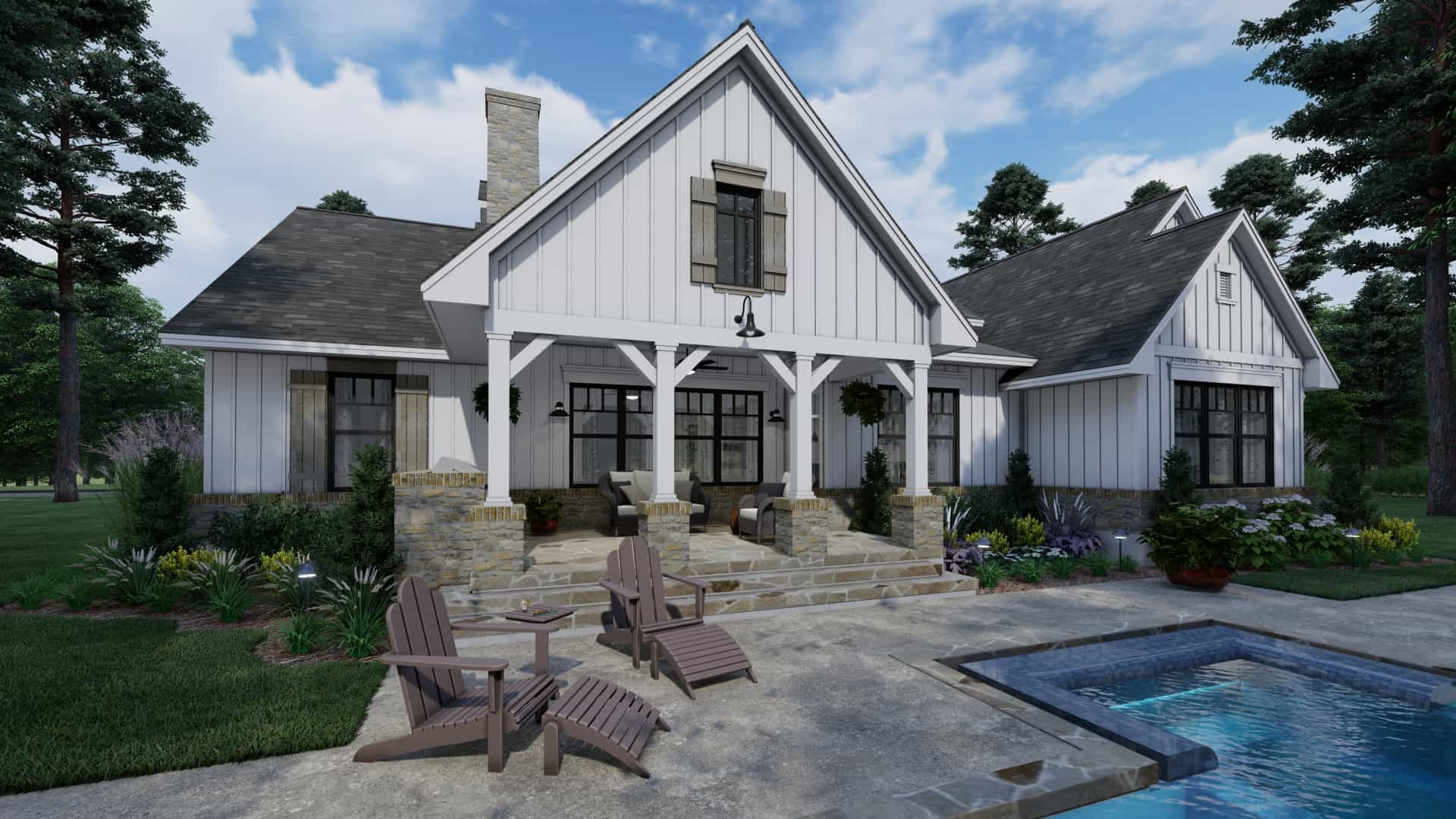

117-1135: Home Plan Rendering-Rear View
117-1135: Home Plan Rendering-Front View
117-1135: Home Plan Rendering-Pool

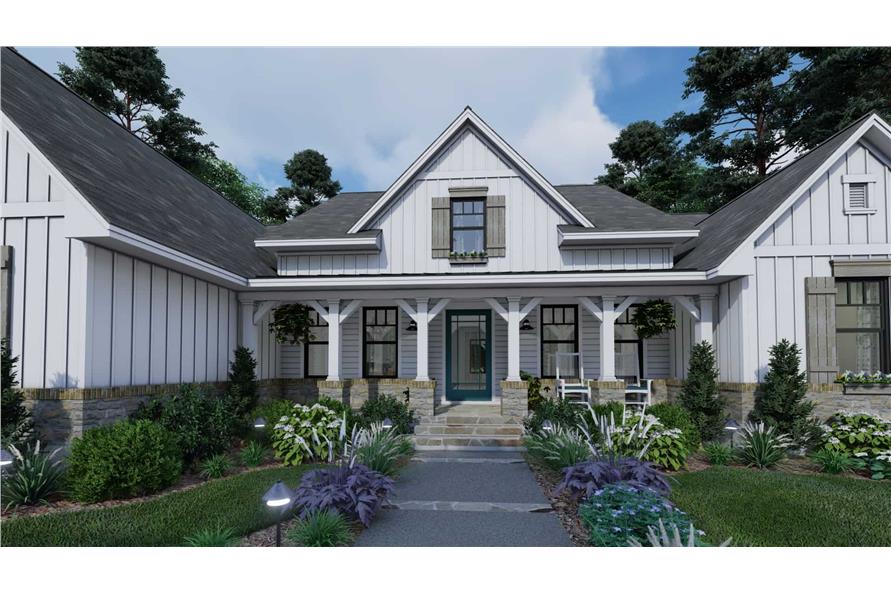

117-1135: Home Plan Rendering-Porch
117-1135: Home Plan Rendering-Side View

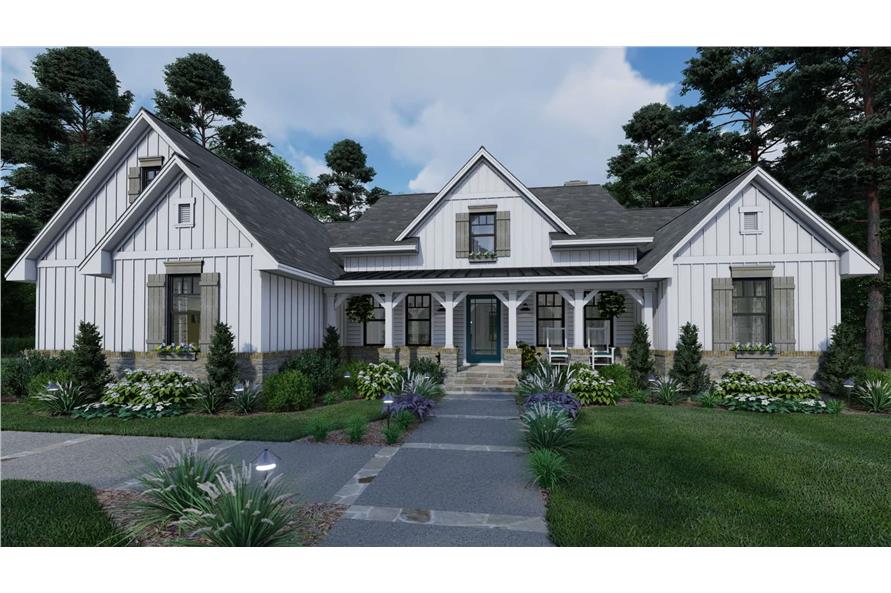

3–4-Bedroom, 2459 Sq Ft Craftsman House - Plan #117-1135 - Front Exterior
117-1135: Home Plan Rendering-Side View
117-1135: Home Plan Rendering-Home at Night
117-1135: Home Plan Rendering-Rear View
117-1135: Home Plan Rendering-Front View
117-1135: Home Plan Rendering-Pool
117-1135: Home Plan Rendering-Porch
117-1135: Home Plan Rendering-Side View

About Plan # 117-1135

About Plan # 117-1135

2459 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 69' 0" WIDTH 65' 0" DEPTH 2 GARAGE BAY

This Craftsman-Transitional style home is sure to be a favorite on your dream-home checklist. It covers a total of 2459 square feet of heated and cooled finished space. The two car garage  (The 632-square-foot 3-car garage OPTION sits at the front with a flexible car bay that can be used as a workshop area if you don't need it for a car. It adds an additional 4’-3” of depth.69’-0” wide x 76’-0” deep)

The charming covered front porch will welcome you as you step up to the front of the house. The grand entrance door leads you to the foyer and the family room, dining area, breakfast nook, and kitchen, all in an open floor plan. A fireplace is located in the family room where the family and guests will enjoy the warmth and comfort the house provides. Within reach is the kitchen’s island counter, which acts as serving station and breakfast nook. The adjacent barbecue porch further enlarges the dining area and is very convenient during special occasions. All of these living spaces blend in together well to provide residents with meaningful bonding time together in their home.

A large amount of space is provided for the master bedroom suite, with a sizable full bathroom and walk-in closet. On the opposite side of the house are bedrooms 2 and 3, each with its own full bathroom and walk-in closet, and the study, which could be an occasional guest room, near the entrance door.

Going up the stairs leads you to the 261-square-foot unfinished bonus room on top of the garage, which could be made into a recreational area with bar, media room, exercise room, storage area, or whatever the owner requires or desires. Other amenities provided by the house are the laundry room, walk-in kitchen pantry, utility room, and lots of closet and storage space.

Each plan set includes the following:

  • FLOOR PLANS: ¼”=1’-0” scale floor plan indicating the location of frame and masonry walls, support members, doors, windows, plumbing fixtures, kitchen appliance locations, cabinet locations, tags to cross-section details, shelving, ceiling conditions, and notes deemed relevant to this plan.
  • EXTERIOR ELEVATIONS: All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate the overall configuration of the home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and the extent to which they are used, and enlargement of any details deemed necessary to explain the construction.
  • BUILDING SECTIONS: ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
  • FOUNDATION PLAN: ¼” = 1’-0” scale foundation plans. The slab foundation comes with both interior and exterior beams. Dimensioned and noted foundation layout, including references to support walls, excavated and unexcavated areas. Basement foundation plans may show additional walls, grade beams, reinforcing steel, and structural columns. Structural information for all foundation types should be obtained by a locally licensed engineer for your specific site location.
  • FRAMING PLANS: ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted. Includes floor, ceiling, and roof framing schematics.
  • CABINET ELEVATIONS: 3/8” = 1’-0” scale elevations indicating the configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, and appliances.
  • ELECTRICAL PLAN: ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched. Plans do not include circuiting or wire sizing. Plans will also include specialty items such as hose bibbs, gas connections, location of A/C equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

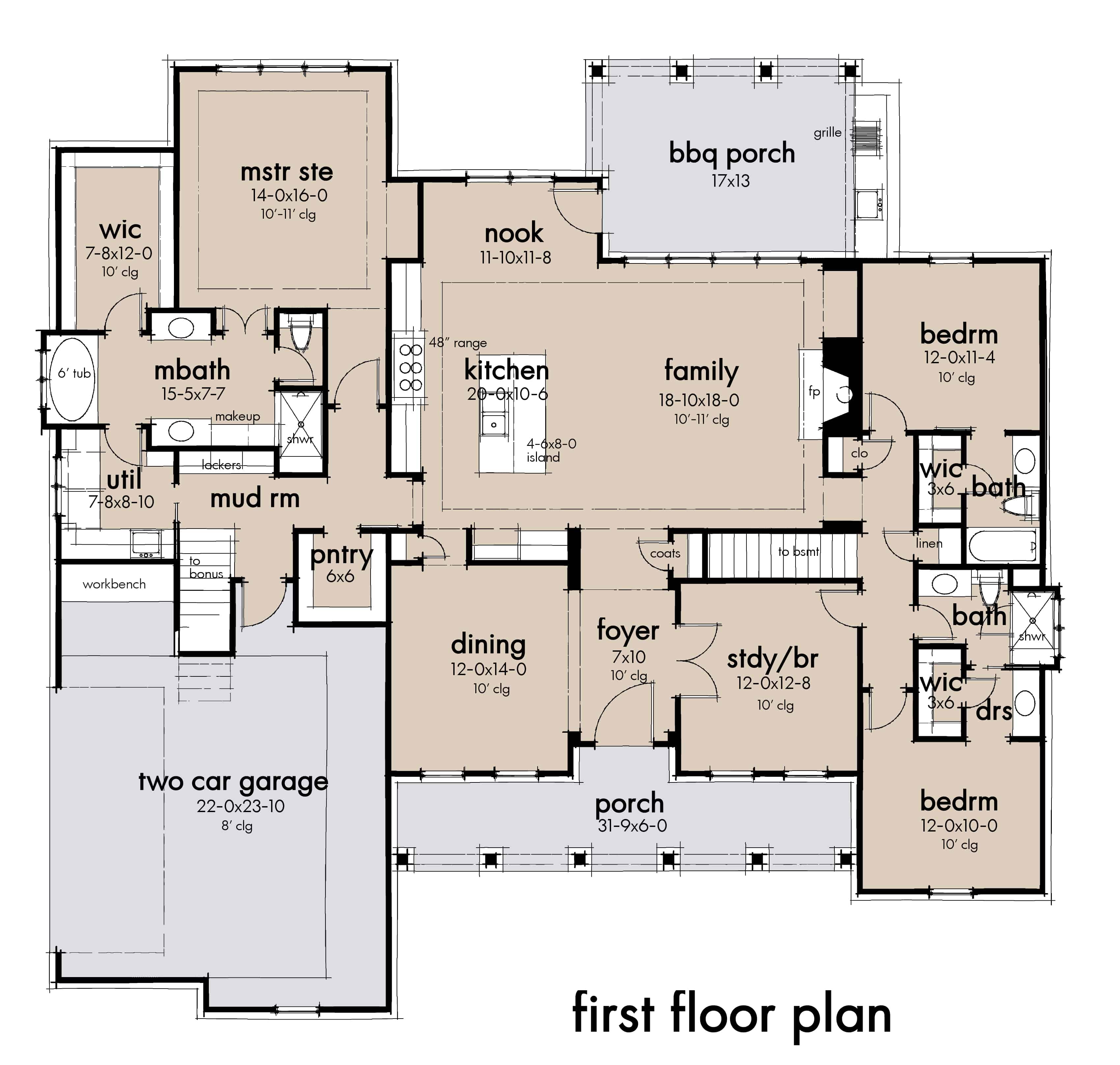

Home Plan: #117-1135 Floor Plan First Story - main level Floor Plan Main Level of Craftsman Plan #117-1135

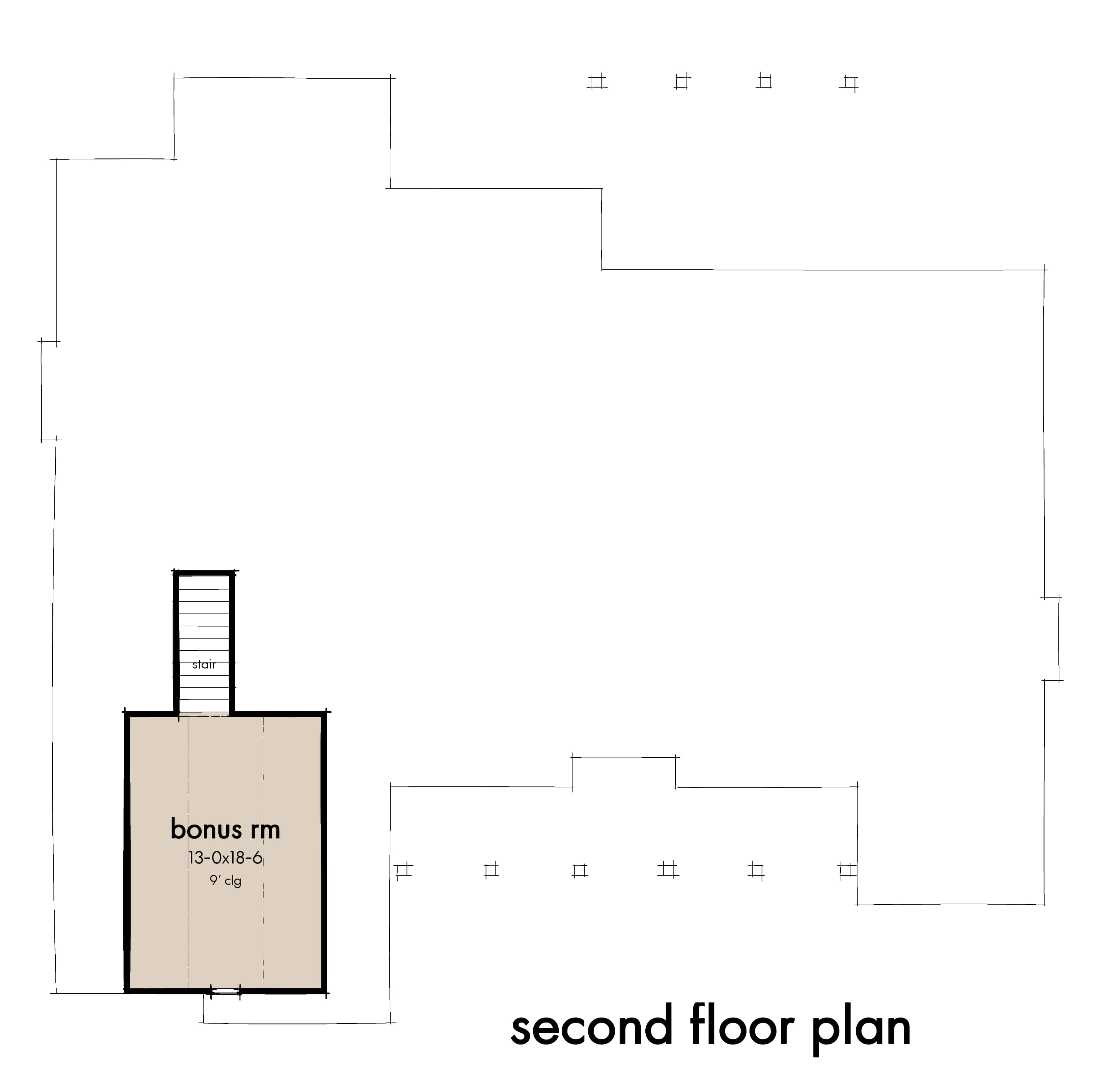

#117-1135 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of Craftsman Plan #117-1135
Home Plan: #117-1135 Floor Plan First Story - main level Floor Plan Main Level of Craftsman Plan #117-1135
#117-1135 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of Craftsman Plan #117-1135
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 117-1135
Floors:
1
Bedrooms:
4
Full Baths:
3
Garage :
2

Square Footage

Heated Sq Feet:
2459
Main Floor:
2459
Unfinished Sq Ft:
Bonus Room:
261
Garage :
506
Porch :
433

Dimensions

Width:
69' 0"
Depth:
65' 0"
Ridge Height:
26' 3"

Architectural Styles

Country
Craftsman
Transitional

Exterior Wall Material

Rock/Stone
Vinyl Siding
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles
Metal

Roof Pitch

12/12
8/12

Ceiling Height

10 Foot Ceiling
11 Foot Ceiling
9 Foot Ceiling

Special Feature

Bonus Room
Dining Room
Family Room
Fireplace
Main Level Laundry
Mud Room
Open Floor Plan
Split Bathroom
Swimming Pool

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Corner Lot

Kitchen Features

Eat-In Kitchen
Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Split Master Bedroom
Walk In Closet

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
