3-Bedroom, 1879 Sq Ft Craftsman Plan with Main Floor Master

Photo-realistic rendering of Craftsman home plan (ThePlanCollection: House Plan #117-1095)

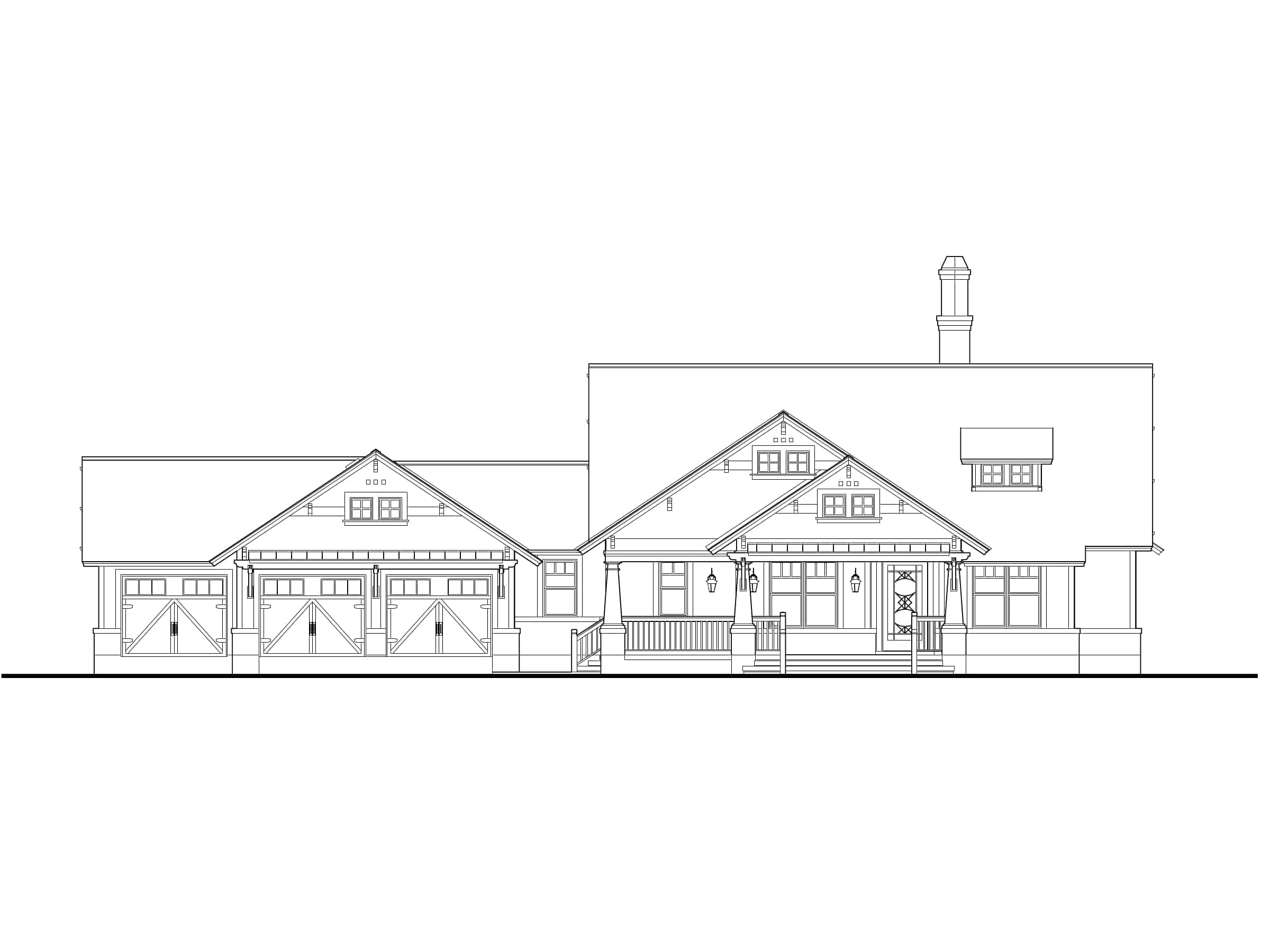

117-1095: Home Plan Rear Elevation
117-1095: Home Plan 3D Image-Front View

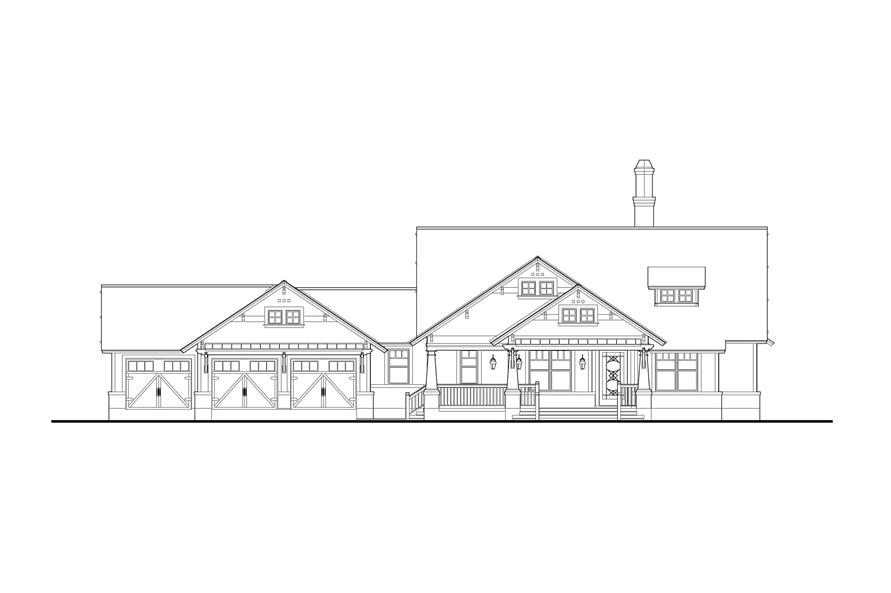

117-1095: Home Plan Front Elevation
117-1095: Home Plan Rendering-Front View
3-Bedroom, 1879 Sq Ft Craftsman Home Plan - 117-1095 - Main Exterior
117-1095: Home Plan Rear Elevation
117-1095: Home Plan 3D Image-Front View
117-1095: Home Plan Front Elevation
117-1095: Home Plan Rendering-Front View

About Plan # 117-1095

About Plan # 117-1095

1879 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 78' 11" WIDTH 57' 11" DEPTH 2 GARAGE BAY

A wide, wraparound porch. Classic tapered columns. A side "swing" porch to pass the time. Welcoming gabled rooflines. A shed dormer to the side. All of these elements come together beautifully in this classic Craftsman home design with 3 bedrooms and 2 bathrooms.

As you enter the foyer from the front porch, a study with double doors is to your left (which could also be a fourth bedroom or a guest room). Ahead is the spacious family room with its 11-foot ceiling, a fireplace, and a pair of french doors leading out to the lanai. The open-concept kitchen enjoys a large island with an eating bar close to the family room. A dining nook is perfect for sit-down meals and has windows facing the backyard and lanai. All the french doors and windows create a space with plenty of warmth and natural light. Off of the kitchen are the utility room and access to the 2-car attached garage.

The main floor master suite faces the backyard and also has french doors to the lanai. There are his-and-her walk-in closets capable of storing plenty of clothes, shoes, and accessories. The ensuite master bath has his-and-her sinks, a toilet compartment, a separate shower with seat, and a large tub.

Bedroom #2 and #3 each have walk-in closets and share a hallway bathroom. In all, this 1-story cottage-style Craftsman has 1879 square feet of living space — a wonderful place to call home.

Each plan set includes the following:

  • FLOOR PLANS: ¼”=1’-0” scale floor plan indicating the location of frame and masonry walls, support members, doors, windows, plumbing fixtures, kitchen appliance locations, cabinet locations, tags to cross-section details, shelving, ceiling conditions, and notes deemed relevant to this plan.
  • EXTERIOR ELEVATIONS: All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate the overall configuration of the home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and the extent to which they are used, and enlargement of any details deemed necessary to explain the construction.
  • BUILDING SECTIONS: ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
  • FOUNDATION PLAN: ¼” = 1’-0” scale foundation plans. The slab foundation comes with both interior and exterior beams. Dimensioned and noted foundation layout, including references to support walls, excavated and unexcavated areas. Basement foundation plans may show additional walls, grade beams, reinforcing steel, and structural columns. Structural information for all foundation types should be obtained by a locally licensed engineer for your specific site location.
  • FRAMING PLANS: ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted. Includes floor, ceiling, and roof framing schematics.
  • CABINET ELEVATIONS: 3/8” = 1’-0” scale elevations indicating the configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, and appliances.
  • ELECTRICAL PLAN: ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched. Plans do not include circuiting or wire sizing. Plans will also include specialty items such as hose bibbs, gas connections, location of A/C equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

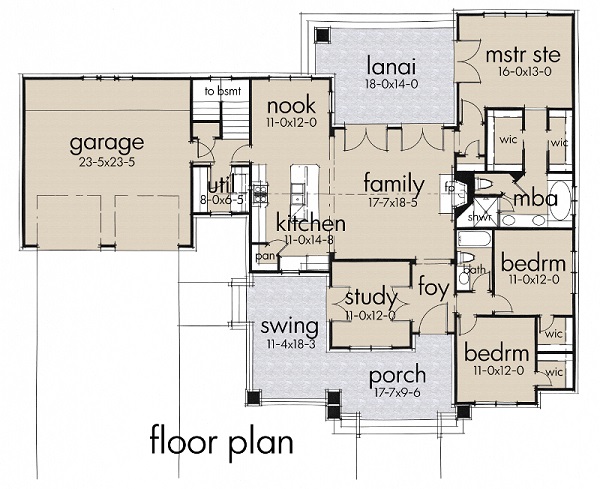

Home Plan: #117-1095 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #117-1095

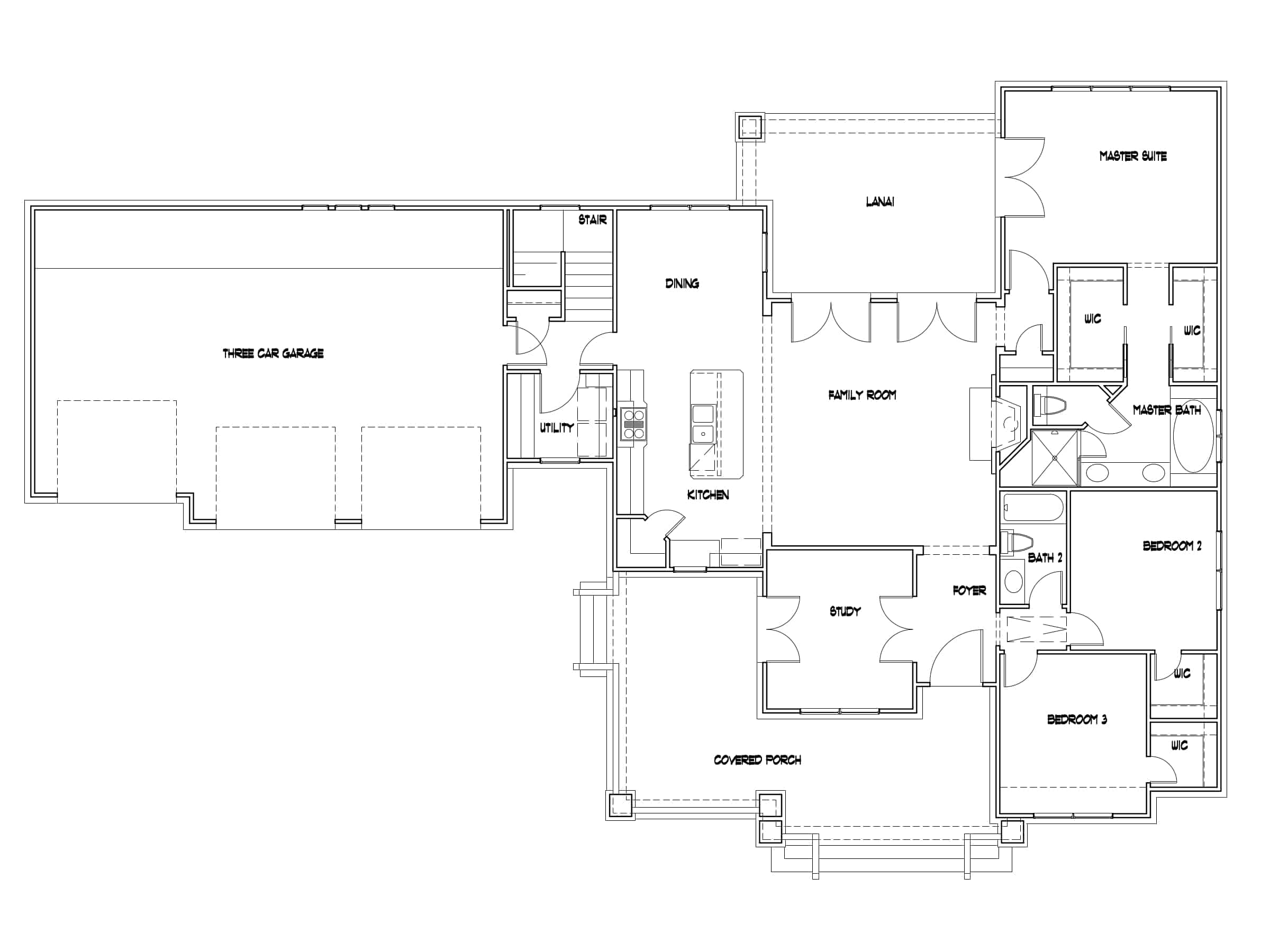

#117-1095 Floor Plan First Story - 3-car garage option layout Floor Plan Main Level of Craftsman Plan #117-1095
