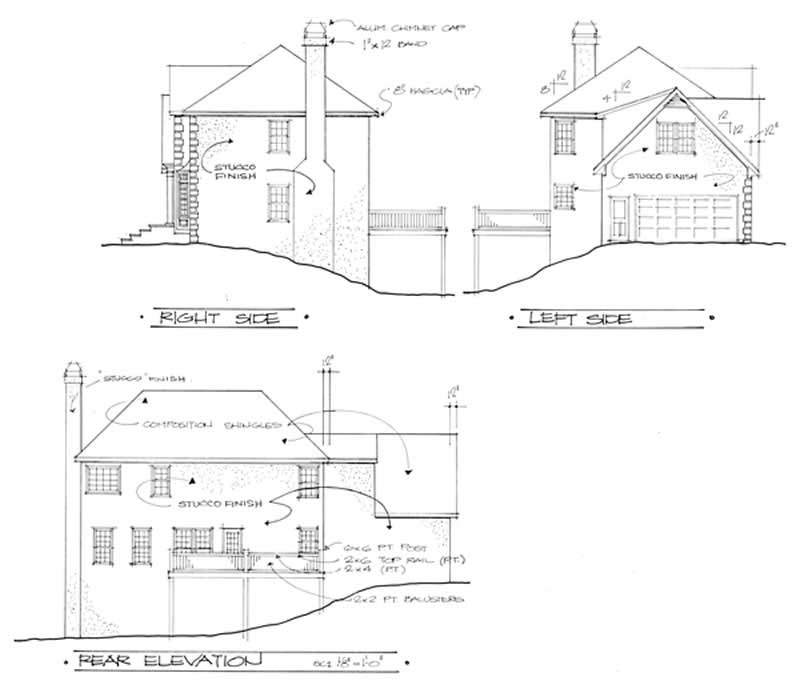

REAR ELEVATION

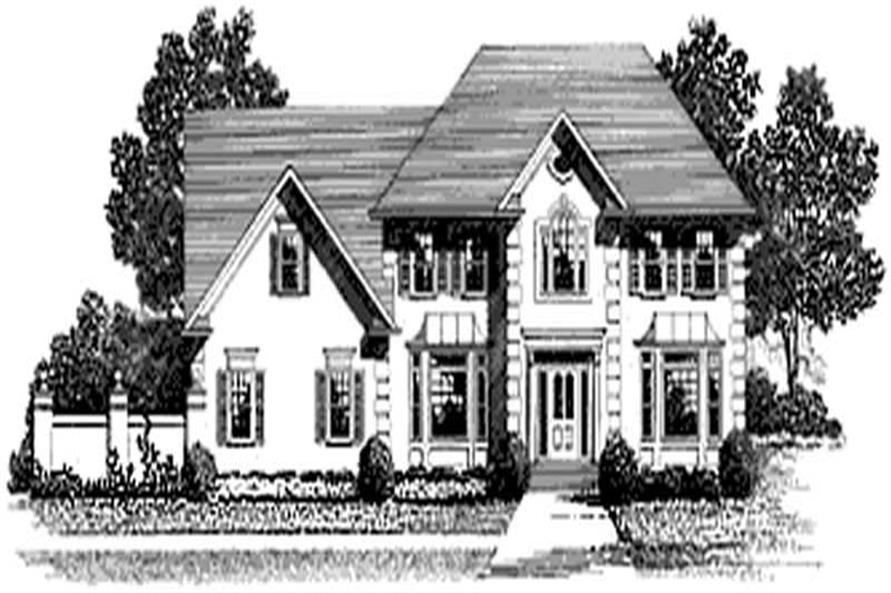

3-Bedroom, 2300 Sq Ft European Home Plan - 109-1054 - Main Exterior
REAR ELEVATION

About Plan # 109-1054

About Plan # 109-1054

2300 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 58' 0" WIDTH 31' 0" DEPTH 0 GARAGE BAY
This elegant European stucco design features 2,300 sq. ft. of living space. It boasts 4 bedrooms plus separate family room and formal living room highlighted by a bay window. The dramatic two story foyer features 2 coat closets and an upper level plant shelf. A center work island is a useful feature in this 13'x 12' gourmet kitchen. The sunny 12'x 9' breakfast room has a door leading onto an oversized deck. Measuring 12'x 15', the dining room is designed for entertaining and is also highlighted by a bay window.

Each plan set includes the following:

  • Rendering cover page
  • Elevations
  • Floor plans
  • Foundation plan
  • Cabinet/interior elevations
  • Roof plan
  • Section
  • Construction details
  • IRC code specifications

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

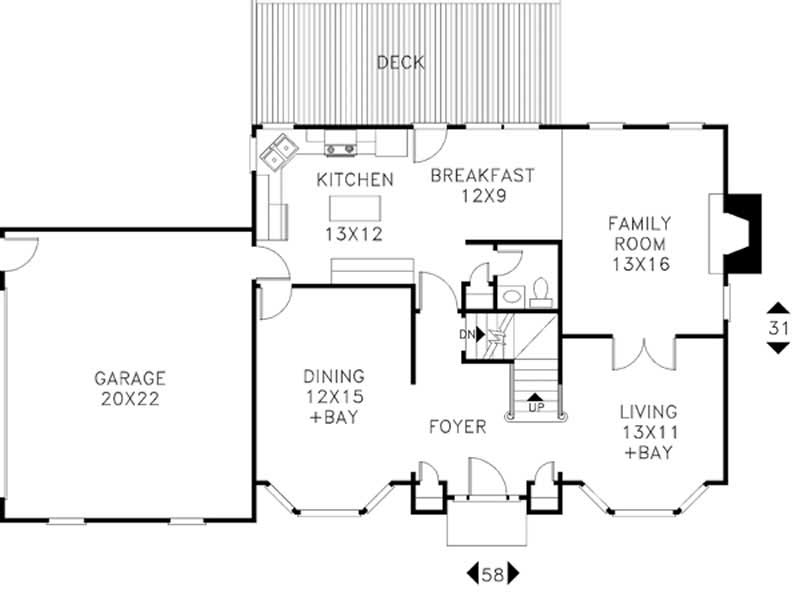

Home Plan: #109-1054 Floor Plan First Story - main Floor Plan First Story of European Plan #109-1054

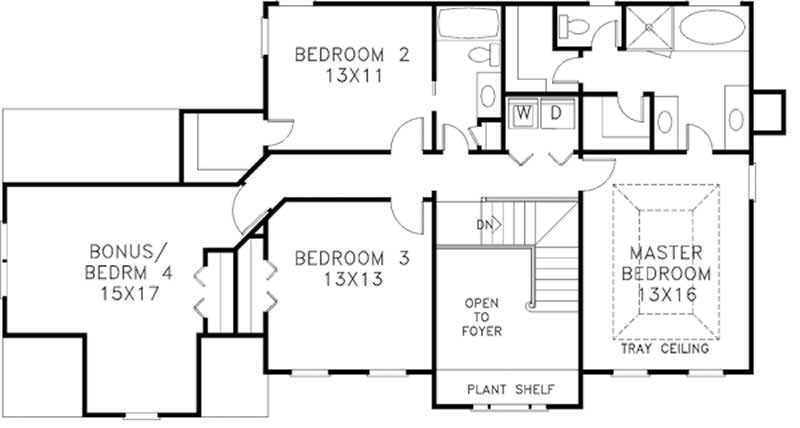

#109-1054 Floor Plan Second Story - second Floor Plan Second Story of European Plan #109-1054
Home Plan: #109-1054 Floor Plan First Story - main Floor Plan First Story of European Plan #109-1054
#109-1054 Floor Plan Second Story - second Floor Plan Second Story of European Plan #109-1054
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 109-1054
Floors:
2
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
2300
Main Floor:
1112
Upper Floor:
934
Unfinished Sq Ft:

Dimensions

Width:
58' 0"
Depth:
31' 0"

Architectural Styles

European
French

Exterior Wall Material

Stucco

Roof Pitch

12/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling
8 Foot Ceiling

Special Feature

Dining Room
Family Room

Garage Type

Side Entry

Exterior Wall Framing

2x4

Additional Notes from Designer

Optional Foundations are considered modifications so please send us a modification request if you would like a free quote. Thank you! PLEASE NOTE! Any options that are ordered such as RRR or 2x6 conversion will each take 4-7 business days to complete BEFORE the plans are sent. Materials Lists can take up to 14 business days to complete BEFORE plans are sent.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
