This is a two-level home with 3 bedrooms, 2.5 baths, attached garage, main level laundry, Dining room connected to breakfast area and kitchen, large great room, vaulted ceiling in living room with stairs leading up to the view down to the foyer and great room.
Each plan set includes the following:

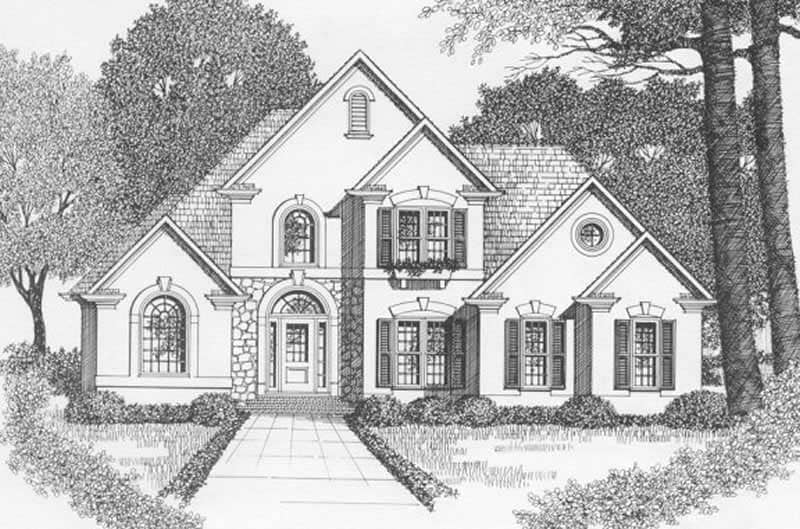

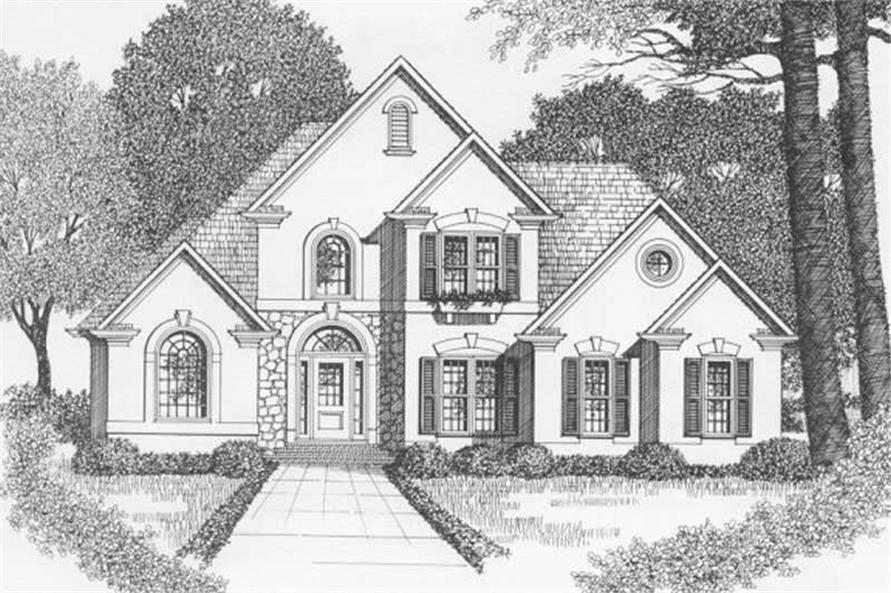

Front Elevation & Cabinet Details

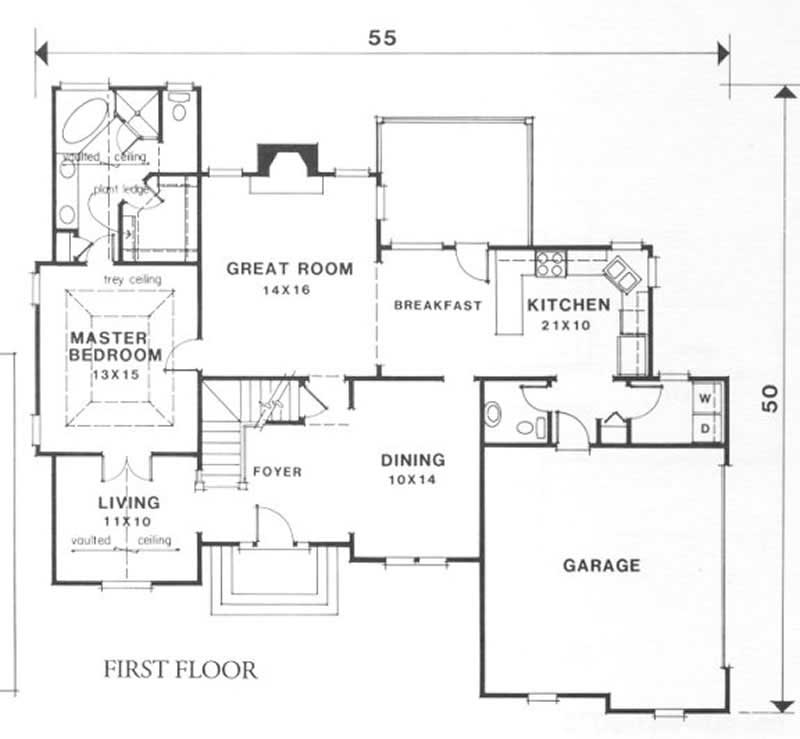

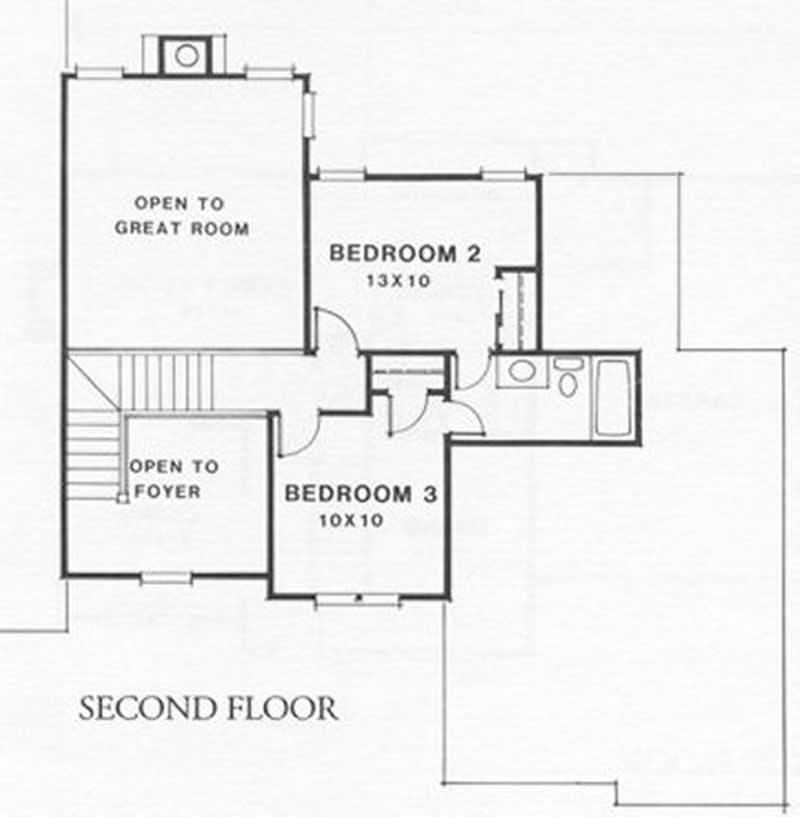

Floor Plan with Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
Roof Plan (Birdseye view)
Foundation Plan & Details
Cross Sections & Details
Connection Details & Trim
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
