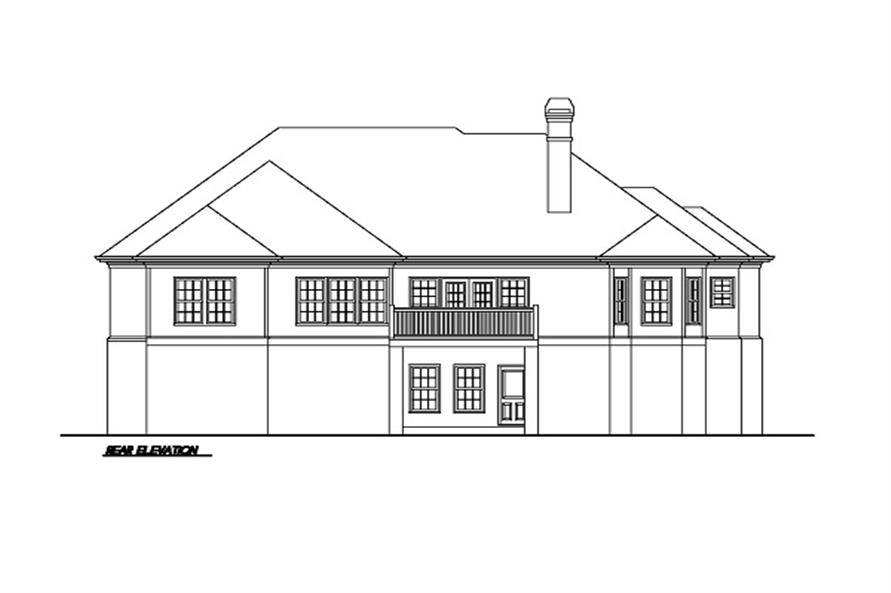

102-1002 house plan rear elevation

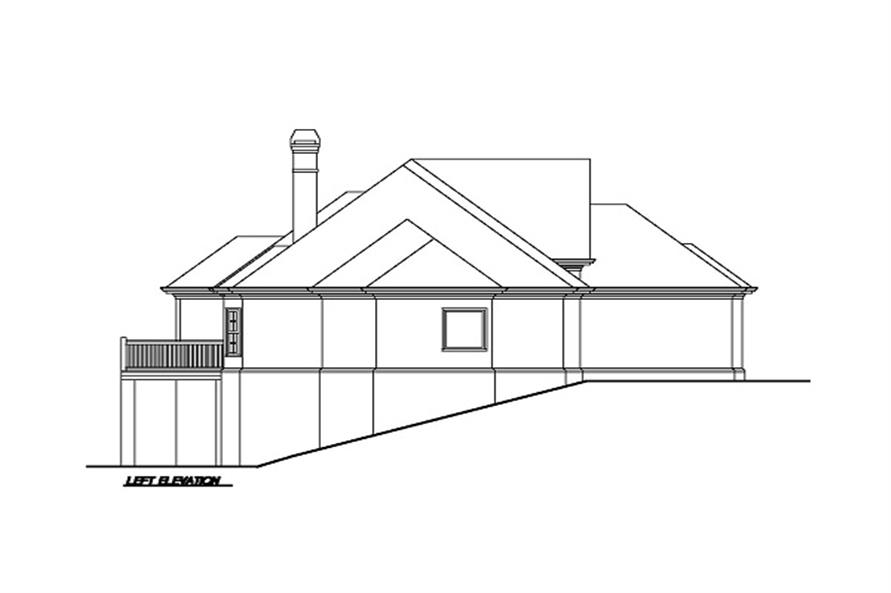

102-1002 house plan left elevation

About Plan # 102-1002

About Plan # 102-1002

1883 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 63' 4" WIDTH 56' 0" DEPTH 2 GARAGE BAY

This brick ranch house plan features an optional basement, open foyer, pantry, large master bedroom with a sitting are, trey ceiling, walk-in closet, and large bath, an exterior deck, 3 bedrooms, 2 baths, main level laundry, attached two-car garage, and separate dining and breakfast rooms.

Each plan set includes the following:

Front Elevation & Cabinet Details
Floor Plan with Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
Side Elevations
Roof Plan (Birdseye view)
Foundation Plan & Details
Cross Sections & Details
Connection Details & Trim

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

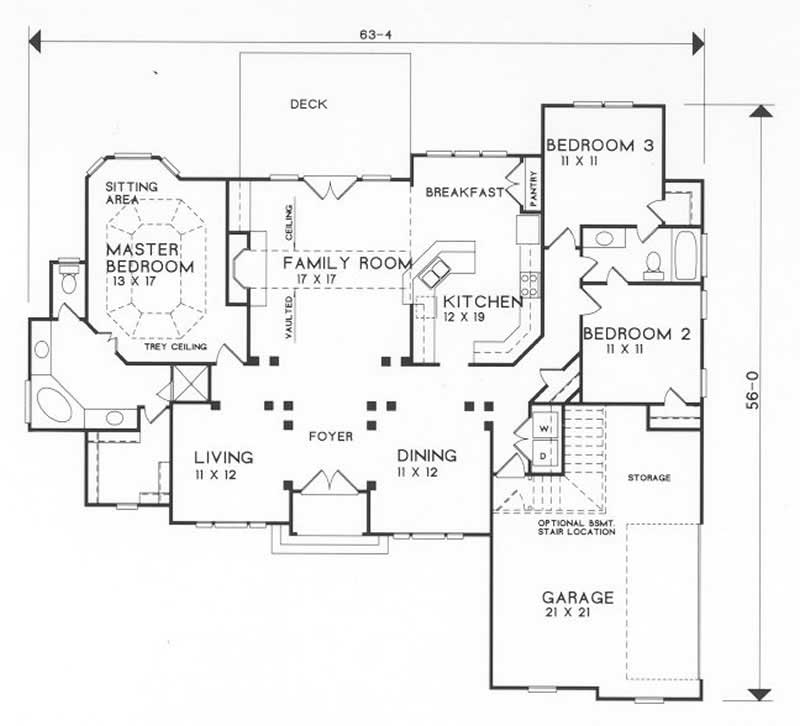

Home Plan: #102-1002 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #102-1002
