5-Bedroom, 5768 Sq Ft Luxury Plan with Master Bathroom

Front elevation of Luxury home (ThePlanCollection: House Plan #106-1009)
106-1009: Home Plan Rear Elevation
106-1009: Home Plan Rear Elevation
5-Bedroom, 5768 Sq Ft Luxury Home Plan - 106-1009 - Main Exterior
106-1009: Home Plan Rear Elevation
106-1009: Home Plan Rear Elevation

About Plan # 106-1009

About Plan # 106-1009

5768 SQUARE FEET 5 BEDROOMS 5 FULL BATH 1 HALF BATH
2 FLOOR 108' 0" WIDTH 61' 0" DEPTH 3 GARAGE BAY

Typically you’d only find luxury house plans like this in the United Kingdom or Europe but you can live this lifestyle everyday anywhere! Although this grand home has all the timeless elements of truly tasteful design, this rendition is thoroughly modern and replete with every convenience and luxury. The floor plan is spacious and flexible enough for formal dinners and raucous Superbowl parties. Note the guest suite on the first floor near the library (a loggia access enhances the beamed-ceiling library). The family room is cavernous but close enough to the breakfast room and kitchen to make it practical. The grand staircase separates the master suite on the second floor from secondary bedrooms. Many extras, like the screened porch or the cedar closet, make this a home to treasure.

Each plan set includes the following:

  • Foundation Plan
  • Floor plans
  • Electrical layout
  • Exterior elevations
  • Cross-section
  • Typical Call detail
  • Typical footing detail
  • Miscellaneous details
  • Window/Door sizes
  • Roof plan

These items are NOT included:

  • Framing.
  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

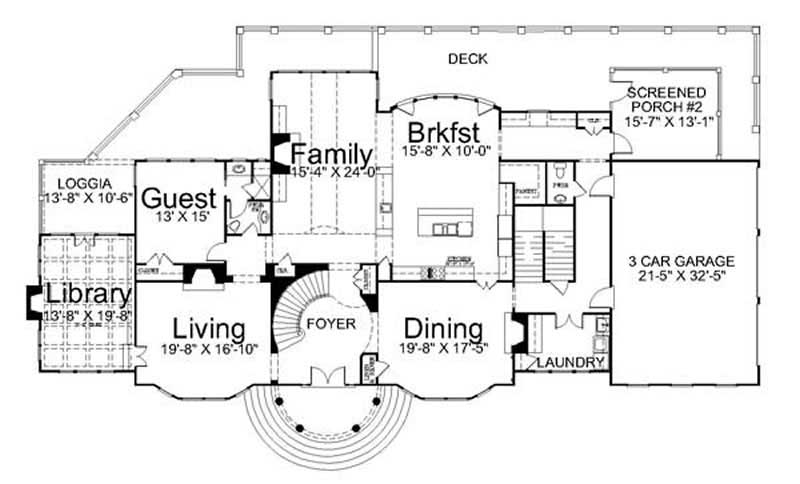

Home Plan: #106-1009 Floor Plan First Story - first story Floor Plan First Story of Luxury Plan #106-1009

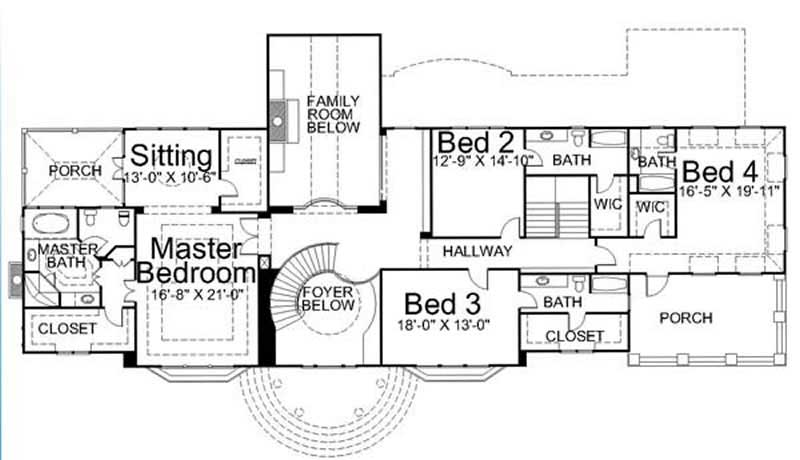

#106-1009 Floor Plan Second Story - second story Floor Plan Second Story of Luxury Plan #106-1009
Home Plan: #106-1009 Floor Plan First Story - first story Floor Plan First Story of Luxury Plan #106-1009
#106-1009 Floor Plan Second Story - second story Floor Plan Second Story of Luxury Plan #106-1009
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 106-1009
Floors:
2
Bedrooms:
5
Full Baths:
5
Half Baths:
1

Square Footage

Heated Sq Feet:
5768
Main Floor:
3115
Upper Floor:
2653
Unfinished Sq Ft:

Dimensions

Width:
108' 0"
Depth:
61' 0"
Ridge Height:
36' 4"

Architectural Styles

European
Luxury
Traditional
Historic

Roof Pitch

10/12

Ceiling Height

10 Foot Ceiling

Special Feature

Dining Room
Guest Room
Family Room
Main Level Laundry
Library
Open Floor Plan

Garage Type

Attached Garage
Side Entry

Fireplaces

Four Fireplaces

Kitchen Features

Kitchen Island
Nook/Breakfast Area

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Screened Porch/Sunroom

Master Suite Features

Master Bathroom
Walk In Closet
Sitting Area
Second Floor Master

Additional Notes from Designer

PLEASE NOTE: The plans by this designer do NOT include framing. PLEASE NOTE: An Unlimited Use License is available for purchase through the designer BUT YOU MUST purchase a CAD package!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
