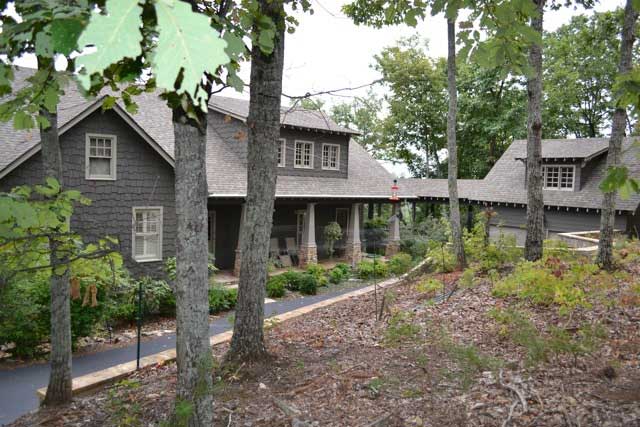

Snowshoe front photo

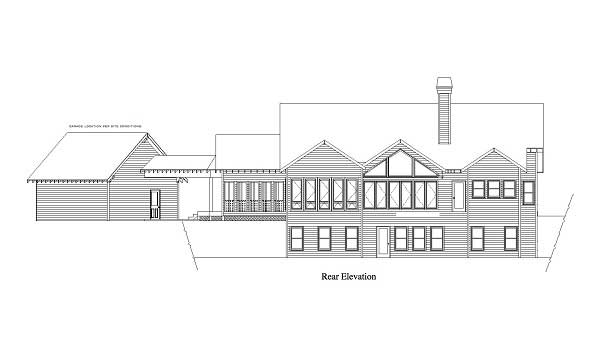

Home Plan Rear Elevation

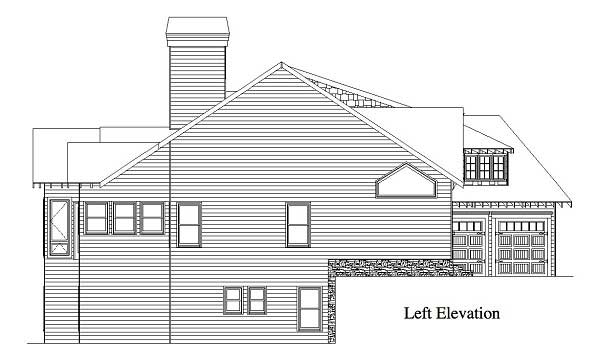

Home Plan Left Elevation

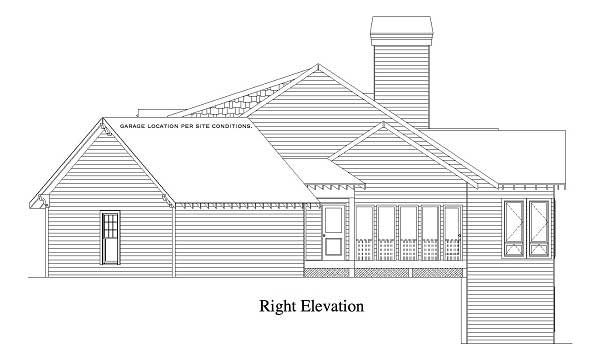

Home Plan Right Elevation
4-Bedroom, 3332 Sq Ft Luxury Home Plan - 163-1050 - Main Exterior
Home Plan Rear Elevation
Home Plan Left Elevation
Home Plan Right Elevation

About Plan # 163-1050

About Plan # 163-1050

3332 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 54' 8" WIDTH 48' 8" DEPTH 2 GARAGE BAY

This is a delightful country / mountain style house plan. It has a rustic appearance and an outdoorsy feel with a large front porch and screened porch on the side. The detached 2 car garage adjoins the main house via a breezeway. The spacious foyer adjoins a study or optional second bedroom and opens to the vaulted great room. The kitchen is bright and open to the dining / breakfast room and the great room. The master bedroom suite is on the opposite side of the house from the kitchen and has a tray ceiling, adjoining office or sitting room, a dressing area outside the walk-in closet, a vaulted ceiling and separate tub and shower. On the basement level downstairs, you have the option to finish a recreation room, 2 additional bedrooms and a jack and jill bath. Additionally, there is plenty of unfinished storage for seasonal items.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.Includes cabinet details and typical details.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Electrical Layout (location of light fixtures, switches, and fans) - Although may be available for an additional charge.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

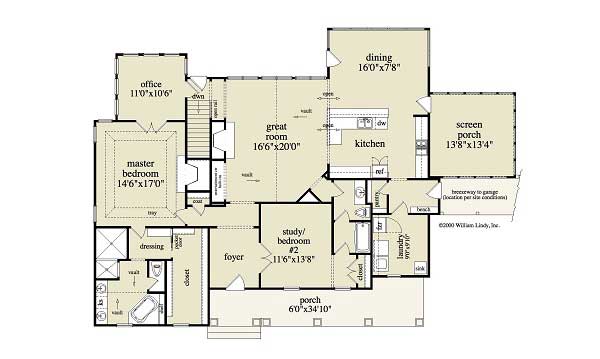

Home Plan: #163-1050 Floor Plan First Story - first story Floor Plan First Story of Luxury Plan #163-1050

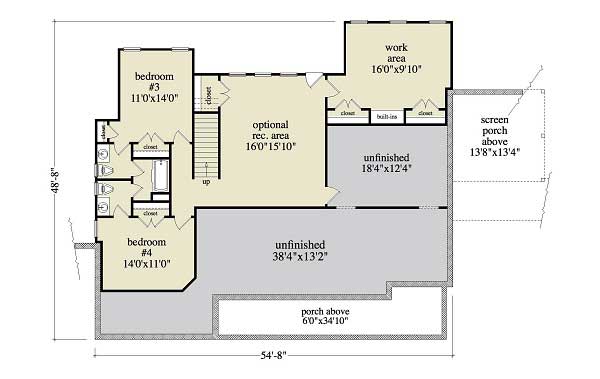

#163-1050 Floor Plan Basement - terrace Floor Plan Basement of Luxury Plan #163-1050

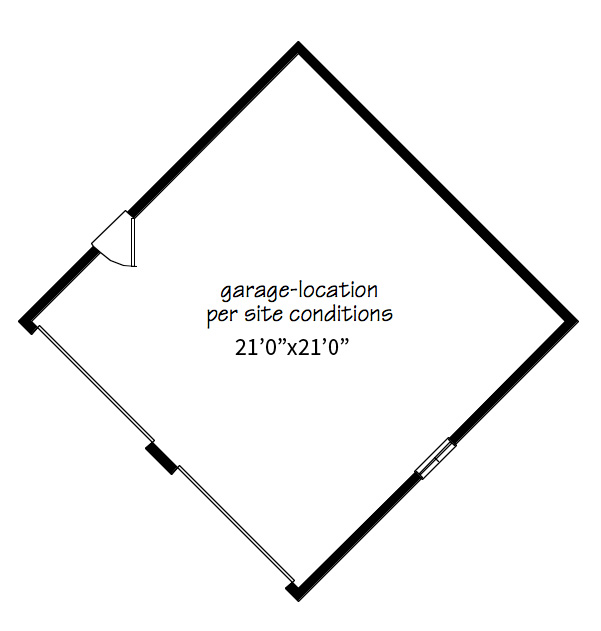

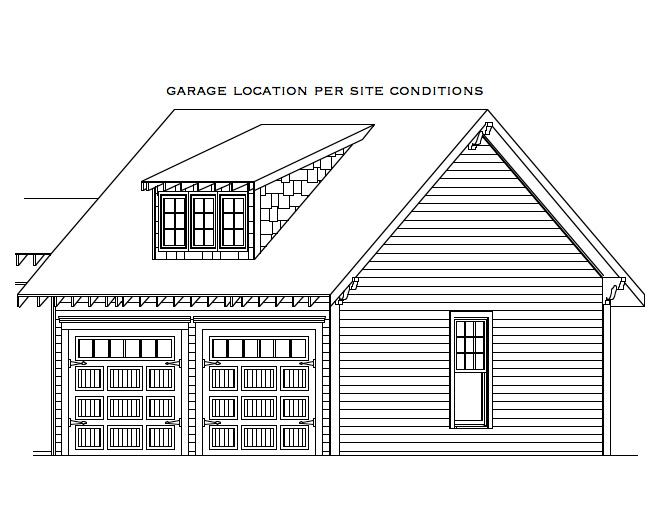

#163-1050 Floor Plan Garage - garage Floor Plan Garage of Luxury Plan #163-1050
#163-1050 Floor Plan Garage - garage Floor Plan Garage of Luxury Plan #163-1050
Home Plan: #163-1050 Floor Plan First Story - first story Floor Plan First Story of Luxury Plan #163-1050
#163-1050 Floor Plan Basement - terrace Floor Plan Basement of Luxury Plan #163-1050
#163-1050 Floor Plan Garage - garage Floor Plan Garage of Luxury Plan #163-1050
#163-1050 Floor Plan Garage - garage Floor Plan Garage of Luxury Plan #163-1050
