2-Car, 1 Bedroom, Garage with Apartment

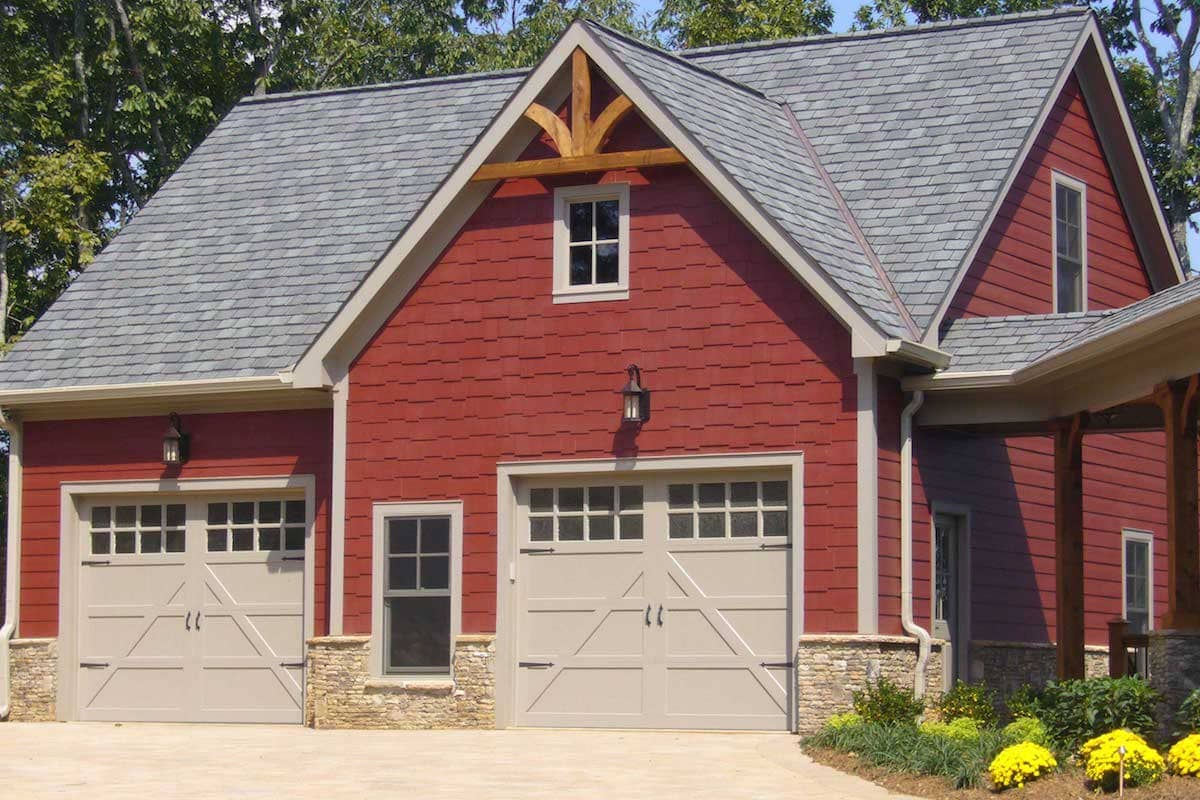

Garage/w Apartment Plan #163-1041

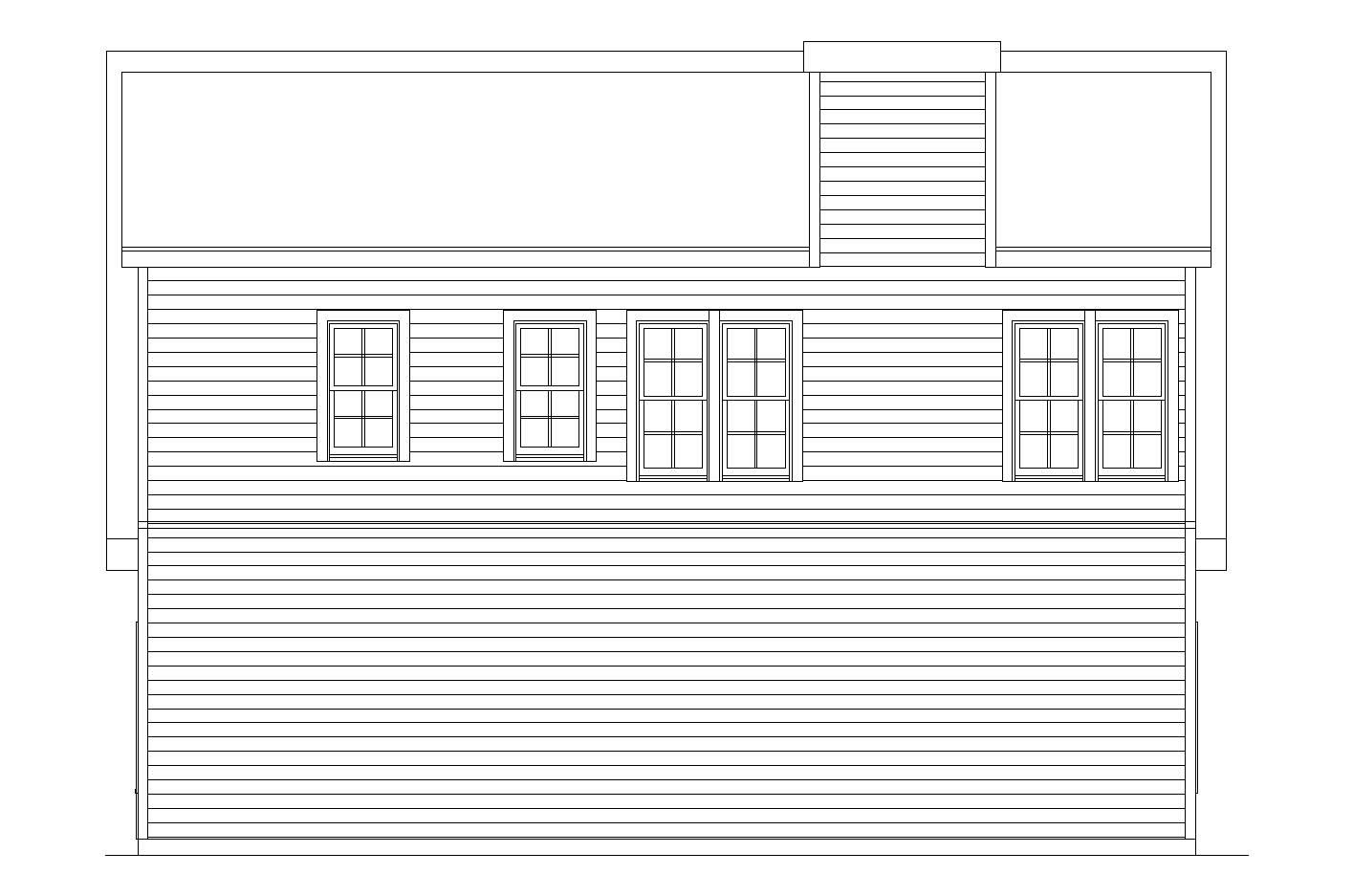

Home Plan Rear Elevation

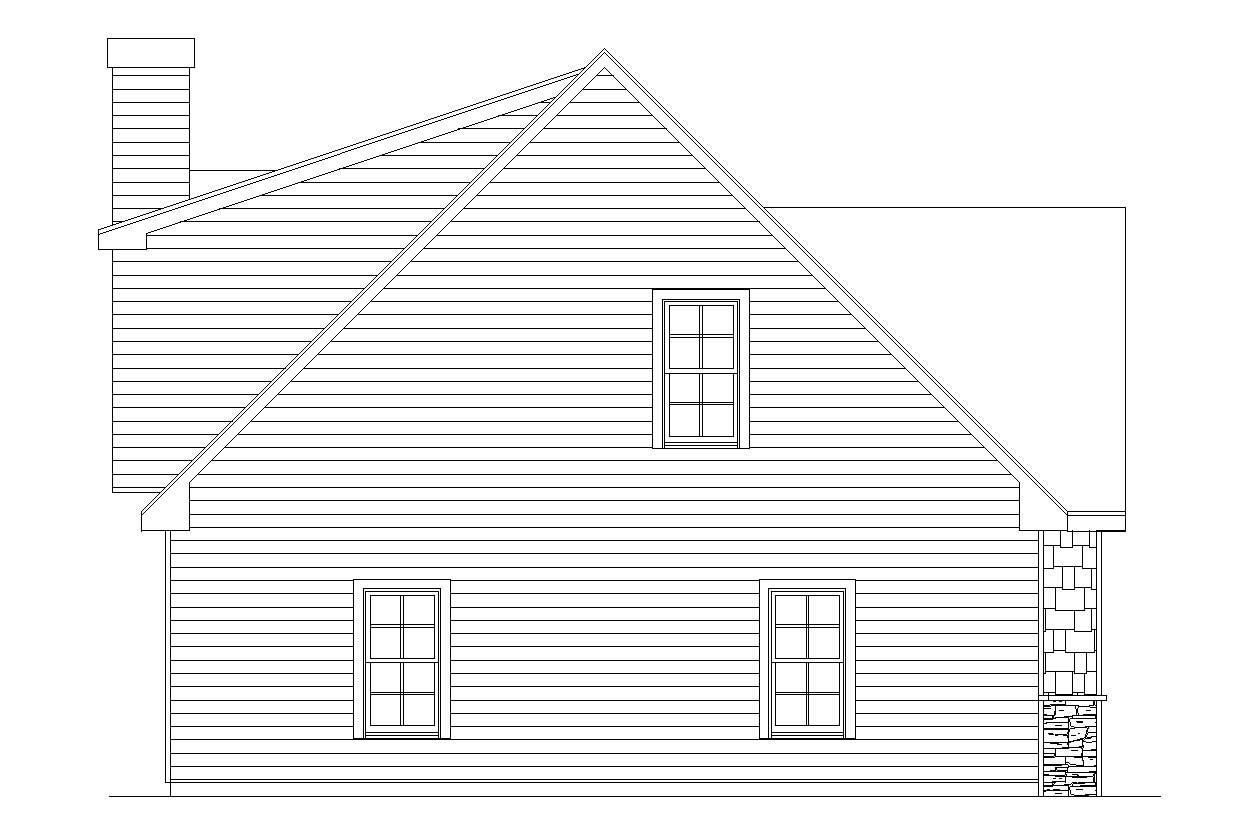

Home Plan Left Elevation

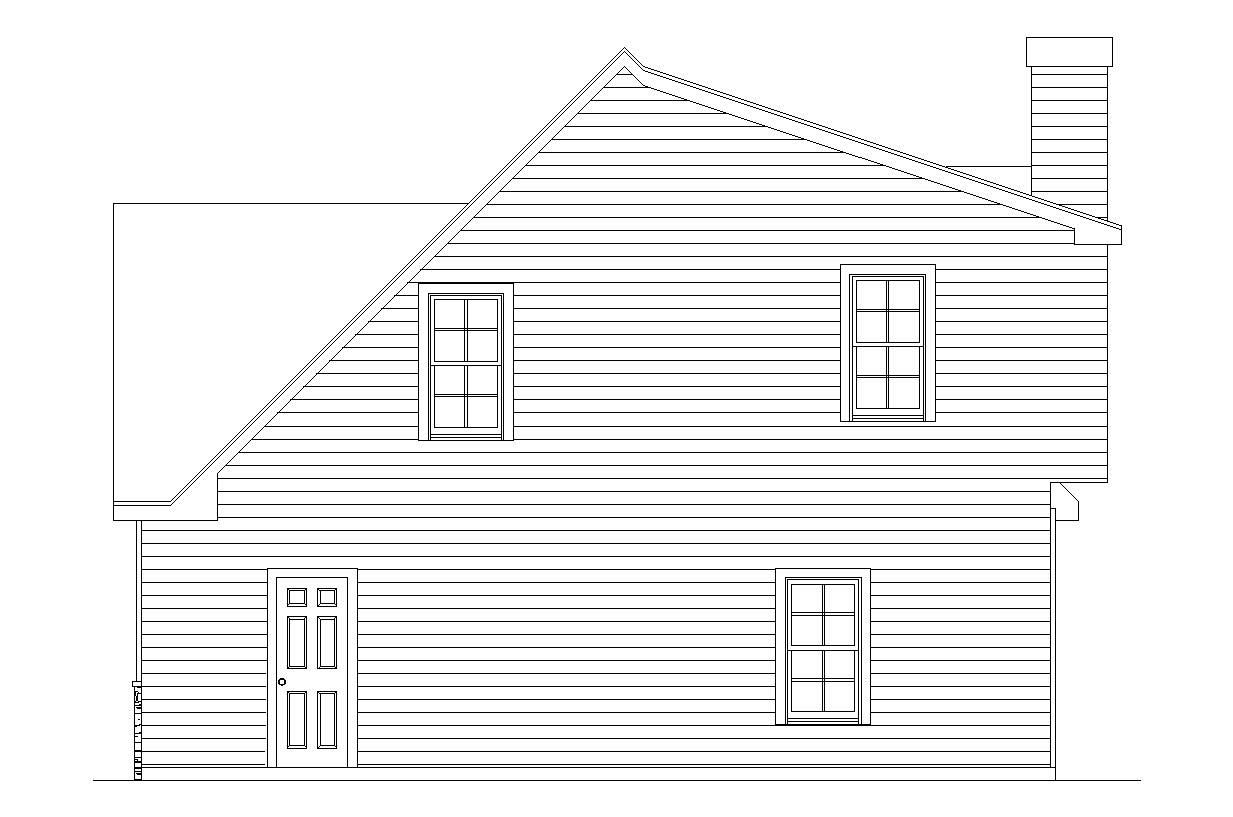

Home Plan Right Elevation

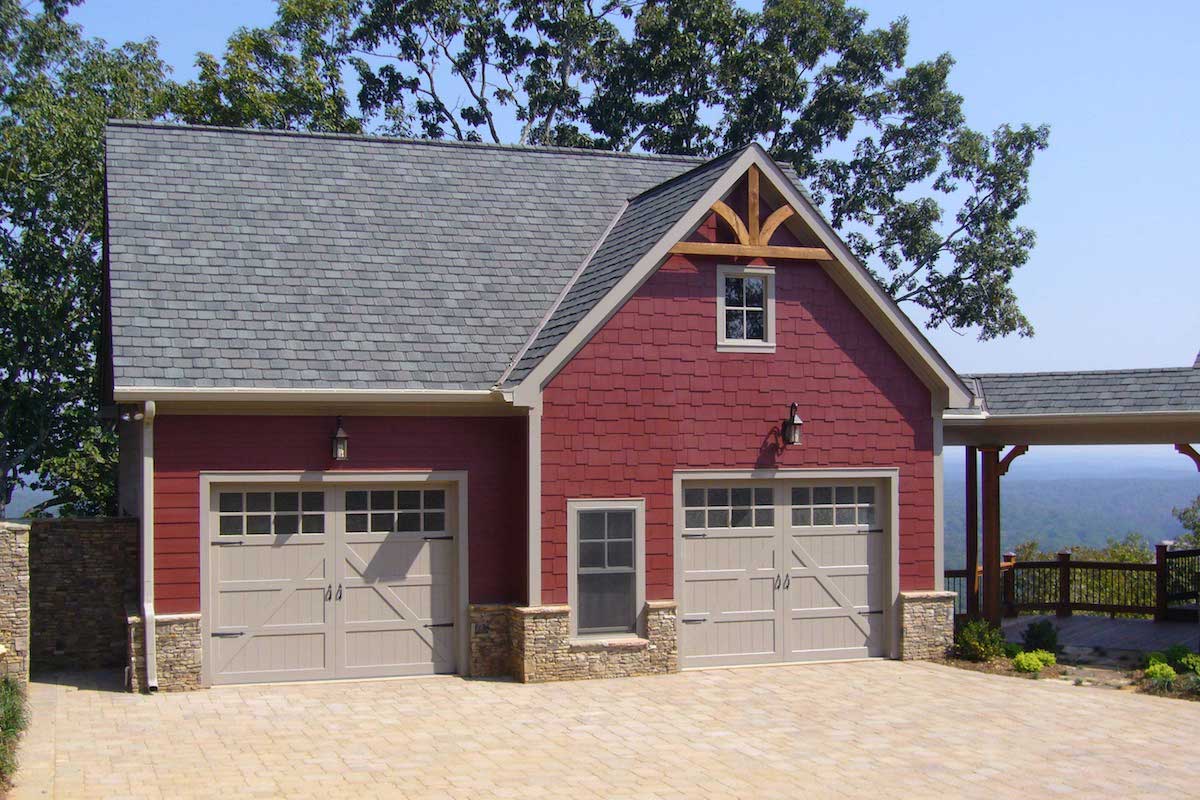

163-1041: Home Exterior Photograph-Garage
1-Bedroom, 906 Sq Ft Garage w/Apartments Home - Plan #163-1041 - Main Exterior

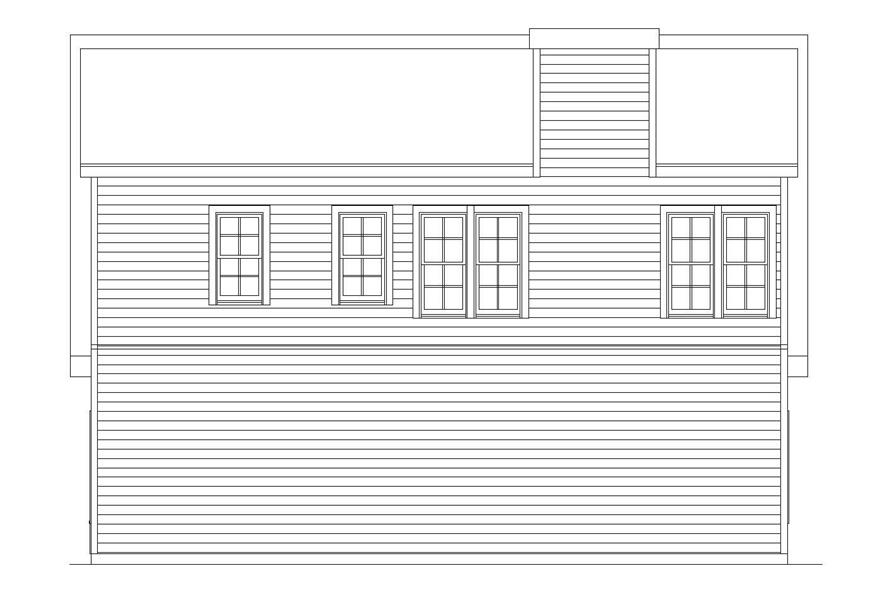

Home Plan Rear Elevation
Home Plan Left Elevation
Home Plan Right Elevation
163-1041: Home Exterior Photograph-Garage

About Plan # 163-1041

About Plan # 163-1041

906 SQUARE FEET 1 BEDROOMS 1 FULL BATH 0 HALF BATH
2 FLOOR 34' 0" WIDTH 32' 0" DEPTH 2 GARAGE BAY

A home on top of a garage? Try this classy Craftsman Garage Plan that has the style and comfort of a bigger place. An exterior of contrasting wood siding and shakes plus a gable roof of asphalt shingles is an attractive sight. Add a little landscaping and covered porch for great curb appeal.

The second floor apartment features a spacious one-bedroom suite with several multi-pane windows that allow abundant light. A Great Room - living room, kitchen with an island, peninsula eating bar, and eat-in area – is perfect for entertaining. A master bath, walk-in closet, and fireplace complete the picture!

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.Includes cabinet details and typical details.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

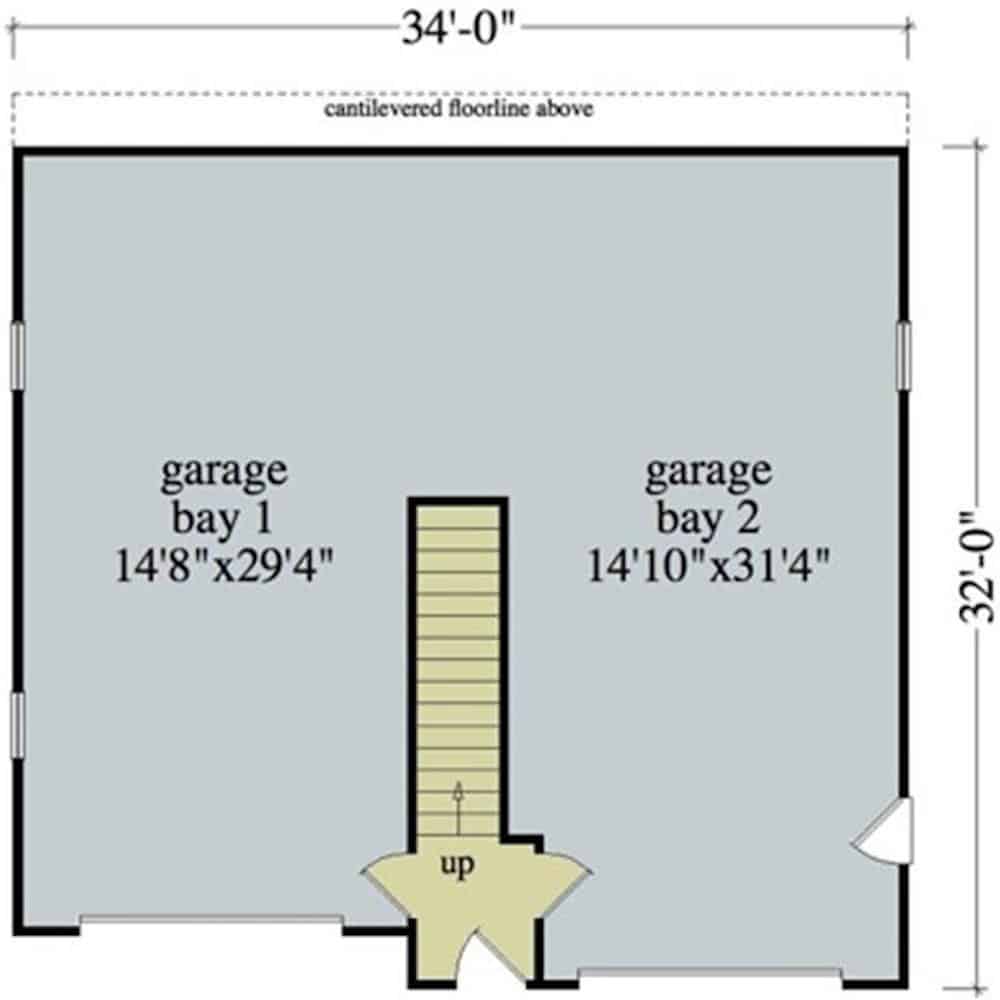

Home Plan: #163-1041 Floor Plan First Story - main level Floor Plan Main Level of Garage w/Apartments Plan #163-1041

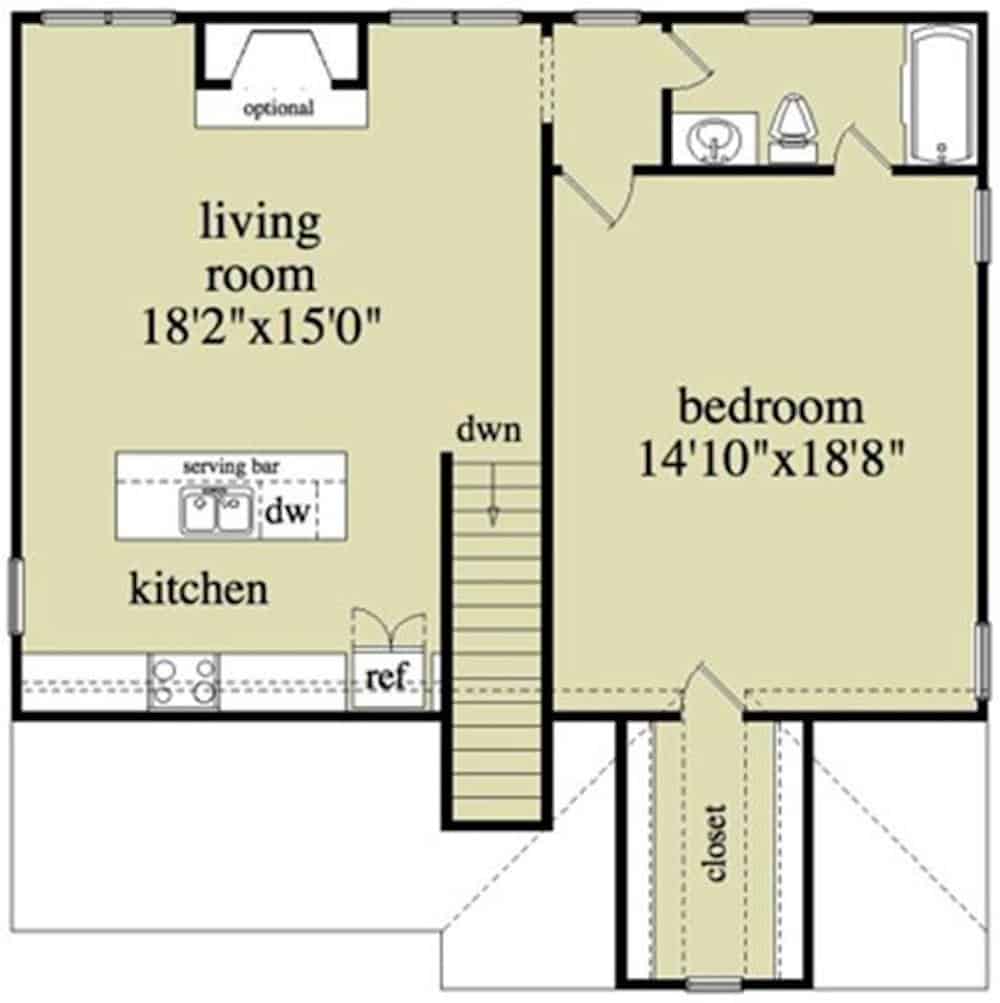

#163-1041 Floor Plan Second Story - upper level Floor Plan Upper Level of Garage w/Apartments Plan #163-1041
Home Plan: #163-1041 Floor Plan First Story - main level Floor Plan Main Level of Garage w/Apartments Plan #163-1041
#163-1041 Floor Plan Second Story - upper level Floor Plan Upper Level of Garage w/Apartments Plan #163-1041
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 163-1041
Floors:
2
Bedrooms:
1
Full Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
906
Main Floor:
968
Upper Floor:
906
Unfinished Sq Ft:

Dimensions

Width:
34' 0"
Depth:
32' 0"
Ridge Height:
25' 4"

Architectural Styles

Colonial
Country
Craftsman
Garage w/Apartments
Traditional

Exterior Wall Material

Shakes
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

12/12
4/12

Special Feature

Color Photos
Family Room
Fireplace
Mother in law apartment
Open Floor Plan

Garage Type

Attached Garage
Front Entry

Fireplaces

Optional Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat Site
Narrow Lot Design

Kitchen Features

Eat-In Kitchen
Kitchen Island
Peninsula/Eating Bar

Porches and Exterior Features

Portico

Master Suite Features

Master Bathroom
Second Floor Master
Walk In Closet
