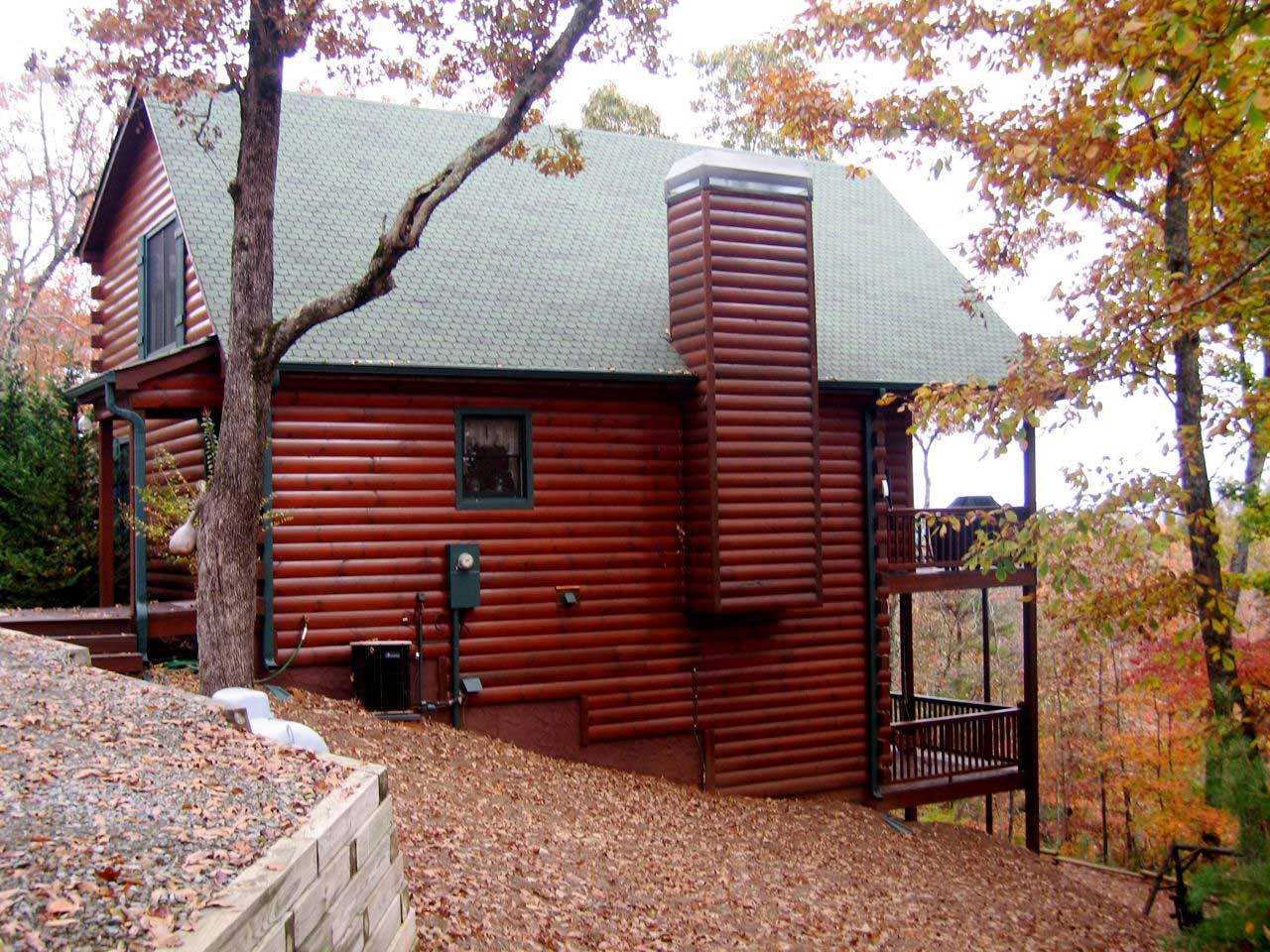

163-1000: Home Exterior Photograph-Left Side View
163-1000: Home Exterior Photograph-Left Side View

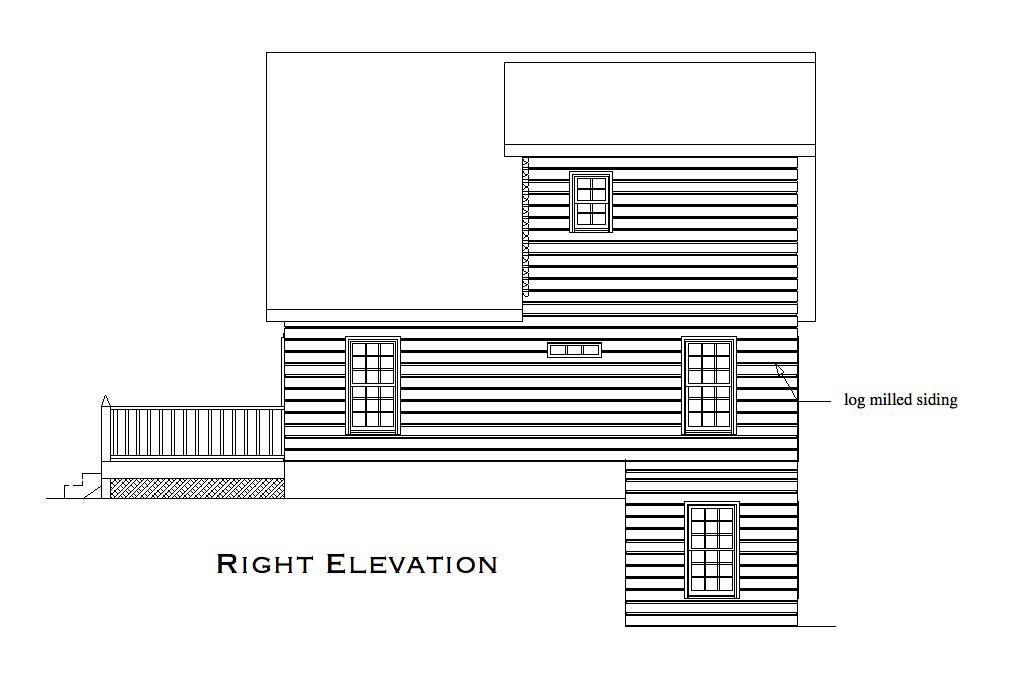

Home Plan Right Elevation
Home Plan Front Elevation
Home Plan Left Elevation
Home Plan Rear Elevation
2-Bedroom, 1053 Sq Ft Log Cabin House Plan - 163-1000 - Front Exterior

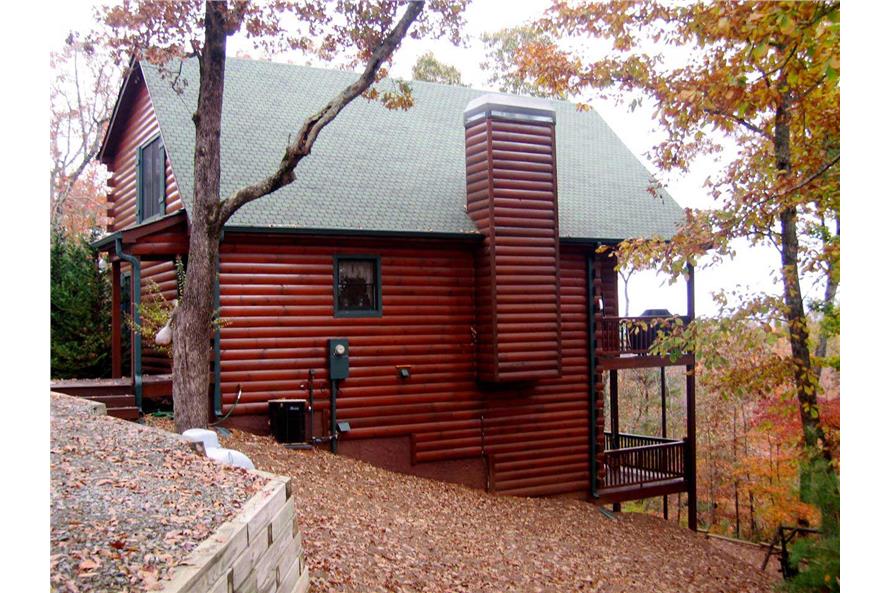

163-1000: Home Exterior Photograph-Left Side View
163-1000: Home Exterior Photograph-Left Side View
Home Plan Right Elevation
Home Plan Front Elevation
Home Plan Left Elevation
Home Plan Rear Elevation

About Plan # 163-1000

About Plan # 163-1000

1053 SQUARE FEET 2 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 26' 0" WIDTH 28' 0" DEPTH 0 GARAGE BAY

This tidy cabin is a favorite for weekenders. A bedroom and bath on each floor make it a great get-away for friends and couples. The upstairs bedroom is open to the two-story great room below. The basement or terrace level can be finished at a later date or used as storage.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.

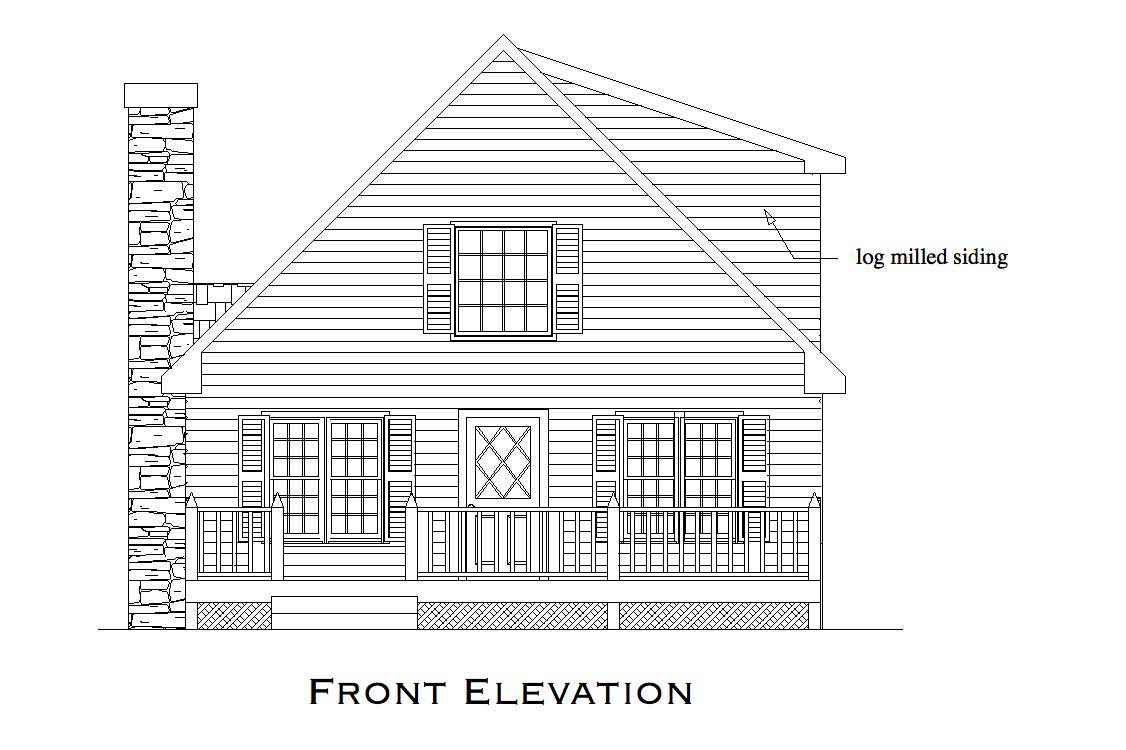

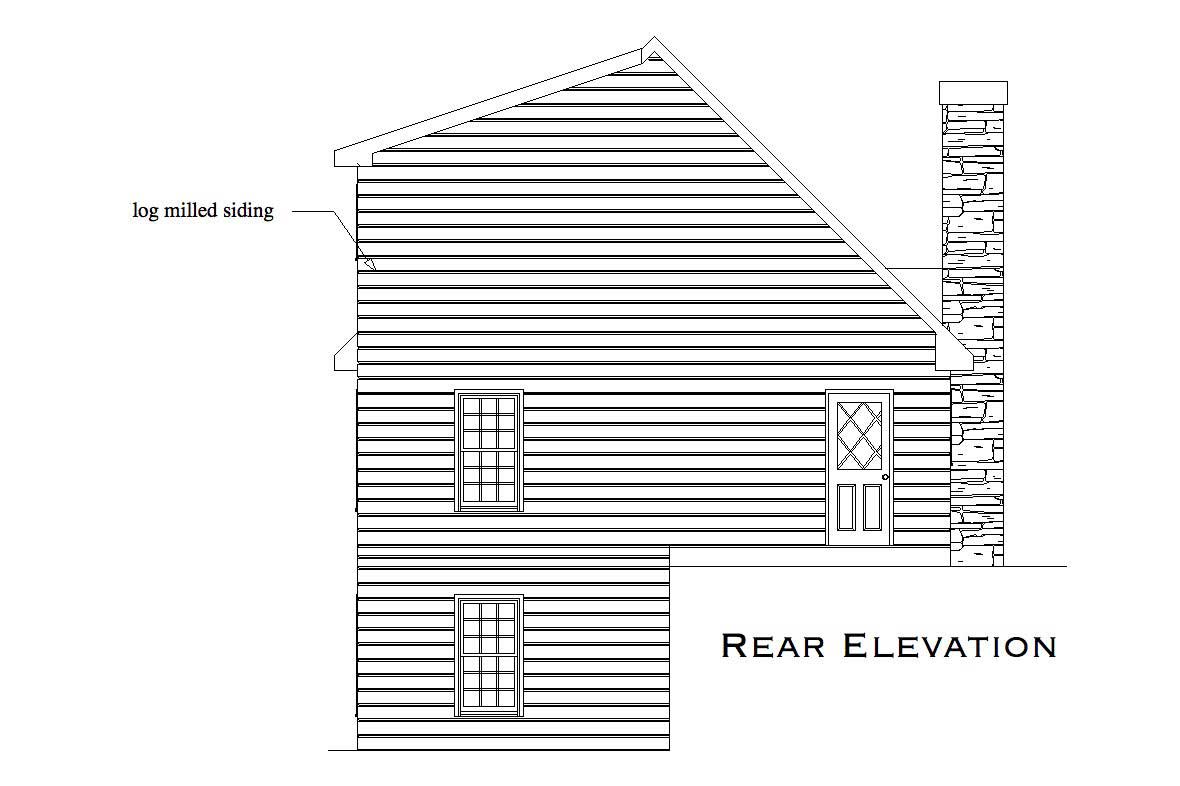

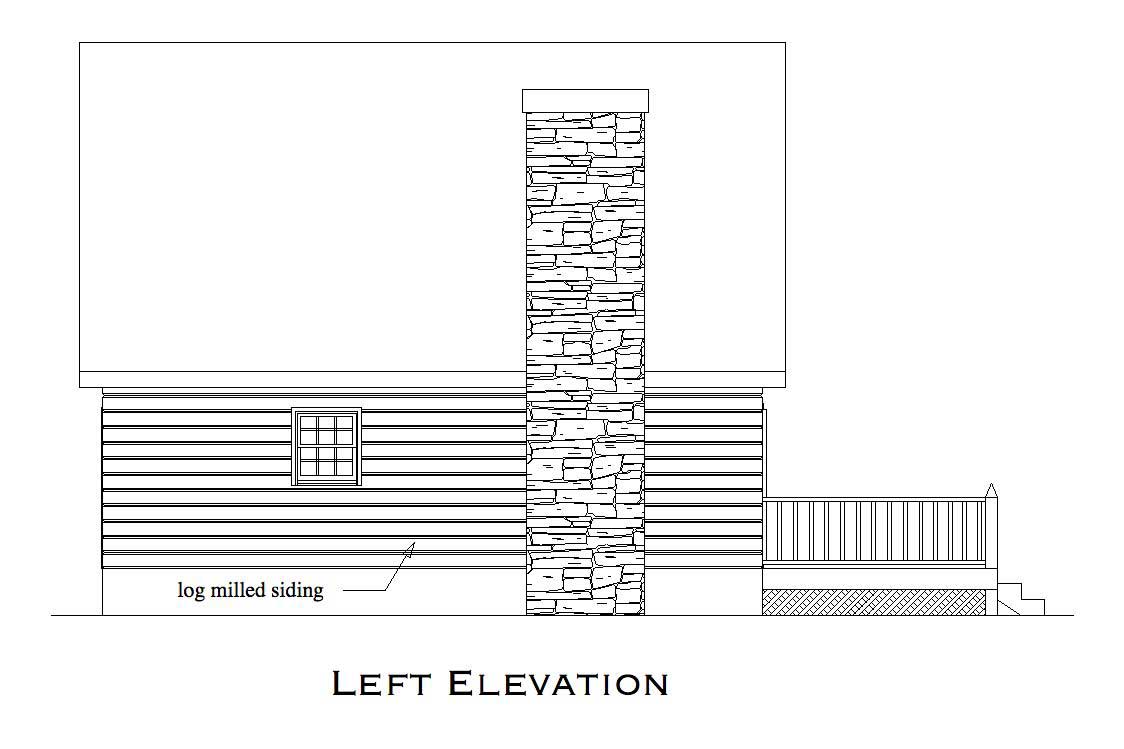

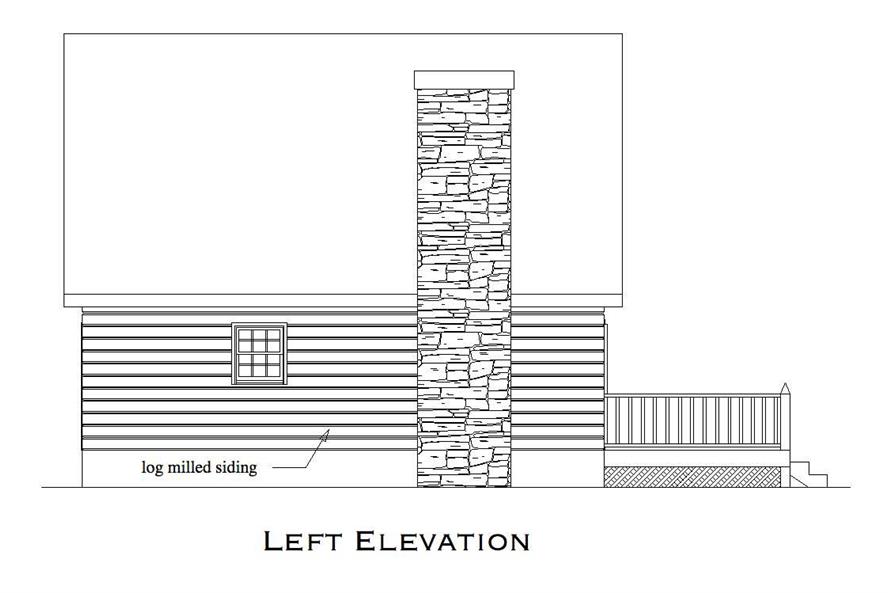

  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.Includes cabinet details and typical details.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Electrical Layout (location of light fixtures, switches, and fans) - Although may be available for an additional charge.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

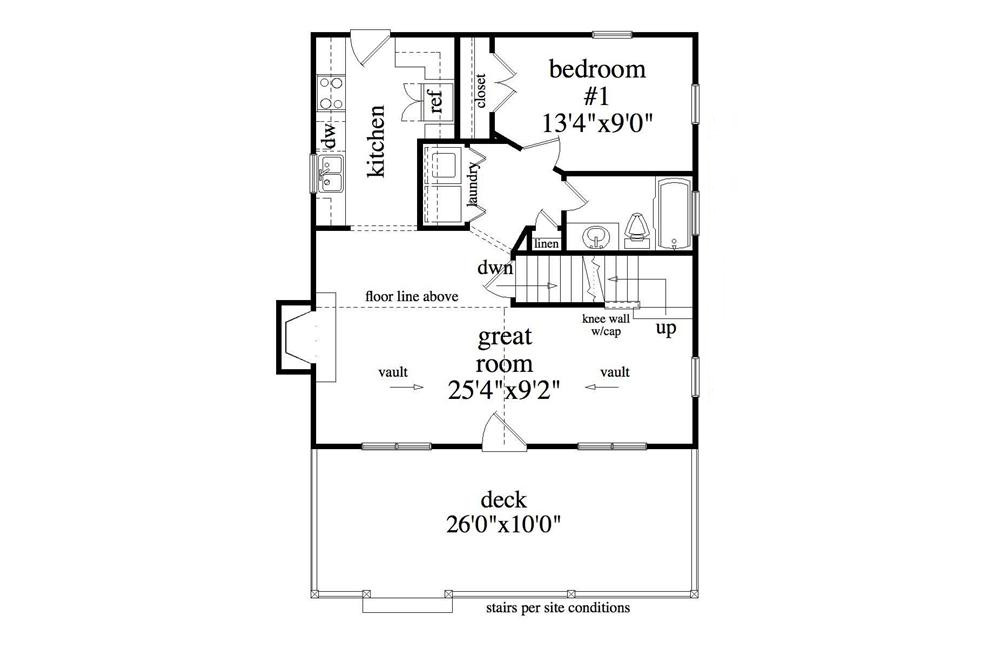

Home Plan: #163-1000 Floor Plan First Story - main level Floor Plan First Story of Log Cabin Plan #163-1000

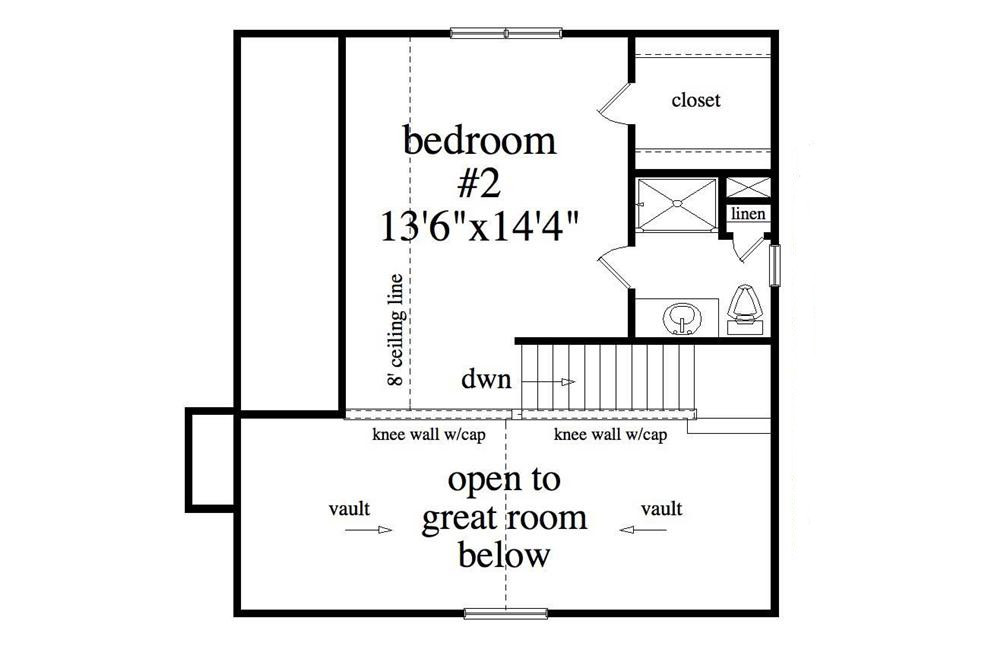

#163-1000 Floor Plan Second Story - upper level Floor Plan Second Story of Log Cabin Plan #163-1000

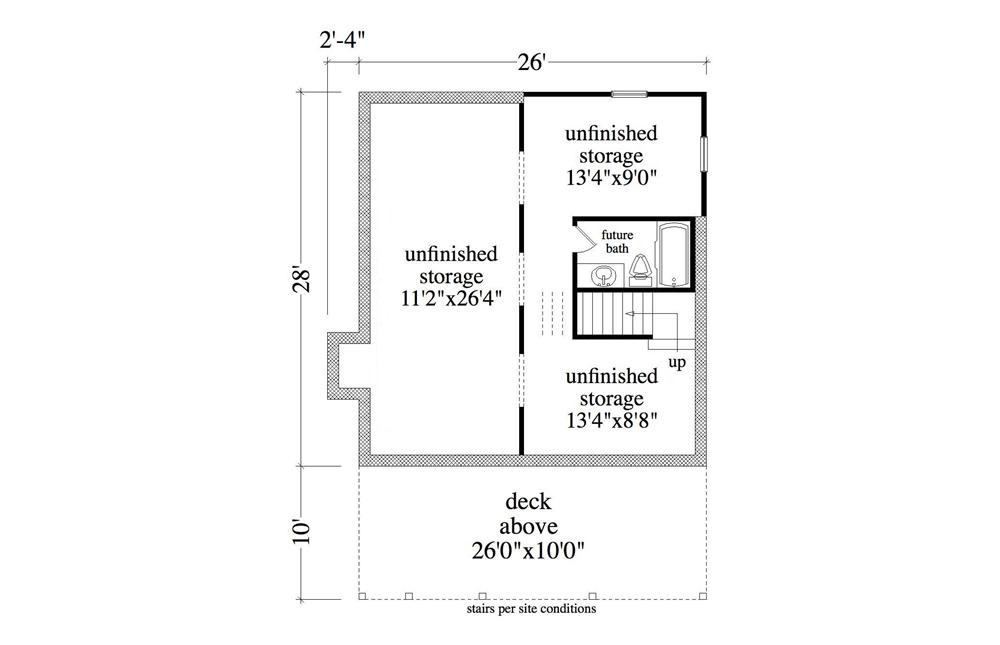

#163-1000 Floor Plan Basement - lower level Floor Plan Basement of Log Cabin Plan #163-1000
