3-Bedroom, 2498 Sq Ft Cottage Plan with 9- and 10-Foot Ceilings

Cottage home (ThePlanCollection: Plan #198-1038)
198-1038: Home Plan Rendering
3-Bedroom, 2498 Sq Ft Cottage House - Plan #198-1038 - Front Exterior
198-1038: Home Plan Rendering

About Plan # 198-1038

About Plan # 198-1038

2498 SQUARE FEET 3 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 50' 0" WIDTH 100' 9" DEPTH 3 GARAGE BAY

This charming Cottage style 3-bedroom, 3-bath home with rustic and Craftsman touches has lots of features that may be attractive to today's home buyers. The open floor plan and main floor master with large walk-in closet fit for two are appealing, as are the vaulted ceilings in the front porch, foyer, lodge room (or great room), and covered rear porch. Plus, the second main-floor bedroom has a semi-private bathroom nearby and nice walk-in closet. In addition, there's a third bedroom and bath upstairs and room for two more bedrooms, a bath, a social room, and storage in the basement when you're ready to finish it.

Each plan set includes the following:

  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. Includes exterior materials, exterior finishes, and other construction details that are necessary to give the home exterior architectural styling.
  • FOUNDATION PLAN: Dimensioned plan including the layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • DETAILED FLOOR PLANS: Showing the layout of each floor of the house, including room dimensions, window and door sizes, and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist, and roof plans are NOT included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • ROOF PLAN: Dimensioned plan showing the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • CROSS SECTION DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. Important changes in floor, ceiling, and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown. These details can be helpful for the contractor.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and schematics defining the location of panels, lighting fixtures, switches, outlets, fans, etc. for the first and second floors.
  • INTERIOR DETAILS: These drawings show the specific details and design of special interior features.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

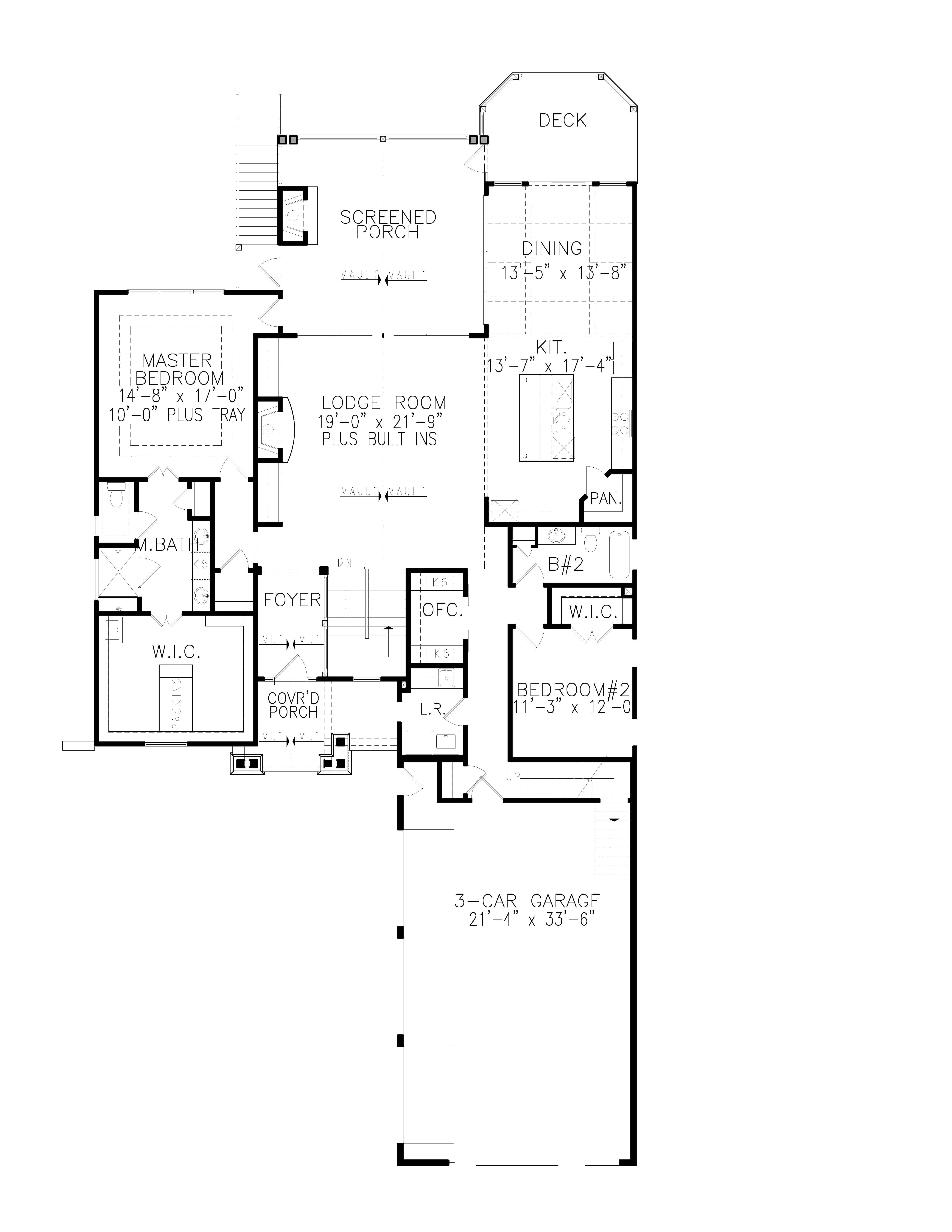

Home Plan: #198-1038 Floor Plan First Story - main level Floor Plan Main Level of Cottage Plan #198-1038

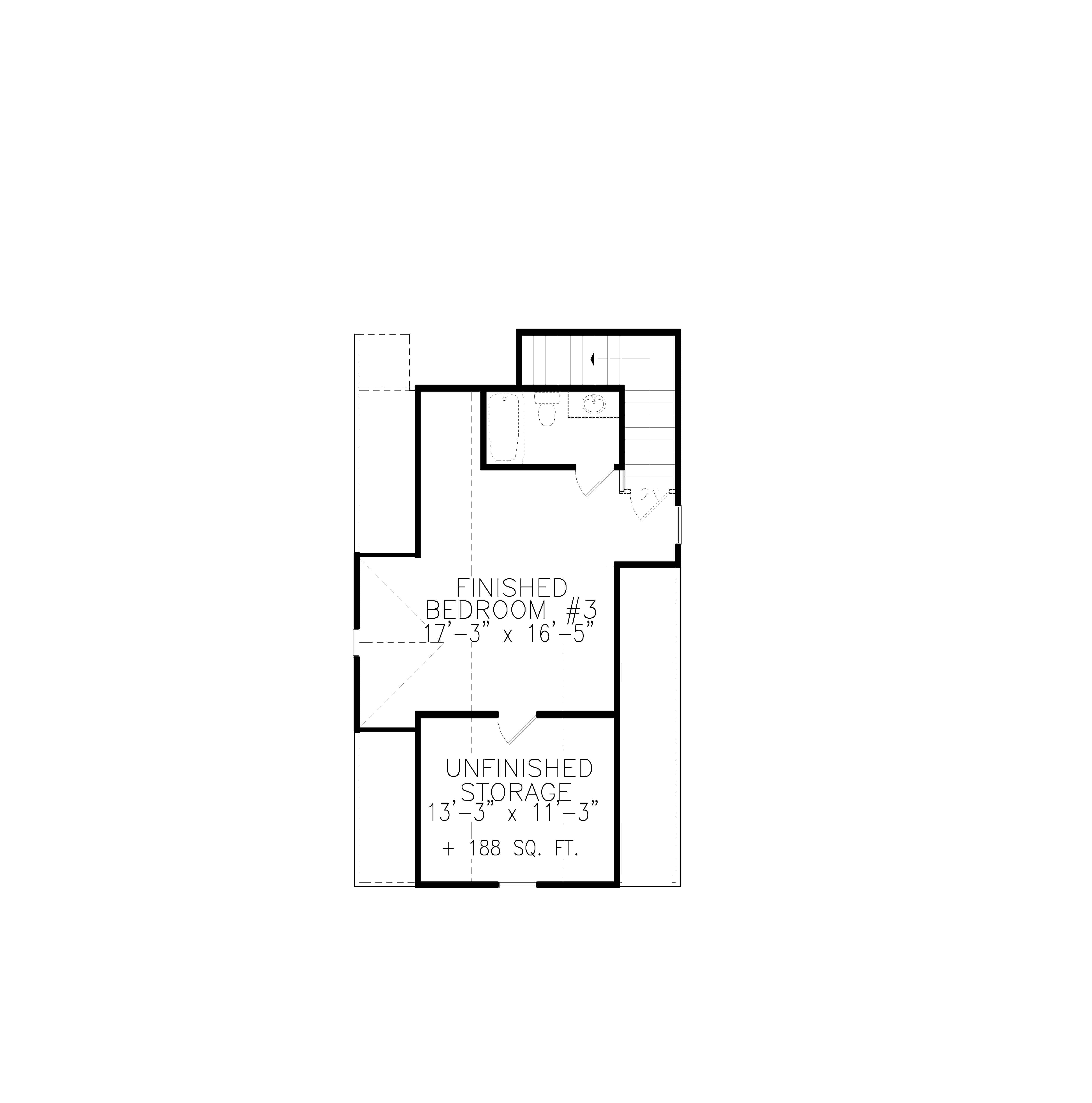

#198-1038 Floor Plan Second Story - upper level Floor Plan Upper Level of Cottage Plan #198-1038

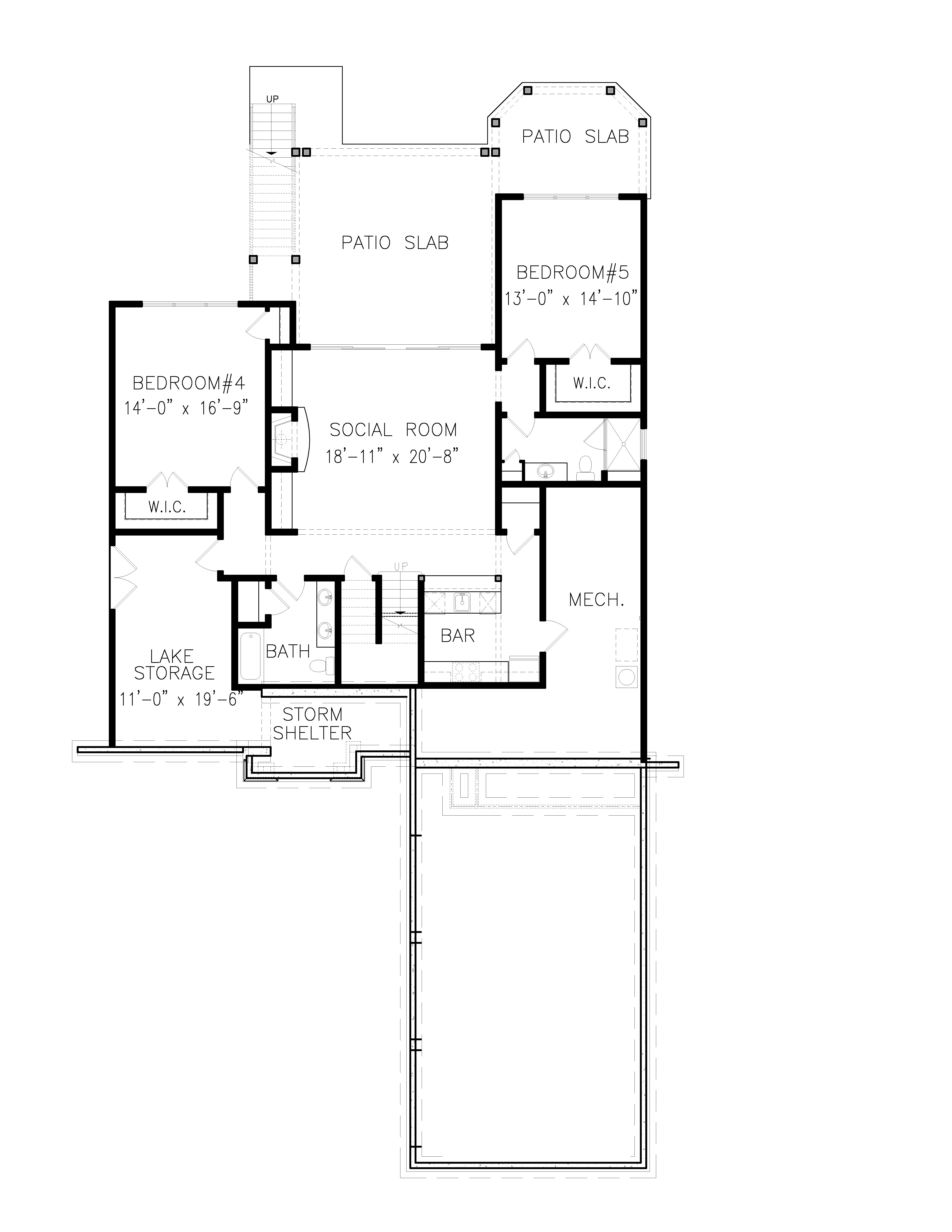

#198-1038 Floor Plan Basement - lower level Floor Plan Basement of Cottage Plan #198-1038
Home Plan: #198-1038 Floor Plan First Story - main level Floor Plan Main Level of Cottage Plan #198-1038
#198-1038 Floor Plan Second Story - upper level Floor Plan Upper Level of Cottage Plan #198-1038
#198-1038 Floor Plan Basement - lower level Floor Plan Basement of Cottage Plan #198-1038
