4-Bedroom, 2129 Sq Ft Ranch House Plan - 101-1163 - Front Exterior

About Plan # 101-1163

About Plan # 101-1163

2129 SQUARE FEET 4 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 49' 4" WIDTH 48' 0" DEPTH 2 GARAGE BAY
This traditional ranch house plan was designed to be easy to build without sacrificing design. Inside you'll be amazed at home large the home feels because of the vaulted ceilings in the living room and the open floor plan. The kitchen, dining and living rooms flow easily together making a living space that's large enough for family gatherings. A fireplace warms the main living area, and a screened porch off the dining room allows for even more space. The master suite features a cathedral ceiling, walk-in closet and private bath while the two additional bedrooms share the bath just off the hall. Downstairs you'll find an additional bedroom, three-quarter bath, a large recreation room and a garden room with doors that lead to the back yard. A two-stall garage with plenty of extra storage makes this home affordable for just about any family.

Each plan set includes the following:

  • Front, Back & Side Elevations
  • Floor Plans
  • Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
  • Roof Plan (Birdseye view)
  • Foundation Layout
  • Wall & Stair Sections
  • Cross Section
  • Kitchen Layout
  • General Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

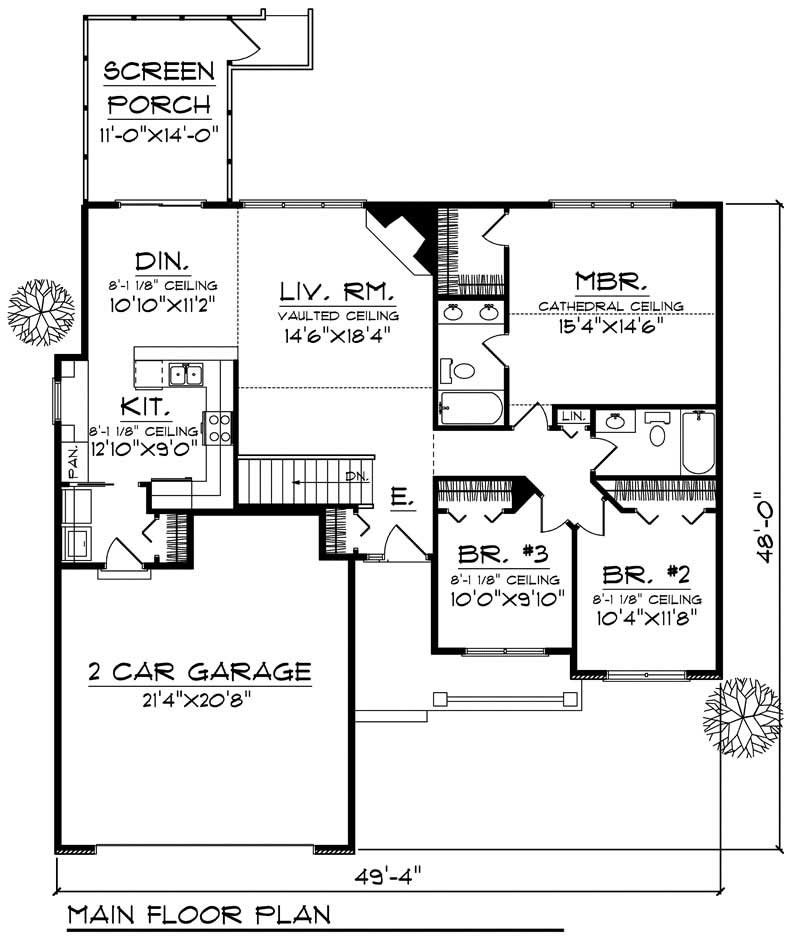

Home Plan: #101-1163 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1163

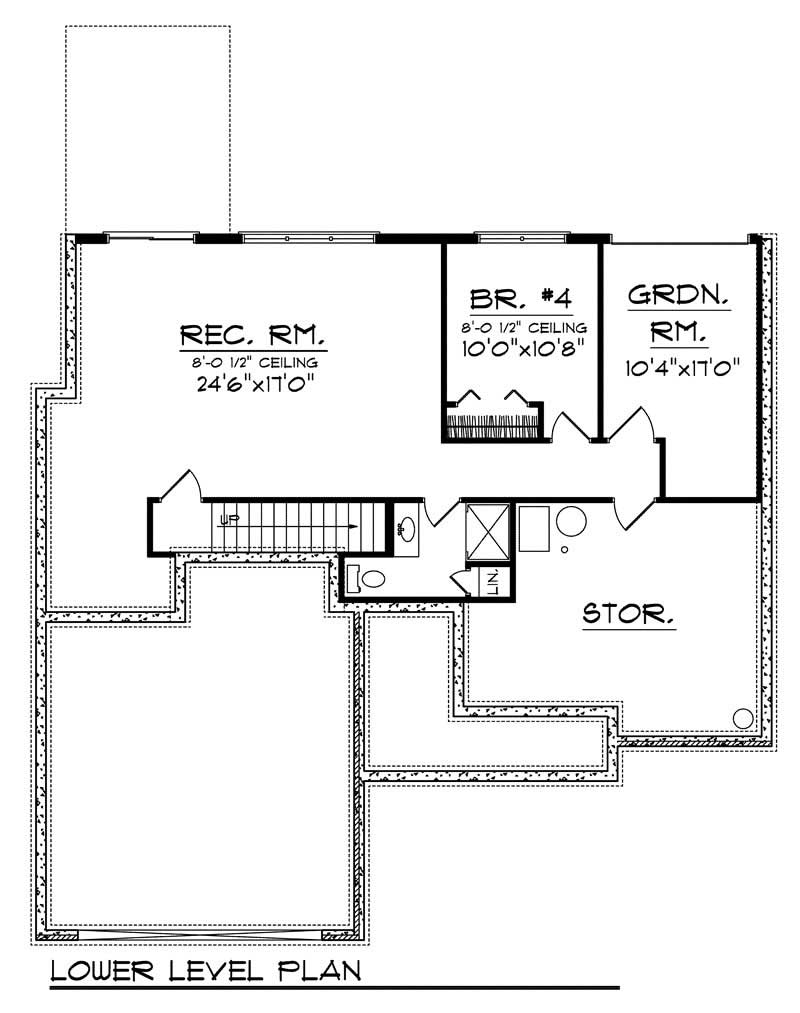

#101-1163 Floor Plan Basement - basement Floor Plan Basement of Ranch Plan #101-1163
Home Plan: #101-1163 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1163
#101-1163 Floor Plan Basement - basement Floor Plan Basement of Ranch Plan #101-1163
