3-Bedroom, 1582 Sq Ft Ranch Plan with Bonus Room over the Garage

Ranch home (ThePlanCollection: Plan #208-1010)

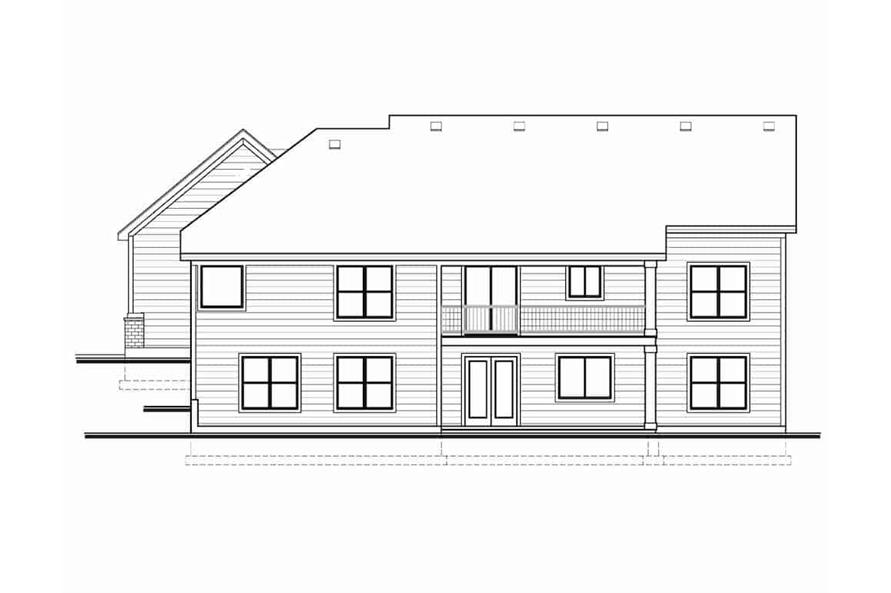

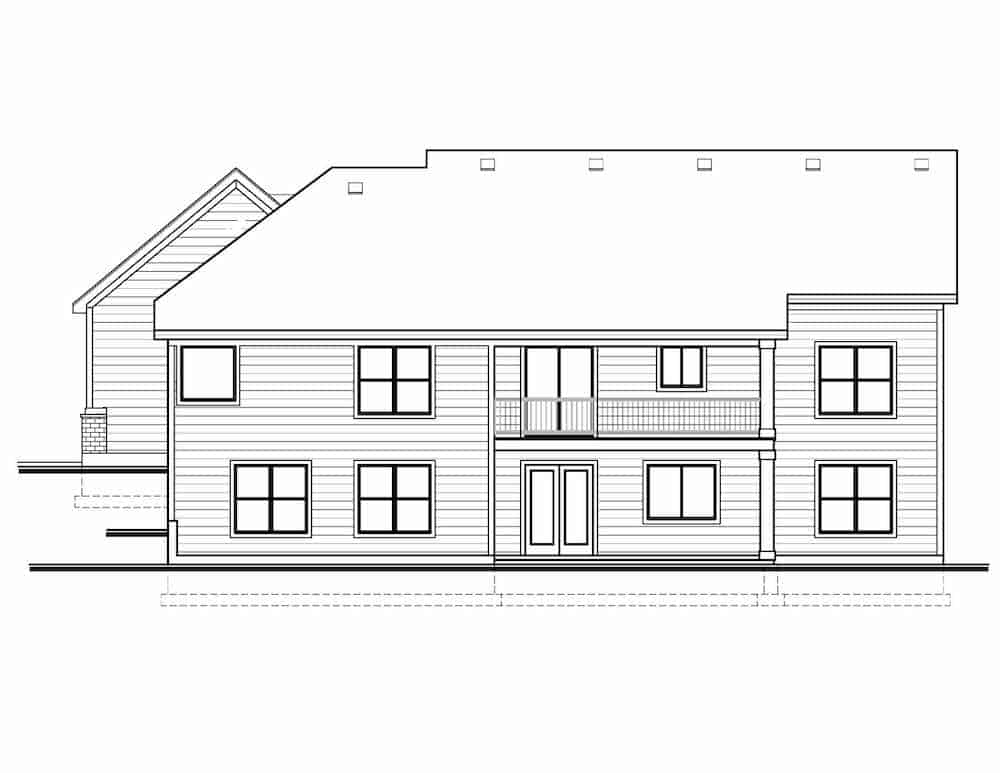

208-1010: Home Plan Rear Elevation

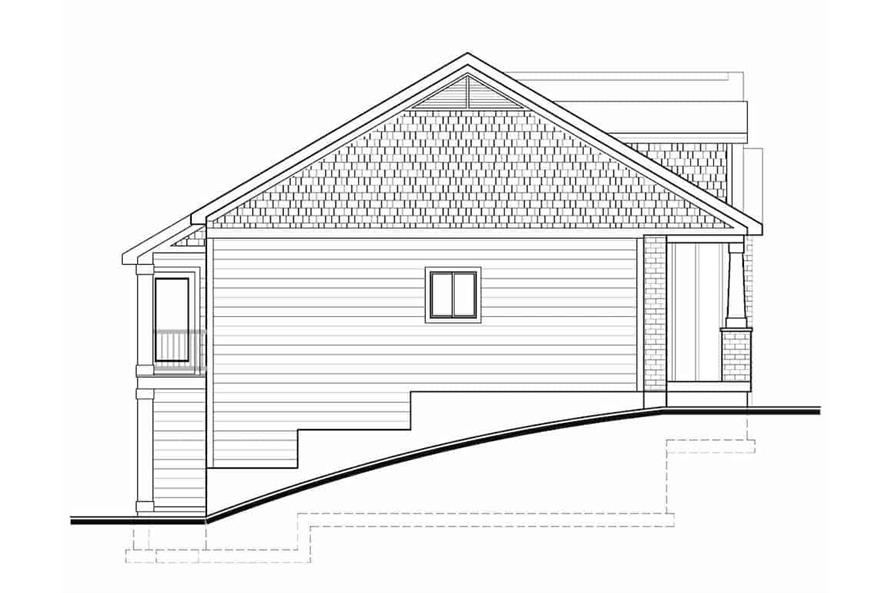

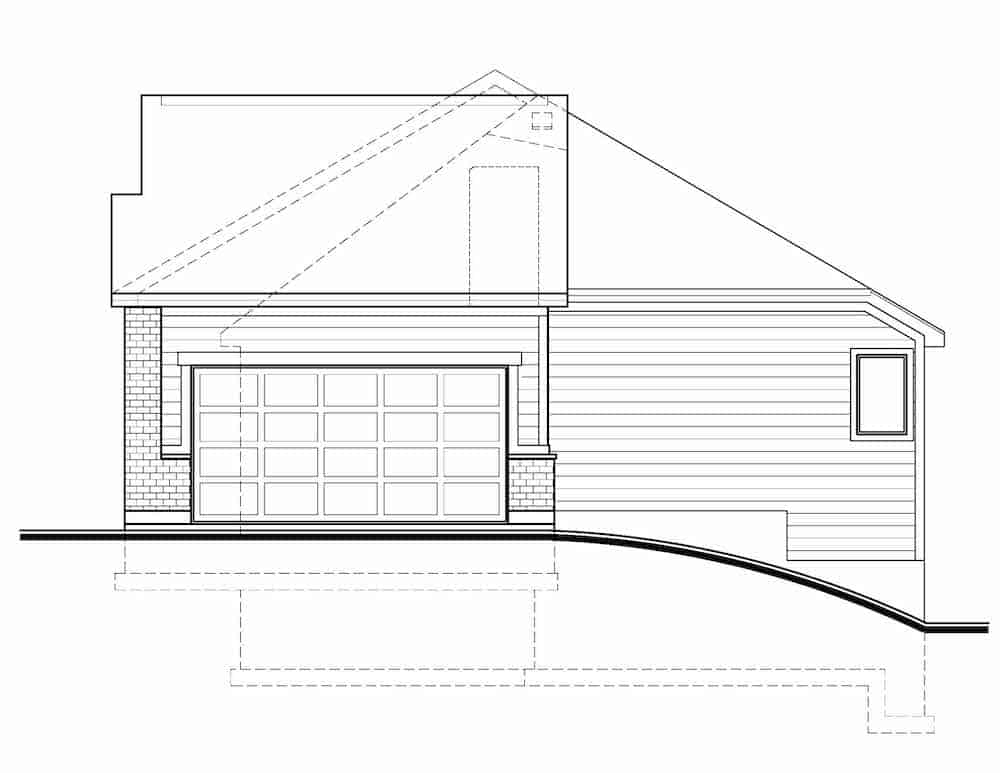

208-1010: Home Plan Left Elevation

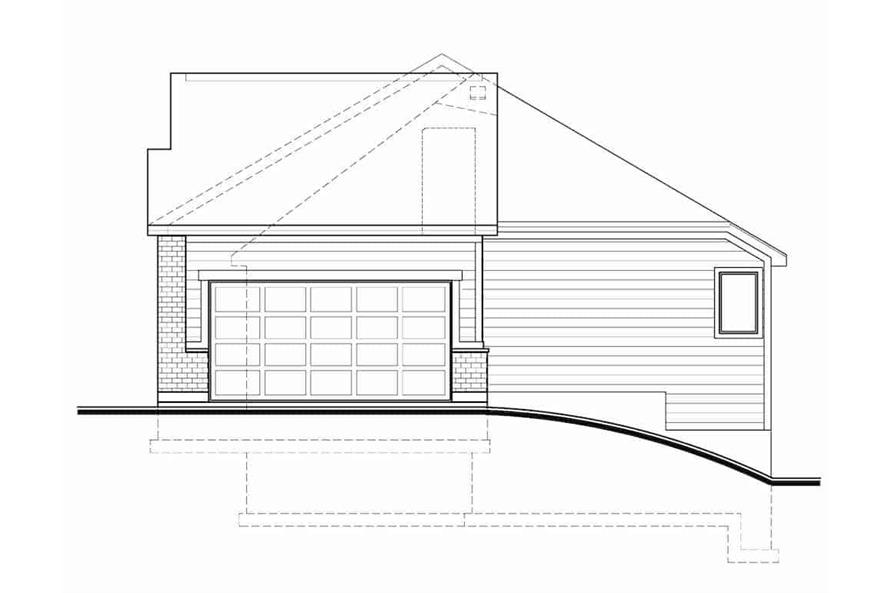

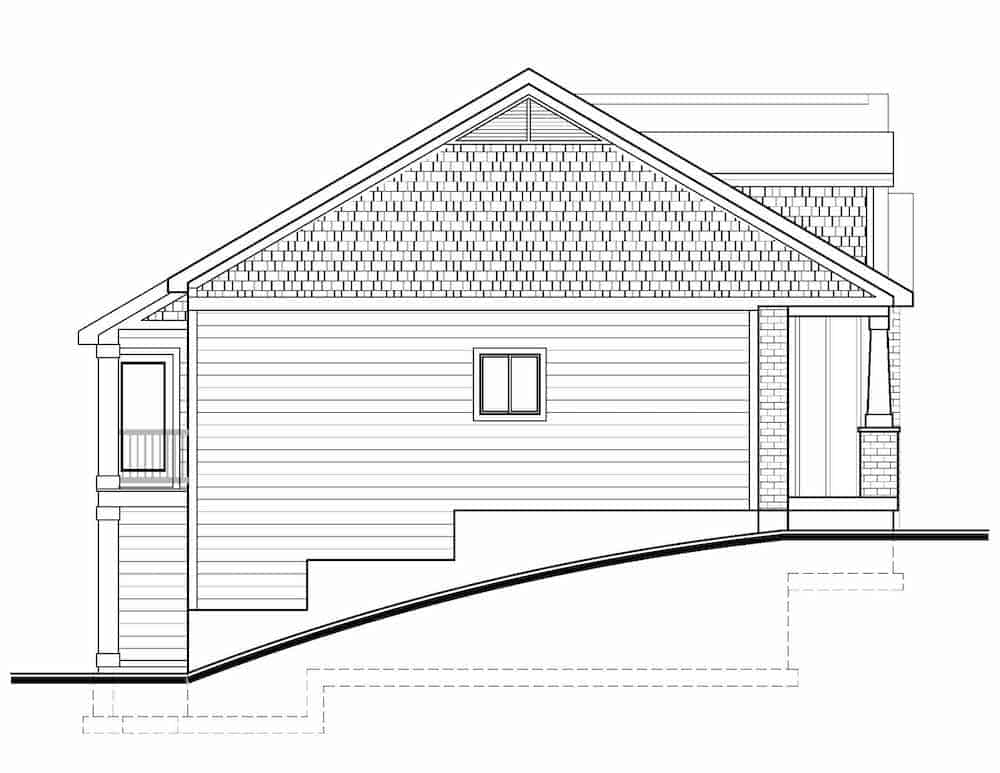

208-1010: Home Plan Right Elevation

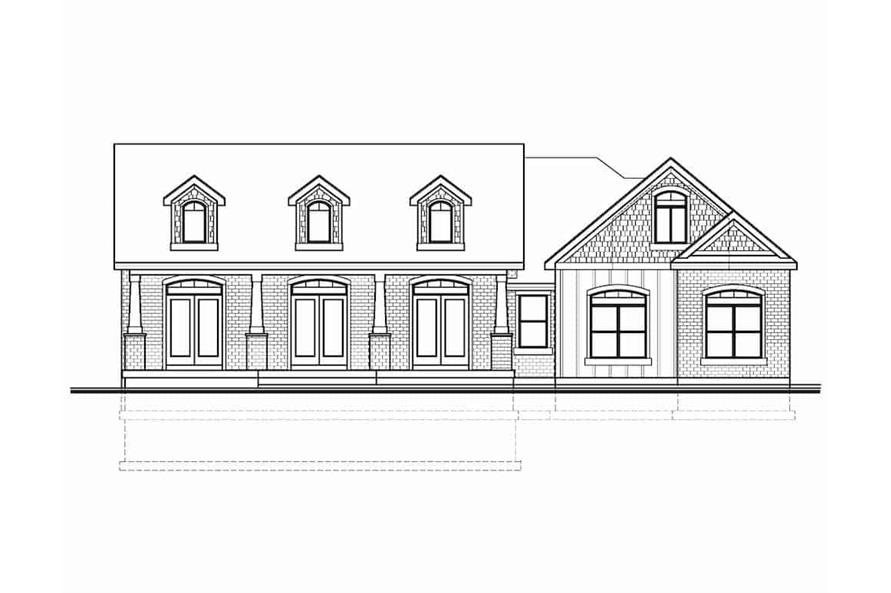

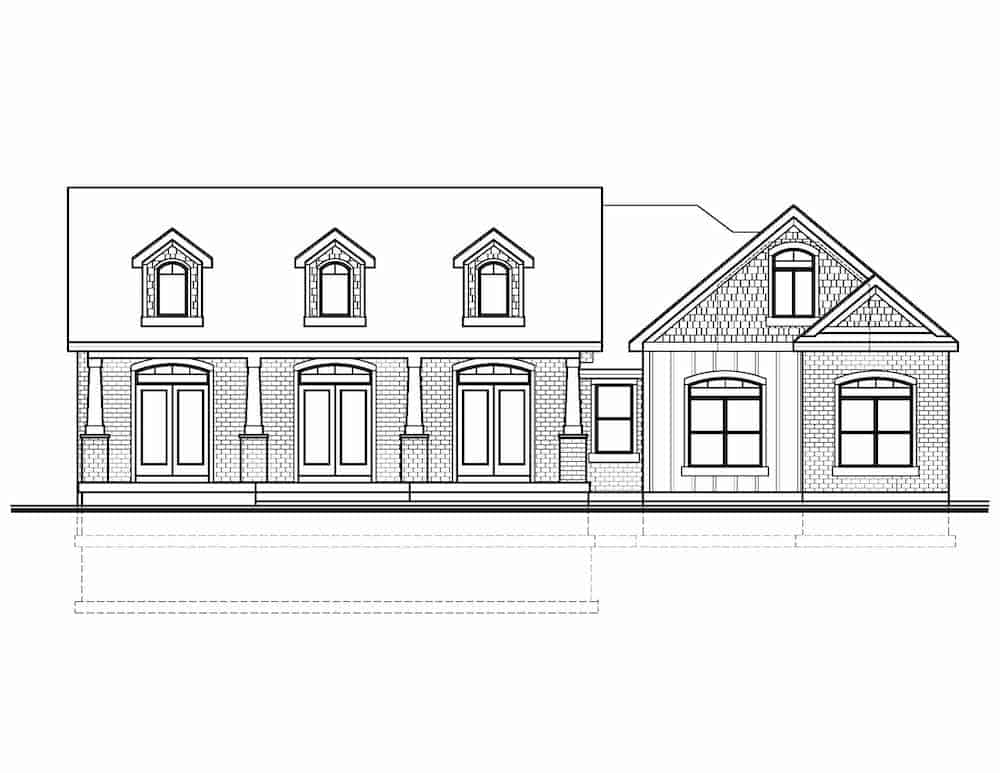

208-1010: Home Plan Front Elevation
3-Bedroom, 1582 Sq Ft Ranch Home - Plan #208-1010 - Main Exterior
208-1010: Home Plan Rear Elevation
208-1010: Home Plan Left Elevation
208-1010: Home Plan Right Elevation
208-1010: Home Plan Front Elevation

About Plan # 208-1010

About Plan # 208-1010

1582 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 63' 0" WIDTH 40' 0" DEPTH 2 GARAGE BAY

As you walk up to this Colonial style Ranch home, you're welcomed by its magnificent full-width covered entry porch with impressive columns in stone bases. You're sure to love the spacious layout of the house. The open floor plan, with large Great Room where the family and guests will enjoy the warmth and comfort that the house provides, makes the space ideal for entertaining and everyday living.   The cozy home's 1-story floor plan has 1582 square feet of heated and cooled living space with 3 bedrooms, plus a 1471-square-foot unfinished walkout basement with 2 additional bedrooms, an additional bathroom, a family room, and a game room.





Each plan set includes the following:

  • COVER SHEET: Artist’s sketch to provide an idea of what the house would look like once built.
  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. Includes roof framing plan.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRAMING PLANS: Main and upper floor framing pages (when applicable - please inquire).

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

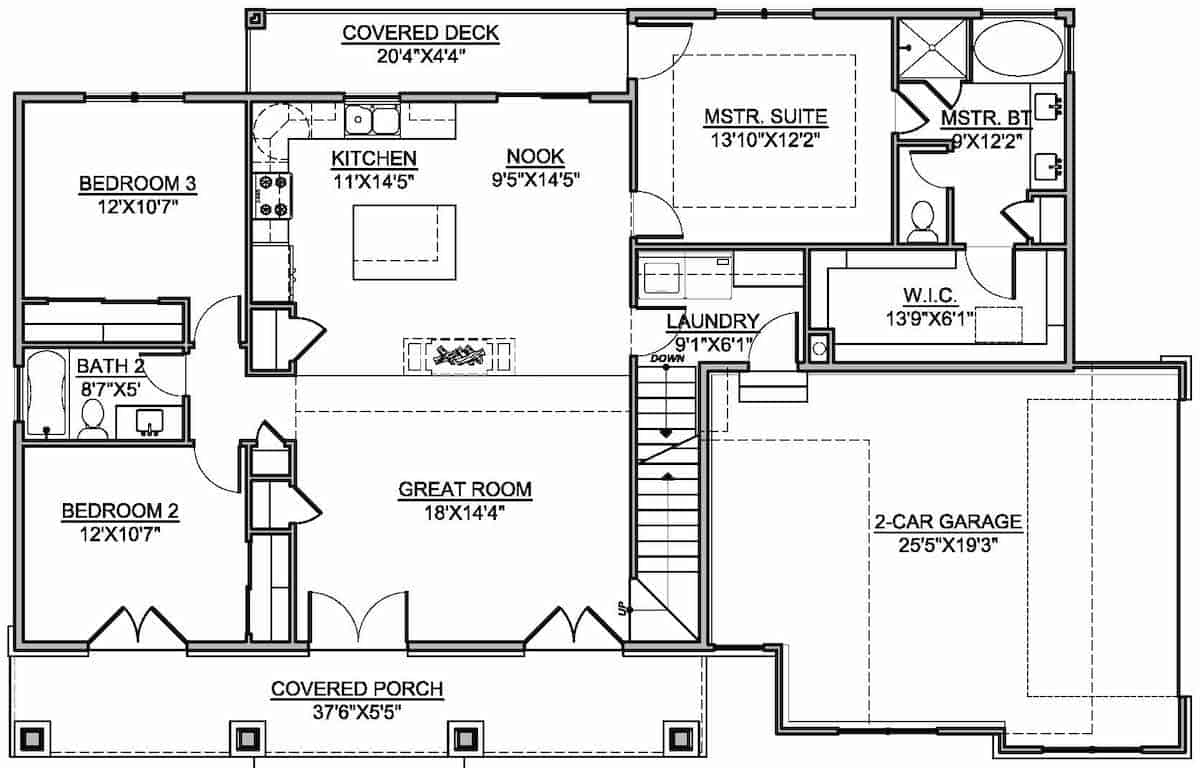

Home Plan: #208-1010 Floor Plan First Story - main level Floor Plan Main Level of European Plan #208-1010

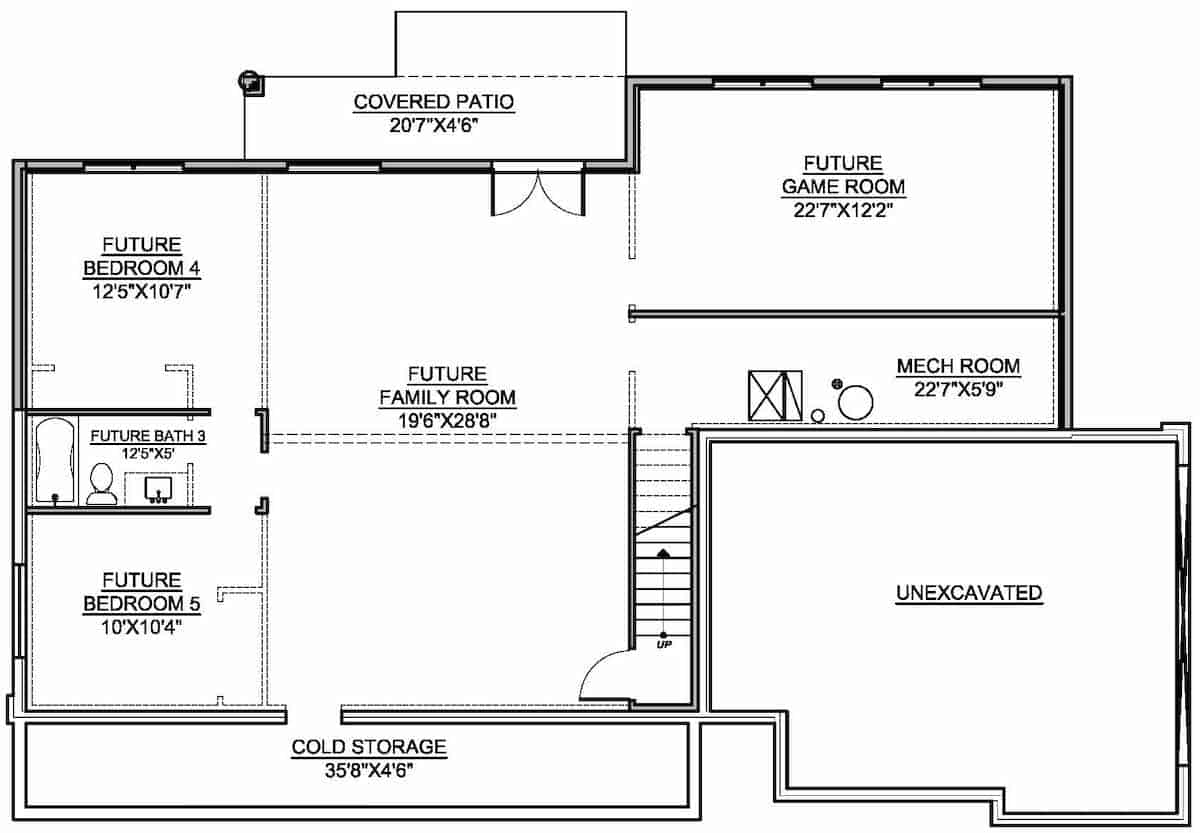

#208-1010 Floor Plan Basement - basement Floor Plan Basement of European Plan #208-1010

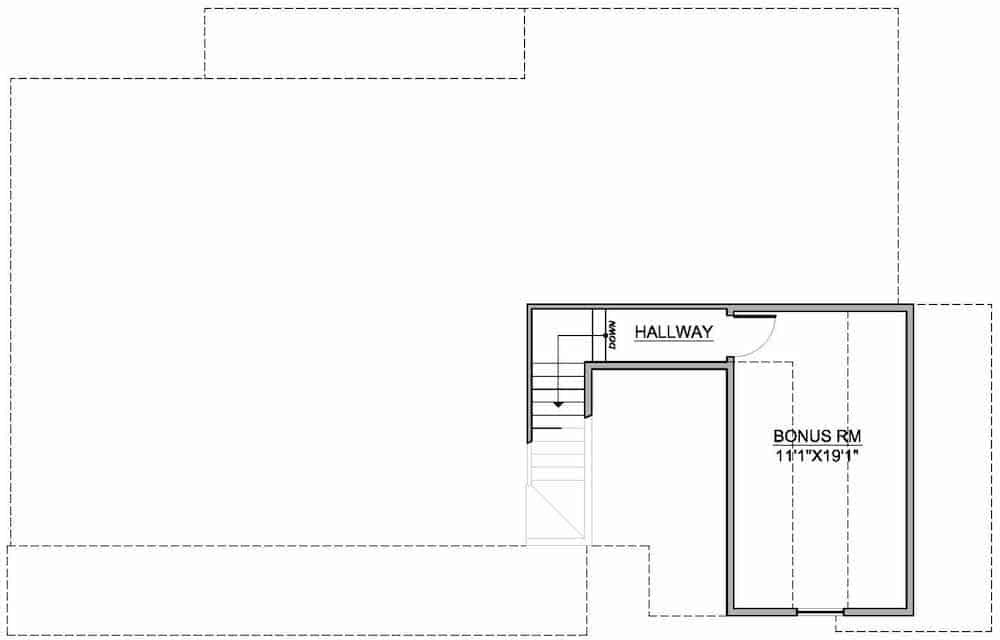

#208-1010 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of European Plan #208-1010
