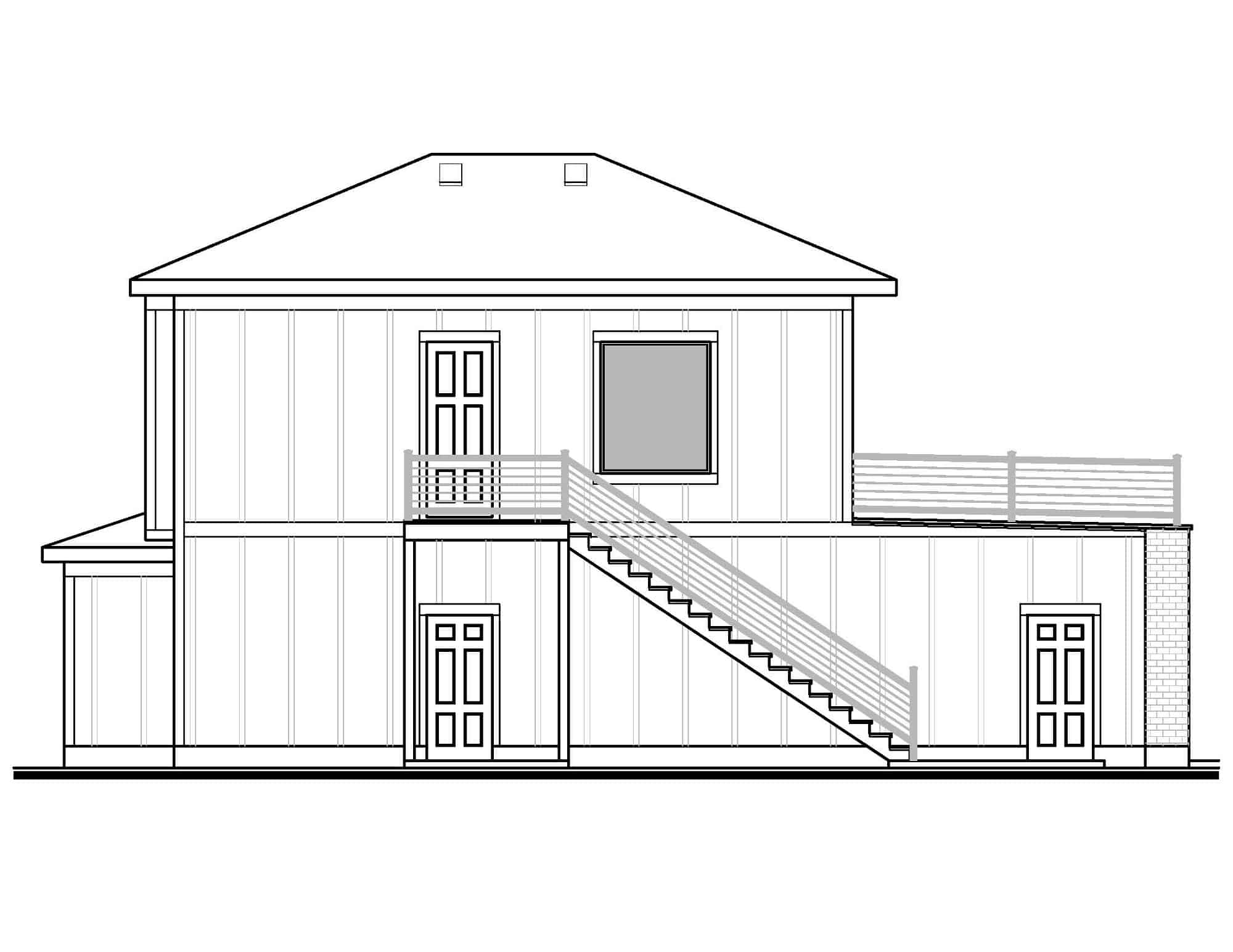

208-1035: Home Plan Rear Elevation

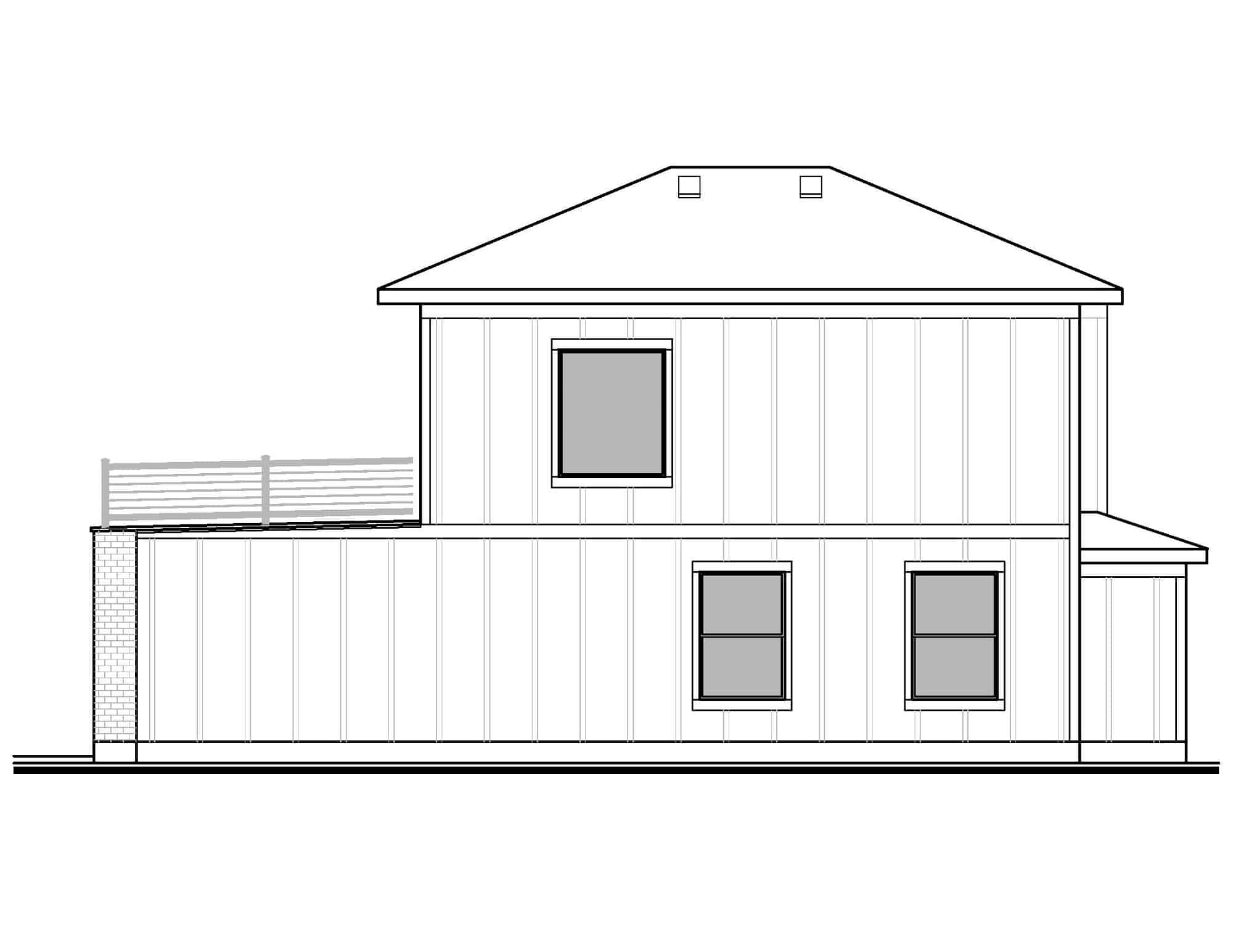

208-1035: Home Plan Left Elevation

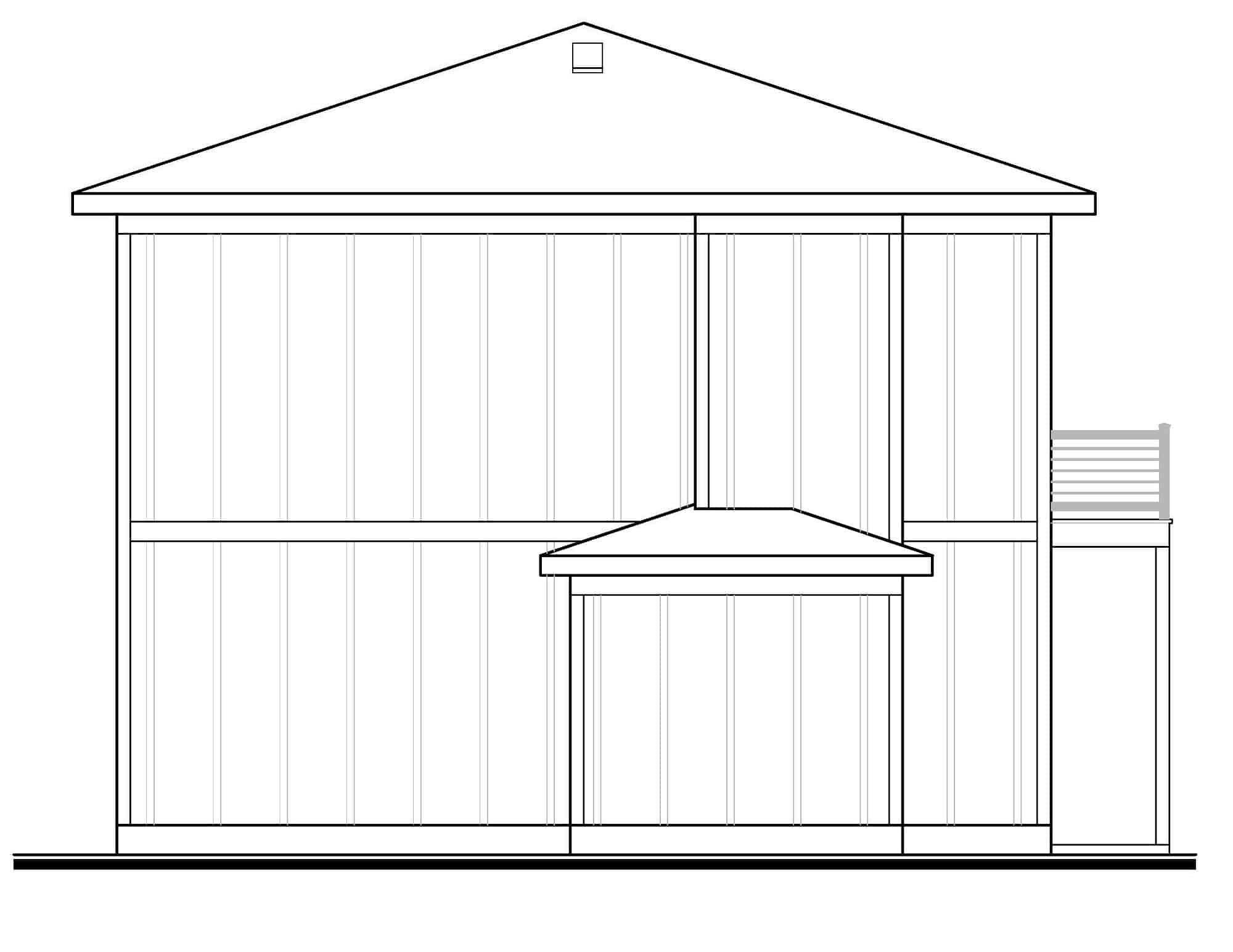

208-1035: Home Plan Right Elevation
2-Car Garage with 975 Sq Ft Studio Home Plan - 208-1035 - Main Exterior
208-1035: Home Plan Rear Elevation
208-1035: Home Plan Left Elevation
208-1035: Home Plan Right Elevation

About Plan # 208-1035

About Plan # 208-1035

975 SQUARE FEET 0 BEDROOMS 1 FULL BATH 0 HALF BATH
2 FLOOR 31' 6" WIDTH 51' 0" DEPTH 2 GARAGE BAY

This garage with a studio apartment boasts a contemporary exterior design, making it the perfect addition to any home. The stairs on the exterior side lead to a spacious space. The stunning 2-story garage with an apartment plan has a studio with a total area of 975 living square feet and a 343-square-foot workshop.

Each plan set includes the following:

  • Cover sheet with Rendering on front
  • General IRC notes page
  • Front & Rear Elevation Page
  • Left / Right elevation page
  • Monolithic foundation plan
  • Main Floor Plan – Wood Frame
  • Roof slope and drainage Plan
  • Roof Framing Plan (Truss)
  • Building Section (wood frame)
  • Main Electrical Plan

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

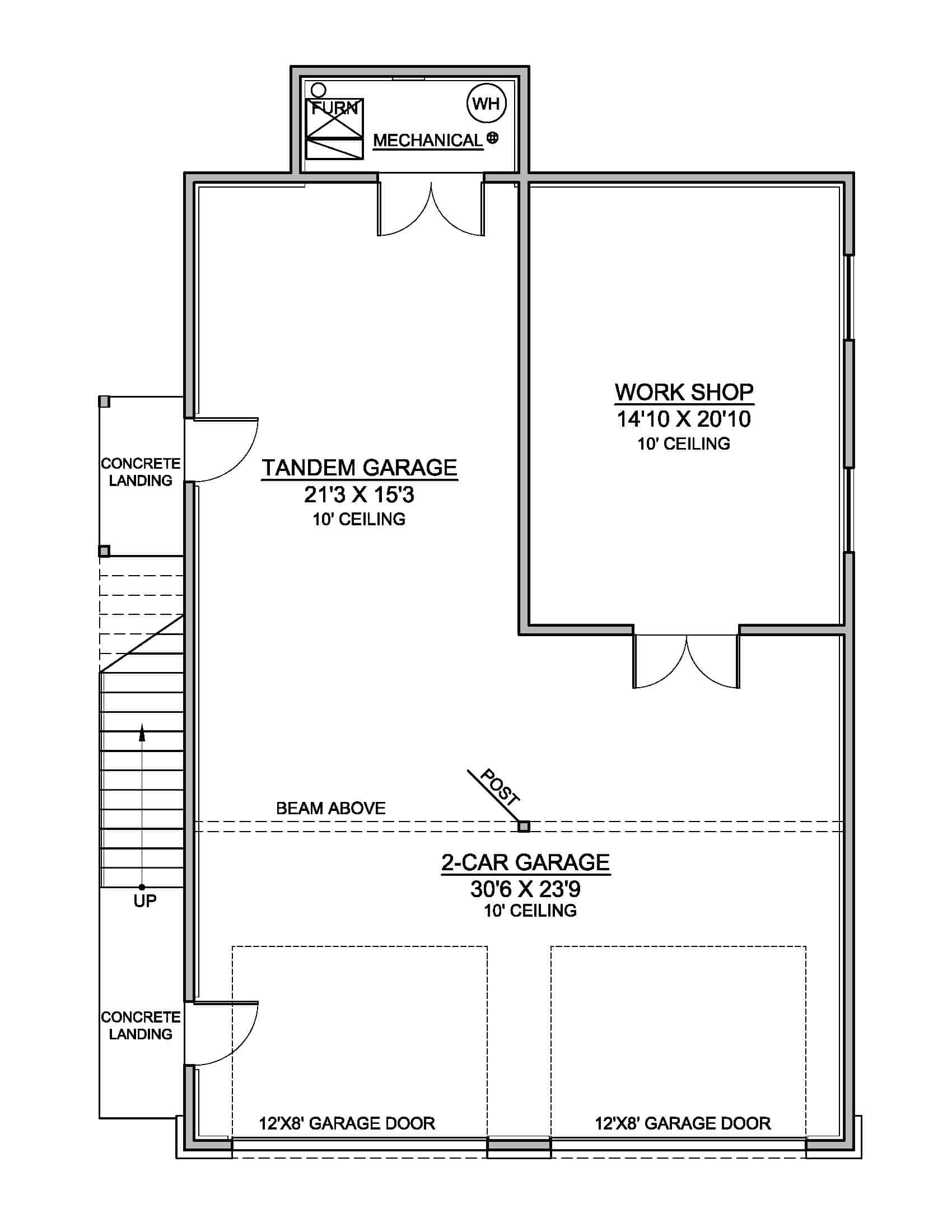

Home Plan: #208-1035 Floor Plan First Story - main level Main Level of Garage w/Apartments Plan #208-1035

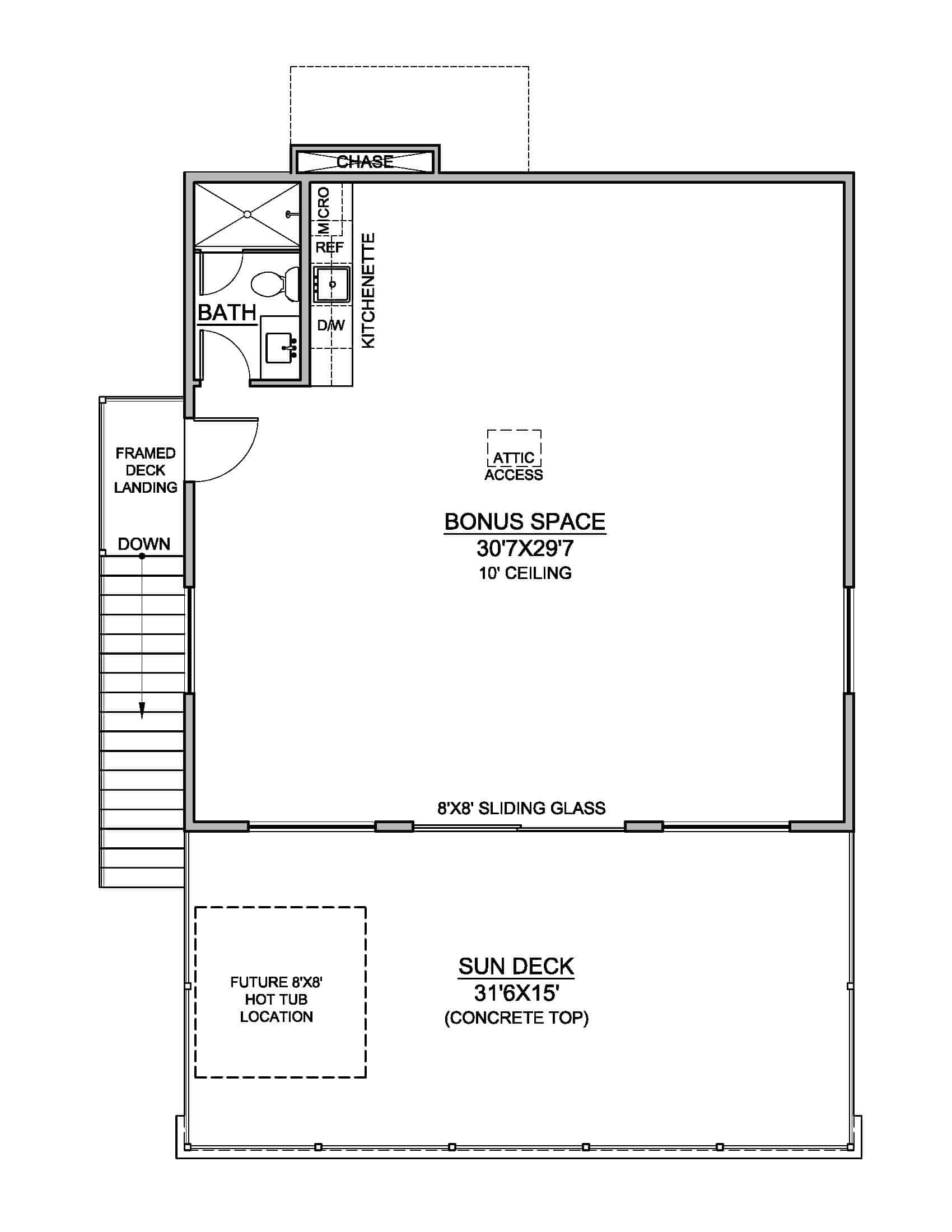

#208-1035 Floor Plan Second Story - upper level Upper Level of Garage w/Apartments Plan #208-1035
