2-Car, Garage

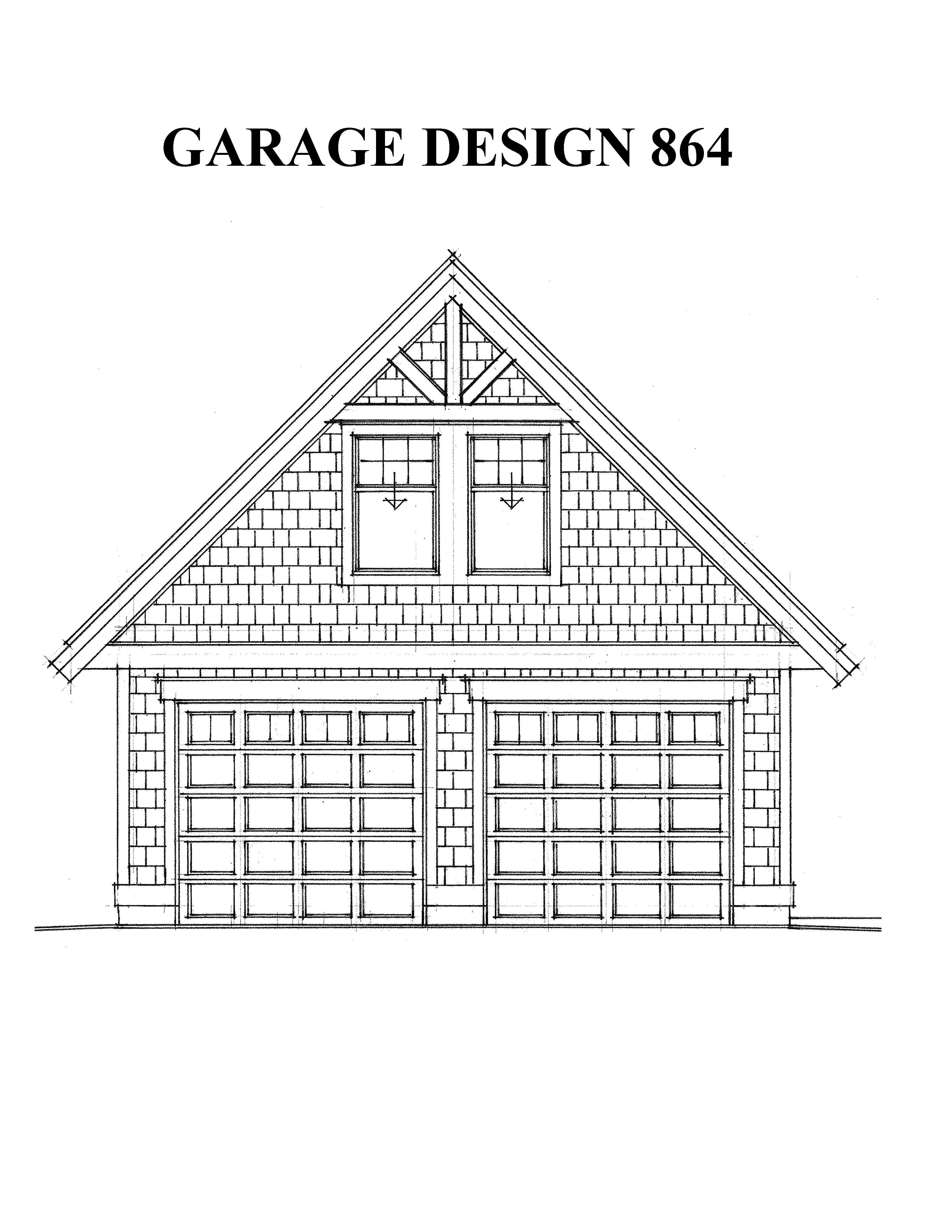

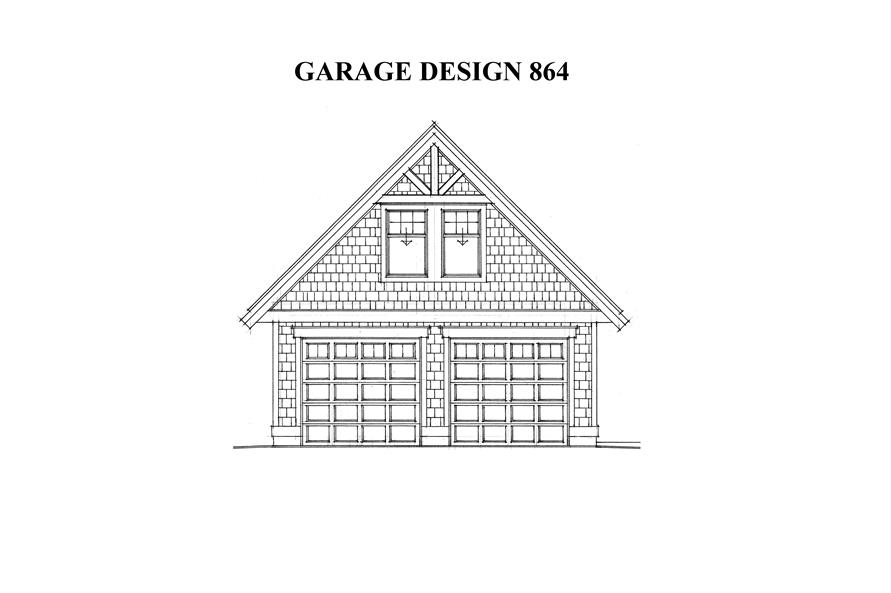

This is a black and white rendering of these Garage Plans.
0-Bedroom, 864 Sq Ft Garage House Plan - 160-1016 - Front Exterior

About Plan # 160-1016

About Plan # 160-1016

864 SQUARE FEET 0 BEDROOMS 1 FULL BATH 0 HALF BATH
2 FLOOR 24' 0" WIDTH 36' 0" DEPTH 2 GARAGE BAY
Rustic shingle wall exterior capped with sleek metal roofing ensures that this detached garage with workshop will blend into and compliment any building site location. The workshop portion of this open floor plan boasts the added convenience of a full bath. Add a partition wall to separate the garage from the workshop for additional comfort or increased security. The unfinished second level with vaulted ceilings is intentionally left undeveloped to allow your personalization of this space. Plans are designed with a concrete slab foundation plan.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

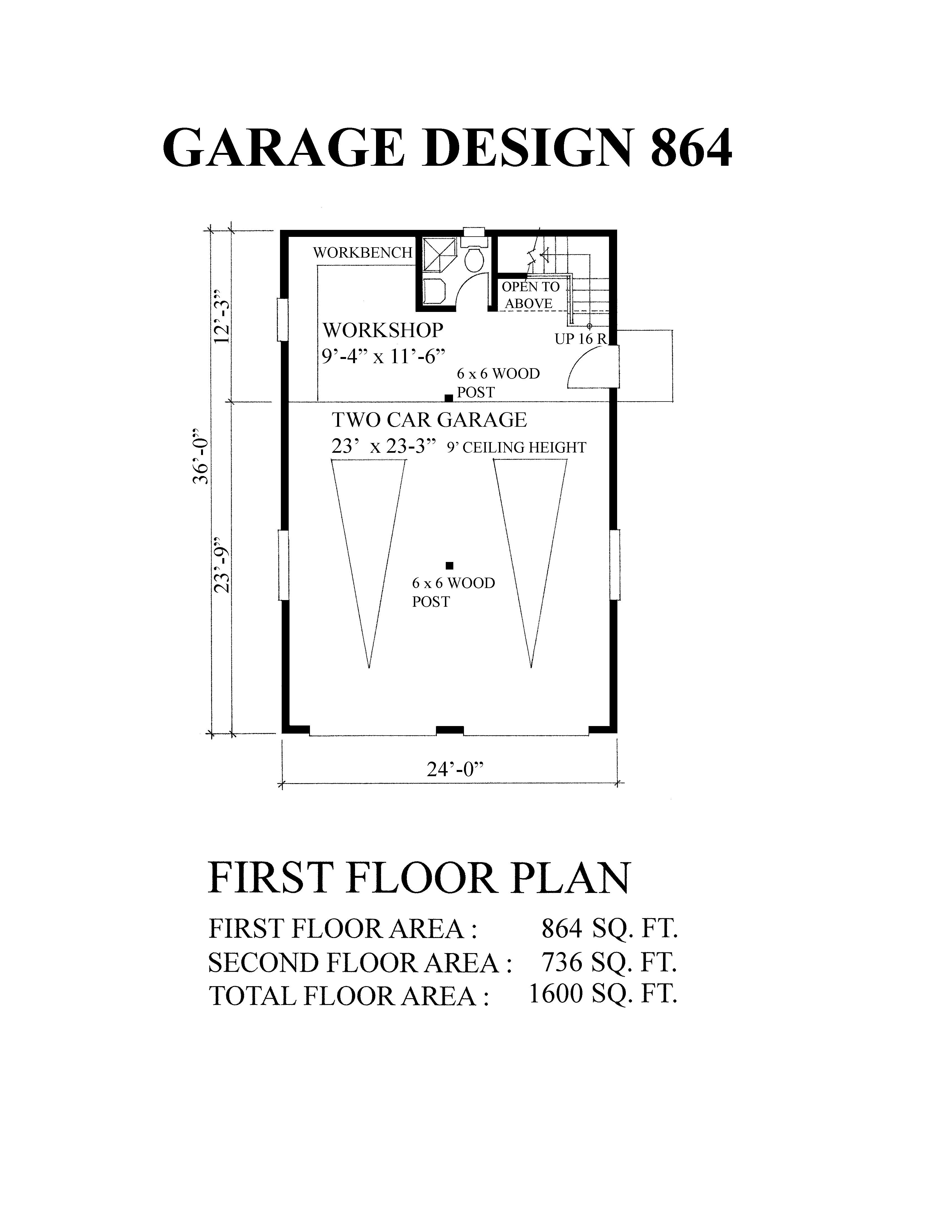

Home Plan: #160-1016 Floor Plan First Story - first story Floor Plan First Story of Garage Plan #160-1016

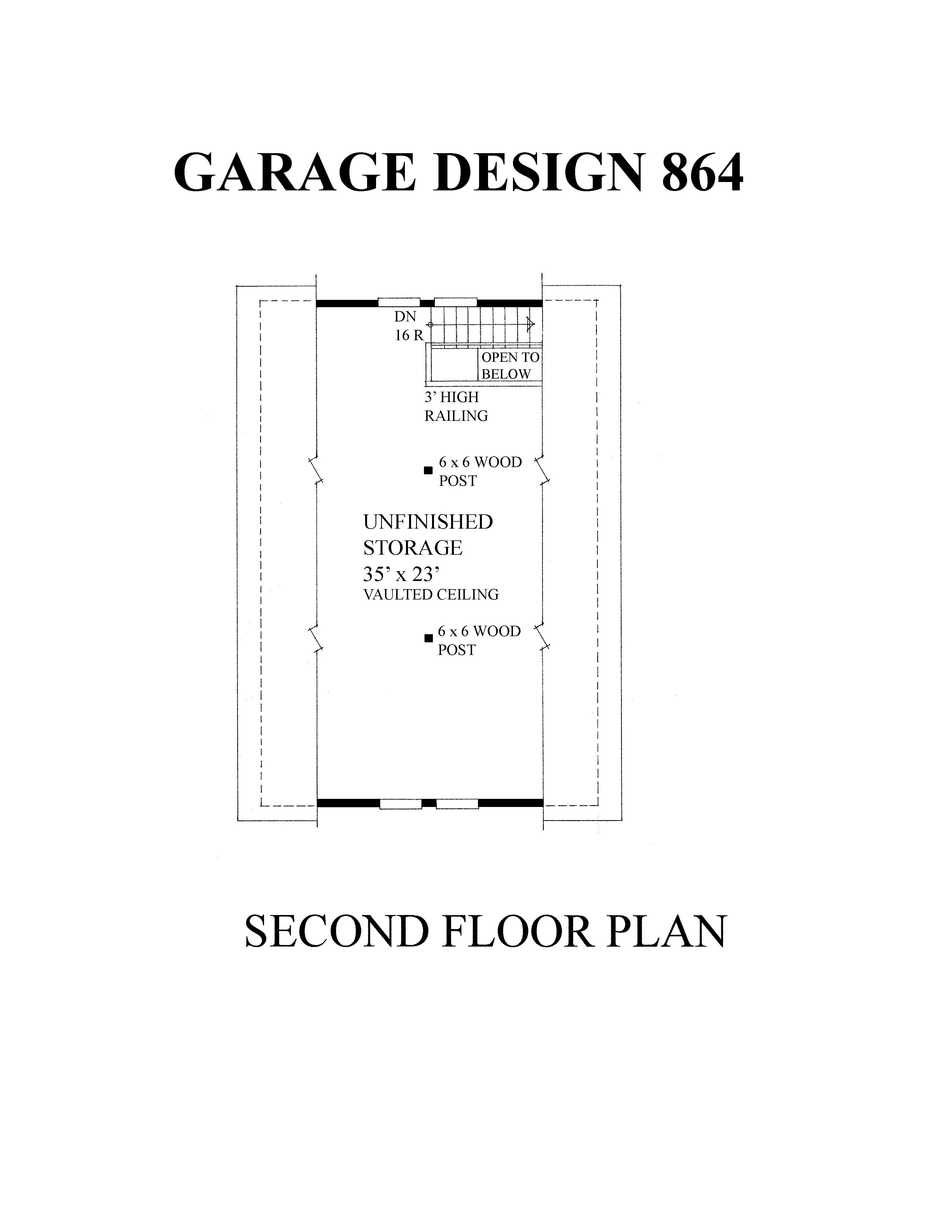

#160-1016 Floor Plan Second Story - second story Floor Plan Second Story of Garage Plan #160-1016
Home Plan: #160-1016 Floor Plan First Story - first story Floor Plan First Story of Garage Plan #160-1016
#160-1016 Floor Plan Second Story - second story Floor Plan Second Story of Garage Plan #160-1016
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 160-1016
Floors:
2
Full Baths:
1

Square Footage

Heated Sq Feet:
864
Main Floor:
864
Upper Floor:
736
Unfinished Sq Ft:

Dimensions

Width:
24' 0"
Depth:
36' 0"
Ridge Height:
24-2' 0"

Architectural Styles

Garage

Exterior Wall Material

Shakes

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

12/12

Special Feature

Storage
Workshop

Garage Type

Attached Garage
Front Entry

Exterior Wall Framing

2x6

Building Lot Type

Narrow Lot Design

Porches and Exterior Features

Covered Front Porch

Additional Notes from Designer

For our Ontario customers - BCIN is available for this designer's plans. Please submit a modification request to receive a free quote.

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
