3-Bedroom, 1791 Sq Ft Modern Plan with Walk-in Pantry

Modern home (ThePlanCollection: Plan #208-1005)

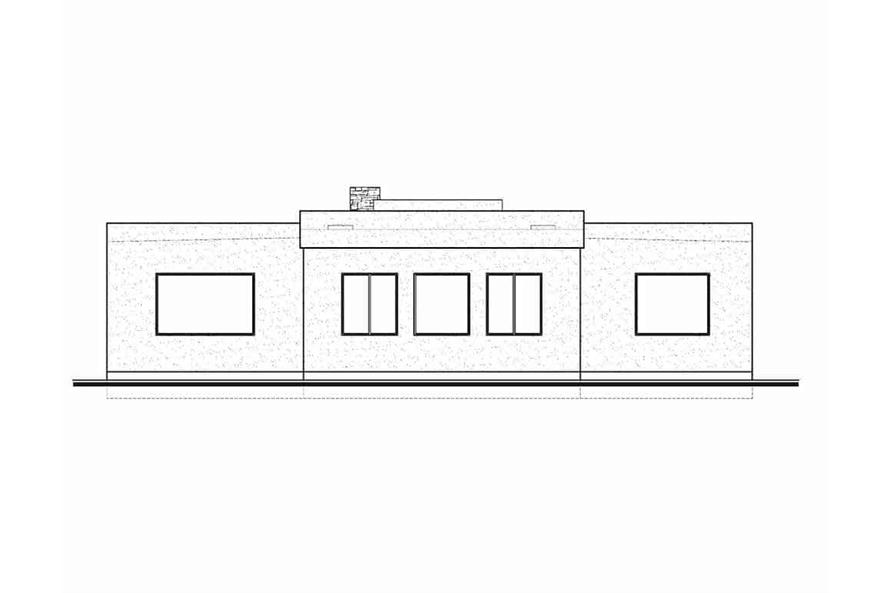

208-1005: Home Plan Rear Elevation

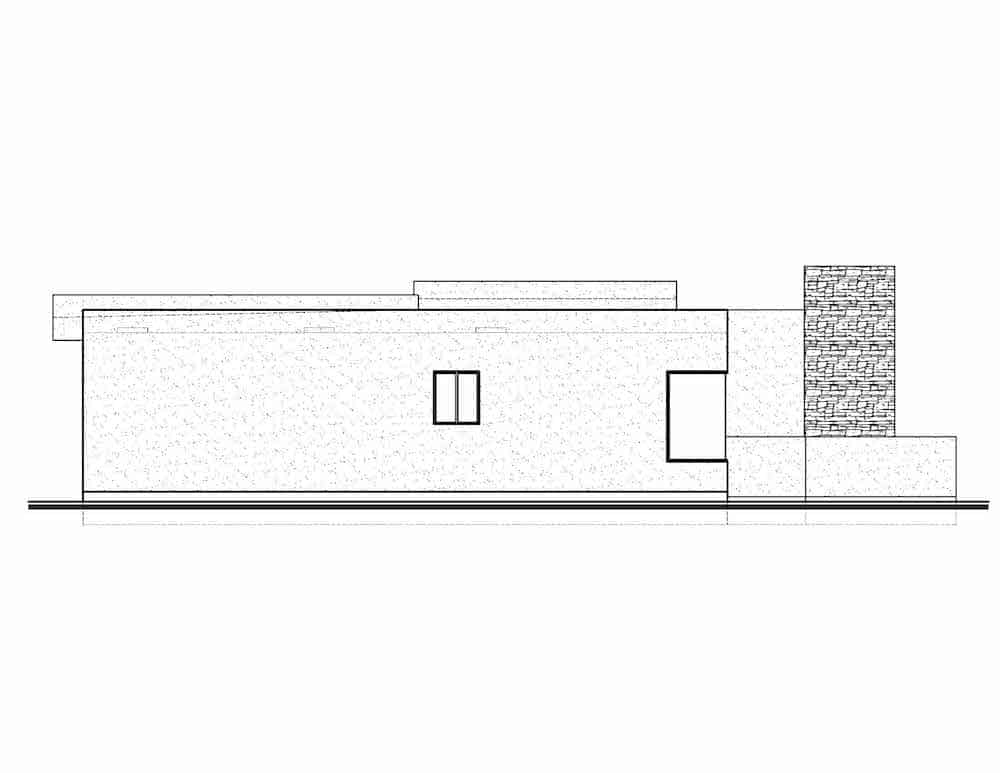

208-1005: Home Plan Left Elevation

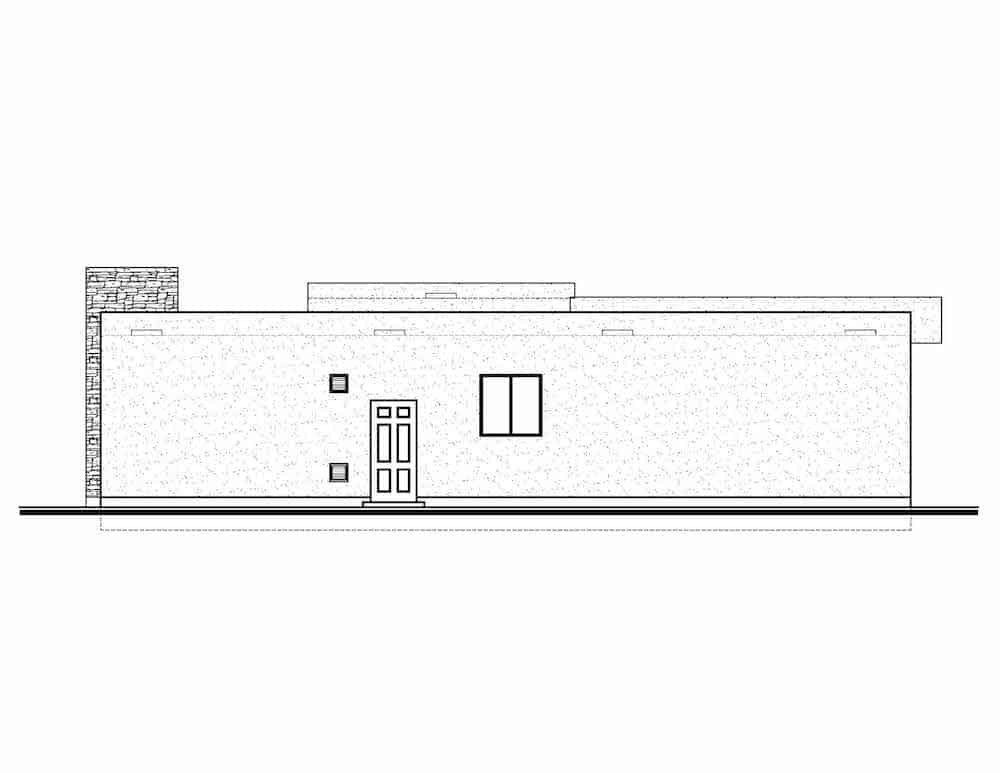

208-1005: Home Plan Right Elevation
3-Bedroom, 1791 Sq Ft Modern House - Plan #208-1005 - Front Exterior
208-1005: Home Plan Rear Elevation
208-1005: Home Plan Left Elevation

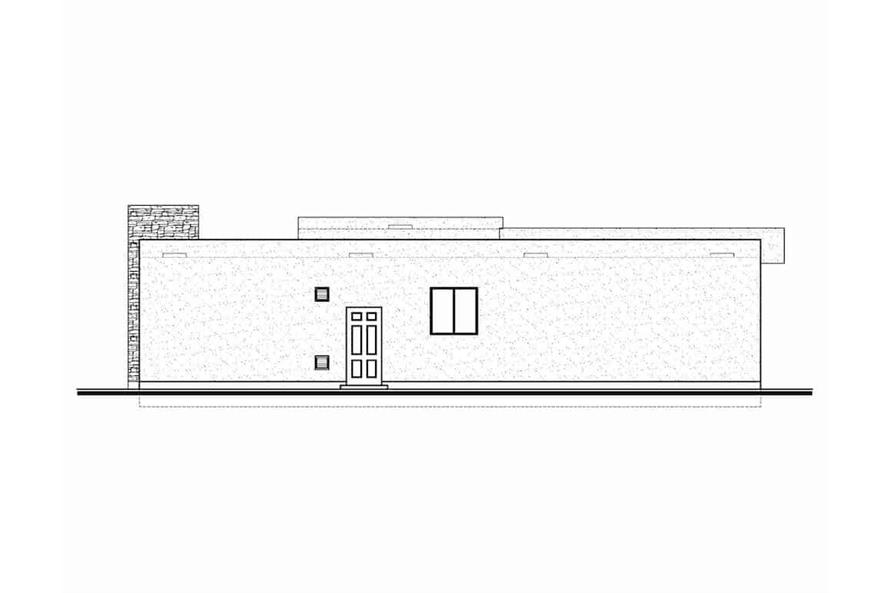

208-1005: Home Plan Right Elevation

About Plan # 208-1005

About Plan # 208-1005

1791 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 52' 6" WIDTH 53' 9" DEPTH 2 GARAGE BAY

This warm and welcoming Modern style house could be the perfect home for your family, with amenities like his and her walk-in closets, walk-in kitchen pantry, corner fireplace in the family room, and rear covered patio. You’ll be amazed by the open and desirable ambiance, enhanced by the numerous large windows that make the Great Room living area sunny and bright. The appealing home's 1-story floor plan has 1791 square feet of heated and cooled living space and includes 3 bedrooms.

Each plan set includes the following:

  • COVER SHEET: Artist’s sketch to provide an idea of what the house would look like once built.
  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. Includes roof framing plan.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRAMING PLANS: Main and upper floor framing pages (when applicable - please inquire).

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

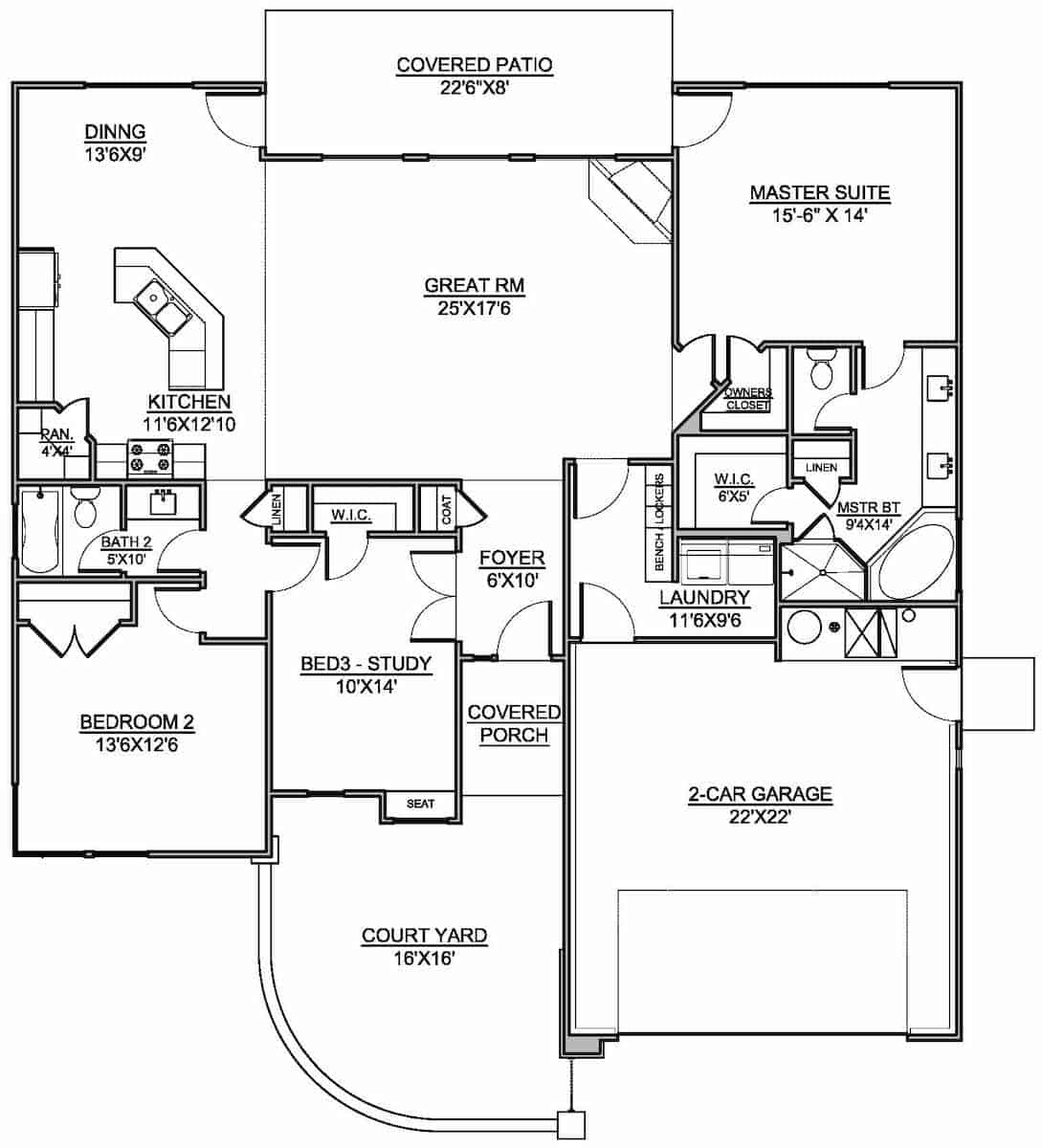

Home Plan: #208-1005 Floor Plan First Story - main level Floor Plan Main Level of Modern Plan #208-1005
Home Plan: #208-1005 Floor Plan First Story - main level Floor Plan Main Level of Modern Plan #208-1005
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 208-1005
Floors:
1
Bedrooms:
3
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
1791
Main Floor:
1791
Unfinished Sq Ft:
Garage :
504
Porch :
222

Dimensions

Width:
52' 6"
Depth:
53' 9"
Ridge Height:
15' 8"

Architectural Styles

California Style
Contemporary
Modern
Small House Plans

Exterior Wall Material

Rock/Stone
Stucco

Roofing Type

Flat

Roofing Material

Tar

Roof Pitch

Other

Ceiling Height

11 Foot Ceiling
9 Foot Ceiling

Special Feature

Family Room
Fireplace
Main Level Laundry
Mud Room
Open Floor Plan
Split Bathroom
Storage

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Courtyard
Covered Front Porch
Covered Rear Patio

Master Suite Features

Main Floor Master
Master Bathroom
Split Master Bedroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE: This designer's 5 sets, 8 sets & CADs all come with a PDF as well.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

Eight printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 8 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. A PDF of the working drawings will also be emailed. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
