2-Bedroom, 1456 Sq Ft Modern Plan with Walk-in Pantry

Color rendering of Modern home (ThePlanCollection: House Plan #116-1011)
116-1011: Home Plan Rear Elevation
116-1011: Home Plan Rendering
2-Bedroom, 1456 Sq Ft Modern Home Plan - 116-1011 - Main Exterior
116-1011: Home Plan Rear Elevation
116-1011: Home Plan Rendering

About Plan # 116-1011

About Plan # 116-1011

1456 SQUARE FEET 2 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 18' 0" WIDTH 67' 0" DEPTH 2 GARAGE BAY

This lovely Modern style home plan with European influences (House Plan #116-1011) has 1456 square feet of living space. The 2 story floor plan includes 2 bedrooms, 2 full bathrooms, and 1 half bath.

The zero lotline plan can fit onto almost any lot. It can be built up against adjacent structures and provides a 2 hour firewall within the left and right walls. On lots that allow multi-family density, the plan can be built in groupings of 2 or more. The basement level is designed to be built into a slope, which makes the house plan adaptable to properties with a grade.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

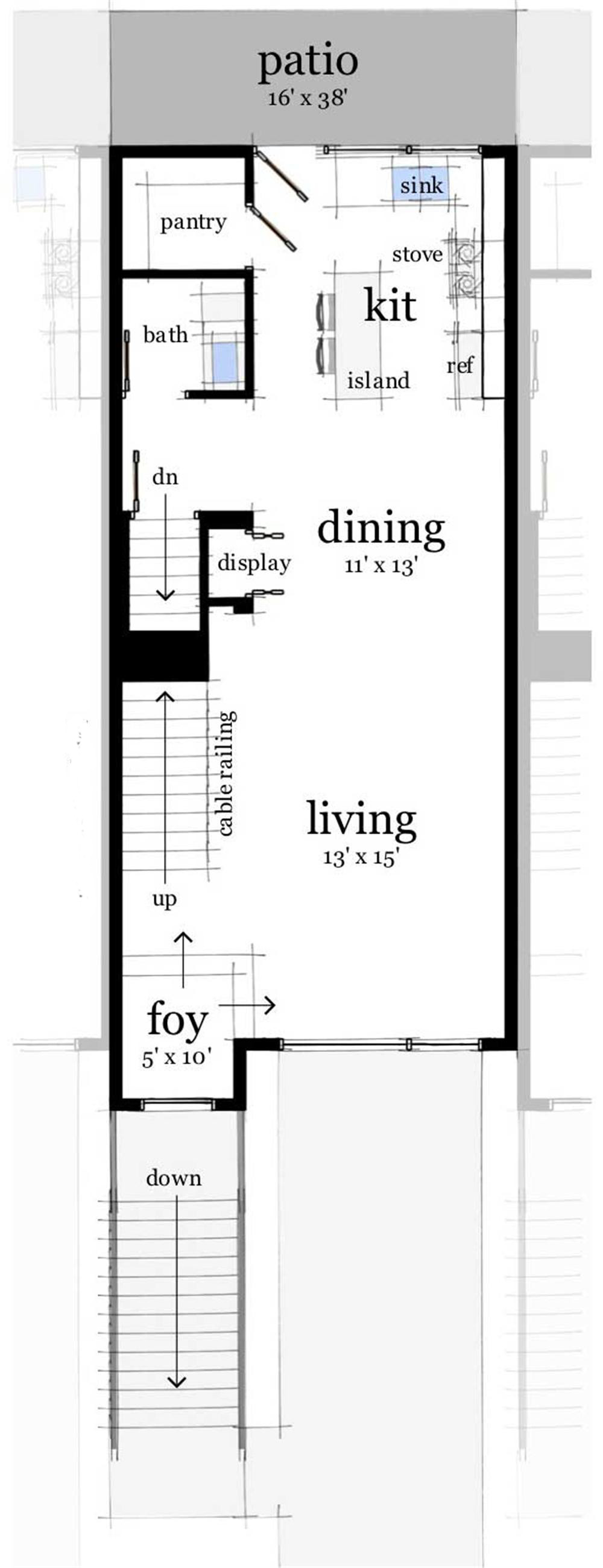

Home Plan: #116-1011 Floor Plan First Story - main level Floor Plan First Story of Modern Plan #116-1011

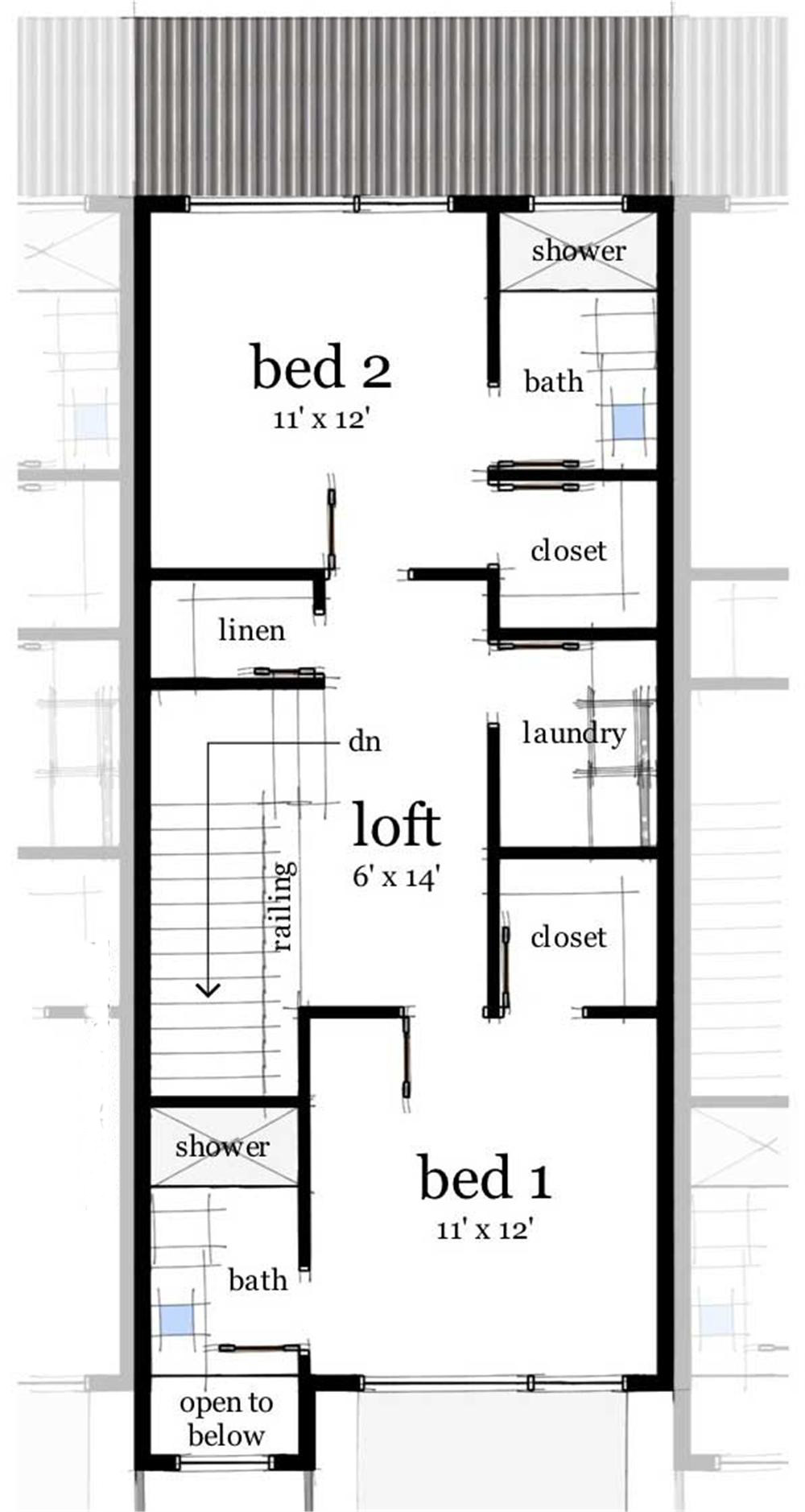

#116-1011 Floor Plan Second Story - upper level Floor Plan Second Story of Modern Plan #116-1011

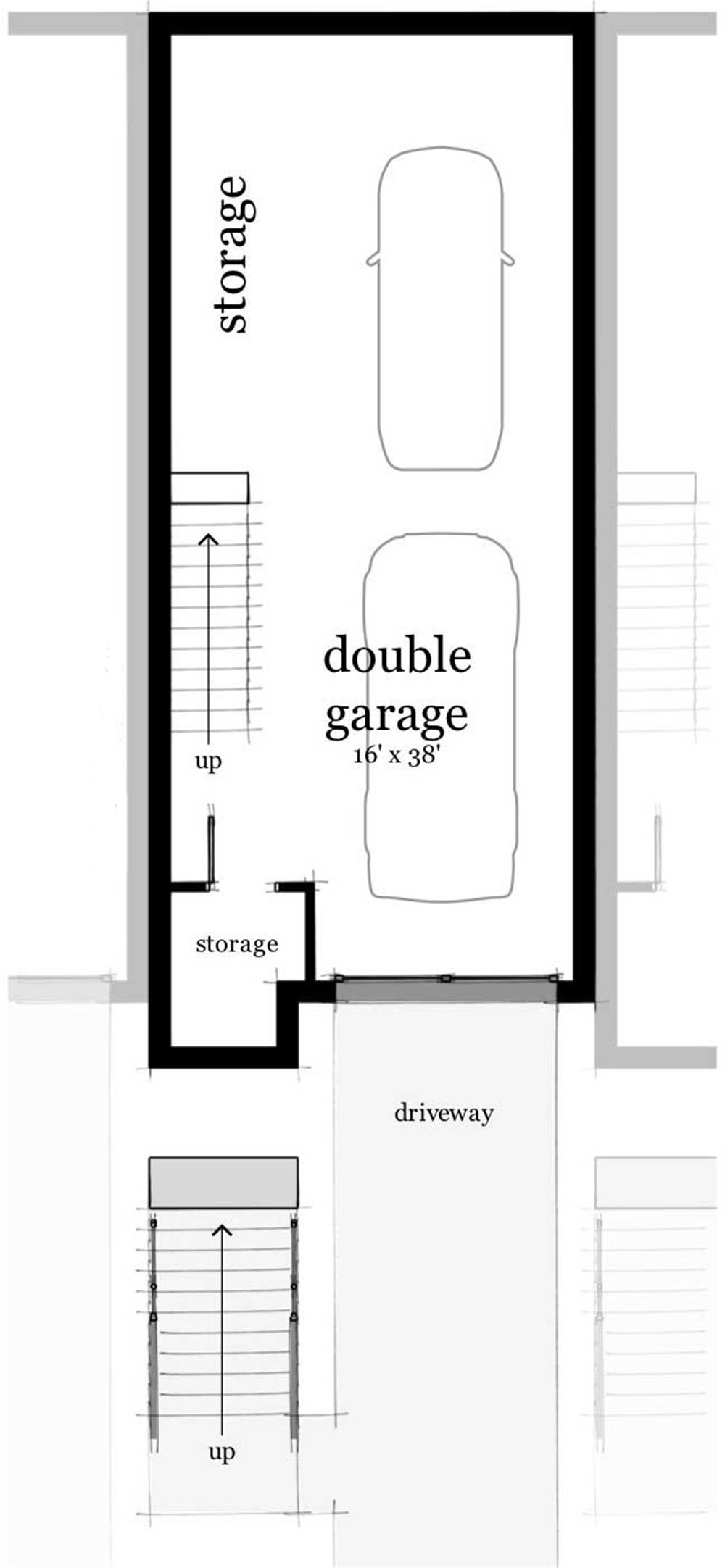

#116-1011 Floor Plan Basement - basement Floor Plan Basement of Modern Plan #116-1011
