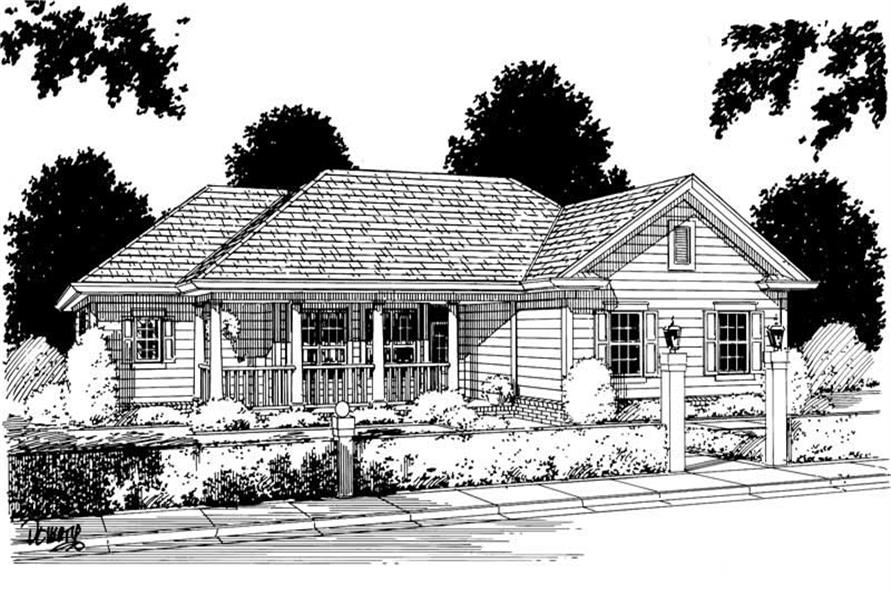

Front elevation of Small House Plans home (ThePlanCollection: House Plan #178-1008)

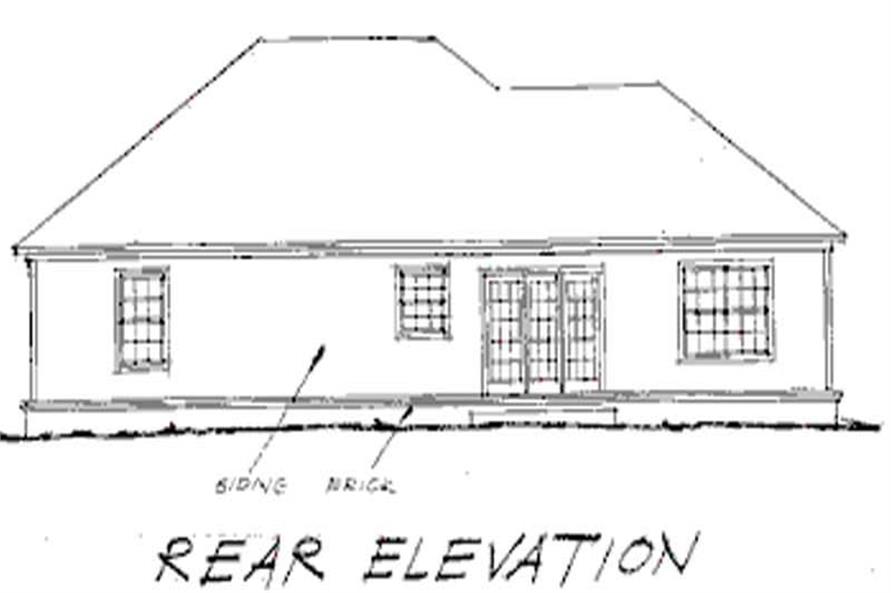

REAR ELEVATION
REAR ELEVATION
3-Bedroom, 1359 Sq Ft Small House Plans - 178-1008 - Main Exterior
REAR ELEVATION
REAR ELEVATION

About Plan # 178-1008

About Plan # 178-1008

1359 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 57' 0" WIDTH 42' 0" DEPTH 2 GARAGE BAY

This irresistible Small House Plans style home with Traditional expressions (House Plan #178-1008) has 1359 living sq ft. The 1-story floor plan includes 3 bedrooms.

Each plan set includes the following:

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan, including electrical, window and door sizes, floor joist span directions, and ceiling type notes (9’ ceiling, vault, etc)
  • Second-floor plan (if applicable) with the same info as shown on first-floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges & valleys.
  • Foundation plan
  • Full building section

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

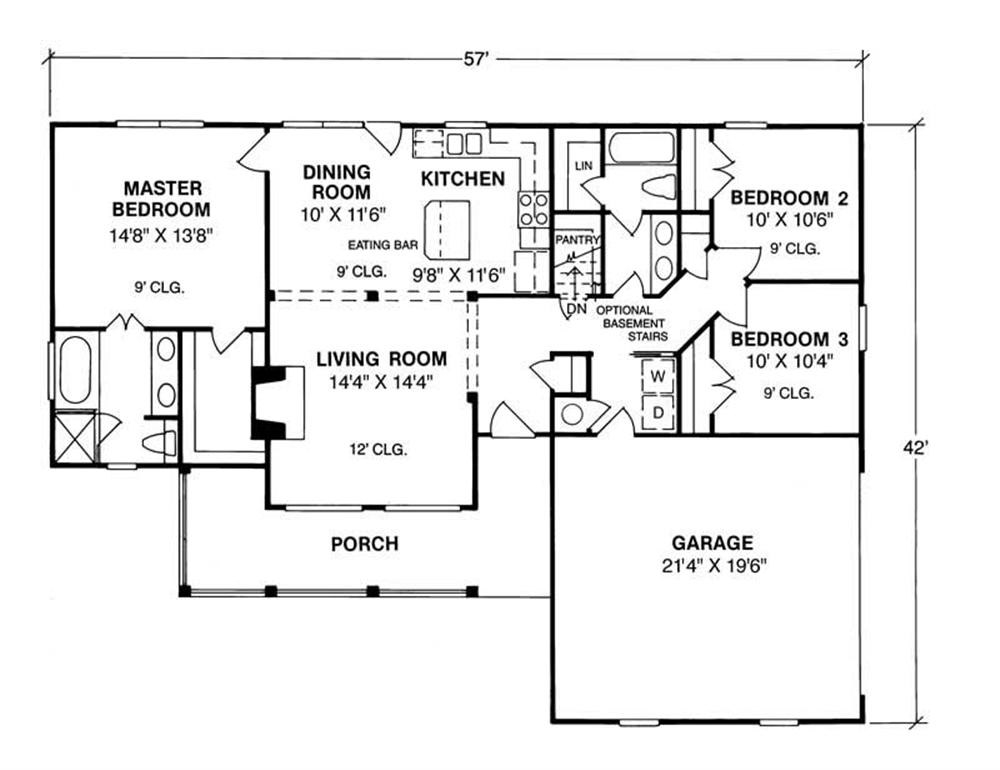

Home Plan: #178-1008 Floor Plan First Story - first story Floor Plan First Story of Small House Plans #178-1008
Home Plan: #178-1008 Floor Plan First Story - first story Floor Plan First Story of Small House Plans #178-1008
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 178-1008
Floors:
1
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1359
Main Floor:
1359
Unfinished Sq Ft:

Dimensions

Width:
57' 0"
Depth:
42' 0"

Architectural Styles

Traditional
Small House Plans

Exterior Wall Material

Vinyl Siding

Roofing Type

Gable

Garage Type

Attached Garage

Additional Notes from Designer

Side Load Garage: 2 stalls Garage Sq. Ft.: 440 Kitchen Size: 9'-8" x 11'-6" Kitchen Island Size: 4'-0" x 3'-0" Pantry Type: Walk-In Laundry Size: 5'-8" x 6'-0" Laundry Location: Main Level Master Bedroom Size: 14'-8" x 13'-8" Ceiling Height: 9'-0" Closet Size: 6'-0" x 9'-6" Master Bath Size: 8'-8" x 9'-6" Living Room - 14'-4" x 14'-4" Ceiling Height: 12'-0" Formal Dining Room - 10'-0" x 11'-6" Ceiling Height: 9'-0" Entry Size - 5'-0" x 10'-2"


Please Note: This plan comes standard with a Construction License that gives the original purchaser the right to build the plan as many times as you like. PLEASE NOTE!! When purchasing a CAD file, the designer will also send the PDF. Duplex and Triplex Plans are Slab & 2x4 ONLY!! If you need to change either, please send in a modification request.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
