5-Bedroom, 5412 Sq Ft Coastal Plan with Kitchen Island

Main image for house plan # 9781

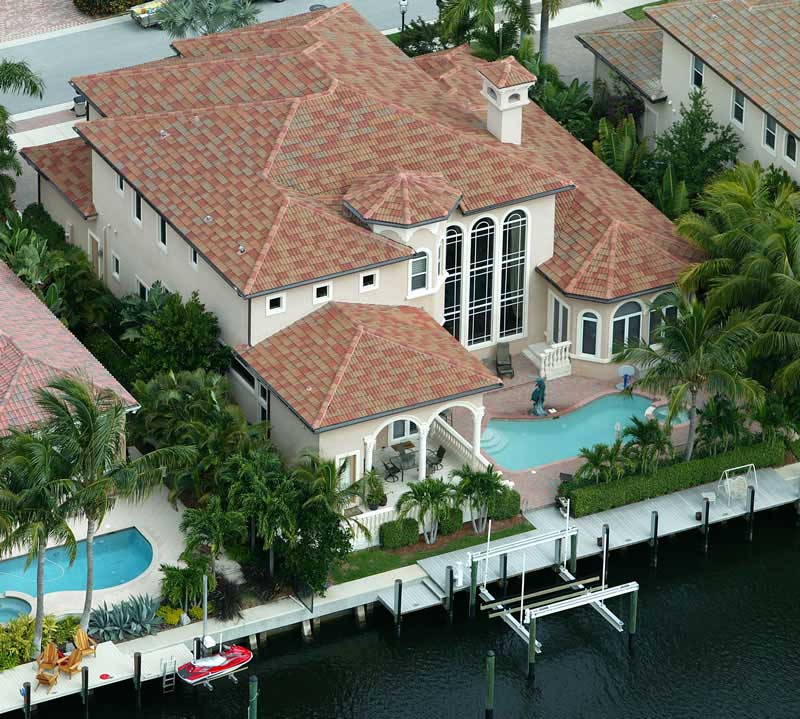

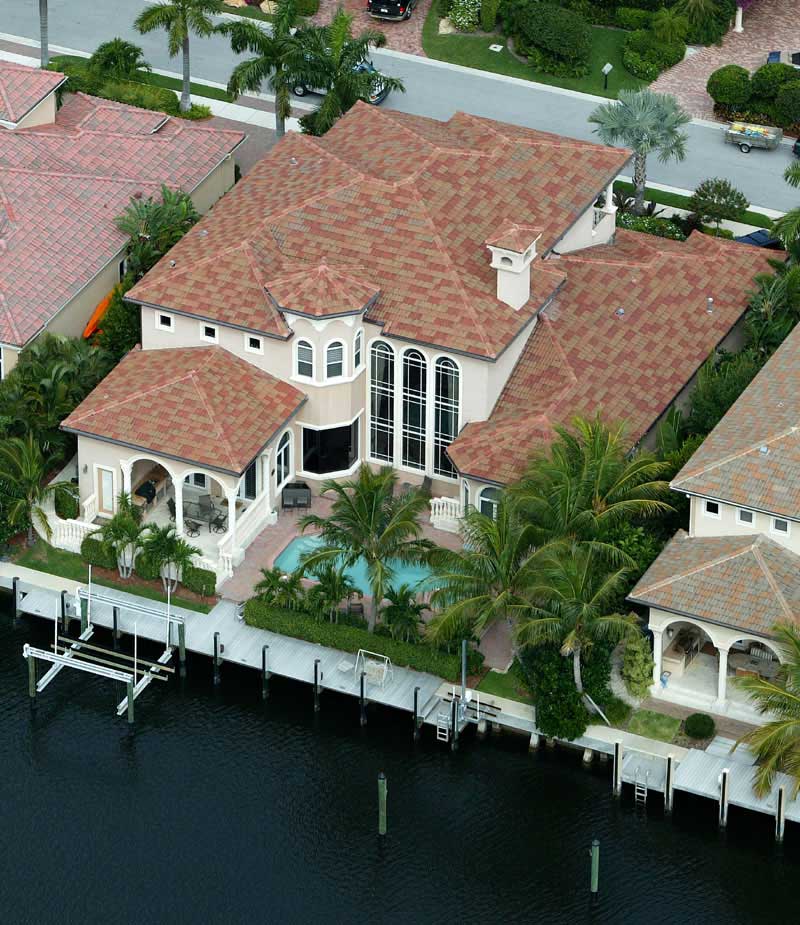

Aerial View #1

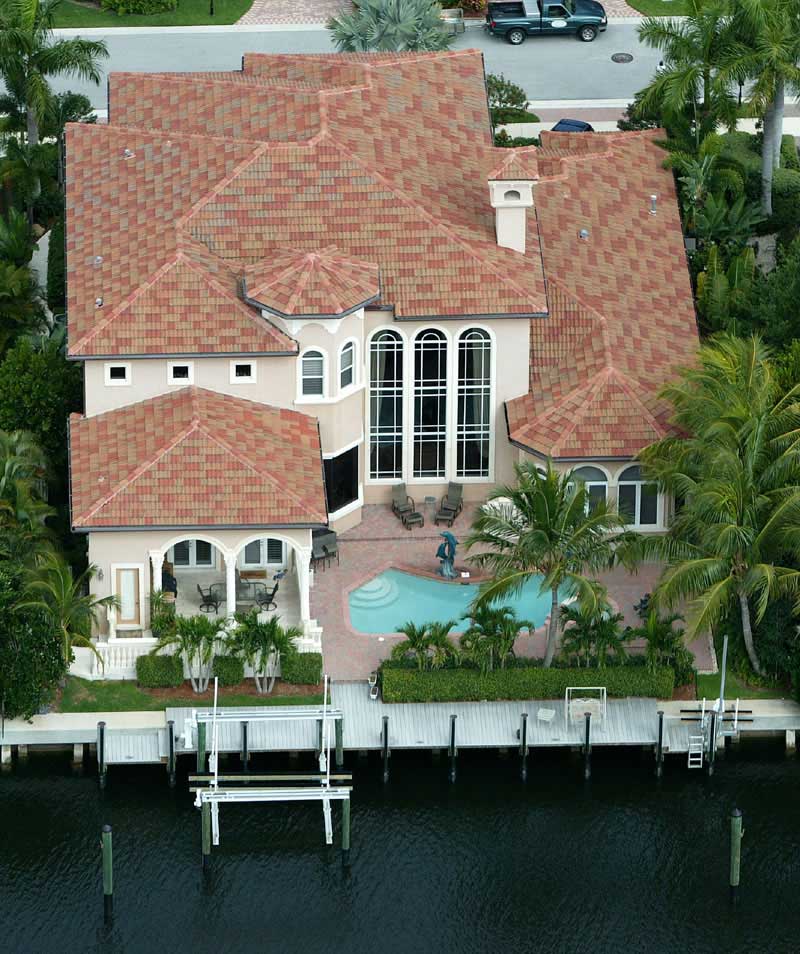

Aerial View #2

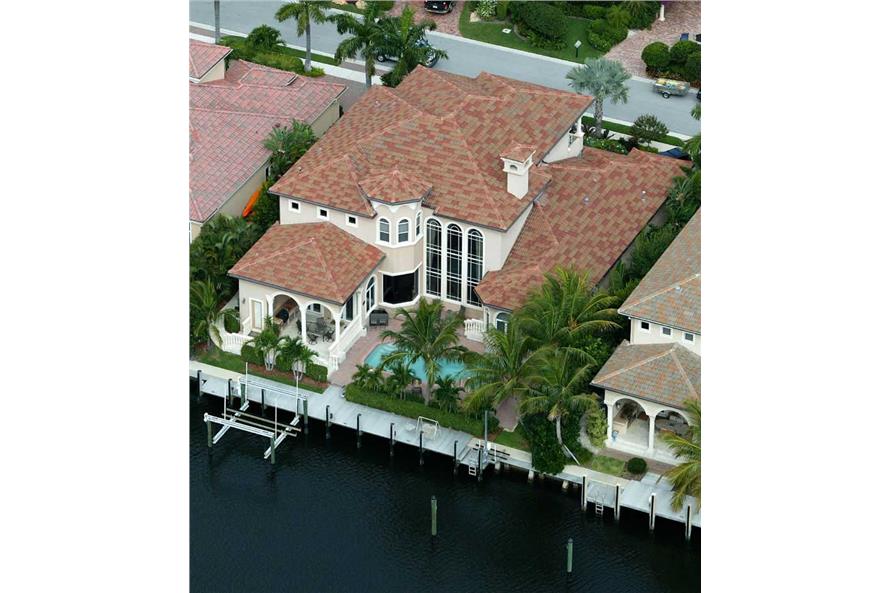

Aerial View #3

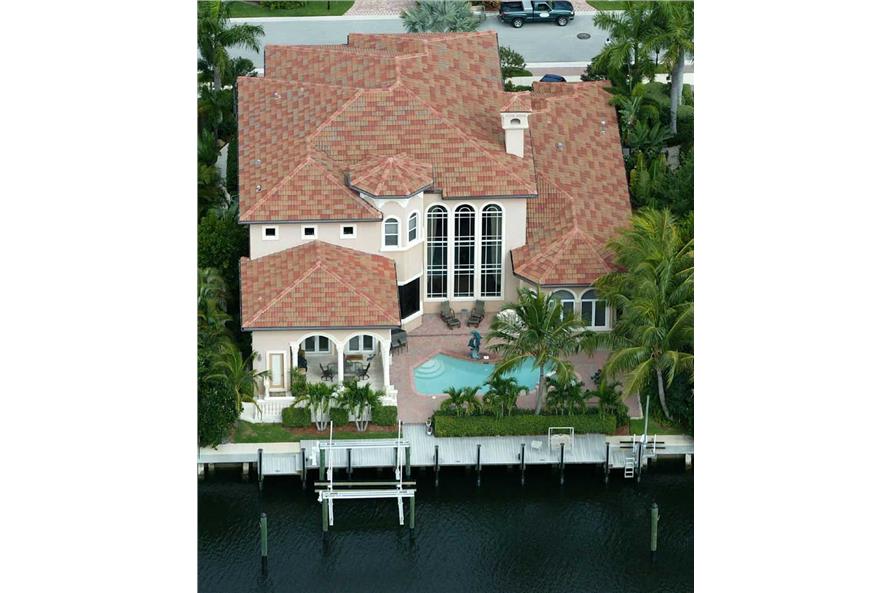

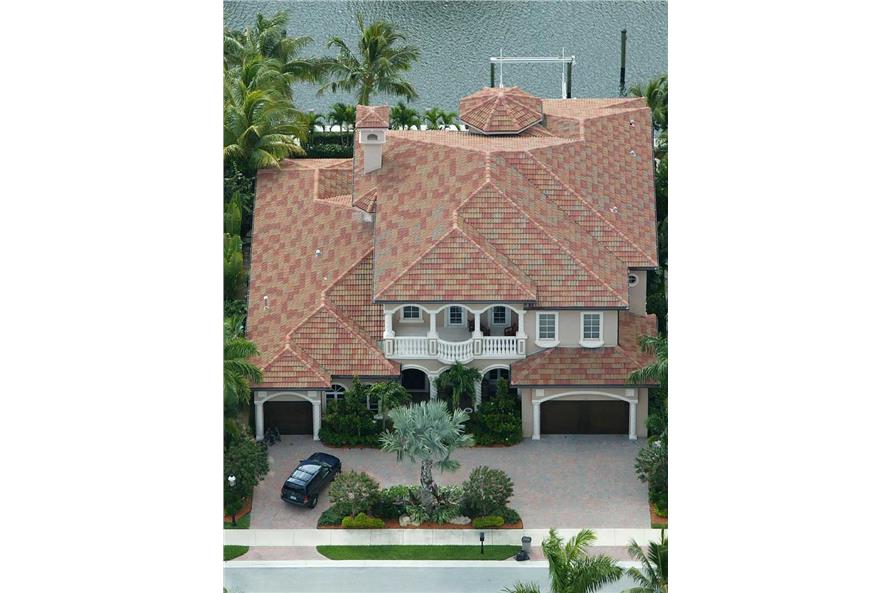

Aerial View #4
5-Bedroom, 5412 Sq Ft Coastal Home Plan - 107-1210 - Main Exterior
Aerial View #1
Aerial View #2
Aerial View #3
Aerial View #4

About Plan # 107-1210

About Plan # 107-1210

5412 SQUARE FEET 5 BEDROOMS 5 FULL BATH 2 HALF BATH
2 FLOOR 70' 0" WIDTH 88' 10" DEPTH 3 GARAGE BAY
This house plan offers the following: -Concrete block exterior construction -Covered Front Entry with round columns -Foyer open to Dining and Living Rooms with coffered ceilings -Living Room with fireplace -Kitchen with island work area and ample cabinets -Family Room with coffered ceiling and open to Cafe with access to Rear Covered Lanai Master Suite with coffered ceiling, two walk-in closets and access to Rear Patio -Master Bath with corner whirlpool bath, corner shower and split vanities -Library with coffered ceiling Bedroom 2 with private bath -Upper Floor Loft with coffered ceiling -Bedrooms 3, 4 and 5 with walk-in closets and private baths Bedroom 5 with private -Covered Terrace access

Each plan set includes the following:

  • FLOOR PLAN: Fully dimensioned floor plan indicating the size and location of all walls, doors, windows, and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Aerial view showing the elements that make up the roof, including roof slopes, ridges, hips, and valleys. In addition to the basic rooflines, our roof plans have specifically engineered truss drawings that show the length, spacing, and layout of all roof structural members.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes kitchen and bath layout.
  • KITCHEN & BATH LAYOUTS: The general layout of kitchens and baths is shown on the floor plan and includes fixtures and cabinetry.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

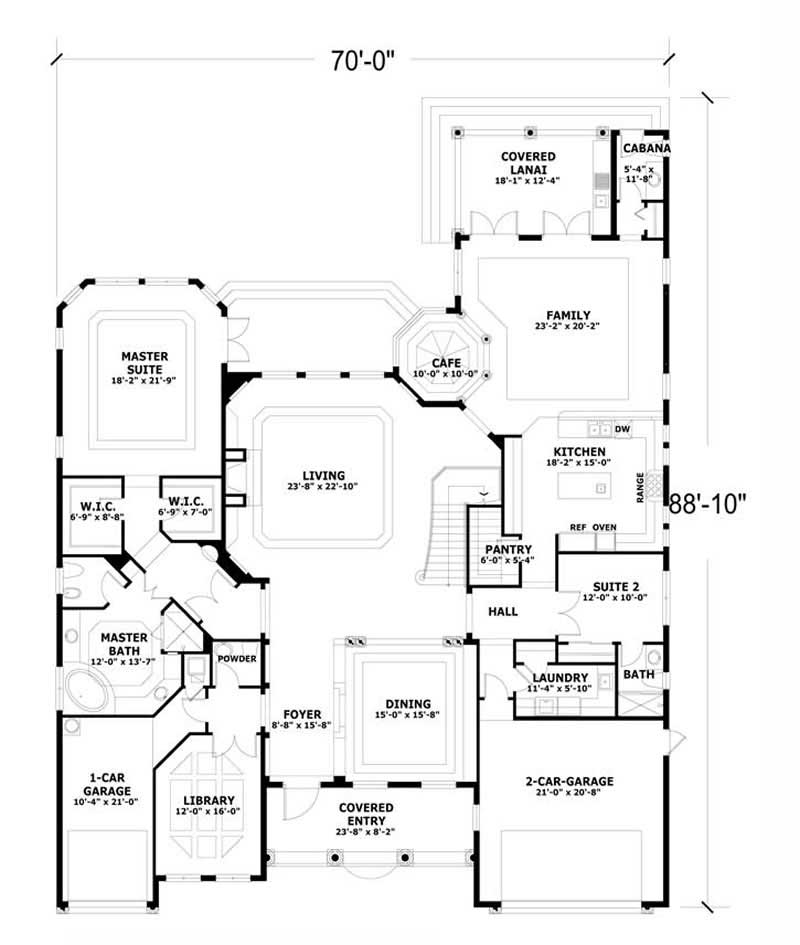

Home Plan: #107-1210 Floor Plan First Story - first Floor Plan First Story of Coastal Plan #107-1210

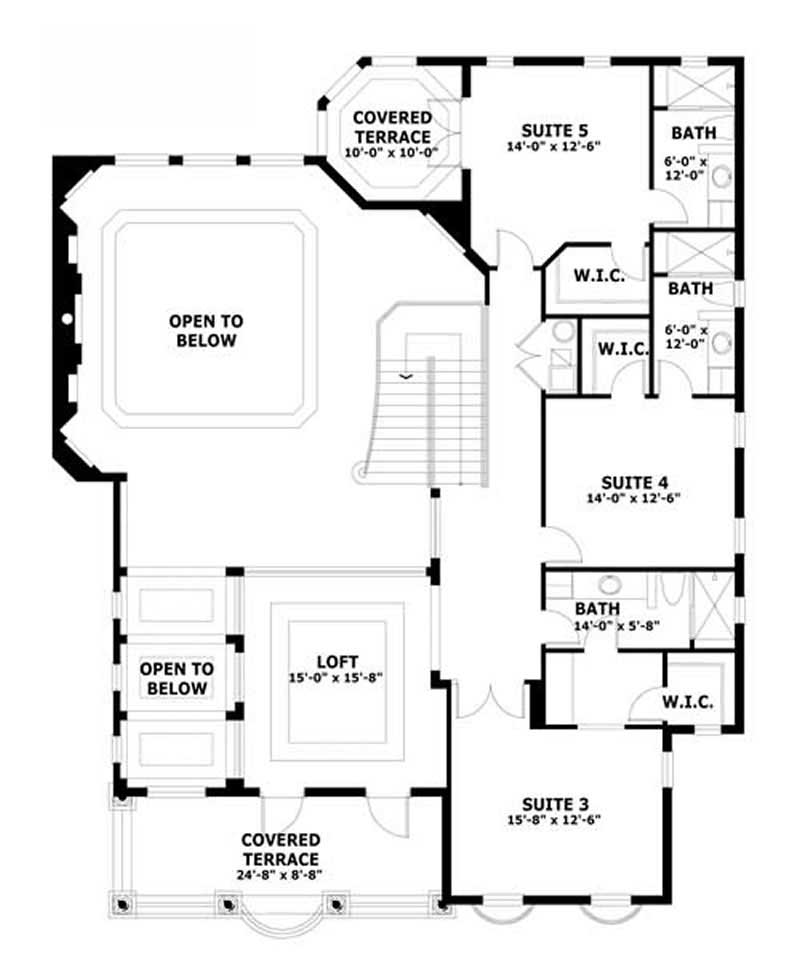

#107-1210 Floor Plan Second Story - second Floor Plan Second Story of Coastal Plan #107-1210
Home Plan: #107-1210 Floor Plan First Story - first Floor Plan First Story of Coastal Plan #107-1210
#107-1210 Floor Plan Second Story - second Floor Plan Second Story of Coastal Plan #107-1210
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 107-1210
Floors:
2
Bedrooms:
5
Full Baths:
5
Half Baths:
2

Square Footage

Heated Sq Feet:
5412
Main Floor:
3874
Upper Floor:
1538
Unfinished Sq Ft:
Garage :
753

Dimensions

Width:
70' 0"
Depth:
88' 10"
Ridge Height:
35' 0"

Architectural Styles

Beachfront
Coastal
Concrete Block/ ICF Design
Luxury
Mediterranean
Spanish

Roof Pitch

5/12

Ceiling Height

9 Foot Ceiling

Special Feature

Family Room
Fireplace
Library

Garage Type

Attached Garage

Fireplaces

One Fireplace

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
