|3044 SQUARE FEET||4 BEDROOMS||3 FULL BATH||0 HALF BATH|
|2 FLOOR||60' 3" WIDTH||45' 9" DEPTH||2 GARAGE BAY|

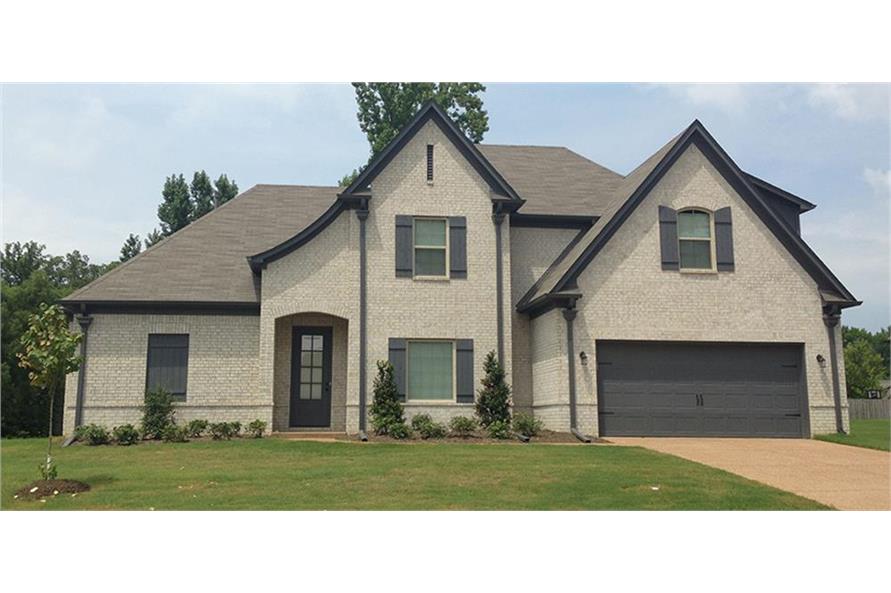

This impressive European style home with Luxury characteristics (Plan #196-1015) has 3044 square feet of living space. The 2 story floor plan includes 4 bedrooms and 3 bathrooms.
Each plan set includes the following:

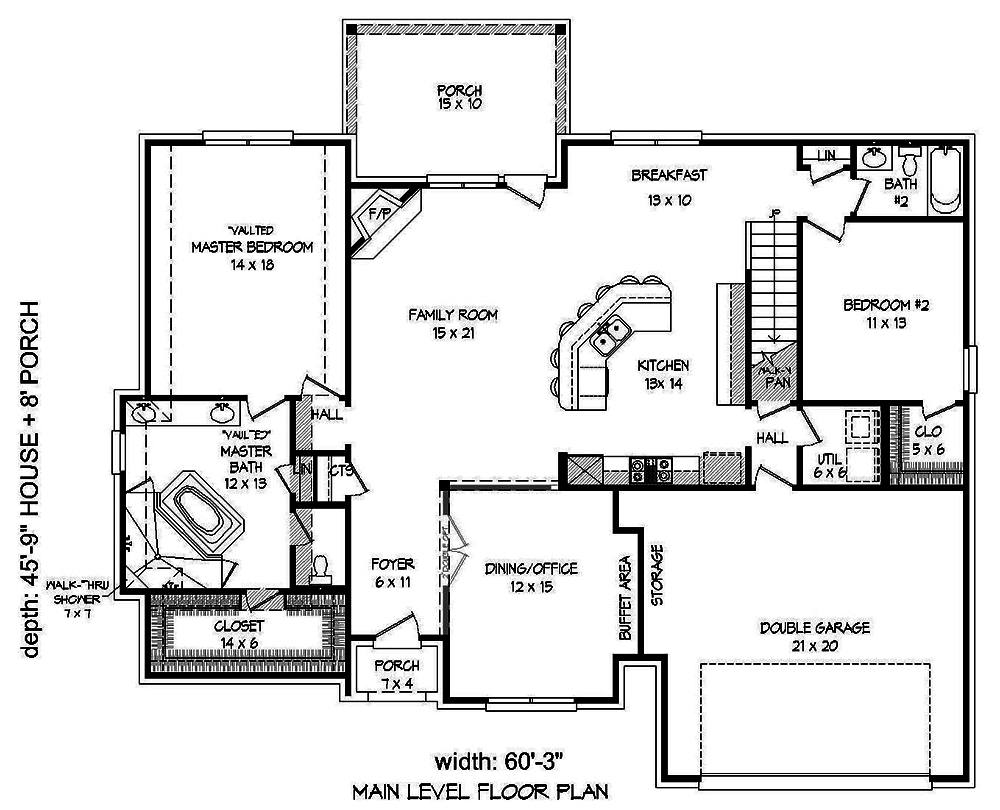

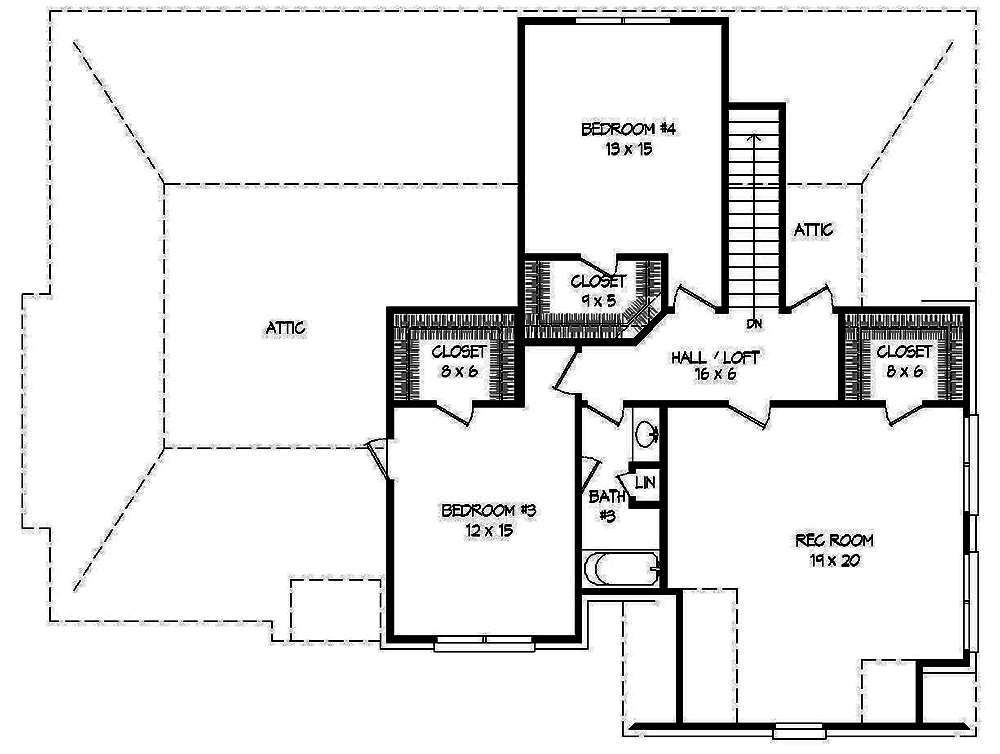

a) Floor Plans: Floor plan drawings indicating dimensions for construction
b) Roof Plan: Drawings indicating roof slopes and unique conditions

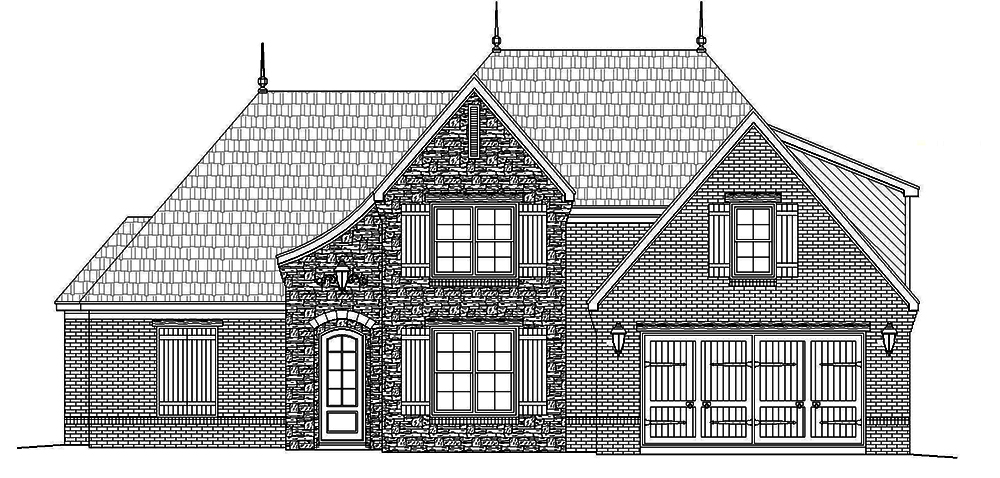

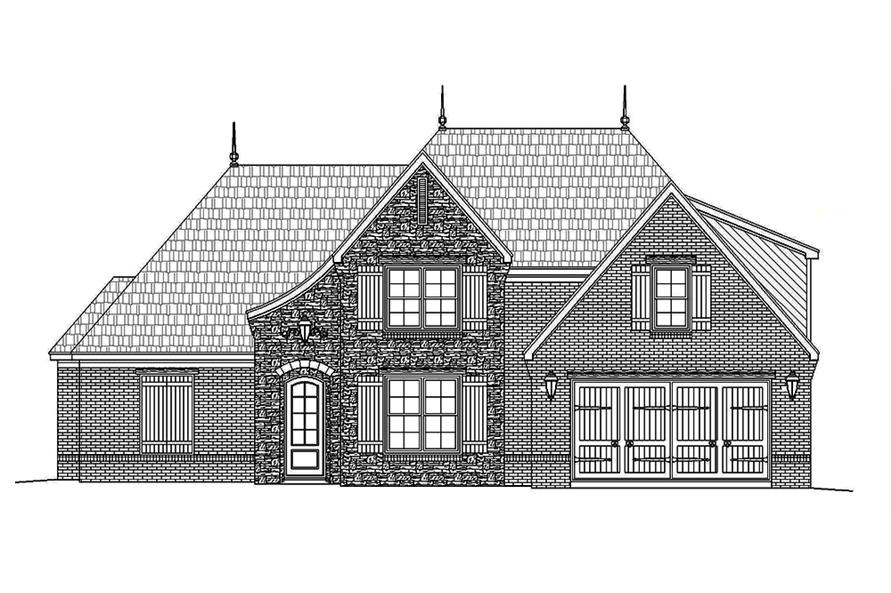

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
d) Building Sections: Drawings cut through important locations in the structure
e) Construction Details: Drawings showing specific construction of building elements at a large scale
f) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches, and outlets)
g) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
h) A building license: A single-use license for construction at one location only
Additional notes about engineering and building codes:
Our plans are designed to meet national building codes. We do not guarantee they will meet all local building requirements or building codes influenced by local geographic or climatic factors. It is the responsibility of the owner or builder to ensure these plans comply with city, county, municipal, and/or state/provincial building codes. Additionally, your plans will not be sealed or stamped by an engineer or architect. It is the owner’s (or builder’s) responsibility to hire a local professional to review and seal or stamp the plans if required by the building department. This must be handled by an engineer or architect licensed in the state/province where the plan is to be built.
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

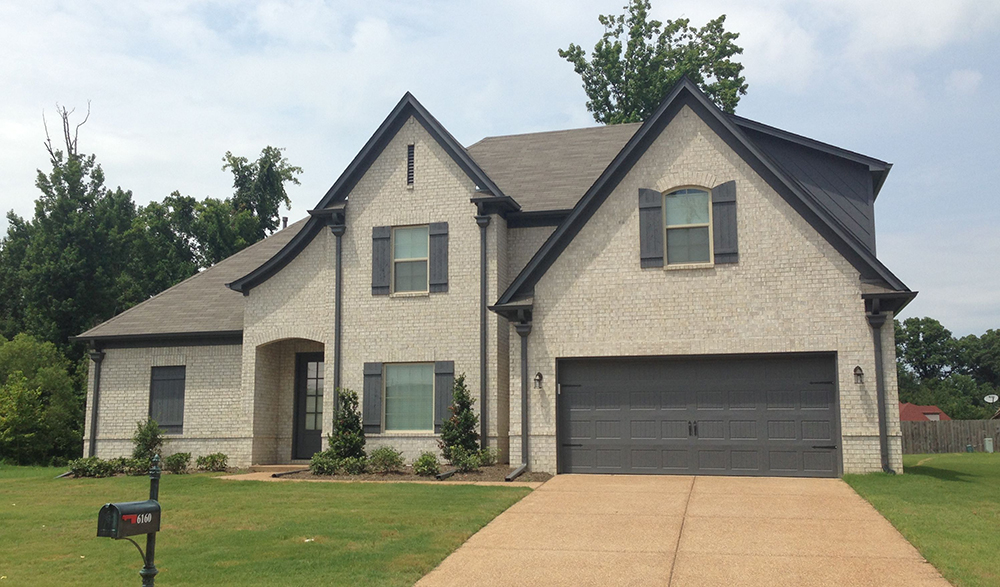

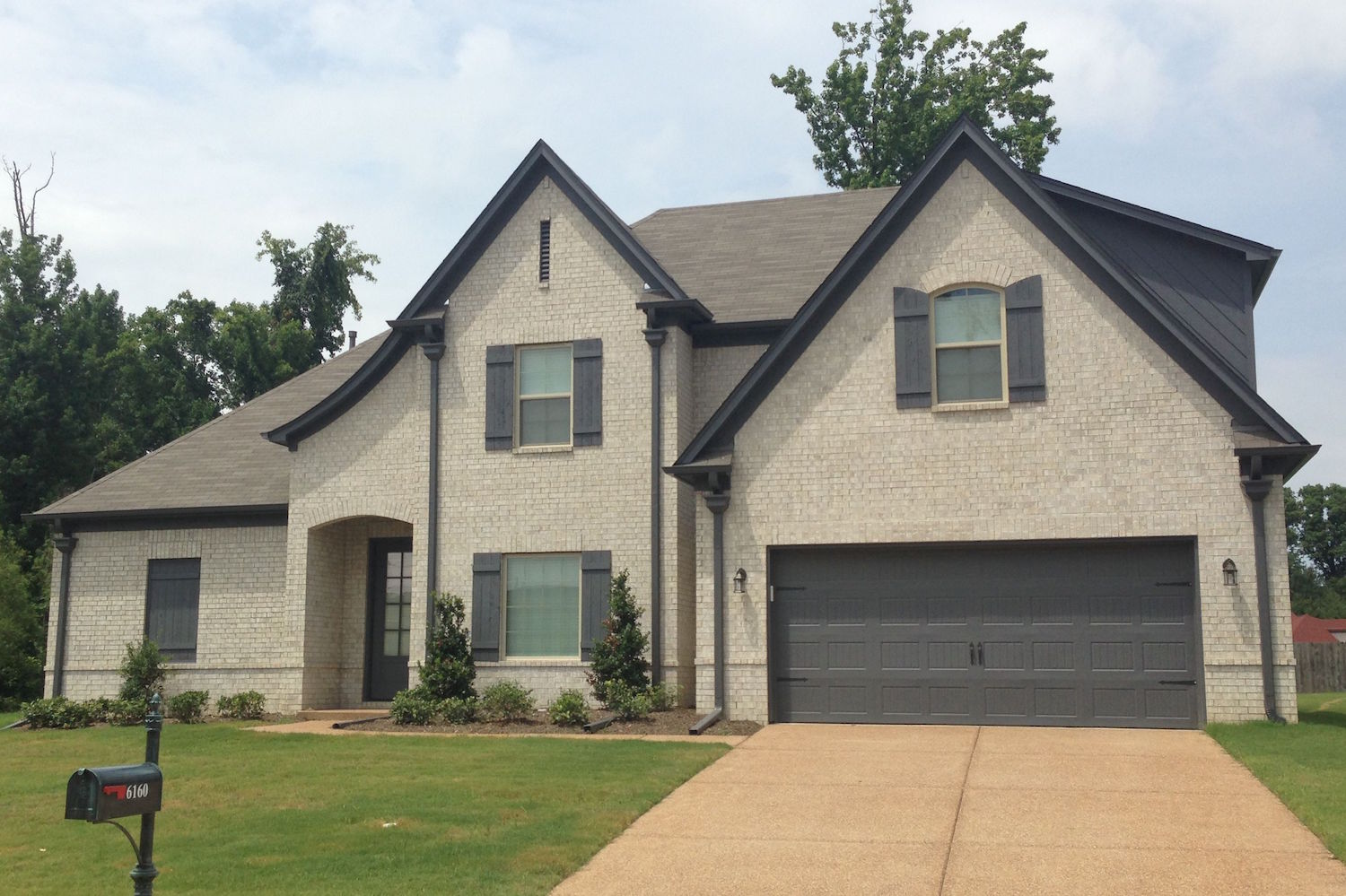

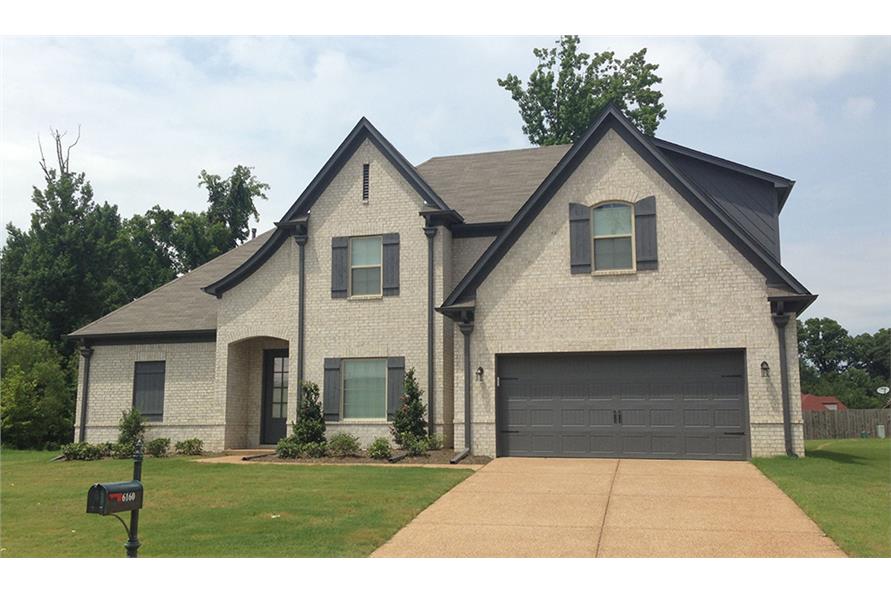

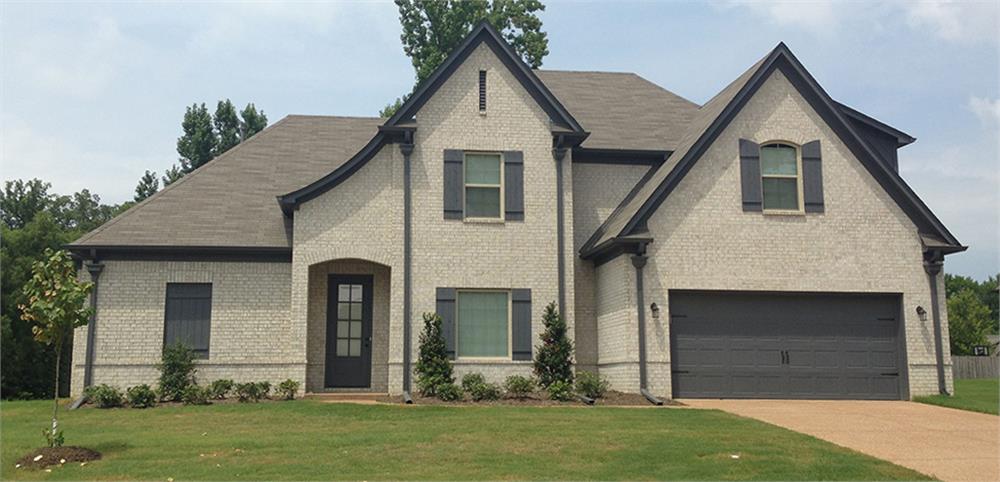

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
