3-Bedroom, 2984 Sq Ft Transitional Plan with Walk In Closet

Color rendering of Transitional home design (ThePlanCollection: House Plan #117-1117)
117-1117: Home Plan Front Elevation
117-1117: Home Plan Rendering
117-1117: Home Plan Rear Elevation
117-1117: Home Plan Rendering-Patio
117-1117: Home Plan Rendering-Pool
117-1117: Home Plan Rendering
117-1117: Home Plan Rendering
117-1117: Home Plan Rendering-Garage
117-1117: Home Plan Rendering

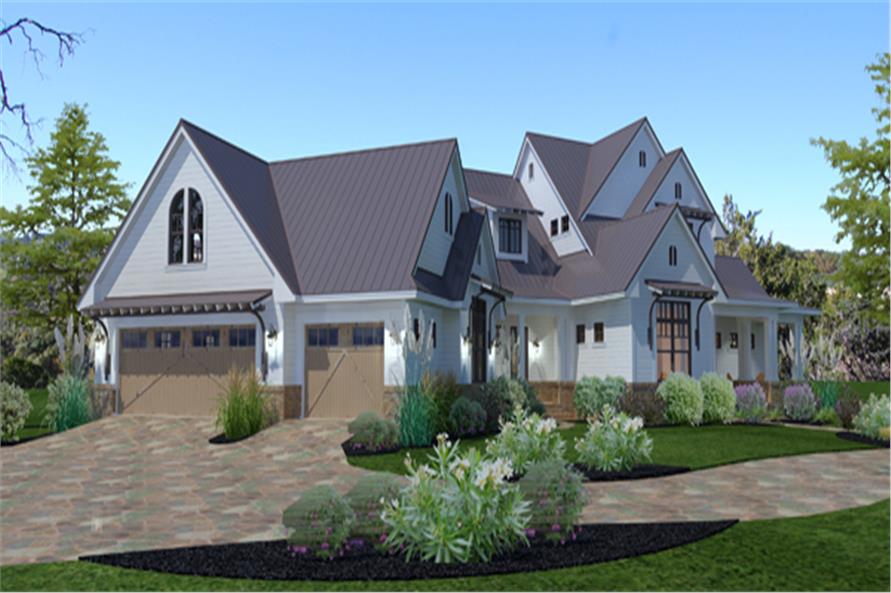

3-Bedroom, 2984 Sq Ft Transitional Home Plan - 117-1117 - Main Exterior

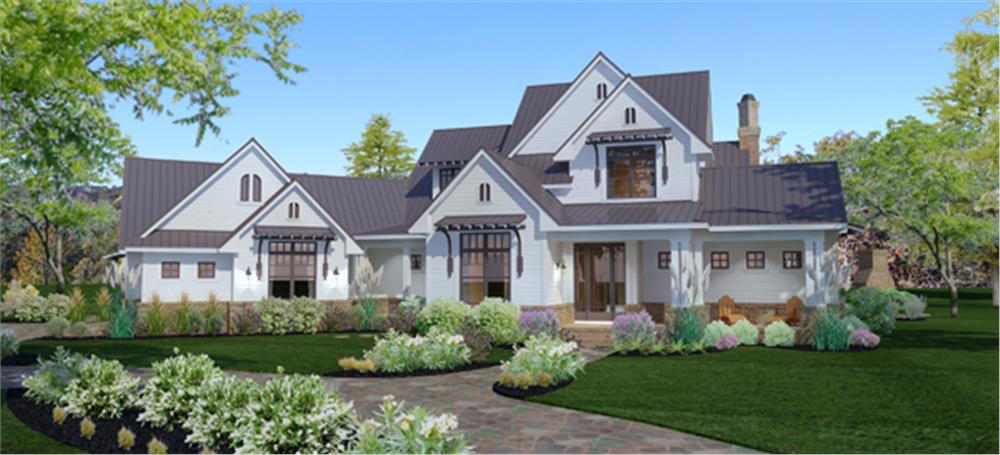

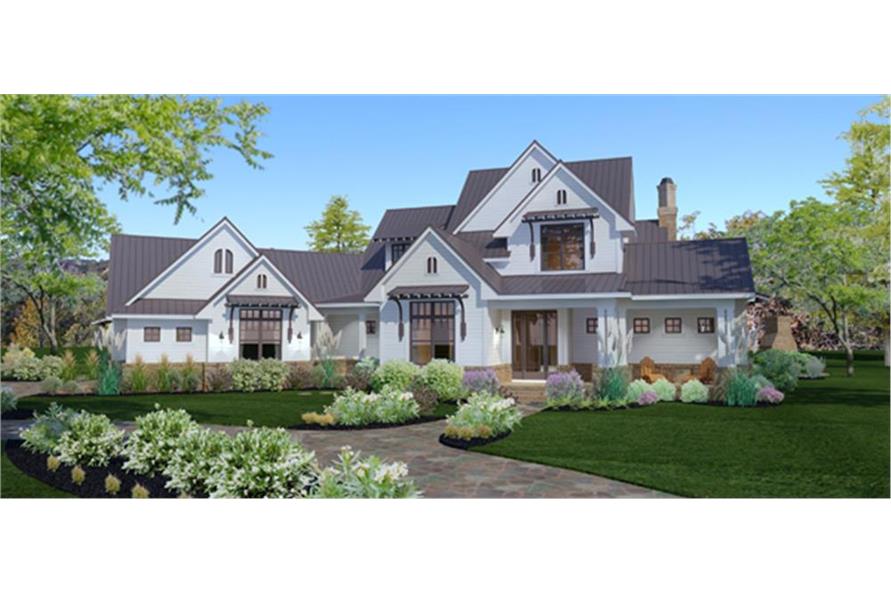

117-1117: Home Plan Front Elevation
117-1117: Home Plan Rendering

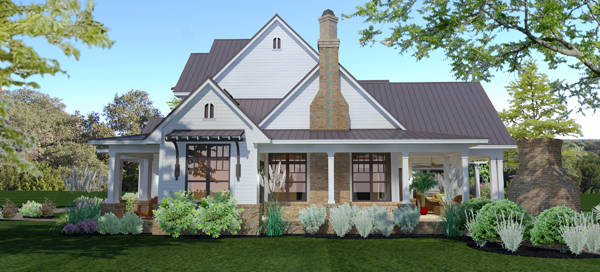

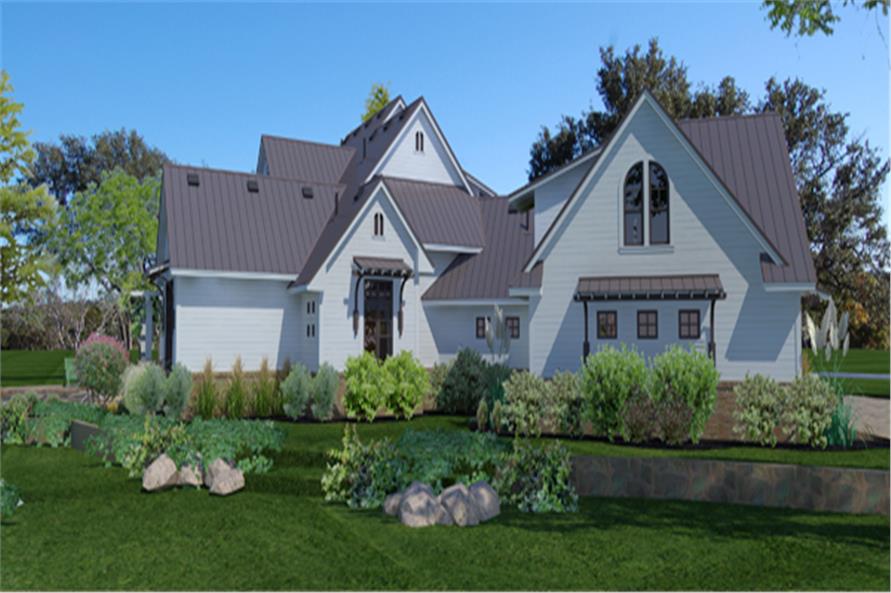

117-1117: Home Plan Rear Elevation

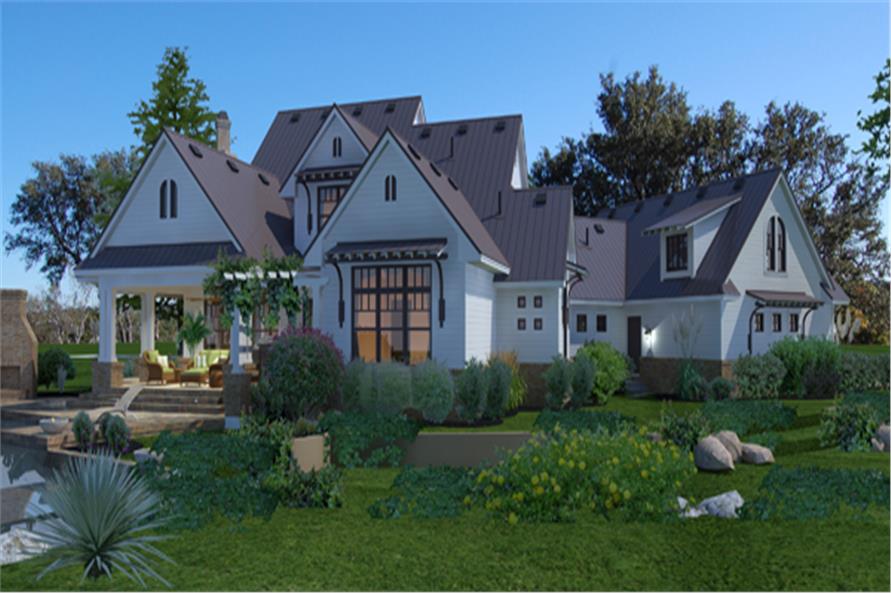

117-1117: Home Plan Rendering-Patio
117-1117: Home Plan Rendering-Pool
117-1117: Home Plan Rendering
117-1117: Home Plan Rendering
117-1117: Home Plan Rendering-Garage
117-1117: Home Plan Rendering

About Plan # 117-1117

About Plan # 117-1117

2984 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 105' 6" WIDTH 75' 6" DEPTH 3 GARAGE BAY

This impressive Transitional style home with Farmhouse influences (House Plan #117-1117) has 2984 square feet of living space. The 2 story floor plan includes 3 bedrooms, 2 full bathrooms, and 1 half bath.

Each plan set includes the following:

  • FLOOR PLANS: ¼”=1’-0” scale floor plan indicating the location of frame and masonry walls, support members, doors, windows, plumbing fixtures, kitchen appliance locations, cabinet locations, tags to cross-section details, shelving, ceiling conditions, and notes deemed relevant to this plan.
  • EXTERIOR ELEVATIONS: All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate the overall configuration of the home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and the extent to which they are used, and enlargement of any details deemed necessary to explain the construction.
  • BUILDING SECTIONS: ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
  • FOUNDATION PLAN: ¼” = 1’-0” scale foundation plans. The slab foundation comes with both interior and exterior beams. Dimensioned and noted foundation layout, including references to support walls, excavated and unexcavated areas. Basement foundation plans may show additional walls, grade beams, reinforcing steel, and structural columns. Structural information for all foundation types should be obtained by a locally licensed engineer for your specific site location.
  • FRAMING PLANS: ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted. Includes floor, ceiling, and roof framing schematics.
  • CABINET ELEVATIONS: 3/8” = 1’-0” scale elevations indicating the configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, and appliances.
  • ELECTRICAL PLAN: ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched. Plans do not include circuiting or wire sizing. Plans will also include specialty items such as hose bibbs, gas connections, location of A/C equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

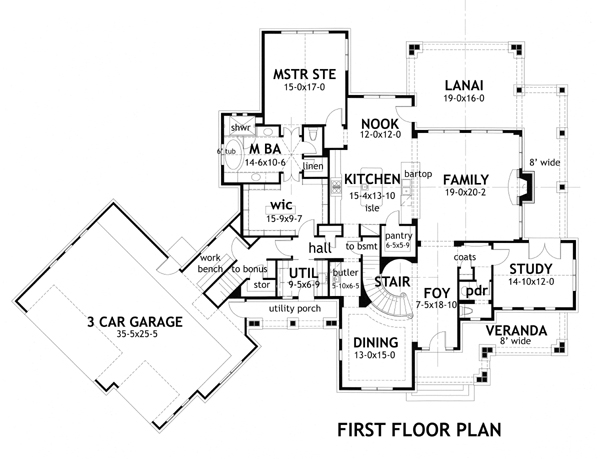

Home Plan: #117-1117 Floor Plan First Story - main level Floor Plan First Story of Transitional Plan #117-1117

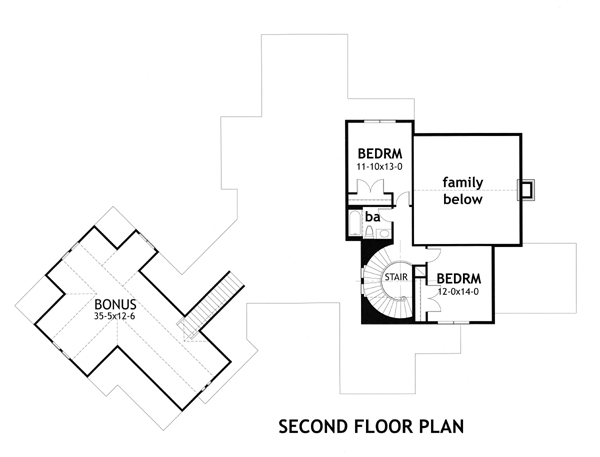

#117-1117 Floor Plan Second Story - upper level Floor Plan Second Story of Transitional Plan #117-1117

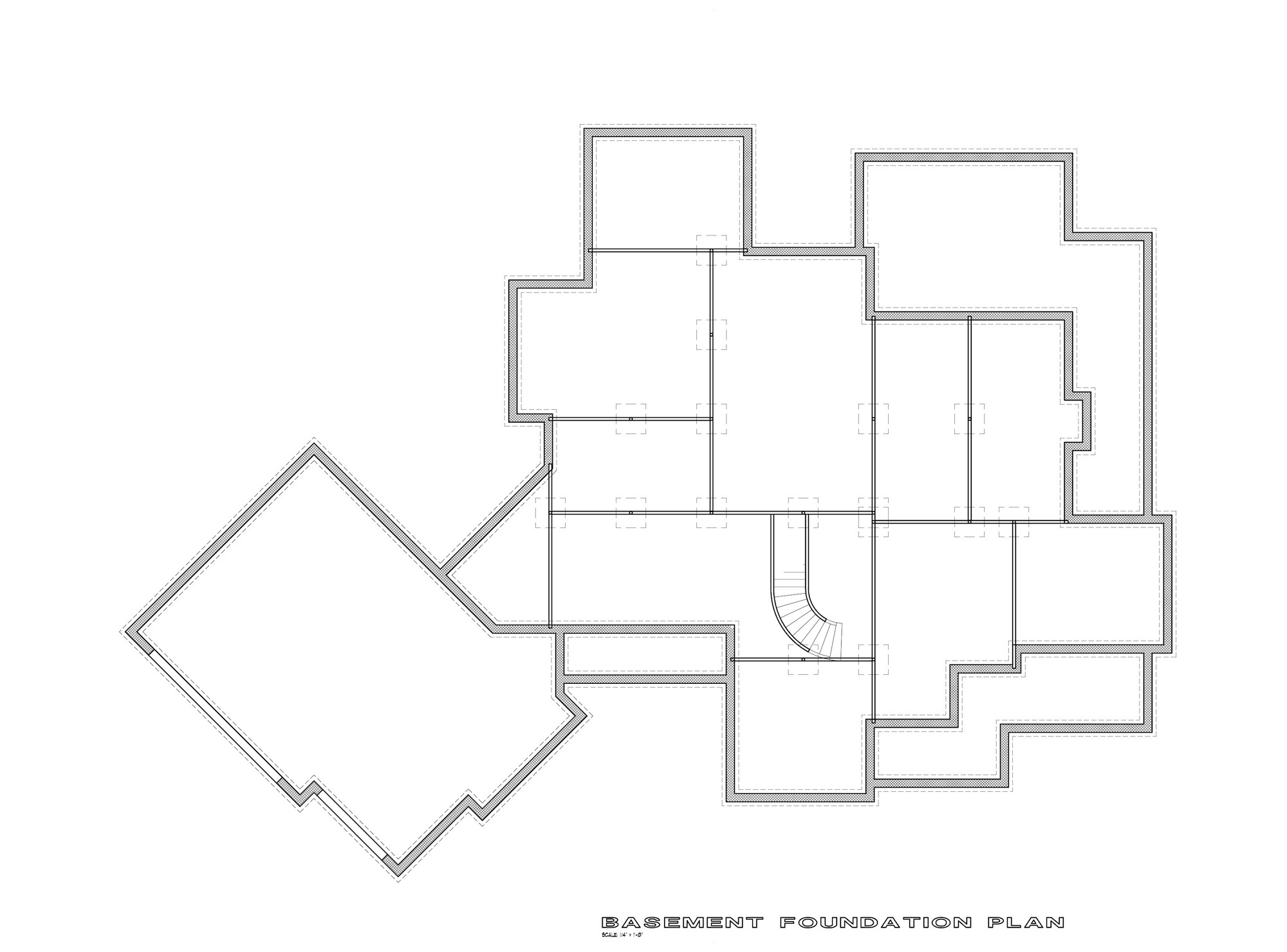

#117-1117 Floor Plan Basement - basement Floor Plan Basement of Transitional Plan #117-1117
