3-Bedroom, 2527 Sq Ft Coastal Plan with Main Floor Master

Front elevation of Coastal home (ThePlanCollection: House Plan #126-1364)

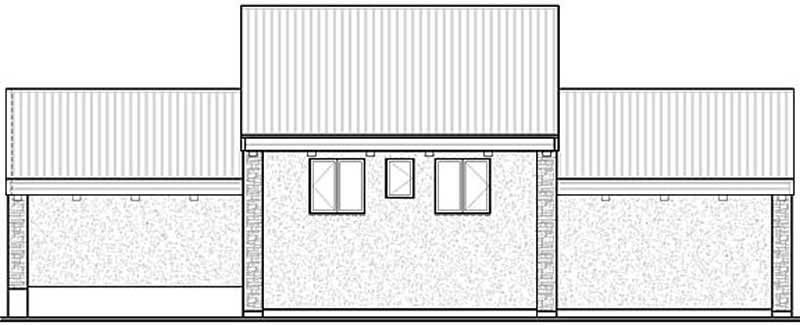

126-1364: Home Plan Rear Elevation
126-1364: Home Plan Rendering
3-Bedroom, 2527 Sq Ft Coastal Home Plan - 126-1364 - Main Exterior
126-1364: Home Plan Rear Elevation
126-1364: Home Plan Rendering

About Plan # 126-1364

About Plan # 126-1364

2527 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 66' 0" WIDTH 44' 0" DEPTH 0 GARAGE BAY

From the ocean, to the lake, to the mountains, this home's design is just perfect. After passing through the enclosed foyer with its large walk-in closet, enter the hub of the home's spacious open floor plan.

  • The dining area and living area create a large and airy space.
  • A sloped ceiling plus the wall of windows bring in plenty of natural light.
  • An open-concept kitchen is a focal point with its gently curved island with seating.
  • For watching movies or the game, the large media room provides privacy. (This could also be converted into a garage).
  • Master bedroom enjoys a walk-in closet plus a master bath with dual sinks and a separate walk-in shower.
  • Bedrooms #2 and #3 share a Jack-and-Jill bathroom.
  • Upstairs find the mezzanine with a tremendous outdoor living space on the terrace.

Each plan set includes the following:

  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • FOUNDATION PLAN: Dimensioned plan detailing the layout and construction of the foundation.
  • GROUND FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • UPPER FLOOR PLAN (if applicable): Same level of detail as the ground floor plan.
  • ROOF PLAN: The planning of the floor systems and roof include information such as the weight load of the columns, the beam dimensions, the right direction of the small beams, the location of the reinforced structures, and the complete details of the roof, including notation of spacing and schematics of peaks and valleys.
  • BUILD SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Also includes a typical wall section.
  • ELECTRICAL PLAN. Identifies the locations of lighting fixtures, outlets, fans, etc.
    Note: Electrical is not available for all plans; please contact us to inquire about this specific plan.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

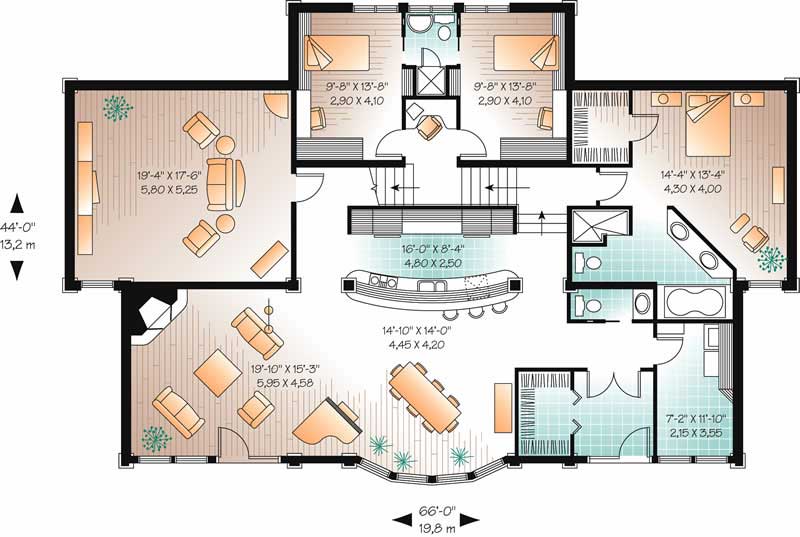

Home Plan: #126-1364 Floor Plan First Story - main Floor Plan First Story of Coastal Plan #126-1364

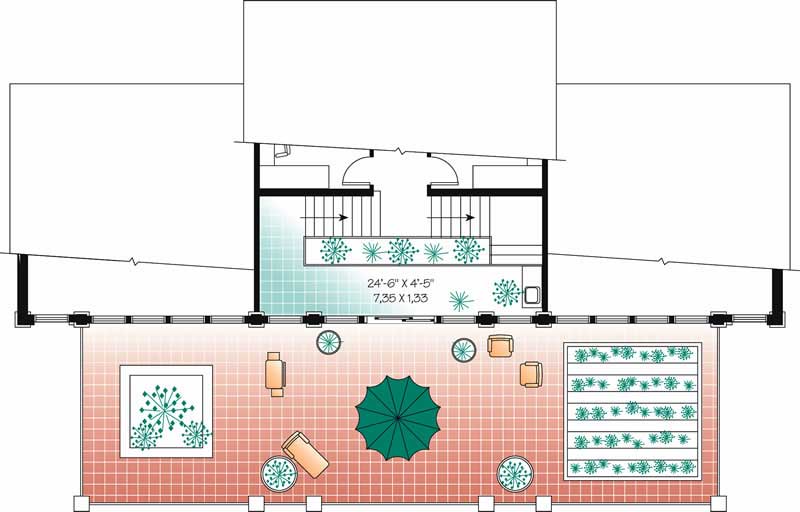

#126-1364 Floor Plan Second Story - second Floor Plan Second Story of Coastal Plan #126-1364
Home Plan: #126-1364 Floor Plan First Story - main Floor Plan First Story of Coastal Plan #126-1364
#126-1364 Floor Plan Second Story - second Floor Plan Second Story of Coastal Plan #126-1364
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 126-1364
Floors:
2
Bedrooms:
3
Full Baths:
2
Half Baths:
1

Square Footage

Heated Sq Feet:
2527
Main Floor:
2357
Upper Floor:
170
Unfinished Sq Ft:

Dimensions

Width:
66' 0"
Depth:
44' 0"
Ridge Height:
25' 10"

Architectural Styles

Coastal
Modern
Transitional
Vacation Homes

Exterior Wall Material

Rock/Stone
Stucco

Special Feature

Dining Room
Family Room
Fireplace
Main Level Laundry
Media Room
Open Floor Plan
Vaulted Ceilings

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Peninsula/Eating Bar

Porches and Exterior Features

Sundeck

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

NOTE: Partial basement foundation is approx. 396 square feet. The remeinder of the foundation is a floating slab.


PLEASE NOTE!! Due to COVID-19, this designer may take 5-7 additional business days BEFORE plans are sent out, regardless of the type of delivery (express, email, etc). Please keep this in mind when ordering. PLEASE NOTE! This designer's plans do NOT come with an electrical layout. They will provide an electrical layout for an additional fee. Thank you. BCIN is available - Please allow 10 business days to complete!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
