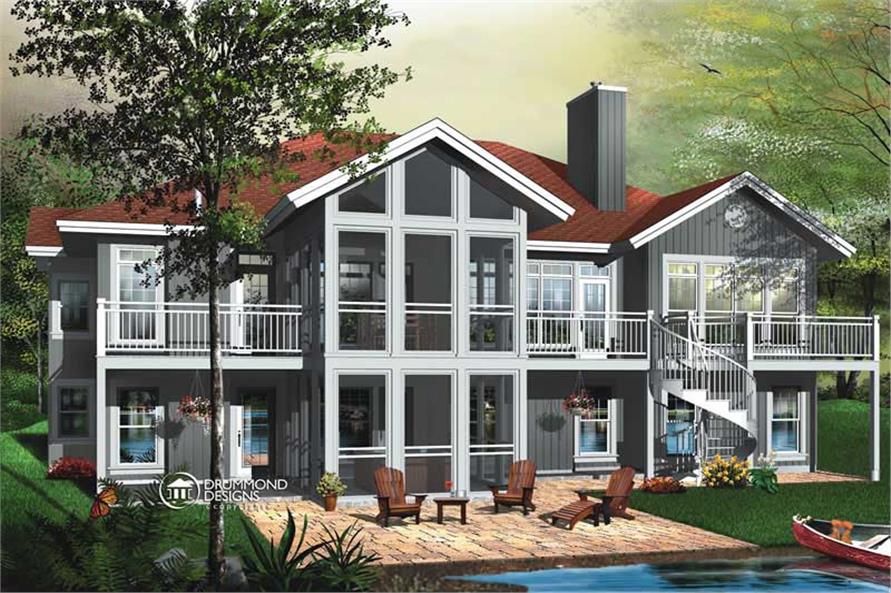

5-Bedroom, 3930 Sq Ft Lakefront Plan with Master Bathroom
Related House Plans
| 3930 SQUARE FEET | 5 BEDROOMS | 4 FULL BATH | 0 HALF BATH |
| 2 FLOOR | 62' 0" WIDTH | 48' 0" DEPTH | 2 GARAGE BAY |

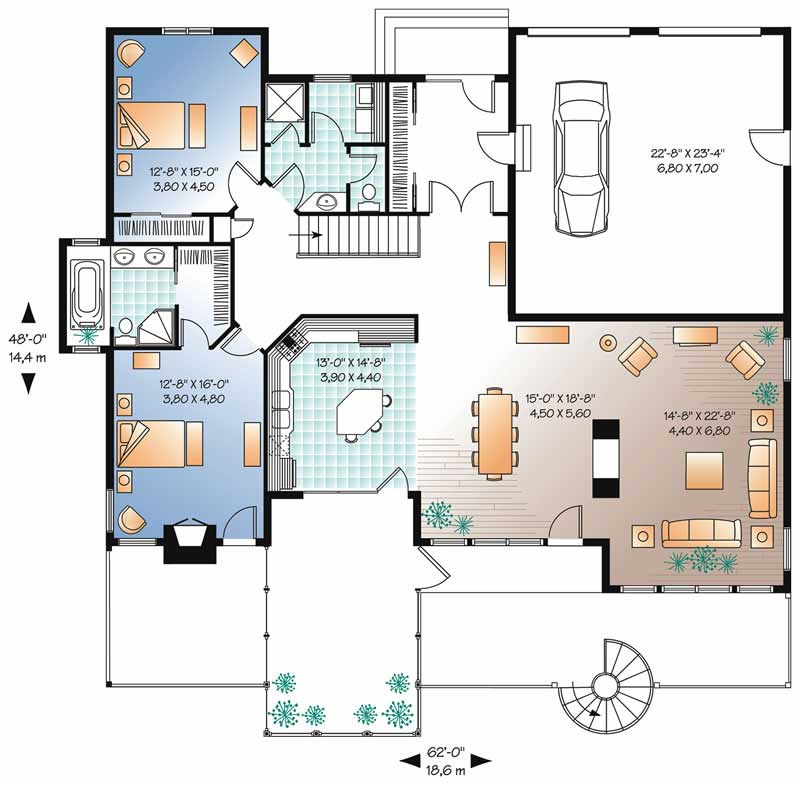

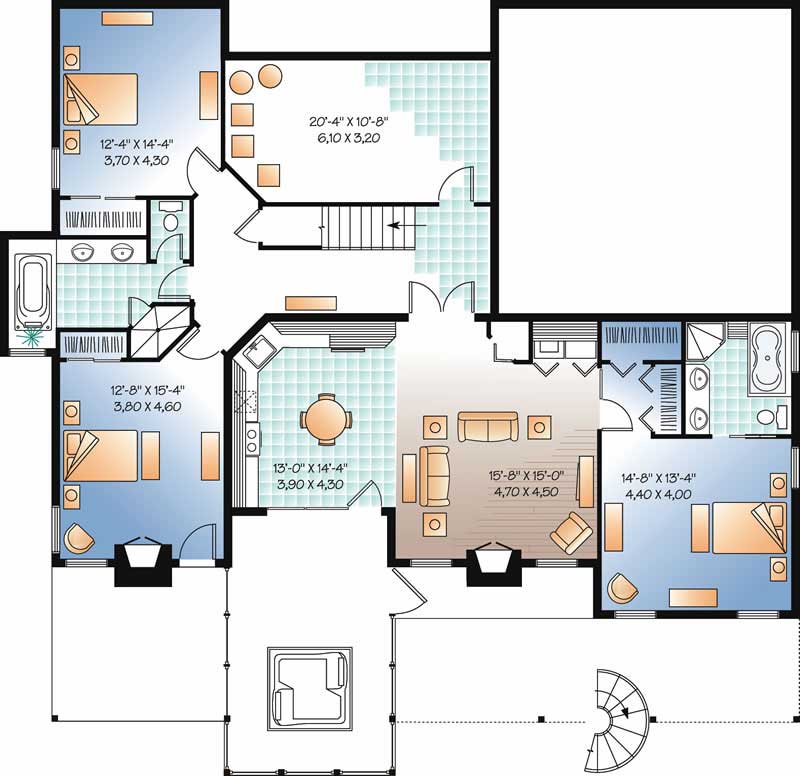

1st level (9' ceiling) Strategic foyer with large coat closet, laundry room with shower facilities, two bedrooms of which one has fireplace and private bathroom, kitchen with island and lunch counter, triple garden doors, large dining room shares a see-thru fireplace with family room. Lower level: Ample storage, two bedrooms of which one has a fireplace, bathroom, a small apartment consisting of kitchen with integrated table, attractive family room with fireplace, laundry area and bedroom suite with bathroom.
Each plan set includes the following:
- Exterior elevations
- Foundation plan
- Main floor plan
- Upper floor plan (if applicable)
- Roof plan
- Truss diagrams & building sections
- Construction details
- Typical wall section
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- No Electrical
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review
FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Exterior Wall Material
Garage Type
Fireplaces
Additional Notes from Designer
BCIN is available for this plan - Please submit a modification request for a FREE quote!
Please note that this Designer will be closed on April 7th and 10th for the upcoming Easter holiday. PLEASE NOTE!! Due to COVID-19, this designer may take 5-7 additional business days BEFORE plans are sent out, regardless of the type of delivery (express, email, etc). Please keep this in mind when ordering. BCIN is available for this designer - please send in a modification request for cost and timeframe. PLEASE NOTE! This designer's plans do NOT come with an electrical layout. They will provide an electrical layout for an additional fee. Thank you. BCIN is available - Please allow 10 business days to complete!
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
